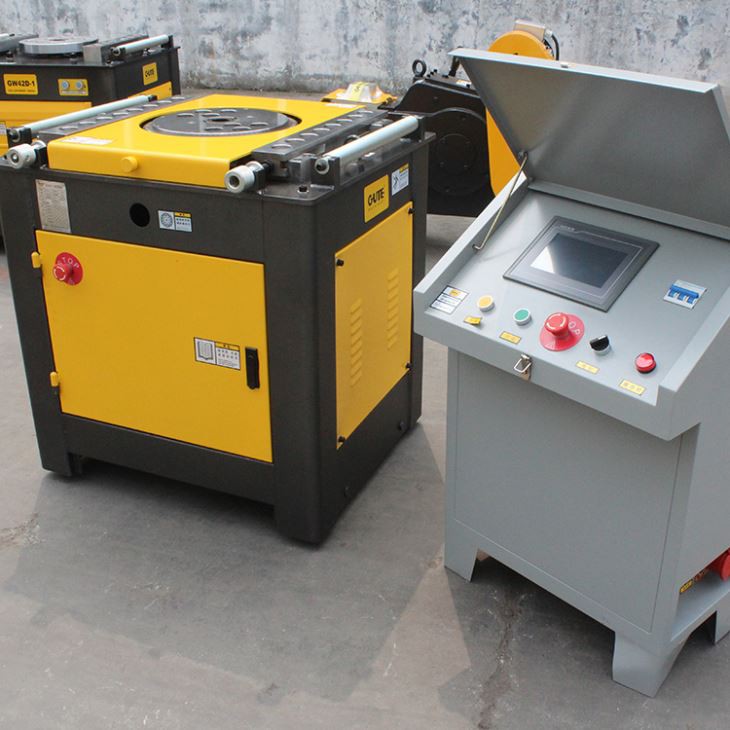

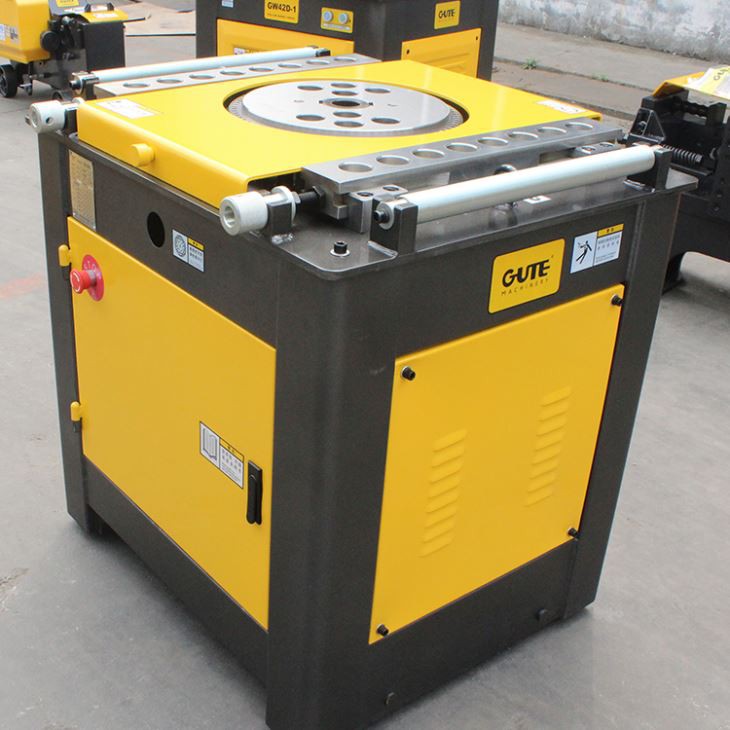

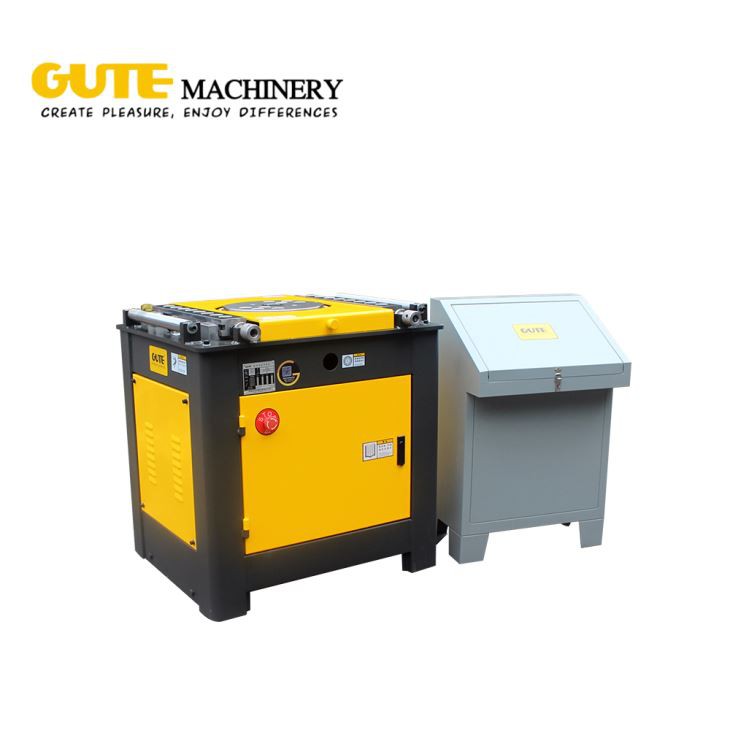

GUTE Machinery SGW32E Iron Bar Bending Machine

Contact this seller for accurate pricing

In stock

Features (SGW32E):

Bending Diameter: 6-32mm

Motor Power: 3kw-4p

Motor Speed: 1430r/min

Control Way: automatic

Working Disc Speed: 15r/min

Weight: 340kg

  Chat Now
SKU: GUTE-SGW32E-IBB Categories: , Brand:

Description

Product Details


PRODUCT DESCRIPTION

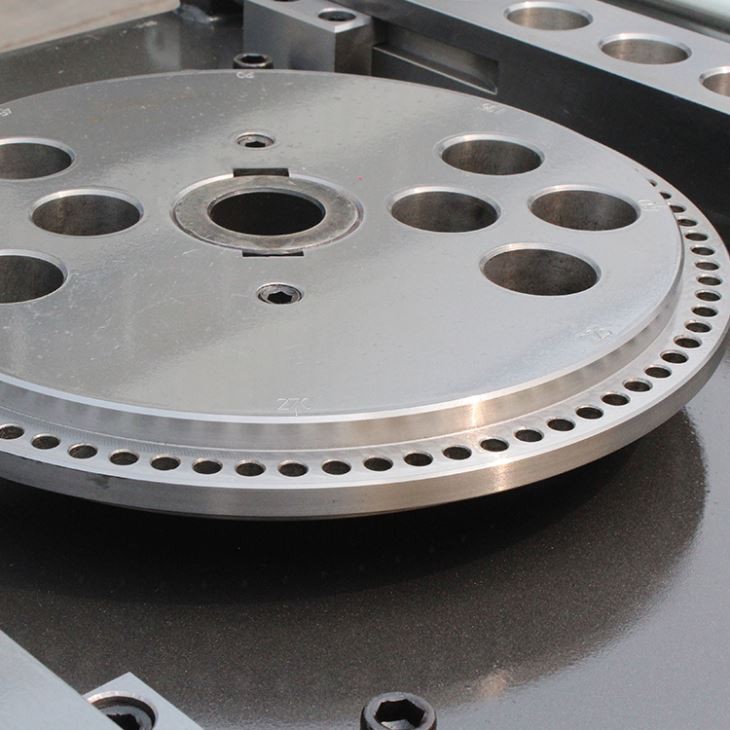

Reinforcing steel bar stirrup bender one of the processing machinery.stirrup bender is a horizontal working disk rotating on the vertical axis, placing the reinforcing bar in the dotted line position, the supporting pin is fixed on the machine tool, the center pin and the bending pin are mounted on the working disk, When they bend the steel bar.

Feature:

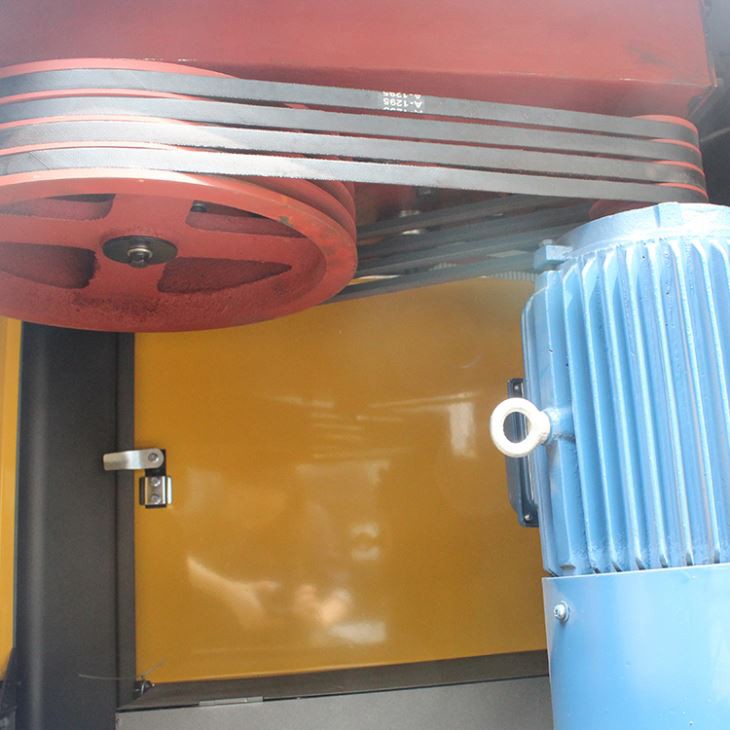

Adopt full-sealed gear box and the gear box is separated with working disc.so the gear and box will be not distortion during working period ,no leaked lubricating oil from gear box.
Alloy tools steel gears and working disc adopt forging and quenching workmanship
Dust proof copper motor
Thickness working desk

DIGITAL CONTROL STEEL BAR BENDER  SGW42D-2

Bending Capacity

6-42 mm (ob ≤450N/mm2)

6-36 mm (ob ≤650N/mm2)

Operation

DIGITAL CONTROL  (brake motor)

Type of Motor

YEJ 100L2-4 (Brake motor)

Motor Power

3 KW-4P

Motor Rotation Speed

1420 R/min

Speed of Working Disk

12 R/min

Noise Value (1m away)

≤80dB(A)

Weight

365 Kg. + 25 Kg.

Dimension

810*760*860 mm

Certification

ISO 9001:2008
