GUTE Machinery SGW12D-1 Cnc Steel Bar Stirrup Bender

Contact this seller for accurate pricing

In stock

Features (SGW12D-1):

Single Wire: 6-12mm

Double Wire: 6-10mm

Traction Speed: 75-100m/min

Max. Bending Speed: 1050º/sec

Weight:3.5t

  Chat Now
SKU: GUTE-SGW12D-1-5 Categories: , Brand:

Description

Product Details


stirrup bending machine

Application:

Automatic stirrup bender price is a new generation steel bar bending machine. it is applicable to construction sites, like building and bridge and railway working sites. With the quality of standard size, high speed and mechanics performance stability. It is widely used with Steel works, rebar process workshop and Steel welding net factory.

Features:

1. Adopts servo controlling system to make the steel bar bending automatically .

2. Easy to operate because all the operating buttons are on the station.

3. Continuously bend various stirrup of plane figure;

4. Electrical control system adopts CNC system

5. High efficiency and accurate processing precision.

6. Lower noise and increase the durability and service life of the machine

7. Widely used in construction industry and rebar manufacturing enterprise.

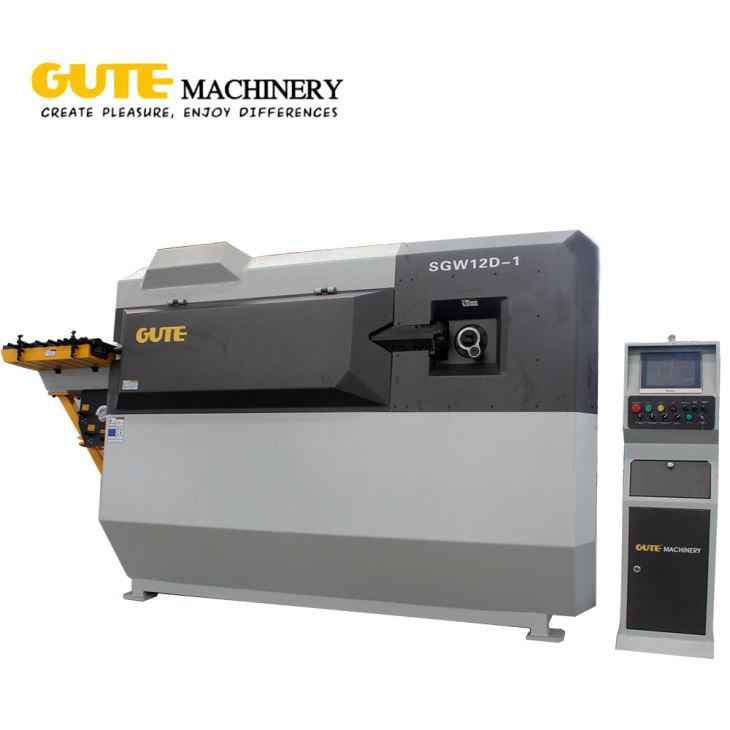

CNC STEEL BAR STIRRUP BENDER SGW12D-1

TENSILE STRENGTH

Kg/mm245

Kg/mm265

SINGLE WIRE BENDING

6-12 mm

5-11 mm

DOUBLE WIRE BENDING

6-10 mm

5-8 mm

OPERATION

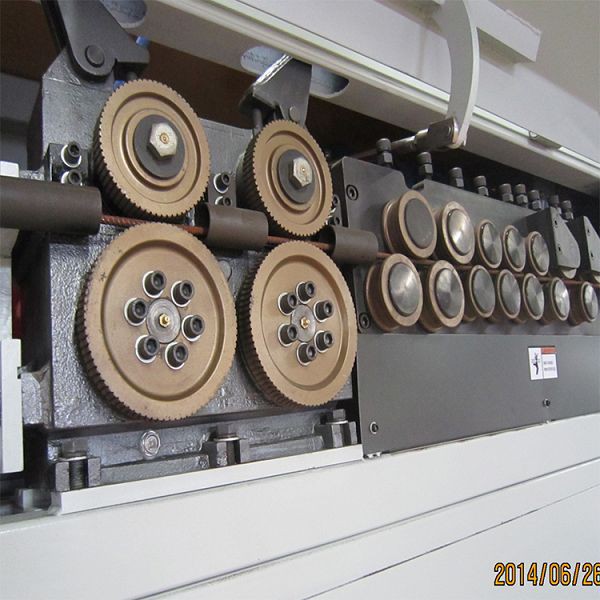

Automatic wire feeding system(CNC)



MAX. BENDING ANGLE

180°



MAX. LENGTH OF STIRRUP SIDE

900 mm



MIN. LENGTH OF STIRRUP SIDE

90 mm



MAX. BENDING SPEED

1050°/sec



MAX. TRACTION SPEED

75-100 m/min



TRACTION SERVICE MOTOR POWER

13KW



BENDING SERVICE MOTOR POWER

7KW











Hot Tags: cnc steel bar stirrup bender, manufacturers, suppliers, price
