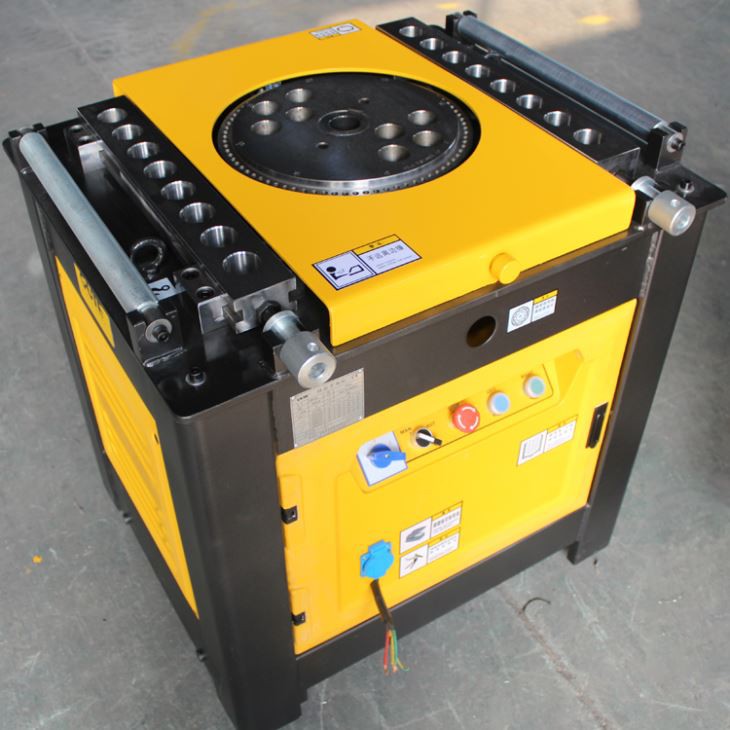

Name: ▷ Buy New GUTE Machinery GW42D-4 rebar bending machine (Gute Machinery) - Available at MachineryGenie.com
Brand: Gute Machinery
SKU: GUTE-GW42D-4-RBM
Availability: InStock

Description

Product Details

0_副本.Jpg Advantage:

1.The latest heavy-duty gear box assembly,spindle is a maintenance free

2.Column and spool adopt high quality alloy steel,high temperature quenching treatment,higher hardness,more wear-resisting

3.Increase heavy of disc and square steel,Never deformation,bend bar more accurately

4.Enclosed electric cabinet,moisture proof,prevent dust,prevent leakage

5.Thickening the dashboard,increase the integrity of the machine and longer service life

6.Double-sided operation,so that people can operate in tow realizations conveniently and quickly

7.Rotary oil-way of work station make add oil more conveniently.

Model Type

GW42D-4 (automatic) YEJ 100L2-4 (Brake motor)

GW42D-1 (manual) Y100L2-4

• POWER: 3,0 kw-4P

• SAFETY: IP44, IP54, IP55 (dust proof)

• EFFICIENCY: 81 %

• CE Certificate of adequacy.

* Both kinds of motors automatic and manual have 1 year warranty.

* VOLTAGE OPTIONS: any voltage from 220 to 440 / 220-380 (switchable)

* FREQUENCY OPTIONS: 50Hz / 60Hz
https://youtu.be/VL-urmeGAtU

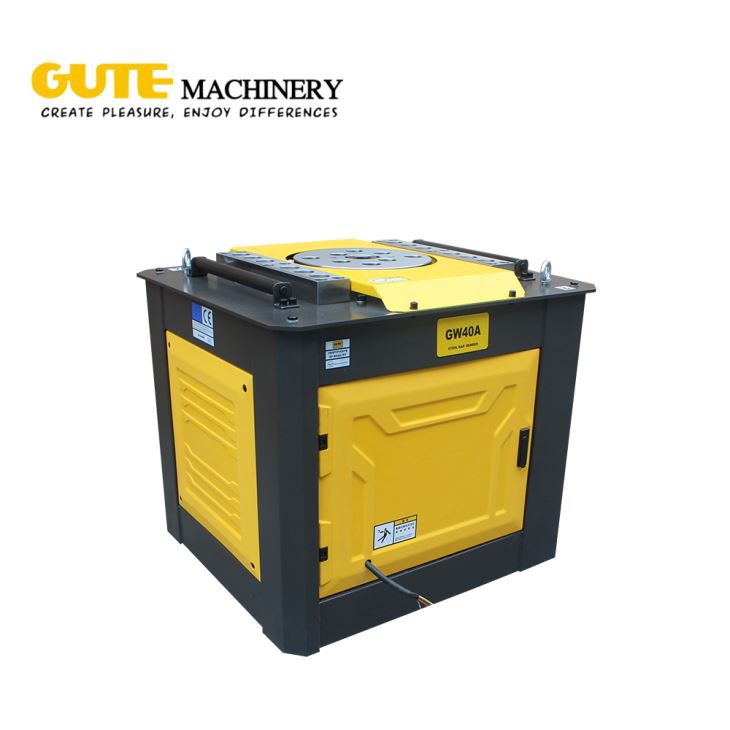

Steel Bar Bender GW40A Automatic/Manual
Bending Capacity	6-38mm(ob ≤450N/mm2)	6-36 mm (ob ≤650N/mm2)
Operation	Automatic	Manual
Type of Motor	Y100L2-4 (Brake motor)	Y100L2-4
Motor Power	3 KW-4P	3 KW-4P
Motor Rotation Speed	1430 R/min	1430 R/min
Speed of Working Disk	8-11 R/min	8-11 R/min
Noise Value (1m away)	≤80dB(A)	≤75dB(A)
Weight	310 Kg.	305Kg.
Dimension	850×760×800mm	850×760×800mm
Certification	2006/42/EC – 2006/95/EC
