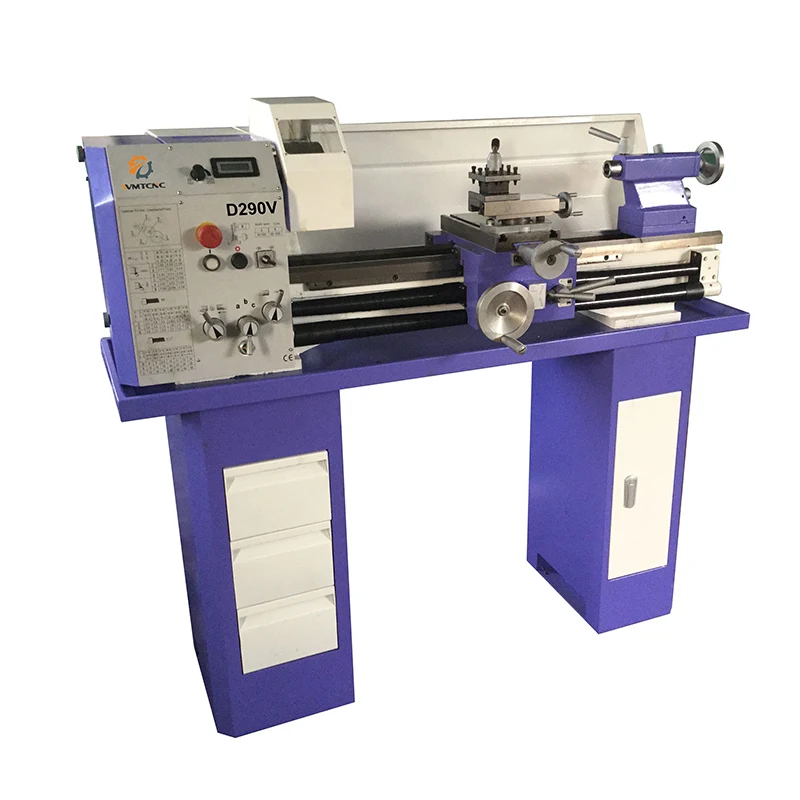

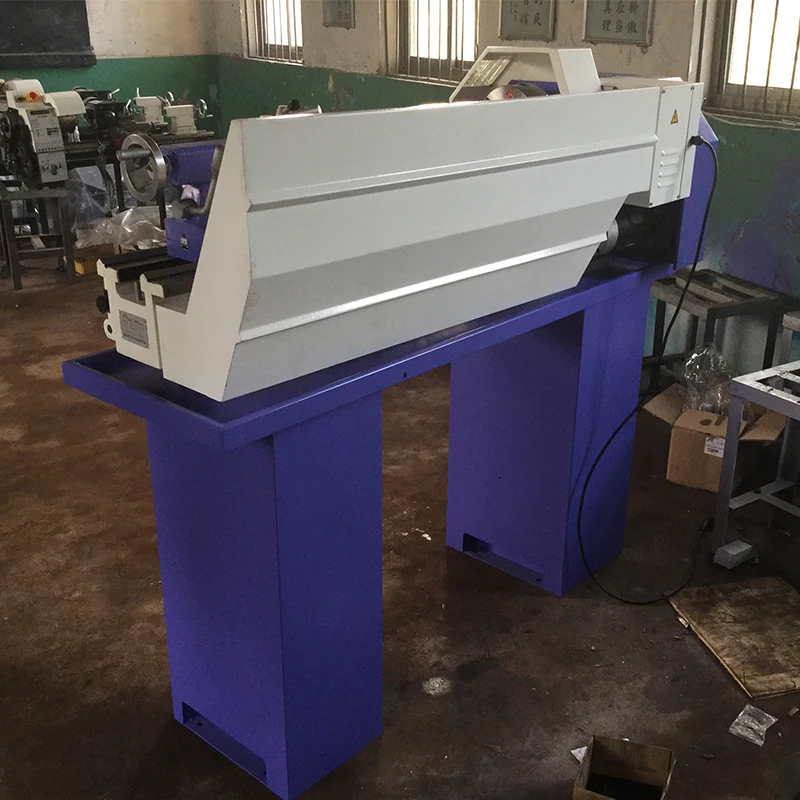

Name: ▷ Buy New D290V Variable Speed Mini Metal Bench Lathe in China () - Available at MachineryGenie.com
SKU: 4000916485594
Price: 3206.25 USD
Availability: InStock

Description

Attention please!!!

Please kindly read the following tips before purchasing.

1. The transaction of large machinery cannot be completed on AliExpress.

2. The express fee on AliExpress has no reference value, please ignore it. We ship by sea instead of express, please contact us to get the freight to your sea port.

3. If any problem please feel free to contact with us.

Whatsapp 86 18656680921 Email [email protected]

CJM250 Mini Metal Lathe Machine Price with Auto Feeding

Features:
1. Precision ground and hardened bed ways.
2. The spindle is supported with precision roller bearings.
3. Headstock gears are made of high quality steel, ground and hardened.
4. Easy operating speed change levers.
Spindle speed range 80-1600rpm.
5. Easy operating gear box has various feeds and thread cutting function.
6. With or without cabinet according to requirement.

Specifications	CJM250
Max. swing over the bed	250mm
Max. length of work piece	500mm
Max. swing over cross slide	150mm
Max. cross slide travel	130mm
Max. longitudinal stroke over tool post:	60mm
Spindle bore	26mm
Spindle taper	MT4
Spindle speeds range	12 steps: 80-1600r/min
Metric thread kinds	9
Metric pitches	0.25-2.5mm
Inch threads kinds	15
Inch pitches	12-96TPI
Longitudinal-feed range	0.025-0.250mm/r
Cross-feedrange	0.0125-0.125mm/r
Max. travel of tailstock taper	60mm
Tailstock sleeve taper:	MT3
Motor	750W
Net weight (without base)	180/200kg
Packing size (without stands): (L×W×H)	1160640580mm
