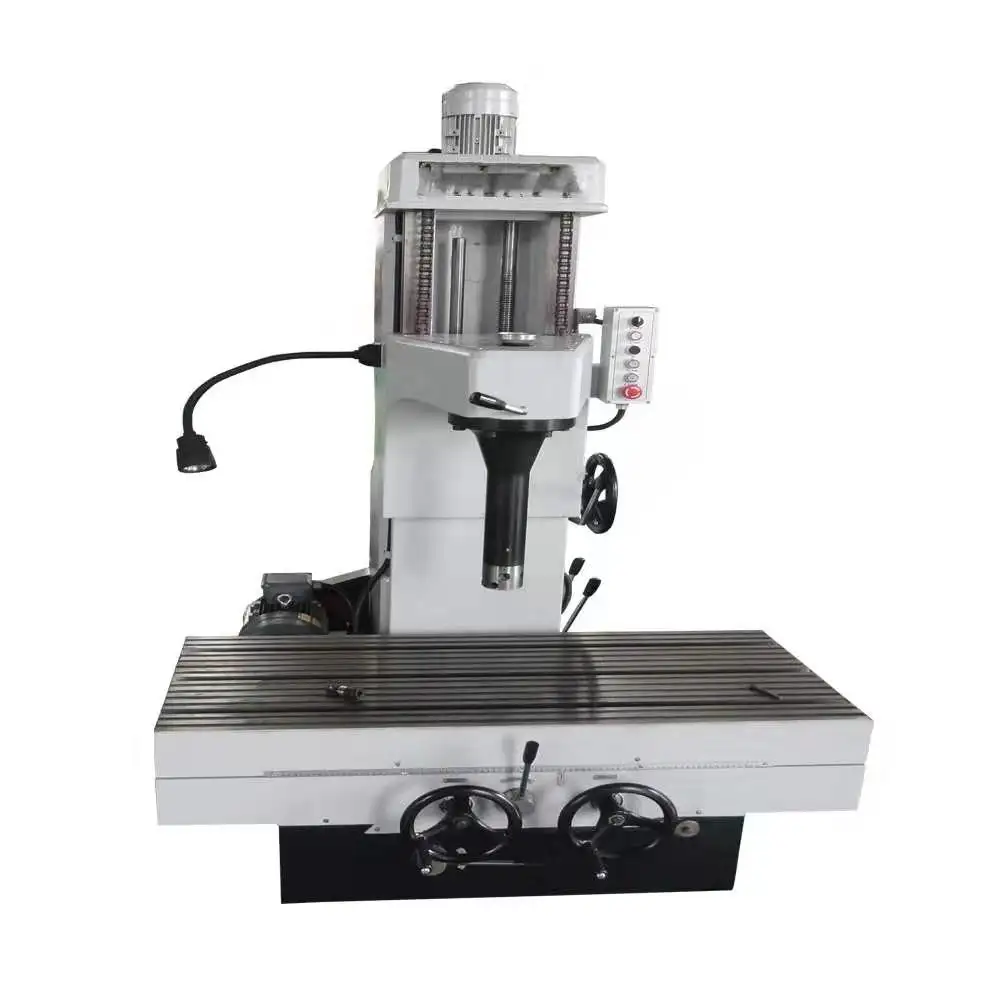

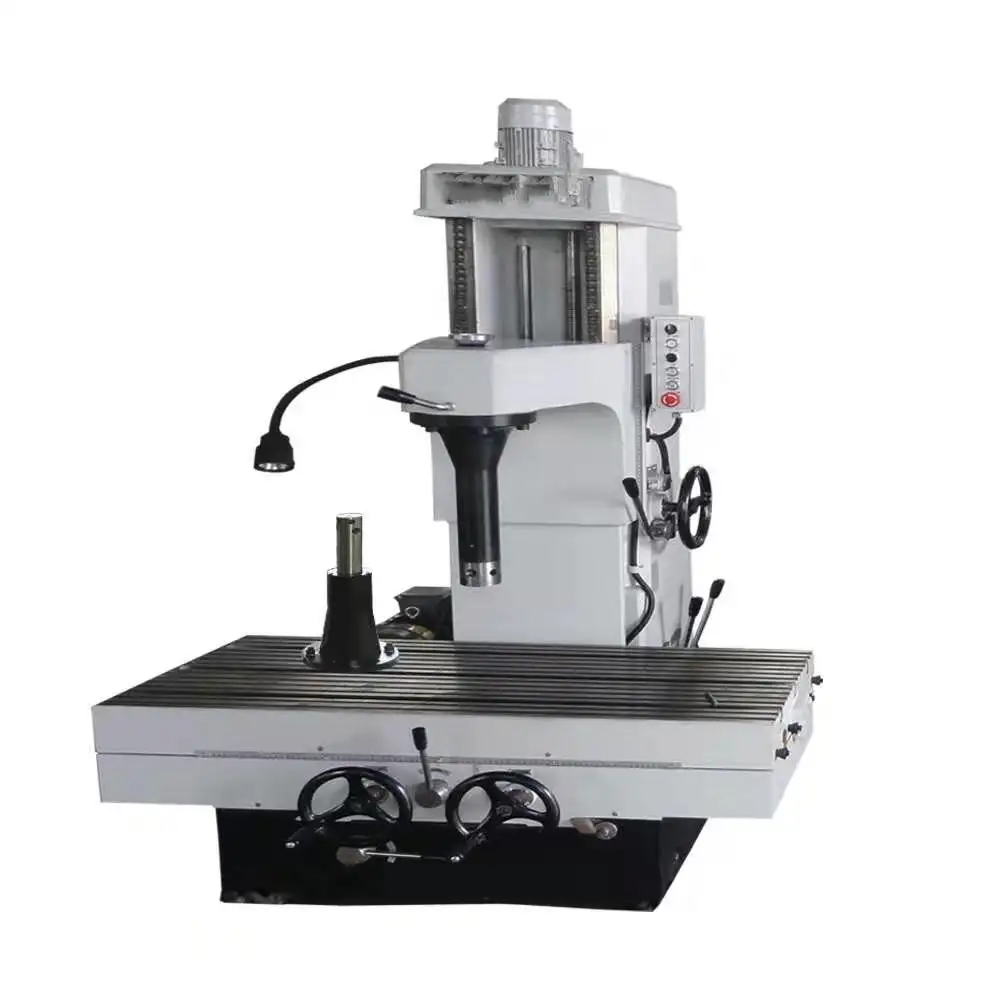

Cheap Cylinder Bore Machine Engine Vertical Boring Machine
$17,550.00
- AUD: A$27,254.62
- GBP: £14,627.57
- EUR: €17,034.03
- JPY: ¥2,759,000
- CNY: ¥128,057.08
Description
It is a machine tool mainly used for boring the existing preformed hole of workpiece. Generally, the rotation of boring cutter is the main motion, and the movement of boring cutter or workpiece is the feed motion. It is mainly used for machining high-precision holes or finishing multiple holes at one time. In addition, it can also be engaged in machining other machining surfaces related to hole finishing.. Long hole boring represented by coaxial hole system of box parts is one of the most important contents in metal cutting. Although there are still some examples of long hole boring, such as boring die, guide sleeve, long boring bar supported by back column of bench type milling and boring machine, or manual alignment of workpiece rotating 180 ° and so on. Main features of frequency converter of SAJ boring machine:
1. Large low frequency torque and stable output
2. High performance vector control
3. Fast torque dynamic response and high steady speed precision
4. Slow down, stop fast
5. Strong anti-interference ability
Specification
|
Model
|
T8018B(T8018A)
|
|
Range Of Boring Diameter
|
Φ30mm～Φ180mm
|
|
Max Boring Depth
|
450mm
|
|
Machine Power
|
3.75KW
|
|
Overall Dimensions (L*W*H)
|
2000×1235×1920mm
|
|
Packing Dimensions (L*W*H)
|
1400×1400×2250mm
|
|
N.W/G.W
|
2000/2200Kg
|
Specification
Additional information
| Weight | 100 kg |
|---|
