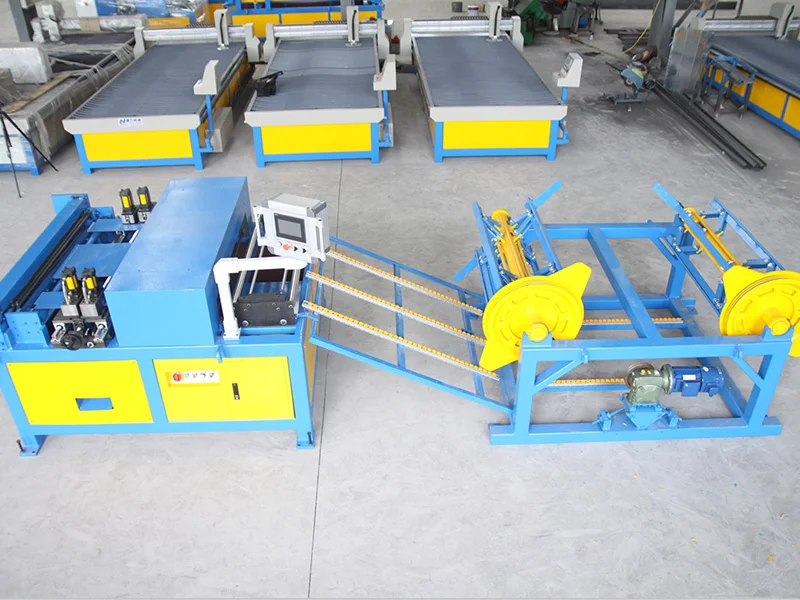

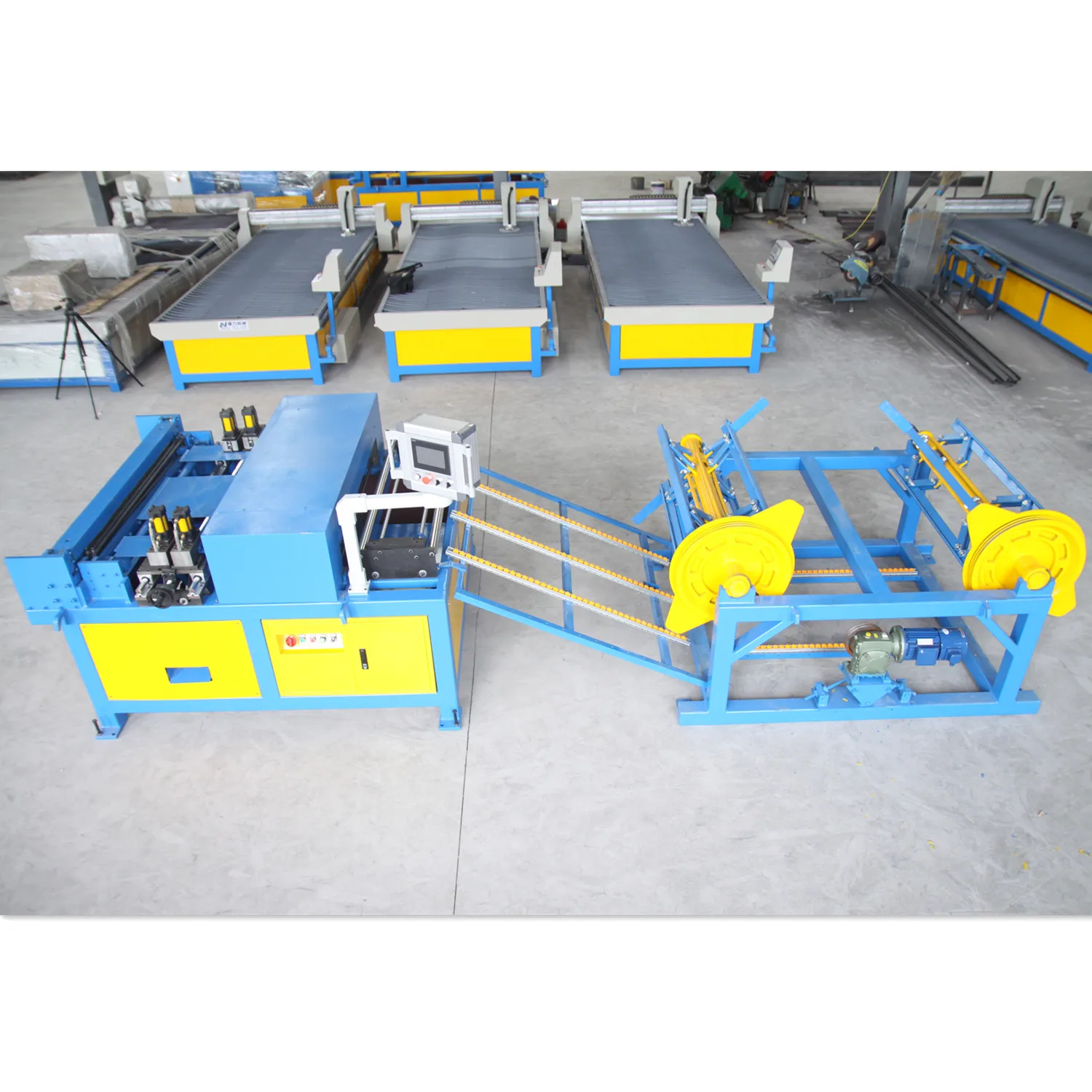

AOXUANZG Square HVAC Auto Air Duct Making Machine, Wind Pipe Production Line 3, Air Tube Forming Machine for Sale

AOXUANZG Square HVAC Auto Air Duct Making Machine, Wind Pipe Production Line 3, Air Tube Forming Machine for Sale

Features:

* Linear structure reduces sheets transferring time and improve production efficiency.
* The material frame is controlled by the speed adjustable converter motor.
* 10 Rollers for leveling and grooving which ensure the flatness of sheet metal for various thickness.
* With material processing saving mode, users can reduce the waste of sheet metal significantly to less than 20mm per material coiler.
* With features of servo motor driven in folding process and accurate positioning, it has the obvious advantage especially when produce the square shaped duct.
* The input adopt two modes: screen tough and keyboard input which ensure stability of the system.
* Require only one person to operate the machine, two persons can take away the ducts.
* The speed of each part can be adjusted as needed.
* A processing counting function for statistics and management with day count and total count.
* Support print function for production management.

Fuctions:

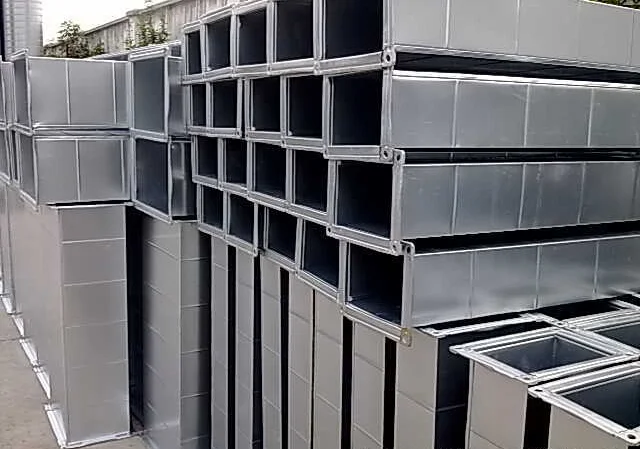

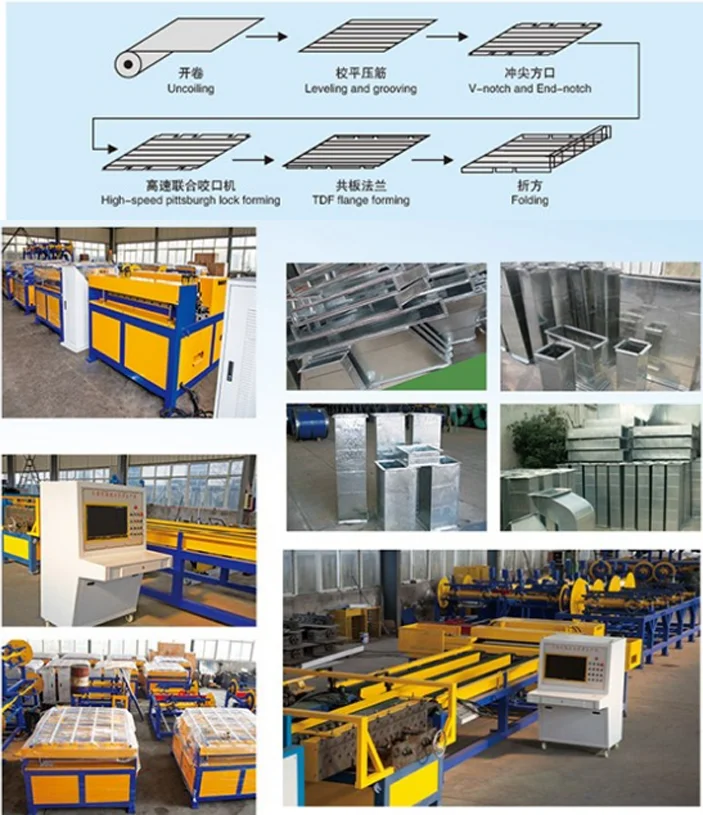

This line is mainly for producing square ducts with TDF flange/angle steel flange, the processing capacity is 1000-2000square meters per day. After input the dimensions of the ducts you want to process, then the machine can complete the following functions: uncoiling, leveling, beading, notching and punching, shearing, pittsburgh locking, TDF flange forming/angle steel flange forming and hydraulic folding.
Optional material auto stacking system.

Basic Configurations:

* A motor-driven material feeding frame(4 coils; the max loading per coiler is 7tons)
* Optional 8tons or 10 tons of hydraulic material frame
* A material supporting frame
* A main machine
* A manipulator for material clutch, transferring and positioning platform.
* A movable high-speed Pittsburgh lock forming machine
* A duplex angle steel flange forming machine
* A duplex TDF flange forming machine
* A servo-motor driven material feeding platform
* A TDF Hydraulic folding machine
* A CNC system and a set of production software

Packing & Delivery:

2 kinds of ways: LCL is for small machine, FCL is for big machine.

※ LCL: Covered by plastic films, packed by wooden case.
※ FCL: Covered by plastic films, packed by a container.

☀Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
☂ After tested, the machines will be wrapped with plastic sheet ,machine will be securely wired to the container.
☂ Each machine packed with plastic film first, then placed in a wooden case, wooden case with a foam filling.
✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal. At the dock we pack the goods in containers and ship them abroad.

Delivery Detail :
✈ Shipped in 30 days after payment.

Our service:

Pre-sales.
* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.

In-sales.
* We will provide you with the latest progress in the product assembly, packaging and transportation.

After-sale.
* We will provide free accessories for the damage to non – human parts.
* Training how to install the machine, training how to use the machine with video and so on
* And our technical staff can go abroad to provide technical guidance.

FQA

1. Are you the manufacturer? Can we visit your factory?
Of course, you can. We are manufacturer and we are located in Anhui, China. We have our own team for products design. Welcome to visit our factory and check our machine qualtiy, any question will be solved on time.

2. What's your main product? What is your main foreign market?
Our main products are press brake, shears machines, hydraulic press, cutting machine, locking machine , auto duct line and related products. Our main foreign markets are Asia, North America, Europe, and Africa.

3. What are the advantages of your machines? And how can I believe the quality of your product?
The main configuration is import high quality products, and professional product quality inspection team ensures machine in top-quality, precision and life. For example, Germany Bosch-Rexroth Valve group, Germany Siemens Main Motor, Schneider Electrics system and so on. Once tested as qualified, our machine would be sent out. So the quality of our product is stable and reliable.

4. Are you able to update the production process Information in time after placing our order?
After confirming your order, we would keep you updated of production details of emails and photos.

5. Can we be your agent?
Yes, we are looking for global agent, and we will help agent improve the market, and supply all the service like machine technical problem or other after-sales problem, meanwhile, you can get big discount and commission.

6. Payment terms?
T/T, L/C, Western Union, Paypal, Alibaba Secure Payment etc.

7. Are you provide product metal parts and provide us technical guidance?
Wearing parts, Disassembly tool(free) are what we could provide. And we can give you technical guidance. Our technical staff can go abroad to provide you with professional technical guidance.

8. How long is your warranty?
2 years free warranty, life-long maintenance.

9. Do you accept customer Logo and customized ?
We accept kinds of customized, including logo and machine.

10. About shipping free?
For large machines, shipping costs within China are directly included. Please contact customer service for shipping costs for specific countries.
