Manufacturer Galvanized Air Duct Production Line 4, Square Auto HVAC Wind Tube and Ventilation Pipe Forming Making Machine

Manufacturer Galvanized Air Duct Production Line 4, Square Auto HVAC Wind Tube and Ventilation Pipe Forming Making Machine

Function:

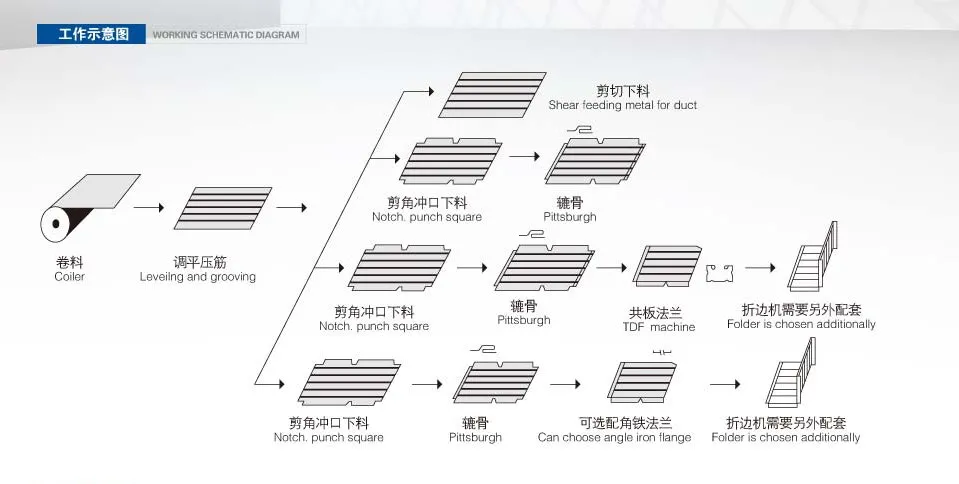

It's mainly for uncoiling, leveling, beading, punching, locking, bilaterally angle steel or TDF Flange forming. Because of its small space requirement and easy to install and operate also call it " small line 5".

Performance Features:

1. All the rolling reels are made of bearing steel so that the lifetime prolongs by more than 5 times.

2. The injection holes are used at both ends of the drive shaft, to enhance the bearing life.

3. Under the material-saving mode of CNC system, machine can withdraw material automatically after finishing tasks

4.With production memory functions, the production orders can be tracked and checked.

Main Import Configuration:

1. Cylinder imported from Germany Festo

2. Beijing Huade Plus hydraulic system from Taiwan

3. Japan Omron encoder

4. Taiwan Hiwin linear guideways

5. Schneider electrical system

Basic Configuration:

1.Two electric coil cradles, 4 material trays ( 5-7t each roll)

2.One rack

3.One host ( line 3 host)

4.One mechanical arm clutching, locating and transferring platform

5.One displacement type locking machine

6.One duplex TDF flange forming machine

7.One duplex angle steel flange forming machine

8.One set of computer controlling system

Packing & Delivery:

2 kinds of ways: LCL is for small machine, FCL is for big machine.

※ LCL: Covered by plastic films, packed by wooden case.
※ FCL: Covered by plastic films, packed by a container.

☀Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
☂ After tested, the machines will be wrapped with plastic sheet ,machine will be securely wired to the container.
☂ Each machine packed with plastic film first, then placed in a wooden case, wooden case with a foam filling.
✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal. At the dock we pack the goods in containers and ship them abroad.

Delivery Detail :
✈ Shipped in 30 days after payment.

Our service:

Pre-sales.
* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.

In-sales.
* We will provide you with the latest progress in the product assembly, packaging and transportation.

After-sale.
* We will provide free accessories for the damage to non – human parts.
* Training how to install the machine, training how to use the machine with video and so on
* And our technical staff can go abroad to provide technical guidance.

FQA

1. Are you the manufacturer? Can we visit your factory?
Of course, you can. We are manufacturer and we are located in Anhui, China. We have our own team for products design. Welcome to visit our factory and check our machine qualtiy, any question will be solved on time.

2. What's your main product? What is your main foreign market?
Our main products are press brake, shears machines, hydraulic press, cutting machine, locking machine , auto duct line and related products. Our main foreign markets are Asia, North America, Europe, and Africa.

3. What are the advantages of your machines? And how can I believe the quality of your product?
The main configuration is import high quality products, and professional product quality inspection team ensures machine in top-quality, precision and life. For example, Germany Bosch-Rexroth Valve group, Germany Siemens Main Motor, Schneider Electrics system and so on. Once tested as qualified, our machine would be sent out. So the quality of our product is stable and reliable.

4. Are you able to update the production process Information in time after placing our order?
After confirming your order, we would keep you updated of production details of emails and photos.

5. Can we be your agent?
Yes, we are looking for global agent, and we will help agent improve the market, and supply all the service like machine technical problem or other after-sales problem, meanwhile, you can get big discount and commission.

6. Payment terms?
T/T, L/C, Western Union, Paypal, Alibaba Secure Payment etc.

7. Are you provide product metal parts and provide us technical guidance?
Wearing parts, Disassembly tool(free) are what we could provide. And we can give you technical guidance. Our technical staff can go abroad to provide you with professional technical guidance.

8. How long is your warranty?
2 years free warranty, life-long maintenance.

9. Do you accept customer Logo and customized ?
We accept kinds of customized, including logo and machine.

10. About shipping free?
For large machines, shipping costs within China are directly included. Please contact customer service for shipping costs for specific countries.
