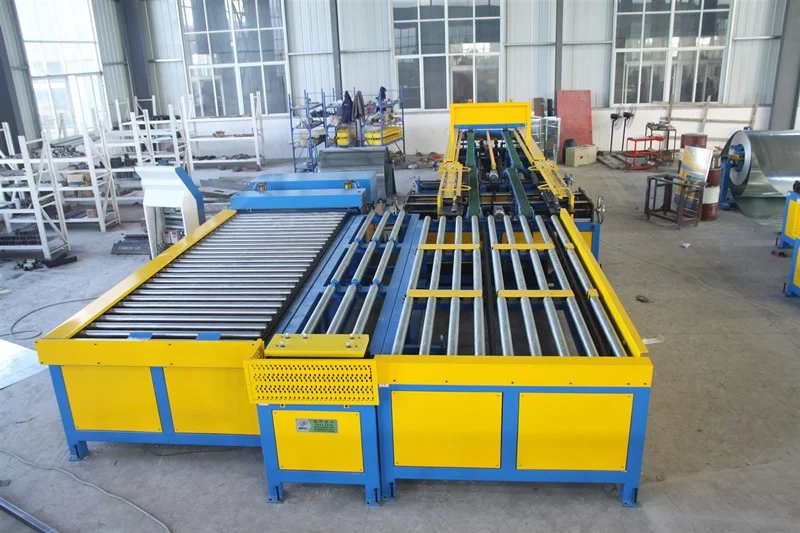

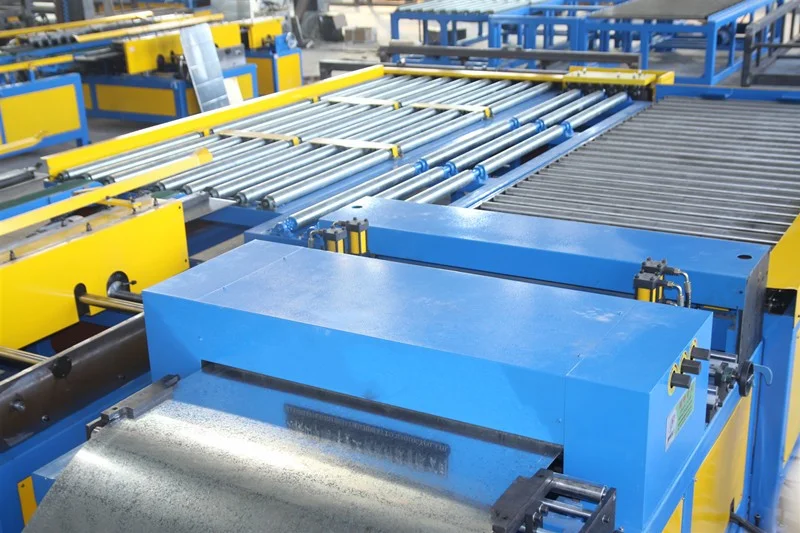

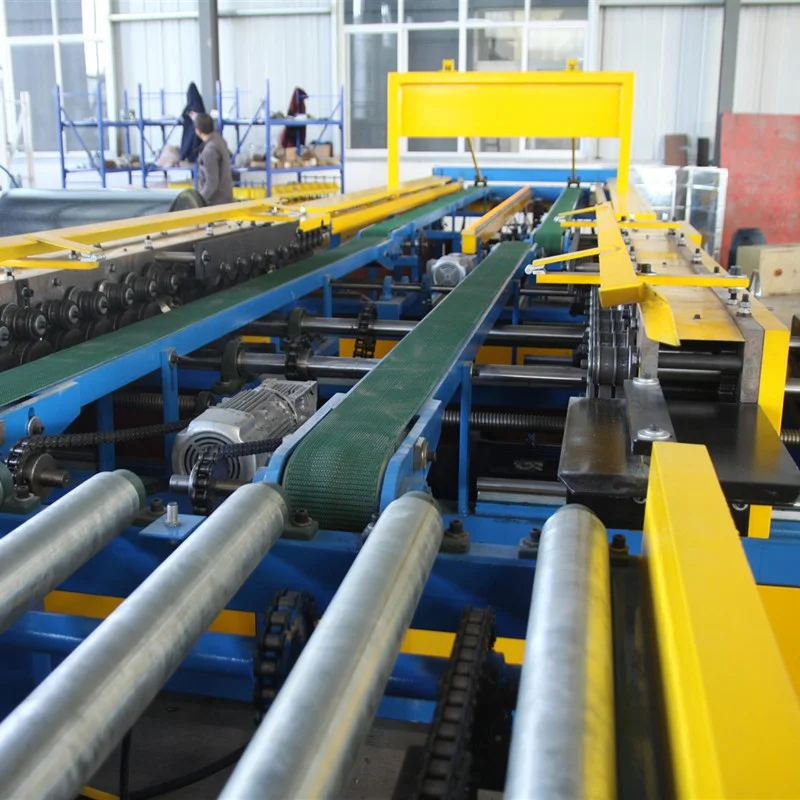

AOXUANZG HVAC U Shape Square Air Duct Production Line 5, Automatic Stainless Steel Rectangular Ventilation Pipe Former

Good Quality HVAC U Shape Square Air Duct Production Line 5, Automatic Stainless Steel Rectangular Ventilation Pipe Former

Function:

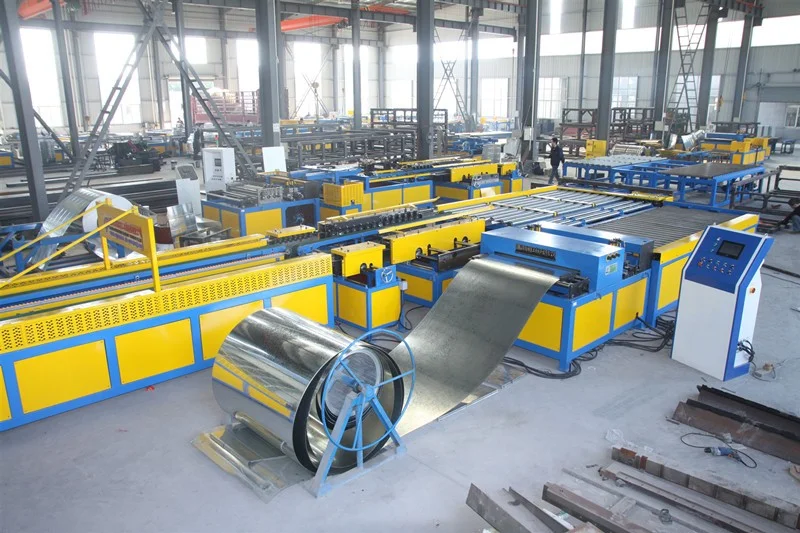

It is mainly used for forming TDF/angle steel flange or C-type flange. Daily processing capacity 1000-2500 square meters. As long as the size of the air duct is input and the production line automatically completes the uncoiling, leveling, beading, punching, shearing, locking, TDF/angle steel flange forming or C-type flange forming and folding forming.

Performance characteristics:

1. U-shaped structure, small area, simple assembly, suitable for small and medium-sized factories

2. Servo pneumatic manipulator drives feeding to ensure smooth, accurate positioning and faster speed.

3. Super high efficiency, super labor saving, each L piece only takes 20-25 seconds, the efficiency is twice as high as that of straight line type.

4. Fixed locking machine, saving time of moving back and forth, improving work efficiency

5. All rollers are made of bearing steel, and their service life is increased by more than 5 times.

6. The CNC system adds material-saving mode, with only one piece of waste less than 20mm per roll.

7. With production memory function, it can query production orders.

Major Import Configuration:

1. Beijing Huade+Taiwan Hydraulic System

2. Germany Siemens system

3. Taiwan HIWIN Linear Guideway

4. Schneider Electrical System

Basic configuration

1. Electric coiling rack with 4 material tray (5-7 tons per coil)

2. One bracket

3. One mainframe (second-line mainframe)

4. Two stainless steel drum conveyor platforms

5. 1 Set Fixed joint locking machine

6. A Two-machine Linkage TDF flange forming machine

7. A Two-machine Linkage angle steel flange forming machine

8. A servo feeding platform

9. A hydraulic folding machine

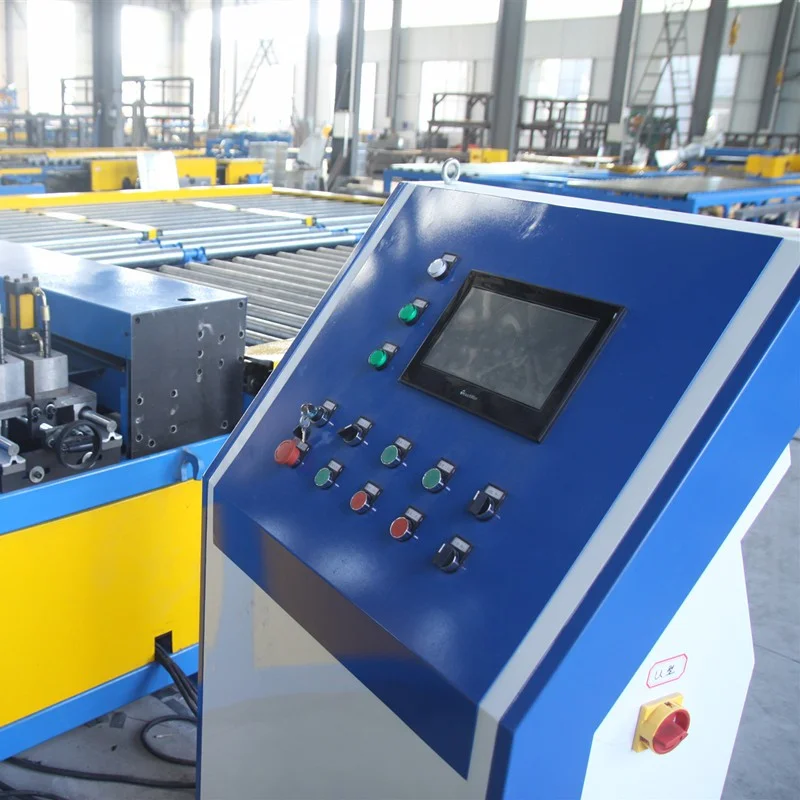

10. 1 Set of computer control system

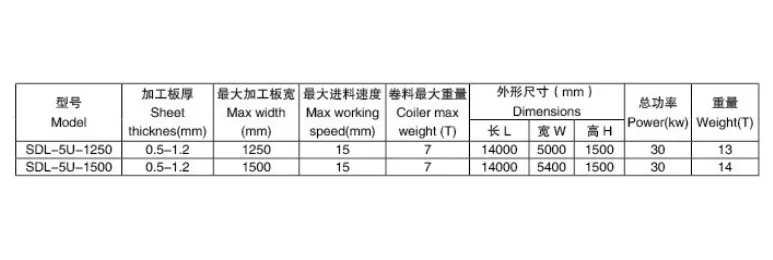

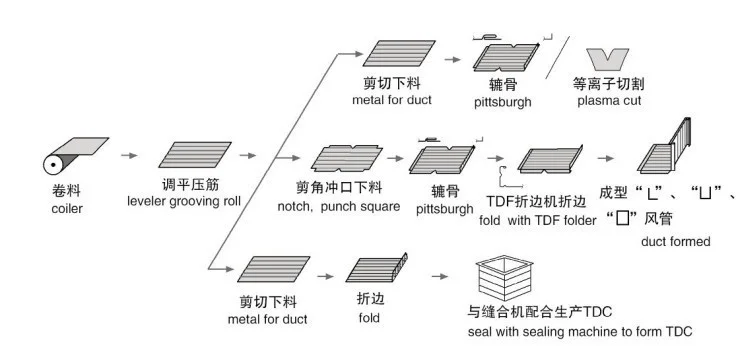

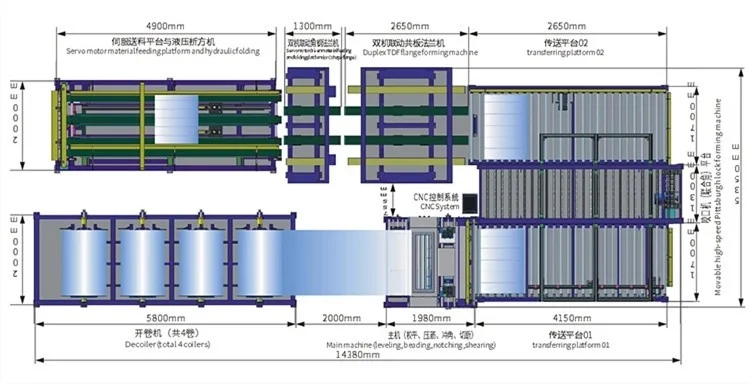

Parameter & Work Principle

Packing & Delivery:

2 kinds of ways: LCL is for small machine, FCL is for big machine.

※ LCL: Covered by plastic films, packed by wooden case.
※ FCL: Covered by plastic films, packed by a container.
☀Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.

☂ After tested, the machines will be wrapped with plastic sheet ,machine will be securely wired to the container.
☂ Each Press Brake packed with plastic film first, then placed in a wooden case, wooden case with a foam filling.
✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal. At the dock we pack the goods in containers and ship them abroad.

Delivery Detail :
✈ Shipped in 30 days after payment.

Our service:

Pre-sales.
* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.

In-sales.
* We will provide you with the latest progress in the product assembly, packaging and transportation.

After-sale.
* We will provide free accessories for the damage to non – human parts.
* Training how to install the machine, training how to use the machine with video and so on
* And our technical staff can go abroad to provide technical guidance.

FQA

1. Are you the manufacturer? Can we visit your factory?
Of course, you can. We are manufacturer and we are located in Anhui, China. We have our own team for products design. Welcome to visit our factory and check our machine qualtiy, any question will be solved on time.

2. What's your main product? What is your main foreign market?
Our main products are press brake, shears machines, hydraulic press, cutting machine, locking machine, auto duct line and related products. Our main foreign markets are Asia, North America, Europe, and Africa.

3. What are the advantages of your machines? And how can I believe the quality of your product?
The main configuration is import high quality products, and professional product quality inspection team ensures machine in top-quality, precision and life. For example, Germany Bosch-Rexroth Valve group, Germany Siemens Main Motor, Schneider Electrics system and so on. Once tested as qualified, our machine would be sent out. So the quality of our product is stable and reliable.

4. Are you able to update the production process Information in time after placing our order?
After confirming your order, we would keep you updated of production details of emails and photos.

5. Can we be your agent?
Yes, we are looking for global agent, and we will help agent improve the market, and supply all the service like machine technical problem or other after-sales problem, meanwhile, you can get big discount and commission.

6. Payment terms?
T/T, L/C, Western Union, Paypal, Alibaba Secure Payment etc.

7.Are you provide product metal parts and provide us technical guidance?
Wearing parts, disassembly tool(free) are what we could provide. And we can give you technical guidance. Our technical staff can go abroad to provide you with professional technical guidance.

8. How long is your warranty?
2 years free warranty, life-long maintenance.

9. Do you accept customer Logo and customized ?
We accept kinds of customized, including logo and machine.

10. About shipping free?
For large machines, shipping costs within China are directly included. Please contact customer service for shipping costs for specific countries.
