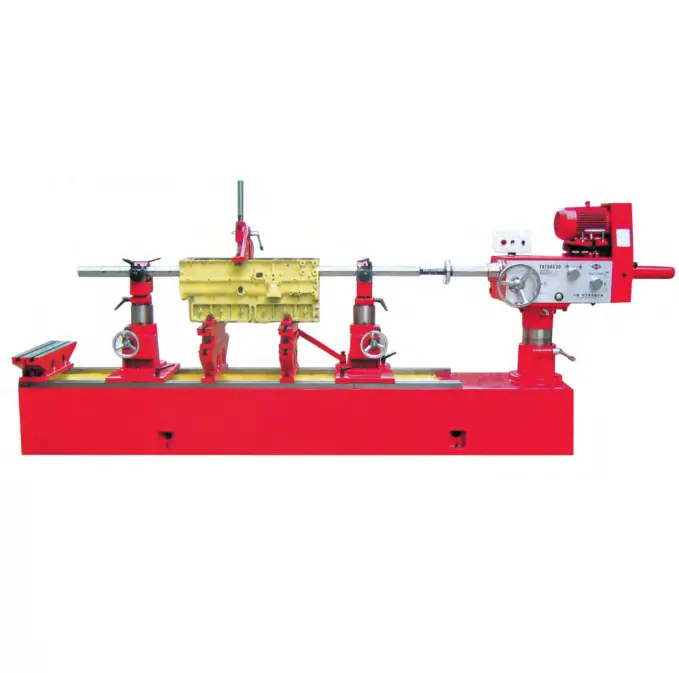

ALMACO Precisely Cylinder Body Bushing Boring Machine T8115B*16
A$23,059.51
- USD: $15,591.08
- GBP: £12,376.05
- EUR: €14,412.10
- JPY: ¥2,334,327
- CNY: ¥108,346.14
Description
Bushing boring machine
machine can be used for boring master bushing and bushing of engine&generator’s
cylinder bodier in auto,tractots and ships etc
in order to reduce auxiliary mainhours and
labour intensity and guarantee machining
quality,accessories for centering,sectifying
tool,measuring inner diameter,boring tool microadjuster and for distance tool sectifying
device can be provided with the main
machine.
Specification
|
T8120A*20
|
T8120*20
|
T8115B*16
|
|
|
Bored hole diameter
|
28-225mm
|
36-200mm
|
|
|
Max length of cylinder body
|
2250mm
|
2000mm
|
|
|
Main shaft max elongation
|
300mm
|
300mm
|
|
|
main shaft rotating speed
|
30-150(1)
|
210-945r/min(6step)
|
|
|
90-467(11)
|
30-467r/min(stepless)
|
||
|
boring rod feed quantity
|
0.43,0.85,0.125mm/rad
|
0.044,0.167mm/rad
|
|
|
motor power
|
1.5
|
0.75/1.1KW
|
|
|
1.5KW
|
|||
|
Dimensions(L*W*H)
|
3900*650*1400
|
3910*650*1400
|
|
Specification
Additional information
| Weight | 100 kg |
|---|
