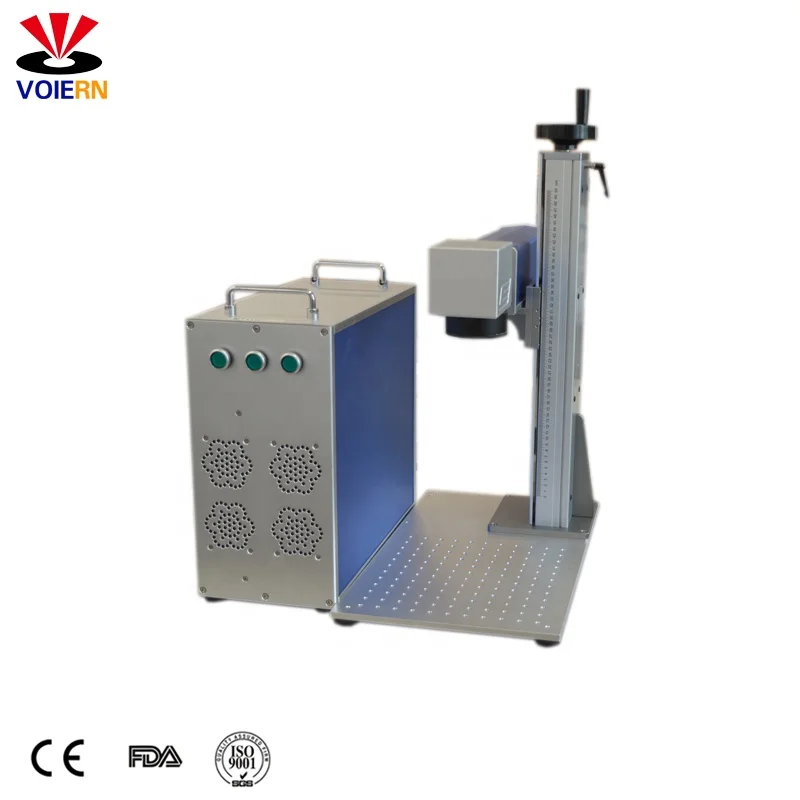

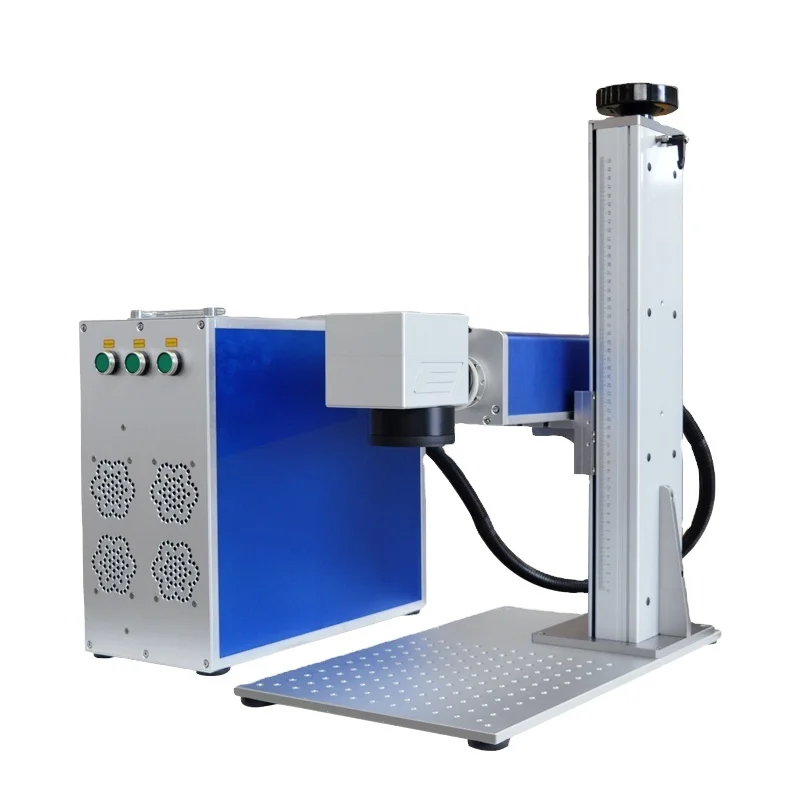

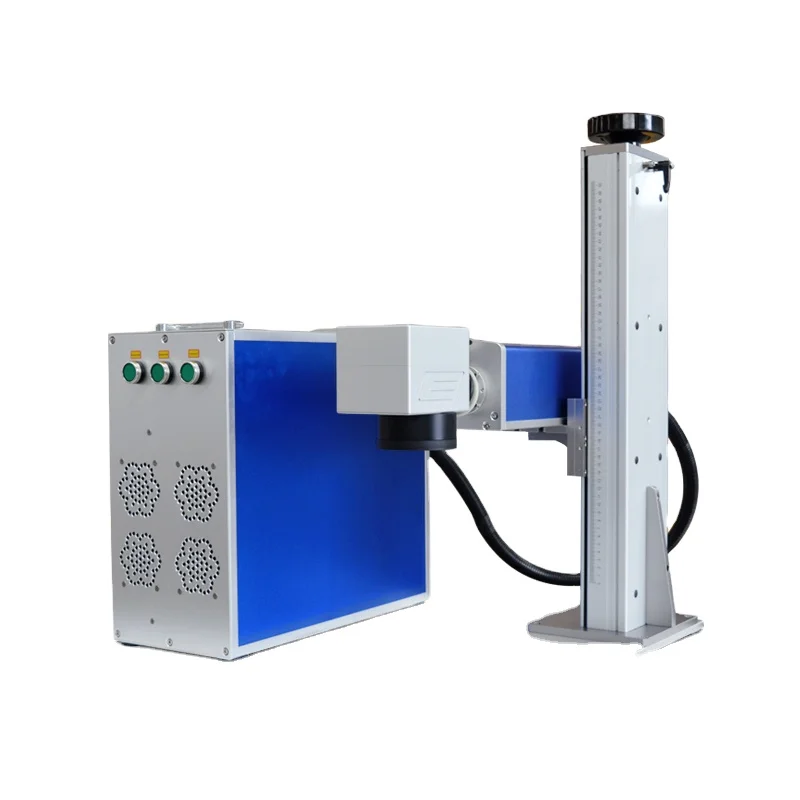

20w 30w 50W fiber laser marking machine with Raycus laser source making on metal stainless steel Jewelry ring silver gold watch
A$6,060.43
- USD: $4,097.60
- GBP: £3,252.64
- EUR: €3,787.75
- JPY: ¥613,501
- CNY: ¥28,475.23
Description
Product Application
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc. Beverage bottle, cosmetic bottle, medicine bottle, jar etc.
|
|
SPECIFICATIONS FOR FIBER LASER MARKING MACHINE
|
|
|
|
|||
|
Model
|
VOIERN 20W 30W 50W
|
|
Laser Power
|
20W 30W 50W
|
|||
|
Laser Wavelength
|
1064nm±10nm
|
|
Q-frequency
|
20KHz~100KHz
|
|||
|
Divergence
|
0.3mard
|
|
Marking Range
|
110*110mm /200*200mm
|
|||
|
Mimum Line Width
|
0.01mm
|
|
Minimum Character
|
0.1mm
|
|||
|
Marking Speed
|
10000mm/s
|
|
Marking Depth
|
0~0.5mm
|
|||
|
Engraving Line Speed
|
≤7000mm/s
|
|
Repeatability Accuracy
|
±0.001mm
|
|||
|
Graphic Format Supported
|
bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc
|
|
Marking Format
|
Graphics,text,barcodes, two-dimensional code, automaticallymarking the date,batchnumber,serial Number,frequency,etc.
|
|||
|
Beam Quality
|
M2:1.2~1.8
|
|
Working Voltage
|
220V±10%/50Hz/4A
|
|||
|
Unit Power
|
<0.5kw
|
|
Laser module life
|
>100000hours
|
|||
Main Features
1) High speed with galvanometer.
2) Small volume, light weight.
3)Low power, consumption power is less than 500W
4) Air Cooling ,No need of chiller, low power consumption.
5) Battery inside, that means it can work after cutting off of power. Car cigarette lighter can be used for working too.
6) Greatly reduce the depreciation cost, satisfying customers stable large quantites production.

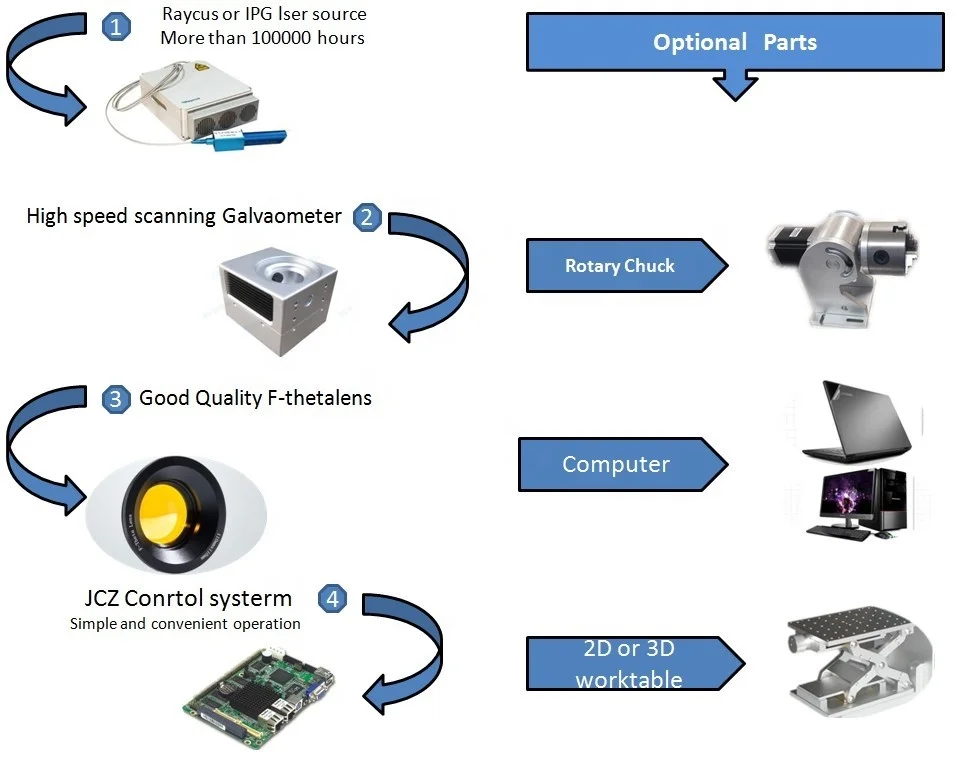

Main Features

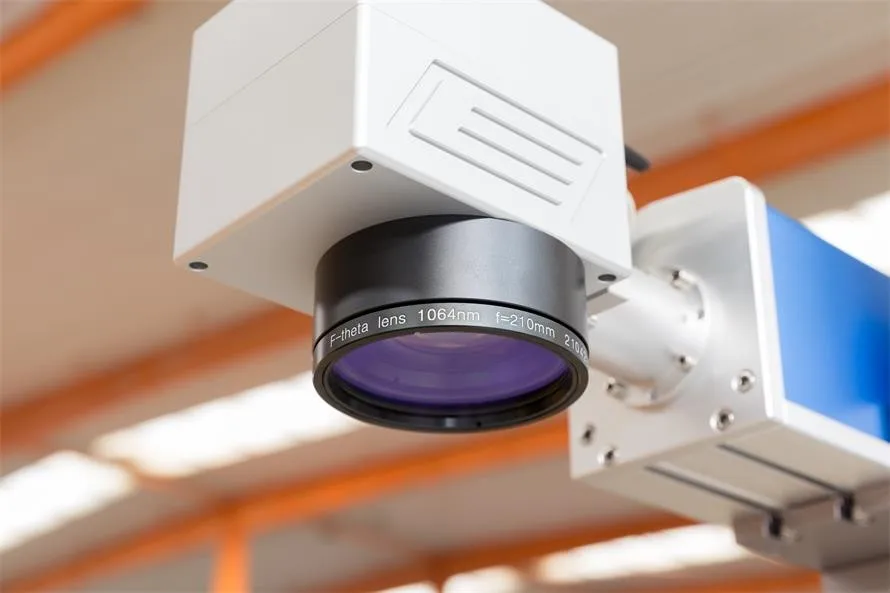

Name: Galvo scanning system
Brand: Sino-Galvo
Original: China
Domestic famous scanners, more precise, high speed,long lifetime. Good quality.
Machine Parts

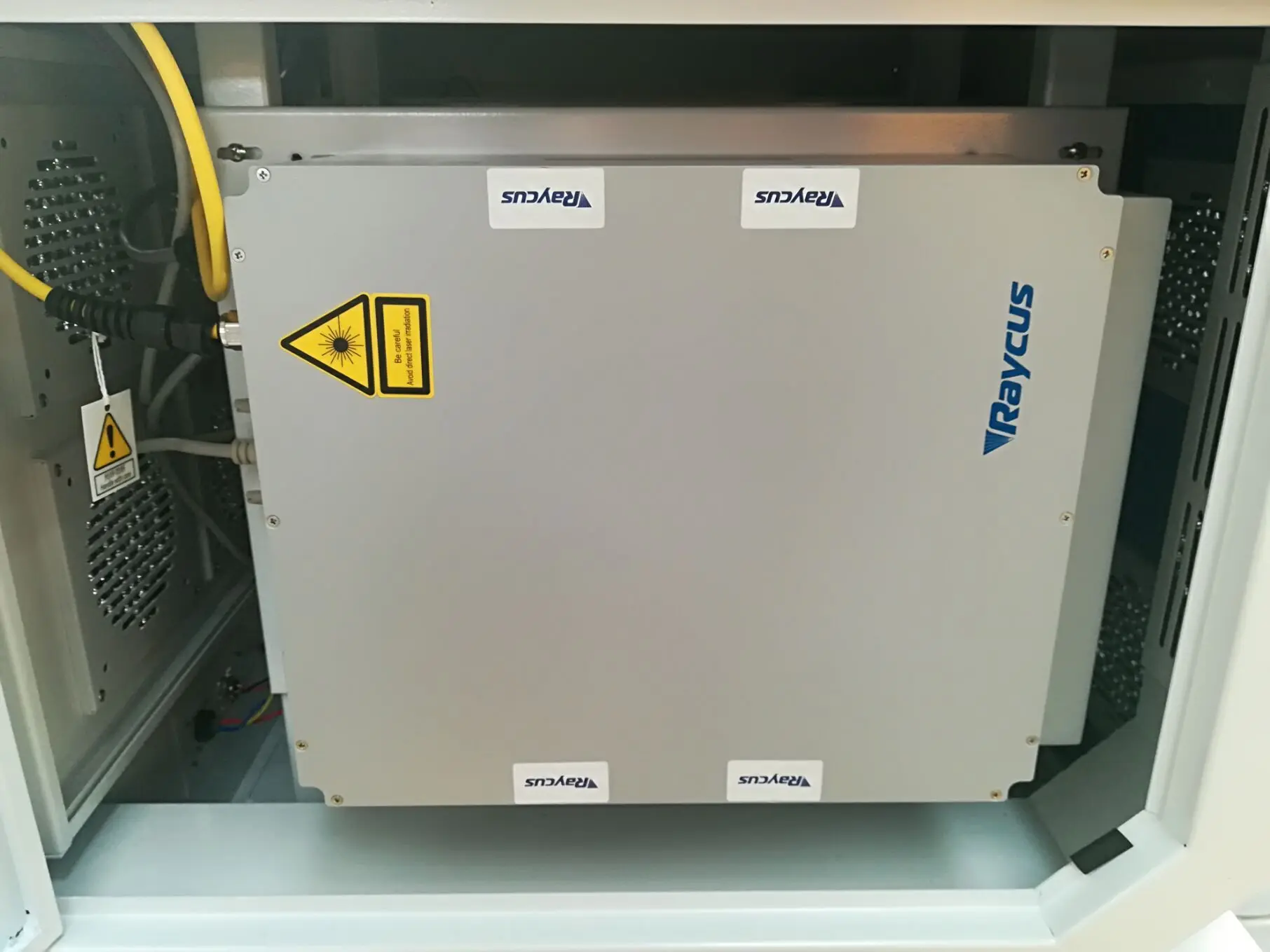

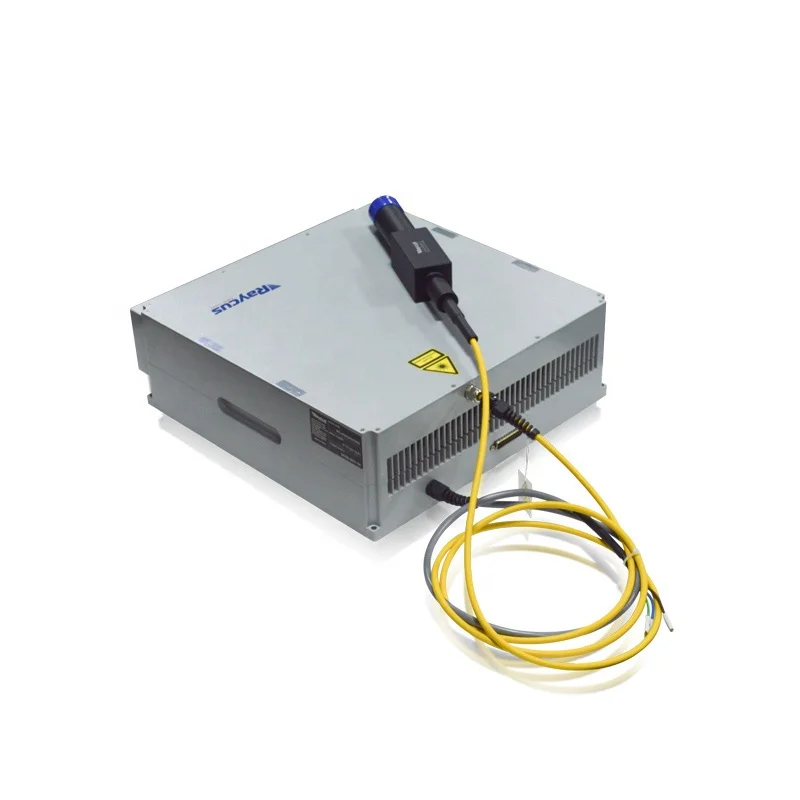

Name: Laser Power
Brand: Raycus
Original: China
Laser power are stable and strong. Long lifetime. 20W 30W 50w optional.
We have RAYCUS,IPG and MAX laser Source too. It depends customers’ needs.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas online
|
Packaging
|
|
|
|
Weight
|
90 KGS
|
|
|

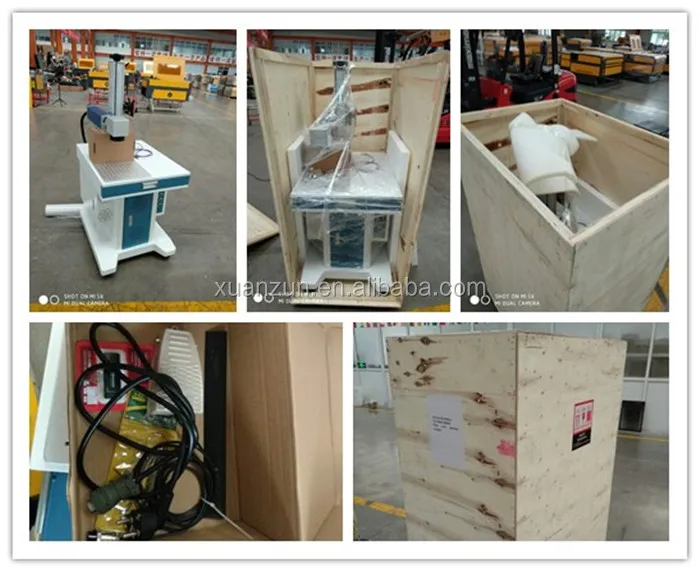

Packaging Details
|
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
Fiber laser marking machine
91.8% Response Rate

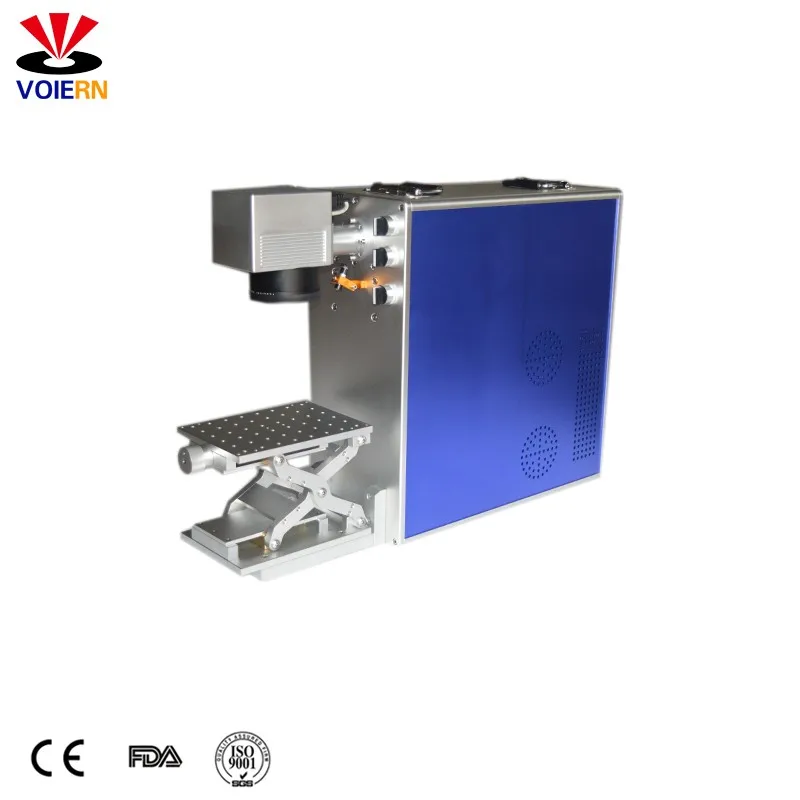

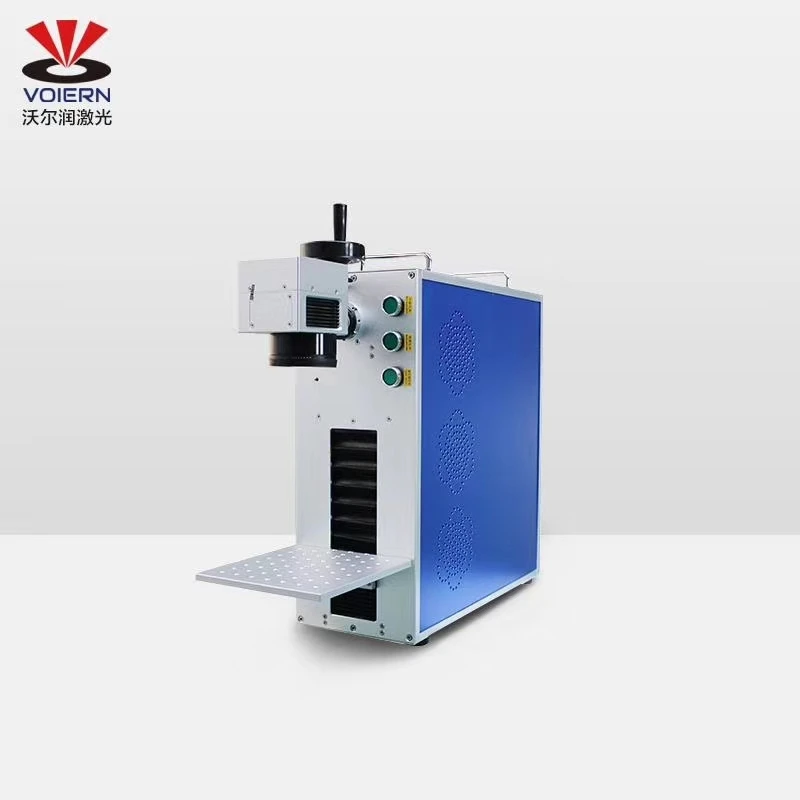

Portable Fiber Laser Marking Machine
91.8% Response Rate

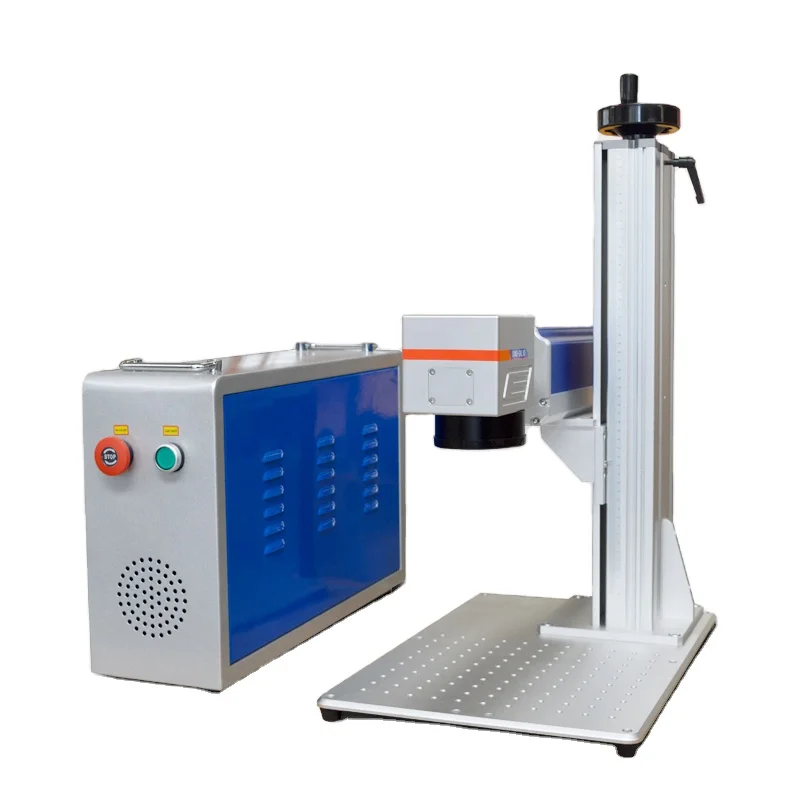

Split-Style Fiber laser machine
