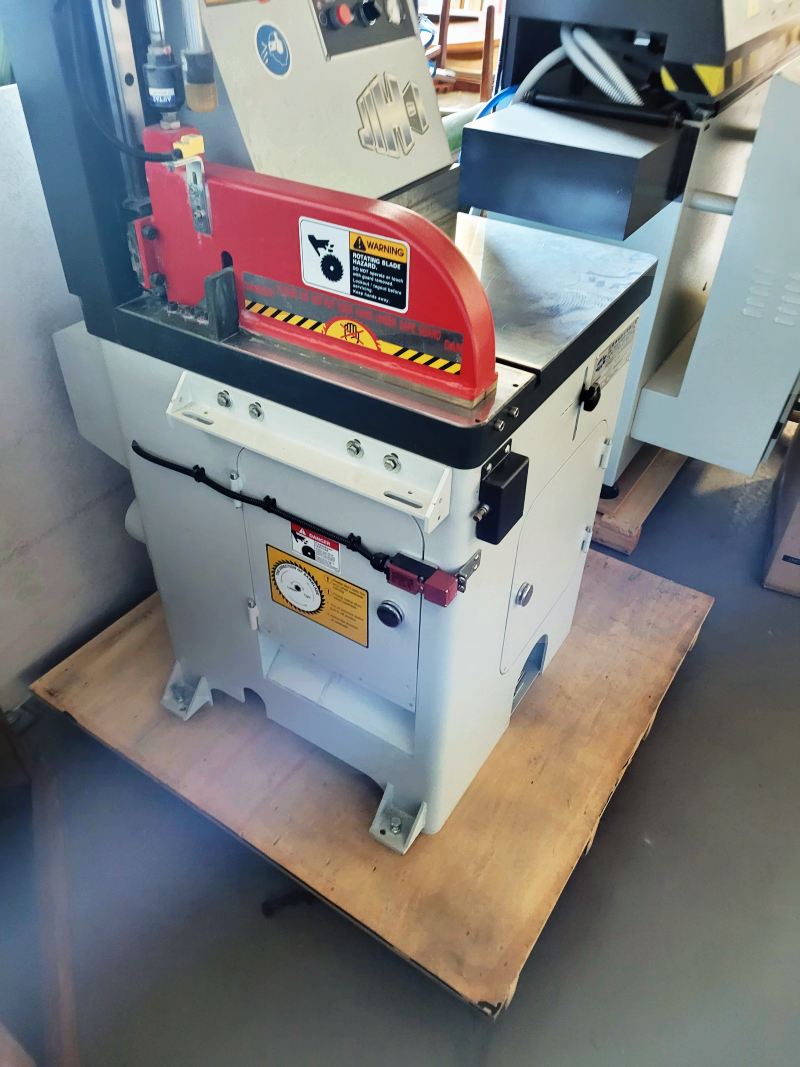

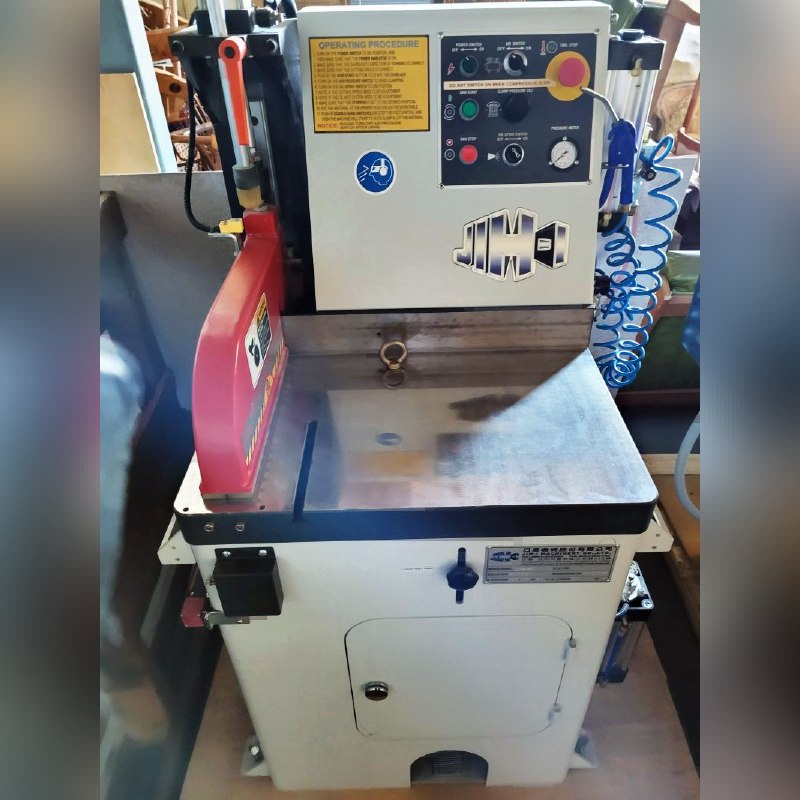

2017 JIH-18D Metal Cutting Saw – Like New in Dry Storage
The Used 2017 JIH-18D Metal Cutting Saw condition Private Used like new in dry storage at present
Description
The Used 2017 JIH-18D Metal Cutting Saw condition Private Used like new in dry storage at present
Features

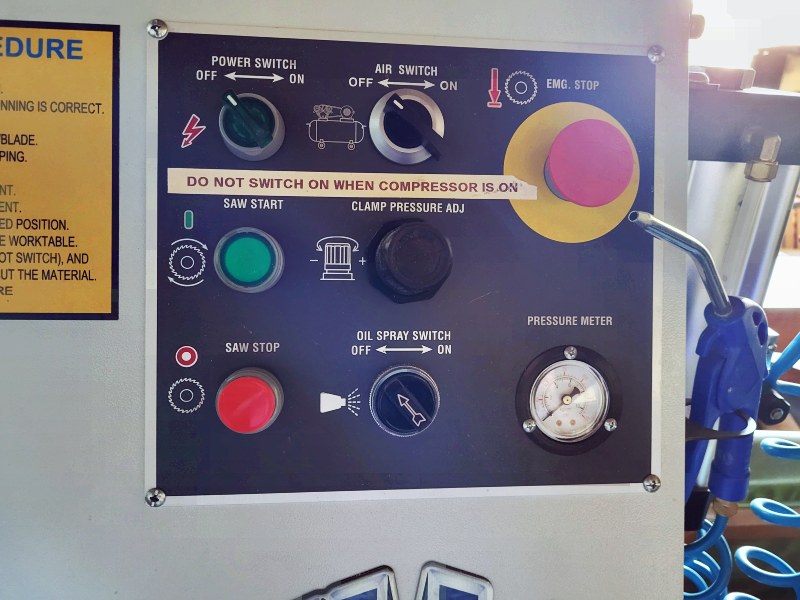

- Simply step on the footswitch and the machine will safely and easily perform automatic clamping, automatic oil spraying and automatic cutting of the workpiece.
- The hidden saw blade cuts from bottom to top. You can cut a single workpiece or multiple workpieces simultaneously.
- Automatic oil mist spray during cutting provides cooling and lubrication effect.
- CThe cutting feed is driven by a hydro-pneumatic cylinder for a very stable cutting speed.
- The coating inside the machine is baked at a high temperature of 200 degrees (powder coating), and the coating does not peel off and is resistant to bumping.
- The machine can perform 90° cutoff or 45° cut using fixtures (optional).
- Workpiece clamping pressure can be adjusted.
- The independent hydro-pneumatic cylinder clamp makes the machine suitable for cutting solid materials and industrial aluminum extrusion.
Specifications
| Model | JIH-18 D Type |
| Cutting Angle | 90° |
| Cutting Capacity(HxW) | 125 x 125 mm |
| 100 x 230 mm | |
| 60 x 270 mm | |
| 20 x 300 mm | |
| Spindle Speed | 3,200 RPM |
| Saw Blade Sizes | 18″x1″ bore |
| Table Area | 640×380 mm |
| Table Height From Floor | 860 mm |
| Motor | 7.5 HP |
| Air Pressure | 4-6 kg/cm² |
| Conveyor Length (Opt.) | 1-7 M |
| Machine Dimensions( LxWxH ) |
840 x 870 x 1,660 mm
|
| Packing Dimensions( LxWxH ) |
960 x 990 x 1,860 mm
|
| Net Weight | 360 kg |
| Gross Weight | 440 kg |
Specification
Additional information
| Weight | 360 kg |
|---|---|
| Dimensions | 84 × 87 × 166 cm |
