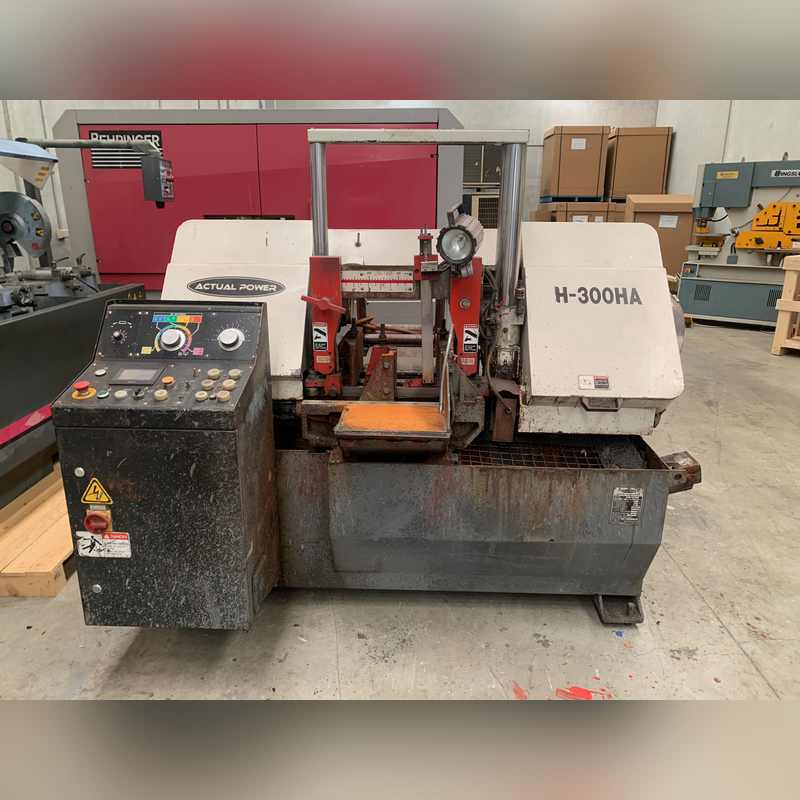

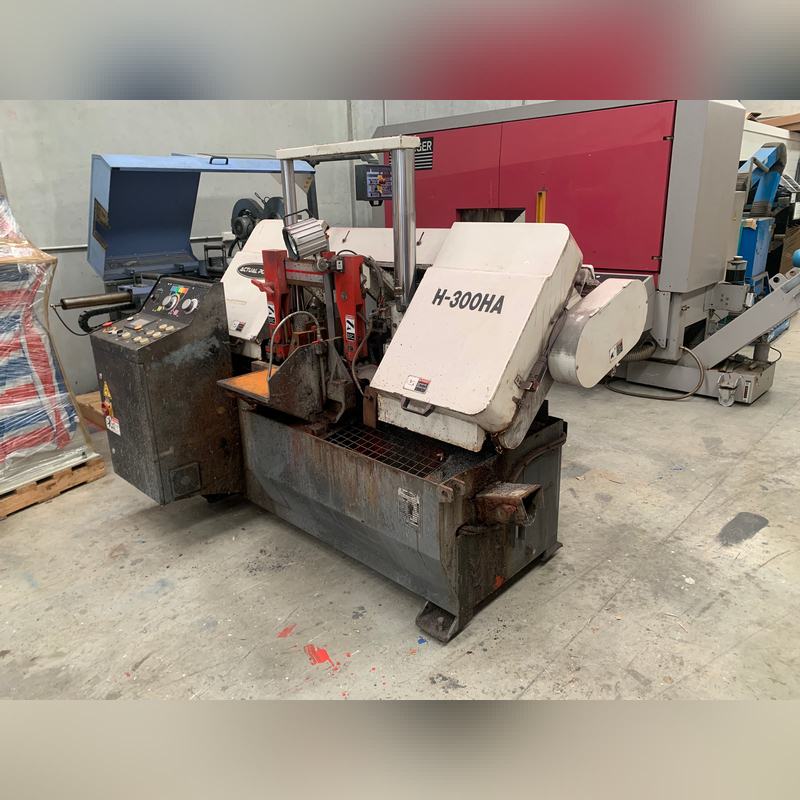

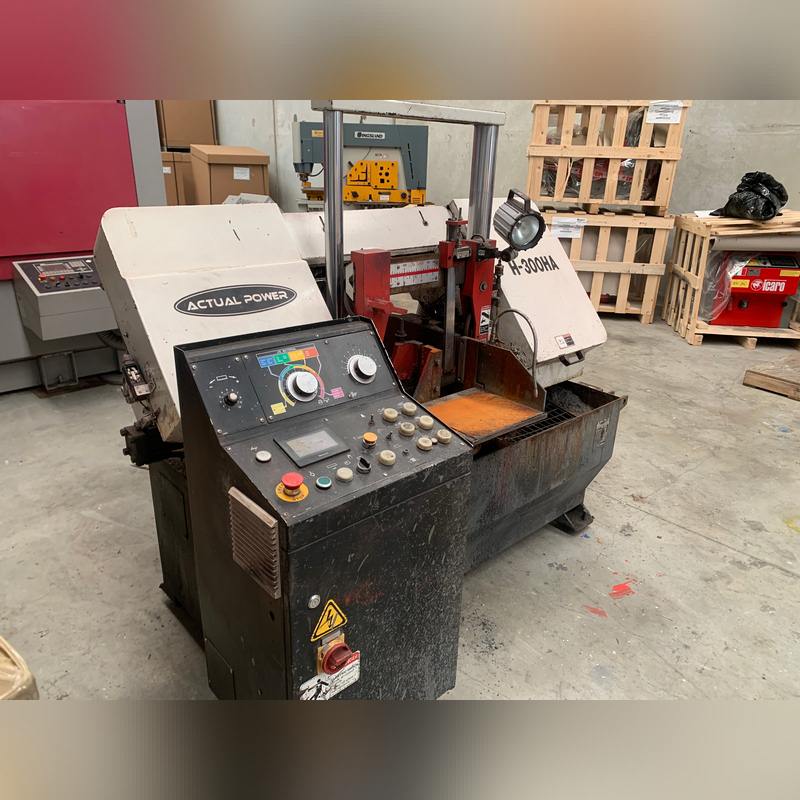

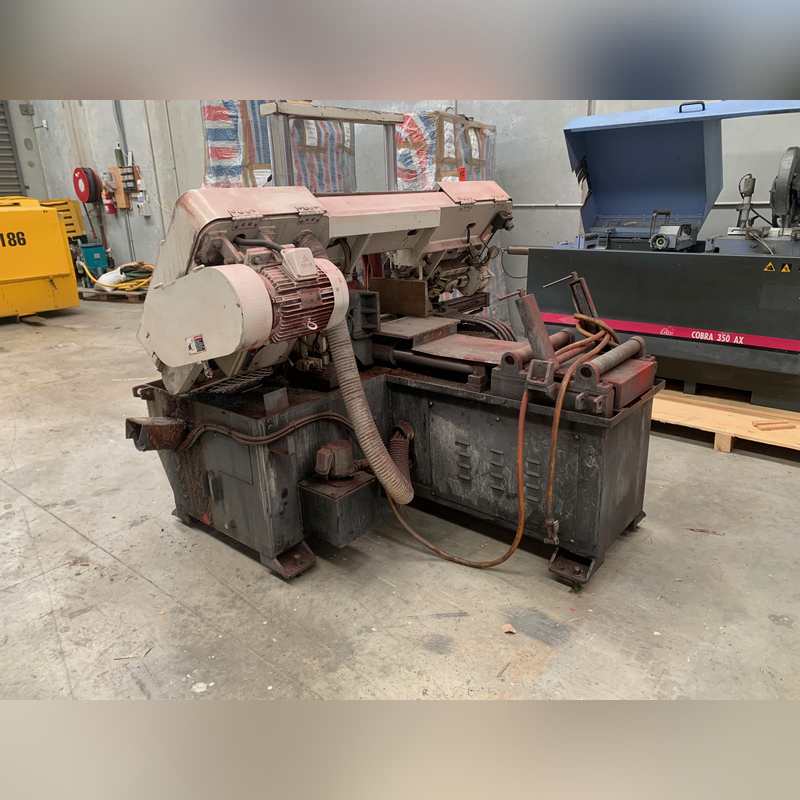

Name: ▷ Buy Used Actual Power H-300A- NC Hitch Feed Automatic Column Type Bandsaw () - Available at MachineryGenie.com
SKU: USED-H-300HA
Price: 8505.00 USD
Availability: InStock

Description

Used Actual Power H-300A- NC Hitch Feed Automatic Column Type Bandsaw Equipment Details

Dual vise with full stroke clamping
Shuttle type automatic feed
3 pcs carbide blade guide system
Automatic work height control and fast approach
Infinitely variable speed control by inverter
Power driven wire brush
Hydraulic blade tension
Floating shuttle vise
Split front vise
P.L.C. Control for all electric and hydraulic function
Check device of sablade breaking or stalling
Nesting fixture for bundle cutting
Work light
Automatic chip conveyer
User friendly nc control touch screen
9 station easy to set the cutting work
Blade speed show in touch screen
Anti-vibration rolling and roller bearing with blade guide system
Flushing hose for machine cleaning
2m roller table
One M42 bi-metal saw blade
One set of tools and tool box

Specification

ITEMS		H-300HA
Capacity		●300 mm ■300 x 300 mm
Bundle Cutting (W x H)		145 x 30 ~ 230 x 130 mm
Min Cutting Capacity		□W10 x H10 mm ○10 mm
Minimum Residual Work Length		80 mm
Blade Speed		20~100 M/min (inverter)
Blade Tension		Hydraulic
Blade Size		L3920 x W34 x T1.1 mm
Motor	Blade Drive	3.7 KW 5 HP
	Hydraulic Pump	0.75 KW 1 HP
	Coolant Pump	0.1 KW 1/8 HP
Hydraulic Oil Capacity		60 L
Cutting Oil Capacity		70 L
Table Height		780 mm
Net Weight		1650 kgs
Floor Space		L2100 x W2050 x H1700 mm

Attachments (PDF)

Specification

Additional information

Weight	900 kg
