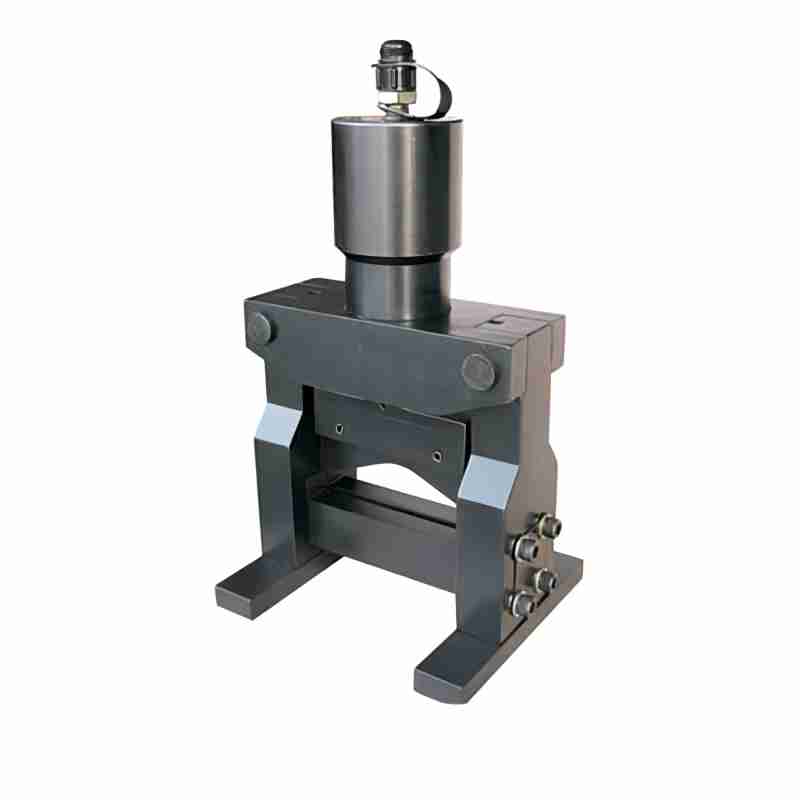

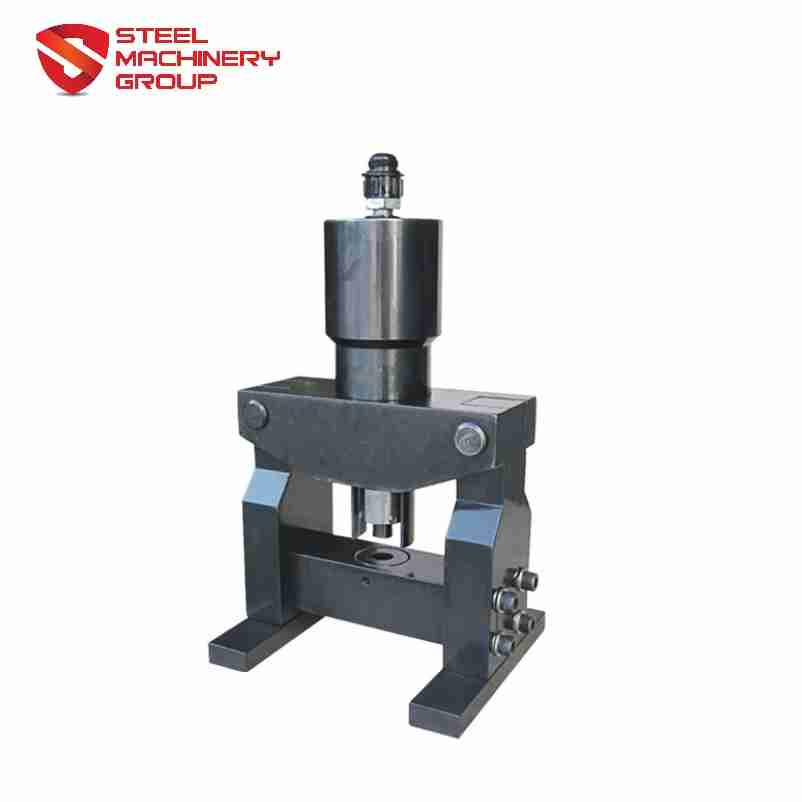

SMG 25T Hydraulic Portable Punching Machine
SMG 25T Hydraulic Portable Punching Machine is capable of delivering a maximum of 35 tons of punching power. It can be used for punching iron sheets at a maximum thickness of 10 mm and Copper busbars with maximum thickness of 12mm.
Description
SMG 25T Hydraulic Portable Punching Machine is capable of delivering a maximum of 35 tons of punching power. It can be used for punching iron sheets at a maximum thickness of 10 mm and Copper busbars with maximum thickness of 12mm.
Specification
| Model | SMG-25T |
| Aperture (mm) | Φ10.5, Φ13.8, Φ17.5, Φ20.5 mm |
| Output (T) | 35 ton |
| Max thickness (mm): Iron Sheet | 10 mm |
| Max thickness (mm): Copper Busbar | 12 mm |
| Throat Depth (mm) | 75 mm |
| Size (mm) | 350 × 245 × 110 mm |
| Weight (kg) | 27 kg |
Specification
Additional information
| Weight | 27 kg |
|---|---|
| Dimensions | 35 × 24.5 × 11 cm |
