Name: ▷ Buy New Pneumatic DC Manual Spot Welding Machine for 18650 21700 32650 Cylindrical Battery Pack () - Available at MachineryGenie.com
SKU: 1005005736475618
Price: 7734.00 USD
Availability: InStock

Description

Products Description

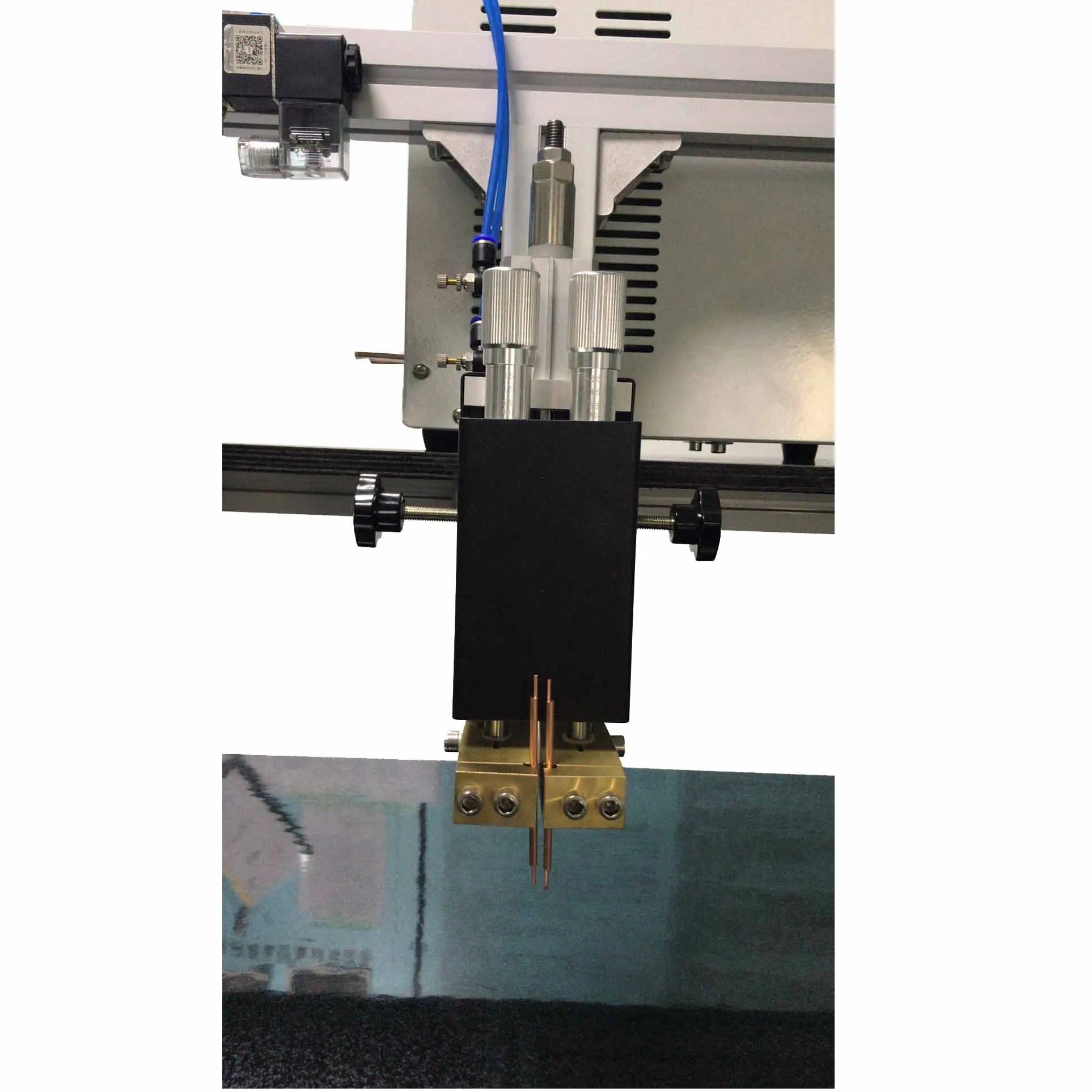

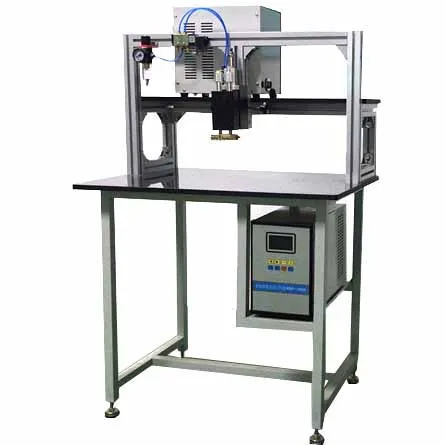

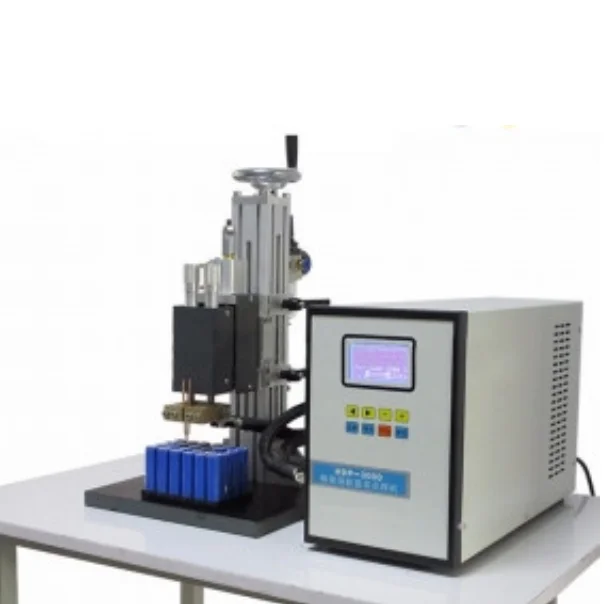

Pneumatic DC Manual Spot Welding Machine for 18650 21700 32650 Cylindrical Battery Pack

Zoway-HDP-3000S is HF(high frequency) Inverter Type Welding Power Supply, the welding process is stable, the welding quality is improved, and the electrode life is prolonged .

Fearures
1.The inverter frequency is 4kHz, and the time control accuracy is 250us, which can achieve the precision welding effect.
2.Two control modes of primary constant current and secondary constant current
3.Programmable up to 128 sets of welding specifications
4.Two-stage heating process with independent ramp up and ramp down and real-time welding current waveform display
5.Multi output input I/O interface, better application in automation scenarios
6.Counting system of solder joint count, workpiece number, packing number, electrode repair mold count, etc., convenient for production management
7.485 communication and BCD code control function: can be externally connected with industrial computer, PLC and other equipment
8.Copy welding specification process parameters, convenient and fast setting of specification parameters
9.Authority function, three-level user password authority management, convenient for quality management
10.Record and store welding current, time, network voltage, specification number, welding result, etc. support USB data export
11.Alarm recording function, convenient to check historical alarm information
12.Current control accuracy: 5%

Specifications

Model	Zoway-HDP-3000S-A	Zoway-HDP-3000S-B
Input power supply	3φ380V±10%,50/60HZ	3φ380V±10%,50/60HZ
Maximum output current	5000A	8000A
Inverter frequency	4K	4K
control mode	Primary constant current, secondary constant current
Electric parameter setting range	100-5000A	200-8000A
Rated power (5%)	13.1KVA	22.0KVA
Secondary no-load voltage	9.8V	9.8V
Cooling mode	Forced air cooling
Communication mode	RS485
Boundary dimension (power supply)	450230320	450230320
Structural characteristics	Integrated side output	Split power supply and transformer
Welding transformer	Built in	182184348[water cooler]
