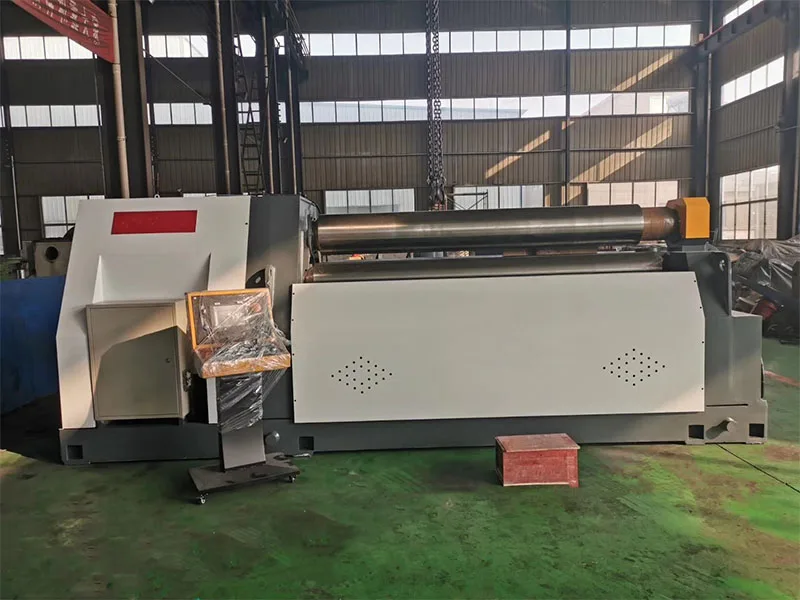

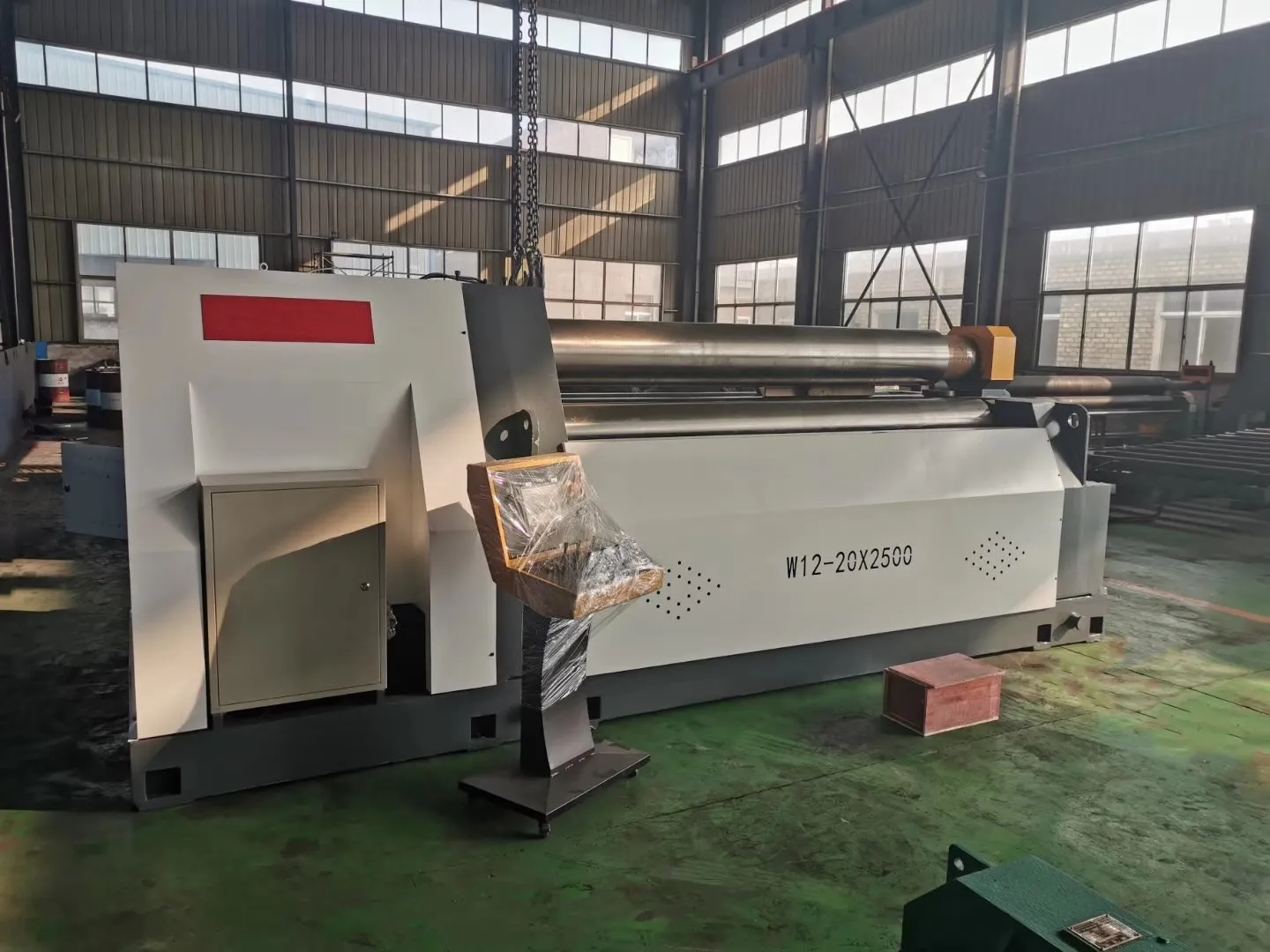

Manufacturer Automatic 4 Roll Tube Bending Rolling Machine for Steel Sheet Tube Bender Forming

Manufacturer Automatic 4 Roll Tube Bending Rolling Machine for Steel Sheet Tube Bender Forming

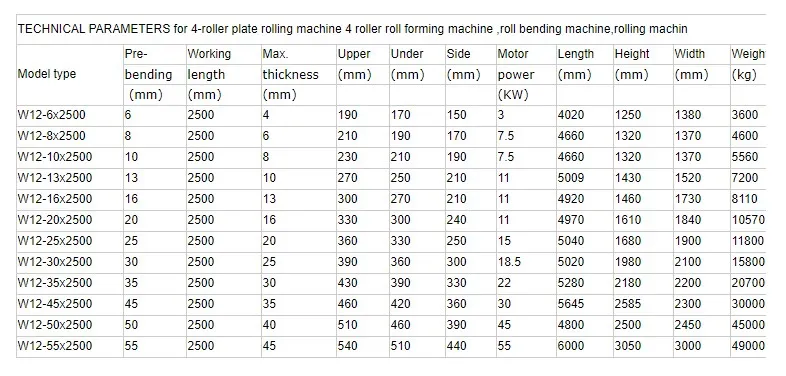

Configuration:

1. Main power: Siemens Electrical made in Germany.
2. Main electronic elements: Schneider made in France.
3. Axletree: Double-row self-aligning bearingfrom Germany.
4. Main motor: Siemens Electrical made in Germany.
5. Programmable logic controller PLC: OMRON products from Japan.
6. Hydraulic system: Bosch – Rexroth made in Germany.
7. Gear pump: made in China TaiWan.
8. Work Roller: Material of work roller with 42CrMo Alloy steel.

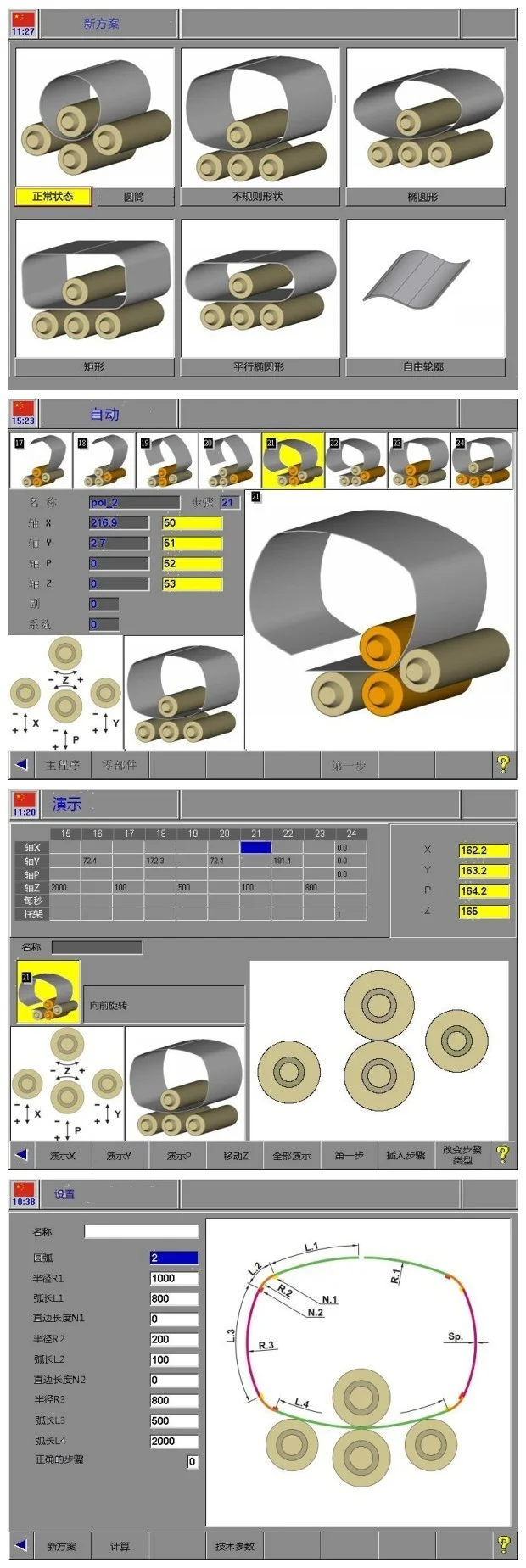

9. Digital display system: Touch Screen for Delta.
10. Transducer: OMRON,Made in Japan.
11. Automatic lubrication system: Sino-Japanese joint,which has block alarm.

Summarize:

This belongs to four roller plate rolling machine, up roller is fixed and it is the main drive,hydraulic motor driven by variable speed drive gear up and down roller belt drive, to provide torque for the roll sheet; under the roller moves vertically through the hydraulic pressure acting on the piston of hydraulic cylinder obtained in order to clamp plate for hydraulic transmission; the down roll of the sides with side roller and cylinder driven by oil. The machine advantage of end plate bending(pre-bending) and rolling can be conducted on the same machine.

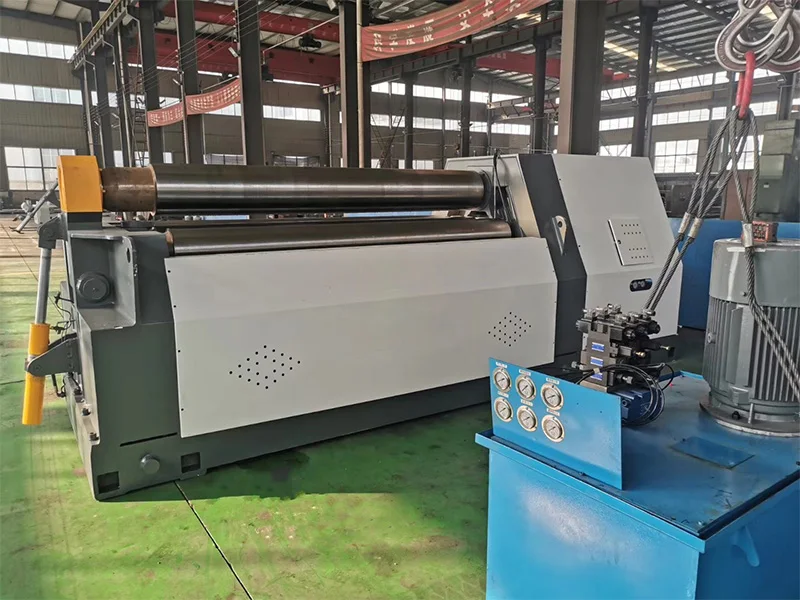

Structure and main parts

This equipment composed of work frame, upper roll device, main drive device, down roll device, side roll device, overturn device, hydraulic system(parts), electricity system(parts), and lubricate device.

Work frame:

Body from the base, a fixed side frame and the tip side of the rack, and each part is steel welded structure. Were fixed with bolts on both sides of the rack in the base and sides of the rack will be used to connect beams connected to rigidity good. Both sides of the rack up roller and side rollers with movement of rail, fixed on the side of the rack with roller bearing for half of the closed frame structure, has overturned side rack shelf support devices. Coil force in the process of both sides of the rack by the bear from the base not only supports the weight of the machine to ensure the accuracy of the role of equipment, but also enables a torque between the drive and chassis balance, and will join into one machine. In the now traditional large-scale four-roller bending machine body and the main gear is separate from the base installation.

Upper roll device

The up roller gear drive from the main for turning, the ends of the SP-1 bearing support, drive-side through the flat key, off the main drive gear and connect the device to transfer torque, tip-side with the protection of Steel. The material of the up roller is 42CrMo, heat hardening is HB220-300.

Main drive device:

By the Hydraulic motor, three speed reduction gear, transmission torque to the up roller. This device include motors and speed reduction gear box. Power supply is according to customer's requirement.

Down roller device:

Down roller supports under the bearing, the bearing housings on both sides of the rack mounted inside the track, the bottom of the piston and cylinder connected. Bearing in the liquid under pressure can rise and fall along the rail, according to the size of the thrust rod, steel plate under the roller clamping force required by the hydraulic system pressure control valve be adjusted. Addition of the down lower rollers can roll adjustment, improve the accuracy of product under the same material as the roll quality alloy steel 45#, heat treatment hardening is HB220-300.

Side roller device:

Side of the roller bearing in the radial bearing pedestal, bearing on both sides of the rack mounted inside the track, the bottom of the piston and oil cylinder connected. Bearing in the liquid under pressure, can be tilted up and down along the rail, the size of the piston rod of the thrust force according to the needs of steel plate by the hydraulic system pressure control valve be adjusted. The side roll quality alloy steel, heat treatment hardening is HB220-280.

Packing & Delivery:

2 kinds of ways: LCL is for small machine, FCL is for big machine.

※ LCL: Covered by plastic films, packed by wooden case.
※ FCL: Covered by plastic films, packed by a container.

☀Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
☂ After tested, the machines will be wrapped with plastic sheet ,machine will be securely wired to the container.
☂ Each Press Brake packed with plastic film first, then placed in a wooden case, wooden case with a foam filling.
✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal. At the dock we pack the goods in containers and ship them abroad.

Delivery Detail :
✈ Shipped in 30 days after payment.

Our service:

Pre-sales.

* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.

In-sales.

* We will provide you with the latest progress in the product assembly, packaging and transportation.

After-sales.

* We will provide free accessories for the damage to non – human parts.
* Training how to install the machine, training how to use the machine with video and so on
* And our technical staff can go abroad to provide technical guidance.
