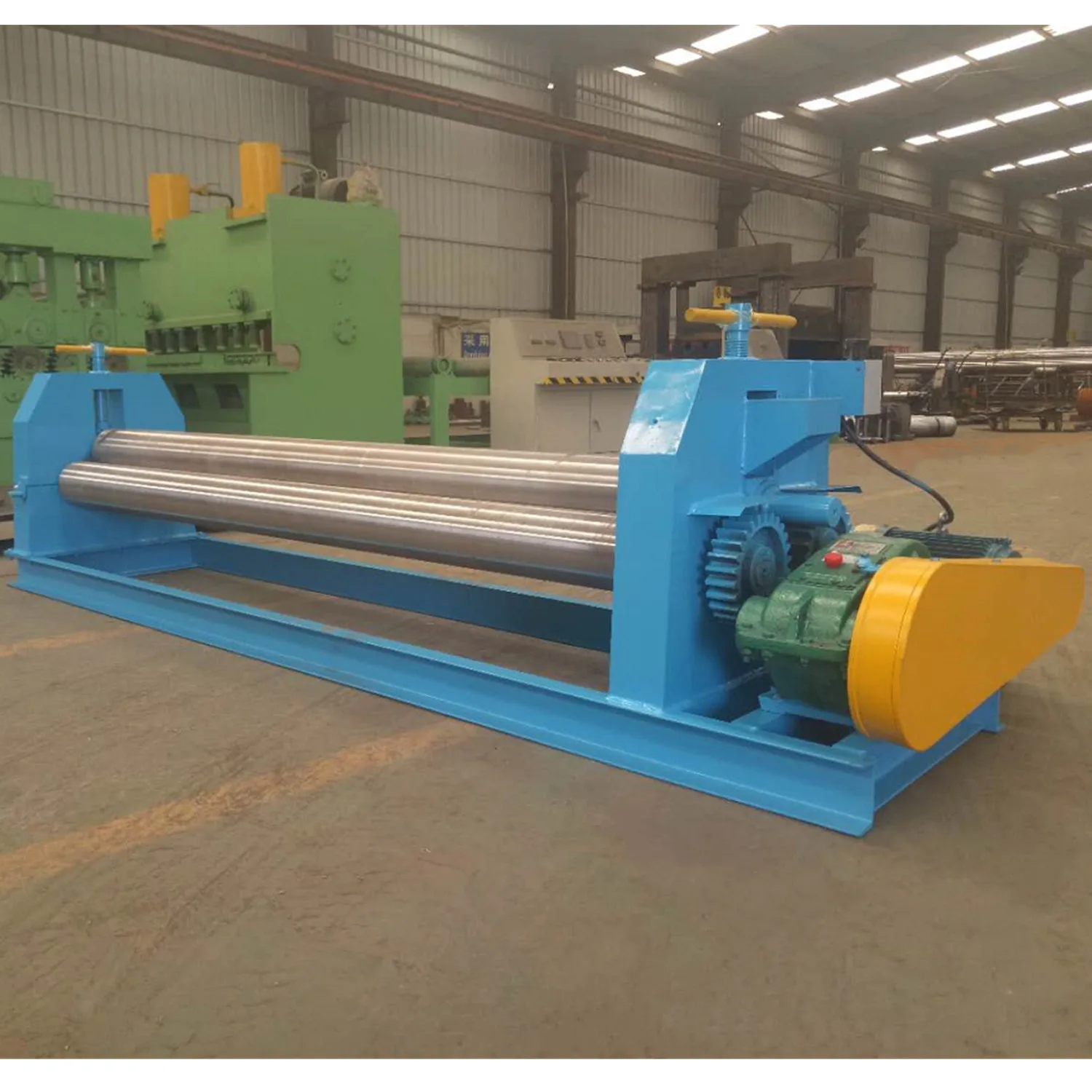

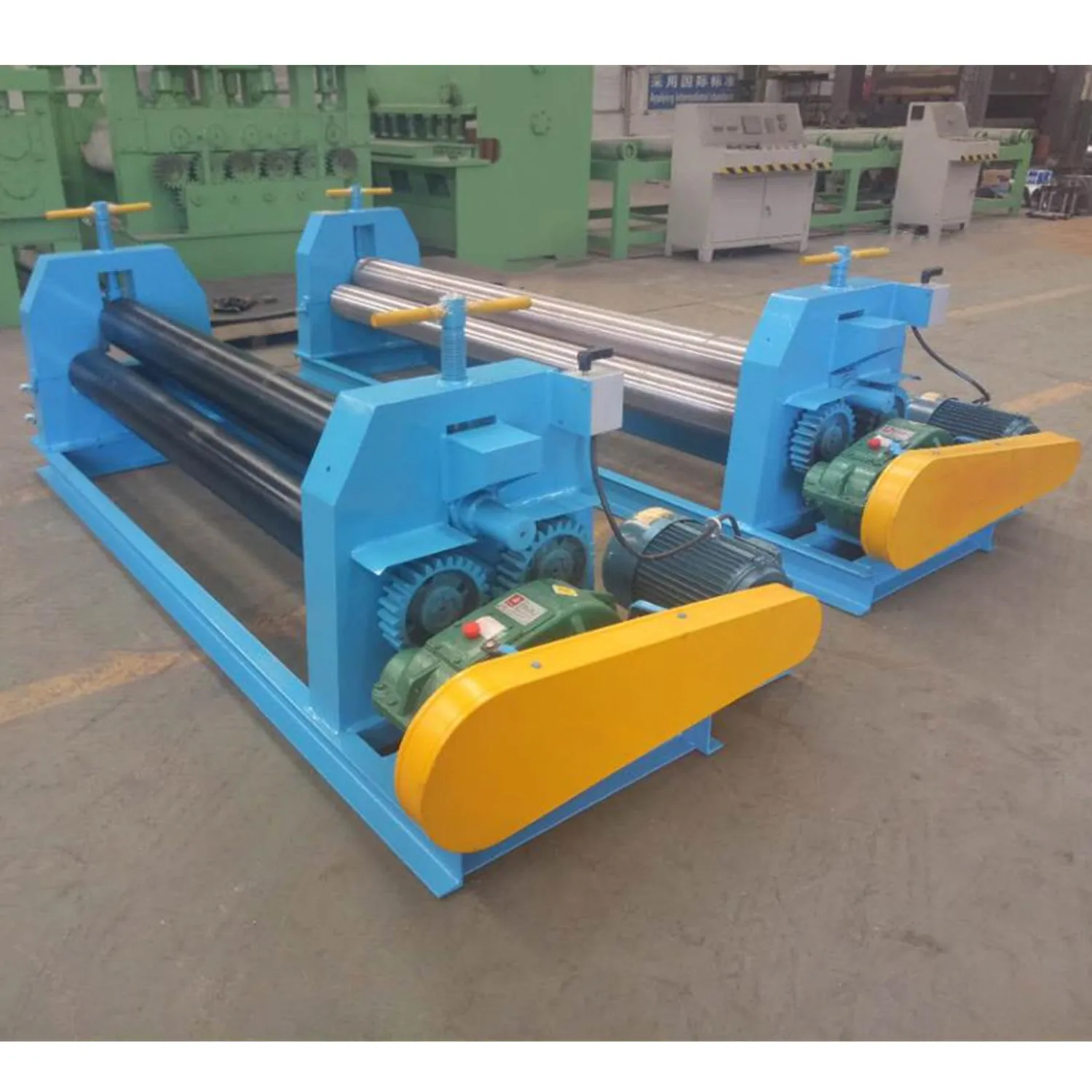

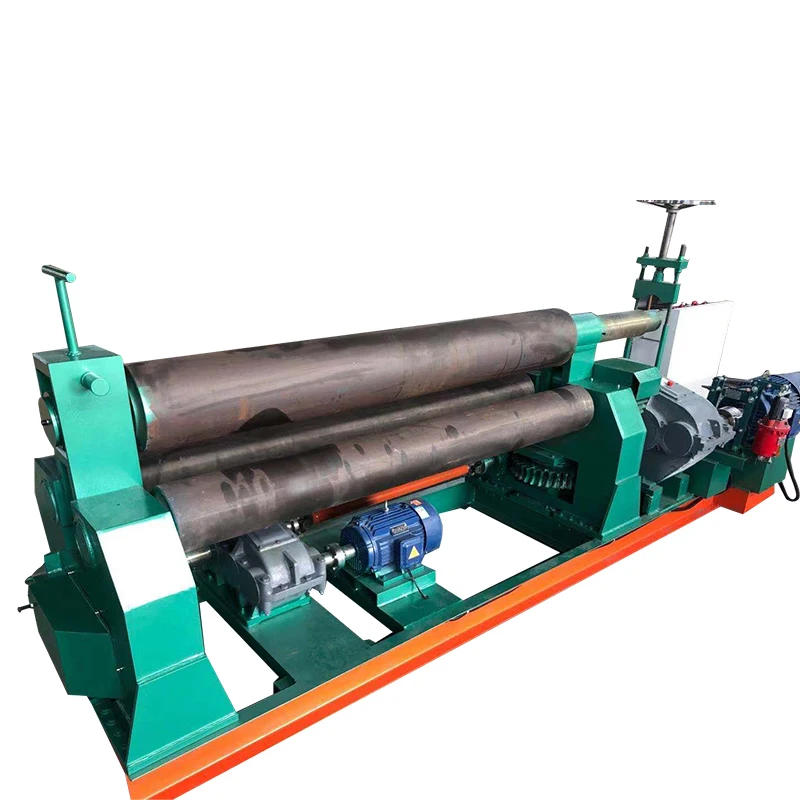

3 Roller Semi-automatic Rolling Bending Machine for Aluminium Plate and Stainless Steel Sheet

3 Roller Semi-automatic Rolling Bending Machine for Aluminium Plate and Stainless Steel Sheet

Detailed information:

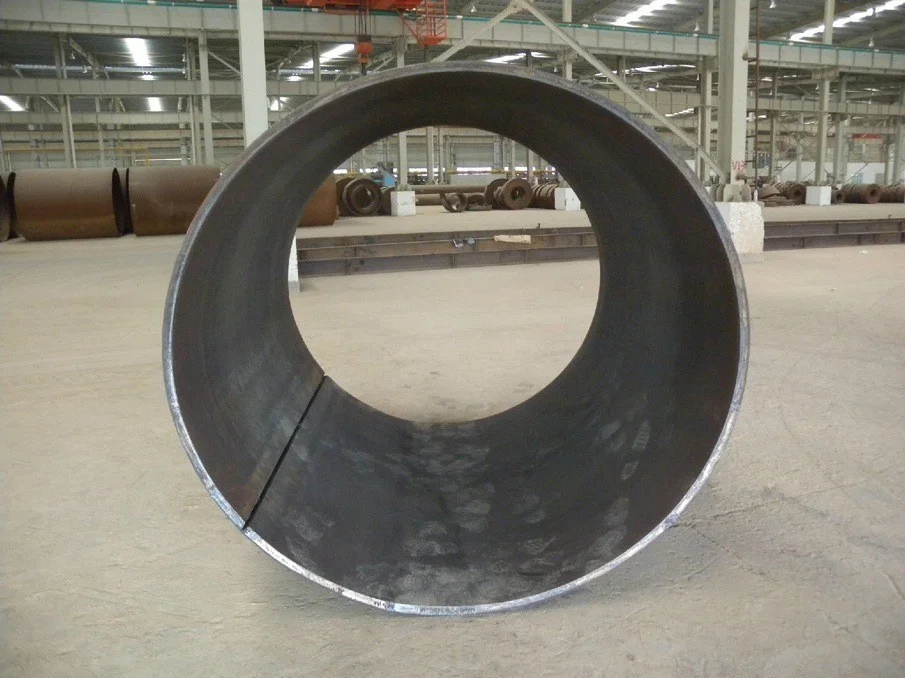

The machine is three rollers symmetrical up mode, mainly for the bending roll in the process of operation, the maximum thickness of 6mm metal sheet. In normal temperature plate volume, the metal plate can be rolled into a cylinder, cone, or a circular arc, its residual straight line part of the hammer into by manual arc on both ends, with roller can roll of small diameter cylinder, but also high roll surface quality requirements of metal plate (upper and lower roll stick a layer of tape). It is a kind of extremely universal equipment, boiler, shipbuilding, petrochemical, cement, motor and other machinery manufacturing in one of the key equipment. The equipment has the advantages of simple structure, compact, convenient operation and high efficiency.

The main structure:

The main components of the machine
The shaft roller is the main part of the plate rolling machine.

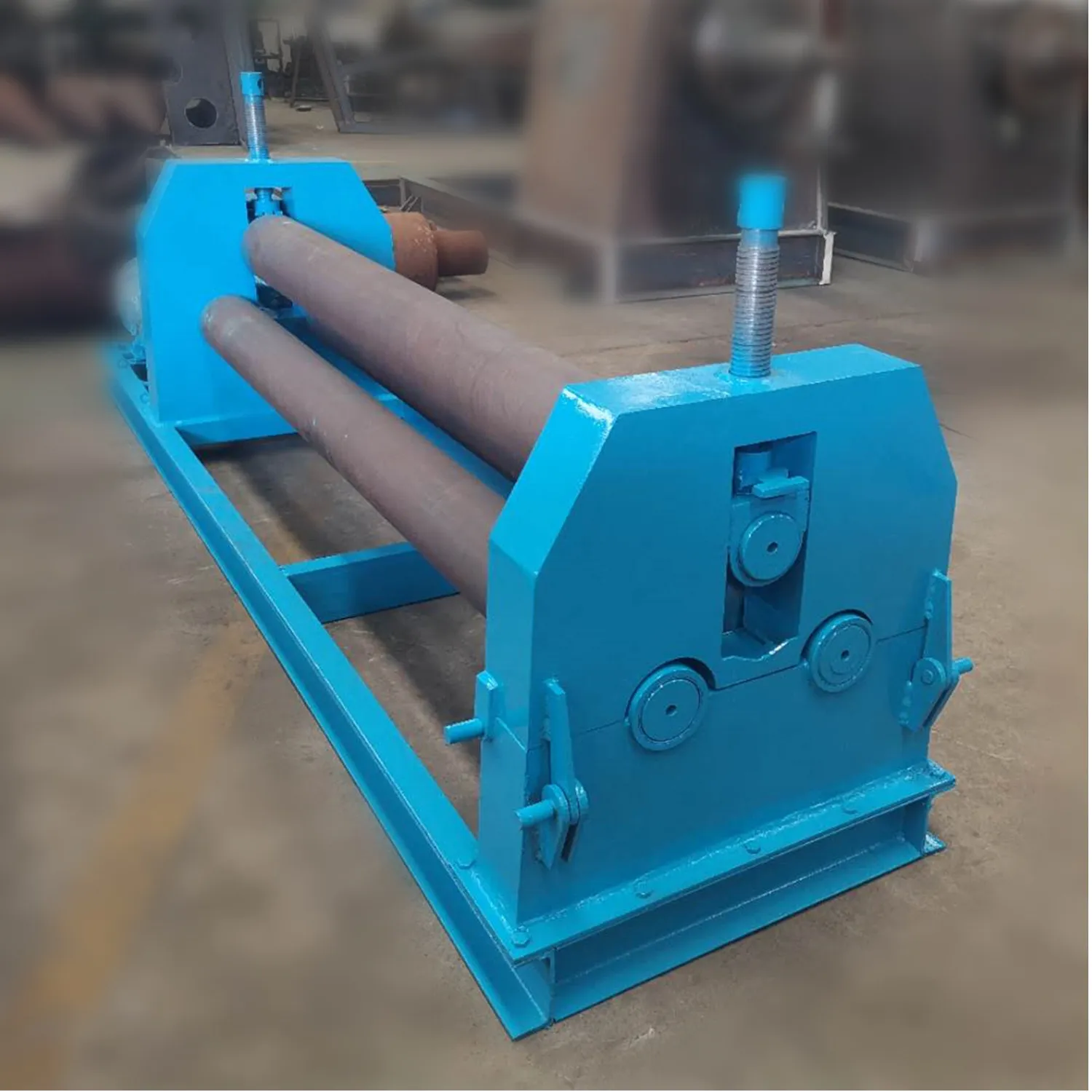

The frame is divided into left and right frames, which are fixed on the base with bolts, and the motor drives the reducer to drive the lower rollers.

Transmission of the machine:

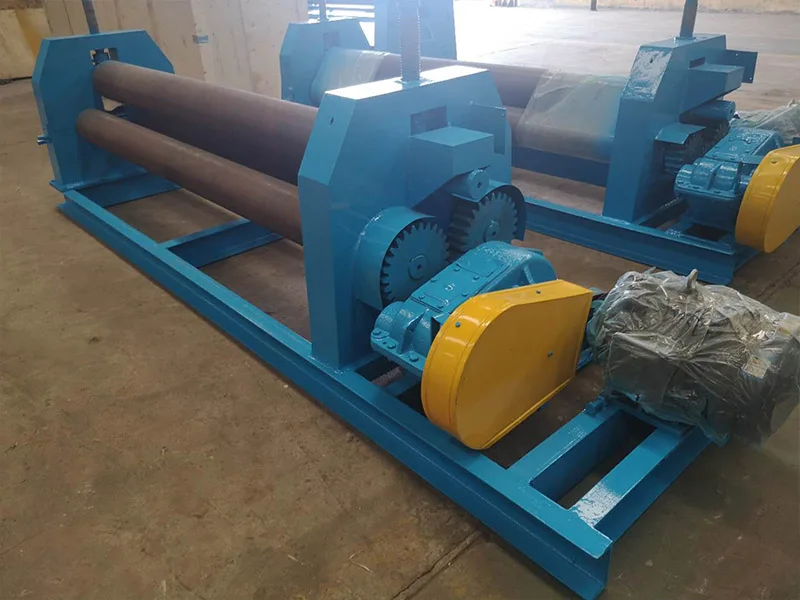

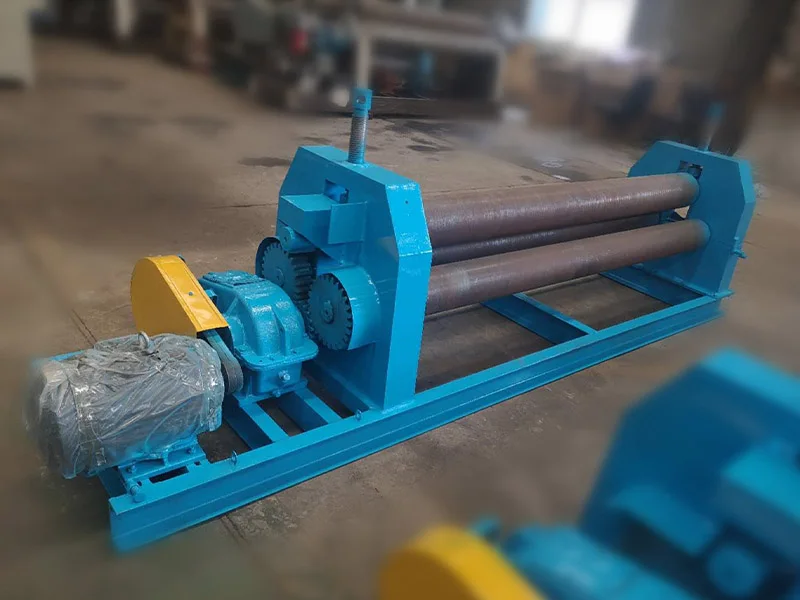

The machine's lower roller and driving roller, upper roller and driven roller, and lower roller drive the steel plate to be transported by the motor through the reducer and gear.
Turning to completion, the lifting of the upper roller is adjusted by the screw rod. To complete the reel arc, such as reeling a cone, adjust the left and right ends of the screw to complete.

The operation and use of the machine:

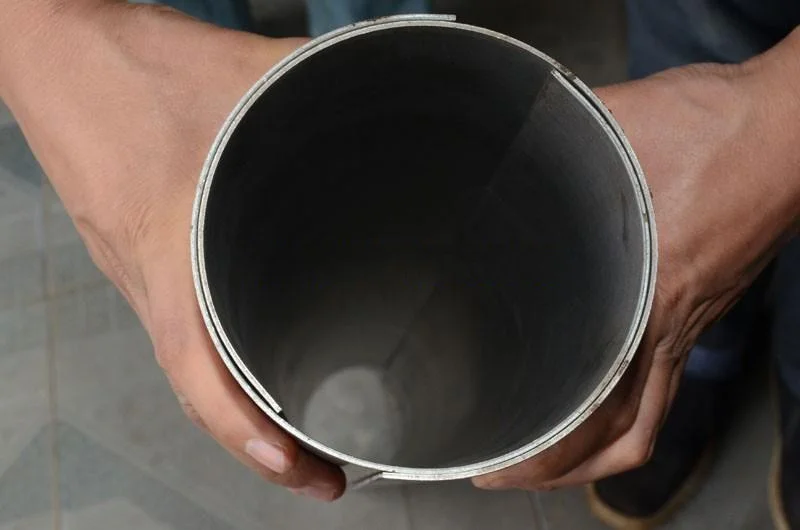

The feed of the metal plate and the transmission of the upper roller, the friction between the plate and the roller, through the arc formed by the three tangent points of the contact between the three rollers and the metal plate, the flat plate can be bent into an arc or a closed cylindrical shape. During operation, the plate is fed into the middle of the upper roller and the lower roller, and pressure is generated on the metal plate. At this time, the lifting screw is adjusted, and the forward and reverse switches are alternately operated to make the plate roll back and forth, and then turn the upper roller Lower, adjust and rotate for many times, so that the bending of the plate meets the requirements. At this time, take out the small shaft and remove the left bearing of the upper roller. The finished product can be taken out from one end of the upper roller. However, the hard bearing must be used before the left bearing is finally removed. The object supports the upper roller to maintain the balance of the upper roller. Such a curved metal plate will leave a straight section at the front and rear ends, which can be manually shaped into an arc in advance. When the taper is rolled, adjust the left and right screw rods to a certain extent, and repeat the above method for the rest.

Packing & Delivery:

Packing Detail:
2 kinds of ways: LCL is for small machine, FCL is for big machine.

※ LCL: Covered by plastic films, packed by wooden case.
※ FCL: Covered by plastic films, packed by a container.
☀Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
☂ After tested, the machines will be wrapped with plastic sheet ,machine will be securely wired to the container.
☂ Each Press Brake packed with plastic film first, then placed in a wooden case, wooden case with a foam filling.
✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal. At the dock we pack the goods in containers and ship them abroad.
Delivery Detail :
✈ Shipped in 30 days after payment.

Our service:

Pre-sales.
* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.

In-sales.
* We will provide you with the latest progress in the product assembly, packaging and transportation.

After-sale.
* We will provide free accessories for the damage to non – human parts.
* Training how to install the machine, training how to use the machine with video and so on
* And our technical staff can go abroad to provide technical guidance.

FQA

1. Are you the manufacturer? Can we visit your factory?

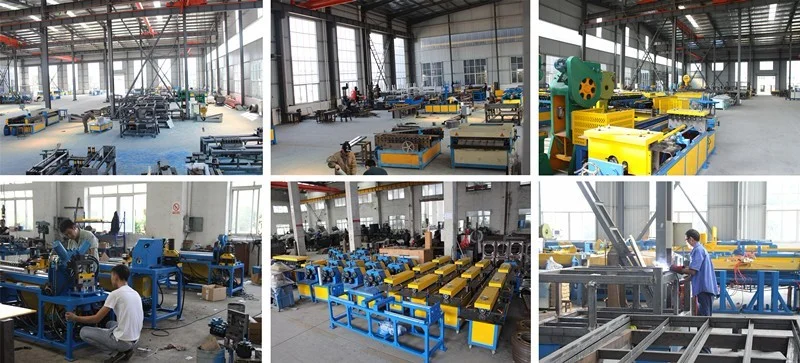

Of course, you can. We are manufacturer and we are located in Anhui, China. We have our own team for products design. Welcome to visit our factory and check our machine qualtiy, any question will be solved on time.

2. What's your main product? What is your main foreign market?
Our main products are press brake, shears machines, hydraulic press, cutting machine, locking machine, auto duct line and related products. Our main foreign markets are Asia, North America, Europe, and Africa.

3. What are the advantages of your machines? And how can I believe the quality of your product?
The main configuration is import high quality products, and professional product quality inspection team ensures machine in top-quality, precision and life. For example, Germany Bosch-Rexroth Valve group, Germany Siemens Main Motor, Schneider Electrics system and so on. Once tested as qualified, our machine would be sent out. So the quality of our product is stable and reliable.

4. Are you able to update the production process Information in time after placing our order?
After confirming your order, we would keep you updated of production details of emails and photos.

5. Can we be your agent?
Yes, we are looking for global agent, and we will help agent improve the market, and supply all the service like machine technical problem or other after-sales problem, meanwhile, you can get big discount and commission.

6. Payment terms?
T/T, L/C, Western Union, Paypal, Alibaba Secure Payment etc.

7. Are you provide product metal parts and provide us technical guidance?
Wearing parts, Disassembly tool(free) are what we could provide. And we can give you technical guidance. Our technical staff can go abroad to provide you with professional technical guidance.

8. How long is your warranty?
2 years free warranty, life-long maintenance.

9. Do you accept customer Logo and customized?
We accept kinds of customized, including logo and machine.

10. About shipping free?
For large machines, shipping costs within China are directly included. Please contact customer service for shipping costs for specific countries.
