High Precision CK1120 Swiss Type CNC Lathe Machine for Metalworking
A$34,382.76
- USD: $23,247.00
- GBP: £18,453.25
- EUR: €21,489.08
- JPY: ¥3,480,585
- CNY: ¥161,548.93
Description
Attention please!!!
Please kindly read the following tips before purchasing.
1. The transaction of large machinery cannot be completed on AliExpress.
2. The express fee on AliExpress has no reference value, please ignore it. We ship by sea instead of express, please contact us to get the freight to your sea port.
3. If any problem please feel free to contact with us.
Whatsapp 86 18656680921 Email [email protected]

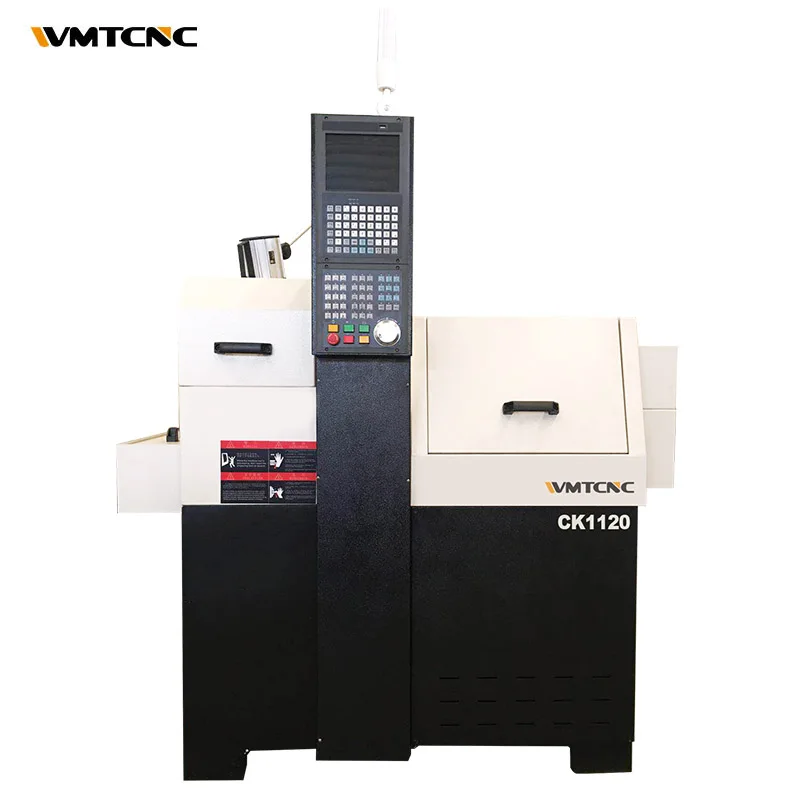

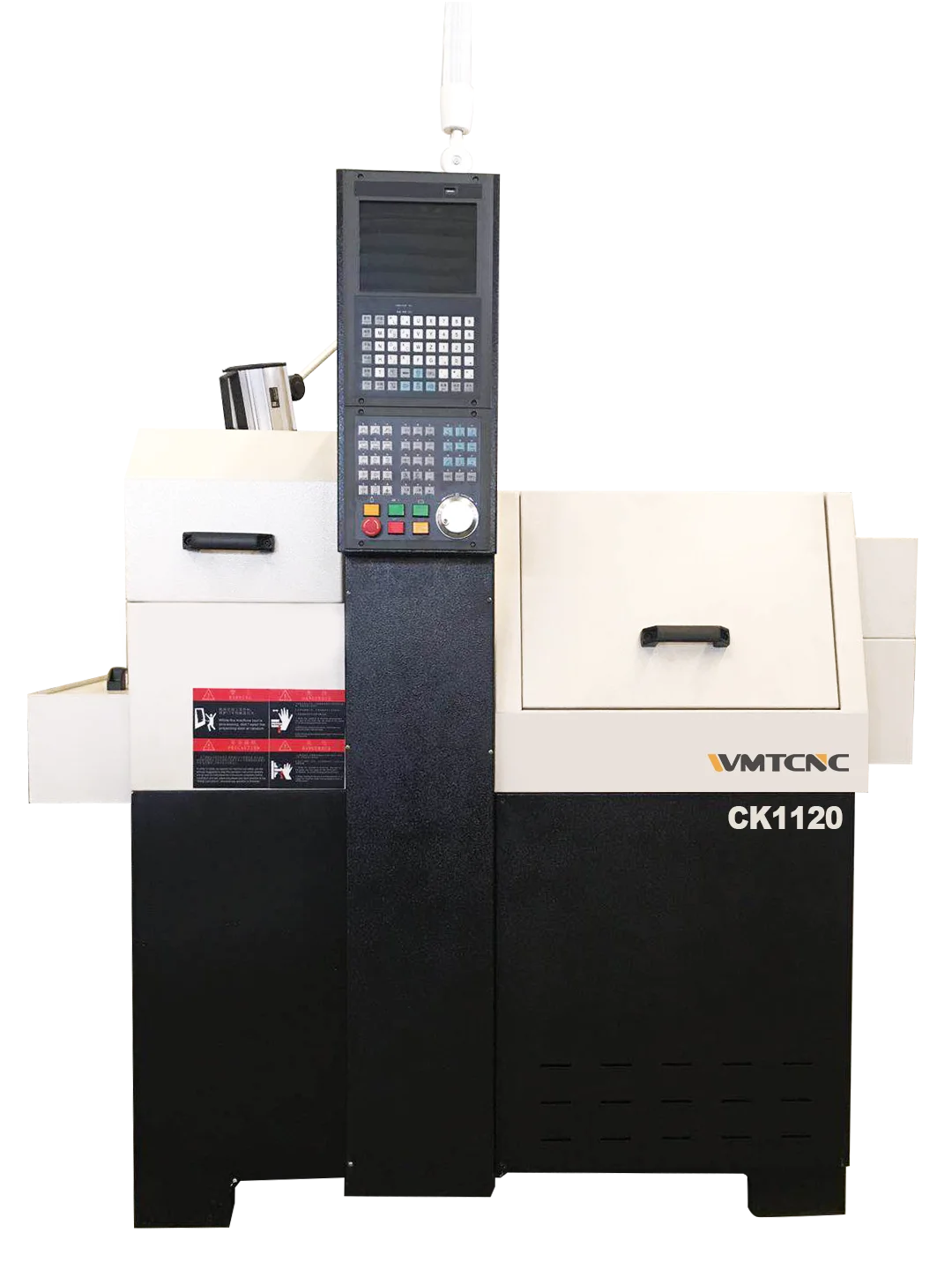

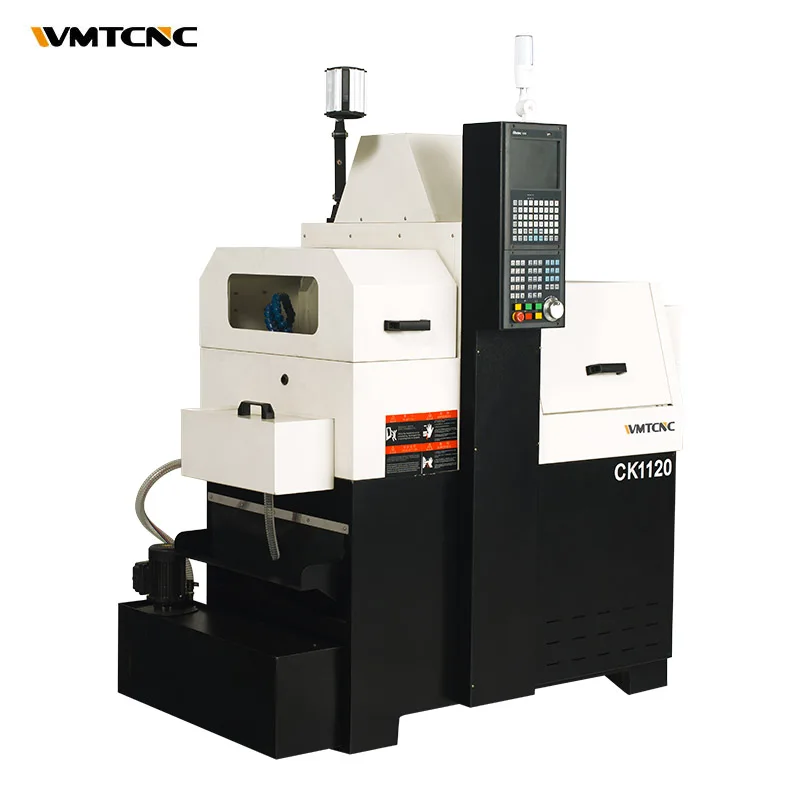

CK1120 Swiss Type CNC Lathe Machine for Metalworking
Machine features of swiss type CNC lathe:
1. The number of tools is large, and the tool exchange is fast.
2. It can process all kinds of ultra-slender parts.
3. The power head meets the needs of turning and milling compound processing.
4. Reasonable layout, compact appearance and less floor space
|
Reted Voltage
|
380V /3 phase AC Current
|
Gang Tool
|
12 Nos.
|
|
Reted Frequency
|
50HZ
|
Turning Tool
|
9 Nos.
|
|
Total Input Power
|
4.75kw
|
Tool Size
|
12*12mm
|
|
Model (special customerized)
|
YZ150
|
Obverse Side Drilling
|
3 Nos.
|
|
Min Setting Value
|
0.001mm
|
Drilling Spindle Size
|
ER11/20mm
|
|
X Axis PulseEquivalent
|
0.0005mm
|
Cuting MotorPower
|
0.09kw
|
|
Y Axis Pulse Equivalent
|
0.001mm
|
Capacity of CoolingContairer
|
150L
|
|
Z Axis Pulse Equivalent
|
0.001mm
|
Motor Power
|
25w
|
|
Max Programming size
|
±9999.999
|
Capacity
|
1.5L
|
|
Cutting Speed
|
1–4000mm/min
|
Input Pressure of Compressed Air
|
0.4–0.6Mpa
|
|
X Axis Fast Feed Rate
|
18000mm/min
|
X Axis Stroke
|
80mm（dia.）
|
|
Y Axis Fast Feed Rate
|
18000mm/min
|
Y Axis Stroke
|
150mm
|
|
Z Axis Fast Feed Rate
|
18000mm/min
|
Z Axis Stroke
|
250mm
|
|
Max. Bar Dia.
|
Φ20mm
|
X Axis Servo Motor Power
|
0.75kw
|
|
Spindle Hole Dia.
|
Φ21mm
|
Y Axis Servo Motor Power
|
0.75kw
|
|
The height of spindle center from ground
|
980mm
|
Z Axis Servo Motor Power
|
0.75kw
|
|
spindle speed
|
0-4000r/min
|
Slide guide mode
|
linear guide
|
|
Spindle power
|
2kw
|
L*W*H(mm)
|
1495*1010*1860mm
|
|
Weight
|
1220kgs
|
