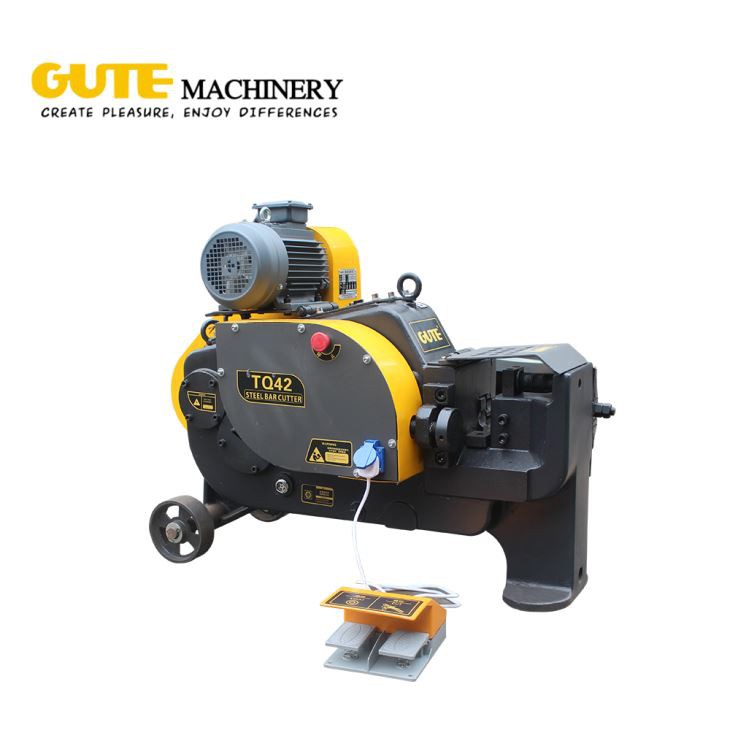

GUTE Machinery TQ42 Bar Cutter Machine
Features (TQ42):
Cutting Diameter: 6-40mm
Motor Power: 3kw-2p
Cutting Speed: 48T/min
Weight: 500kg
Description
Product Details
PRODUCT DESCRIPTION
1. It can be applied to cut the normal carbon steel rod, hot rolled steel and deformed bar in machine processing and construction projects, also suit for square steel and flat steel.Steel bar cutter is an ideal equipment for cutting.
2. Enhanced machine rack, small volume, compact structure, solid and reliable.
3. Good lubricating property, adopt closed gear box, use the gear splashing to realize lubrication. It could be continuous work two months after adding 8kg gear oil.
4. Less function loss because of the lubrication improvement. The gear section adopts rolling bearing, less resistance. Compared with same type cutting machine, load power can be reduced by one third.
5. It’s convenient to be moved and maintenance.
|
STEEL BAR CUTTER TQ42 |
||
|
CUTTING CAPACITY |
6-40 mm (ob ≤450N/mm2) |
6-36 mm (ob ≤650N/mm2) |
|
CONTROL MODE |
REMOTE CONTROL |
|
|
MOTOR POWER |
3 KW-2P |
|
|
MOTOR ROTATION SPEED |
2840 R/min |
|
|
CUTTING SPEED |
40 T/min |
|
|
NOISE VALUE (1m away) |
≤75dB(A) |
|
|
WEIGHT |
500 Kg |
|
|
EXTERNAL DIMENSIONS |
1250*580*900 mm |
|
|
CERTIFICATION |
495 Kg. |
|
|
EXTERNAL DIMENSIONS |
1100*500*900 mm |
|
|
CERTIFICATION |
2006/42/EC – 2006/95/EC / ISO 9001:2008 |
|
Hot Tags: bar cutter machine, manufacturers, suppliers, price
