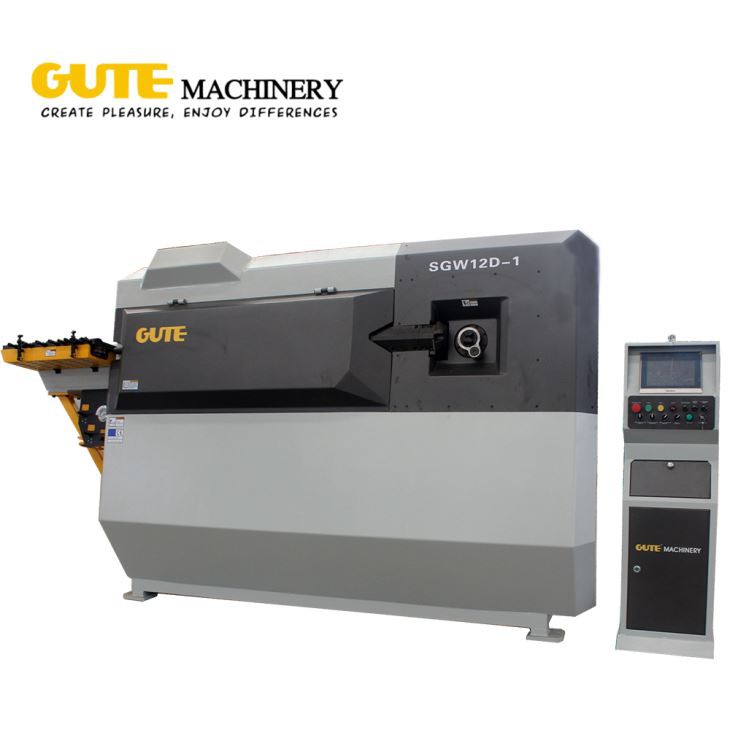

GUTE Machinery SGW12D-1 Rebar Stirrup Bending Machine
Features (SGW12D-1):
Single Wire: 6-12mm
Double Wire: 6-10mm
Traction Speed: 75-100m/min
Max. Bending Speed: 1050º/sec
Weight:3.5t
Description
Product Details
Product Description
CNC Steel Bar Stirrup Bender 2 payoffs,suitable for single and double wires processing at the same time, which can process both round bar and deformed bar as your need. Bending arm driven by servo motor can protrude or draw back while bending different angles, when cutting system receives signal, it will finish cutting work synchronously.
Automatic stirrup bending machine is self-developed by our company. Applied to straightening, bending and cutting hot-rolled ribbed bar HRB335, HRB400, and cold-rolled ribbed bar from 6 to12mm. Easy to operation and high efficiency. Bending machine could process hundreds of shapes accurately. There is no obvious damage after bending .With stable mechanical properties, this machine could be widely used in construction, reinforcement distribution departments and steel plant stirrup factories.
|
CNC STEEL BAR STIRRUP BENDER SGW12D-1 |
|
|
TENSILE STRENGTH |
Kg/mm245 |
|
SINGLE WIRE BENDING |
6-12 mm |
|
DOUBLE WIRE BENDING |
6-10 mm |
|
OPERATION |
Automatic wire feeding system(CNC) |
|
MAX. BENDING ANGLE |
180° |
|
MAX. LENGTH OF STIRRUP SIDE |
900 mm |
|
MIN. LENGTH OF STIRRUP SIDE |
90 mm |
|
MAX. BENDING SPEED |
1050°/sec |
|
MAX. TRACTION SPEED |
75-100 m/min |
|
RATED POWER |
33KW |
|
BENDING DIRECTION |
BI-DIRECTION |
