GUTE Machinery SGW12D-1 Cnc Wire Bender

Contact this seller for accurate pricing

In stock

Features (SGW12D-1):

Single Wire: 6-12mm

Double Wire: 6-10mm

Traction Speed: 75-100m/min

Max. Bending Speed: 1050º/sec

Weight:3.5t

  Chat Now
SKU: GUTE-SGW12D-1-7 Categories: , Brand:

Description

Product Details


Bending and cutting system (patented technology):

bending arm driven by servo motor can protrude or draw back while bending different angles, when cutting system receives signal, it will finish cutting work synchronously.

Control system:

CNC control with malfunction alarm, PLCservo motor and electric components use Japan and Germany brand.

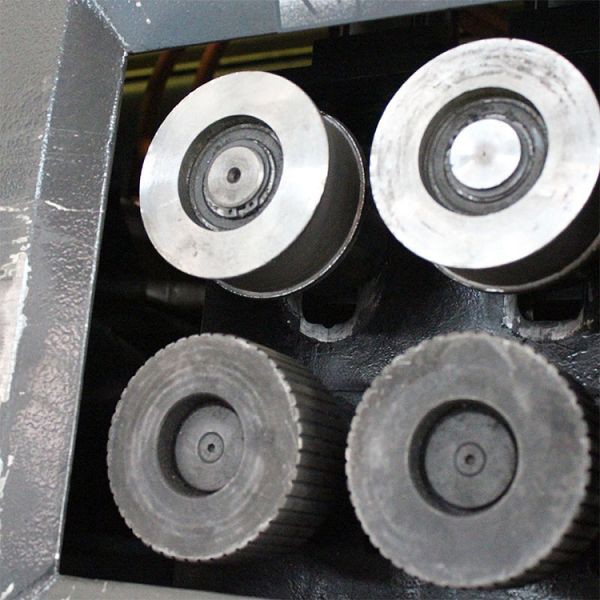

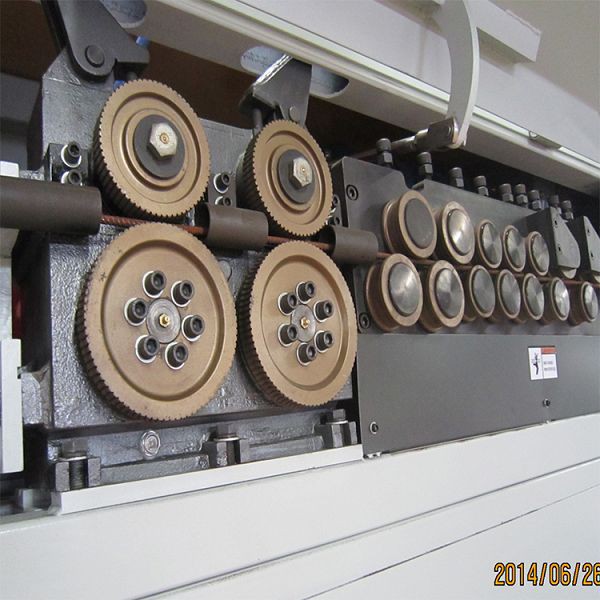

Material feeding system:

2 payoffs with brakes, suitable for single and double strand, buffer unit can reduce the resistance and instability during the process of decoiling.

CNC STEEL BAR STIRRUP BENDER SGW12D-1

TENSILE STRENGTH

Kg/mm245

Kg/mm265

SINGLE WIRE BENDING

6-12 mm

5-11 mm

DOUBLE WIRE BENDING

6-10 mm

5-8 mm

OPERATION

Automatic wire feeding system(CNC)

MAX. BENDING ANGLE

180°

MAX. LENGTH OF STIRRUP SIDE

900 mm

MIN. LENGTH OF STIRRUP SIDE

90 mm

MAX. BENDING SPEED

1050°/sec

MAX. TRACTION SPEED

75-100 m/min

TRACTION SERVICE MOTOR POWER

13KW

BENDING SERVICE MOTOR POWER

7KW







Hot Tags: cnc wire bender, manufacturers, suppliers, price
