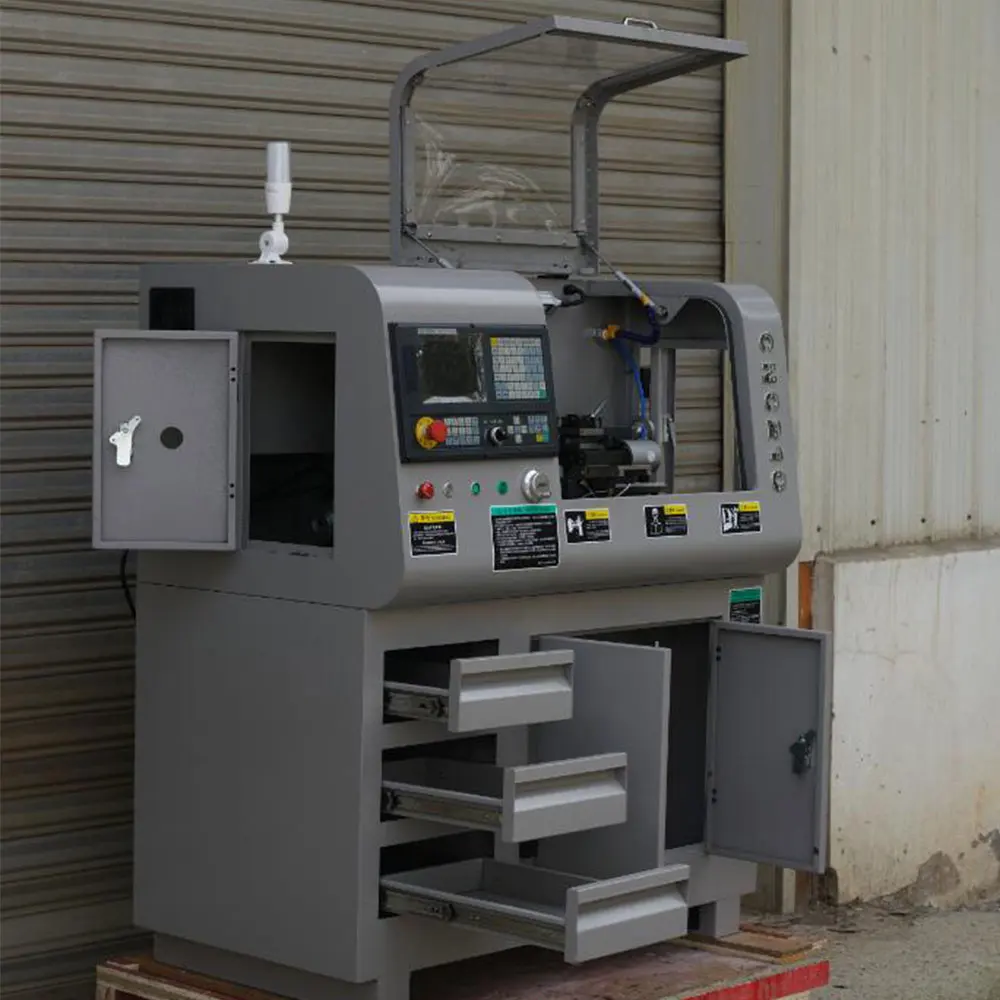

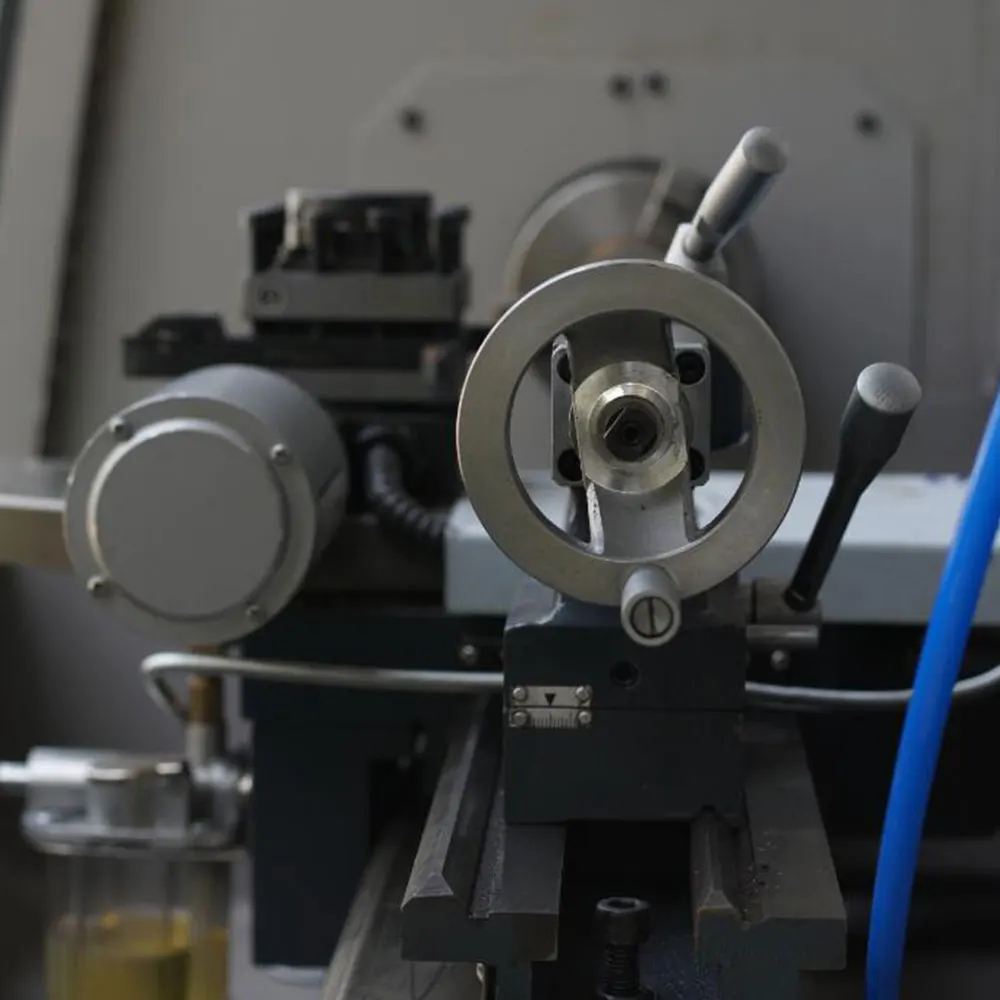

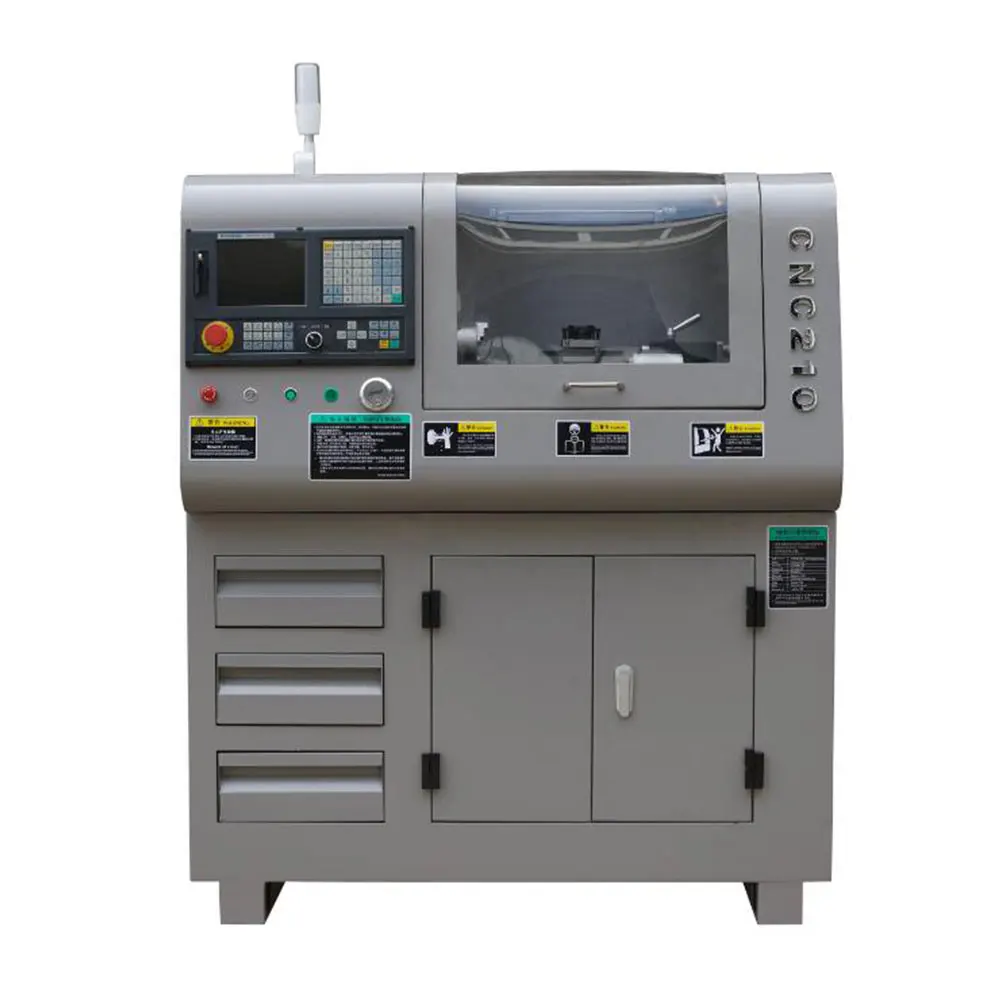

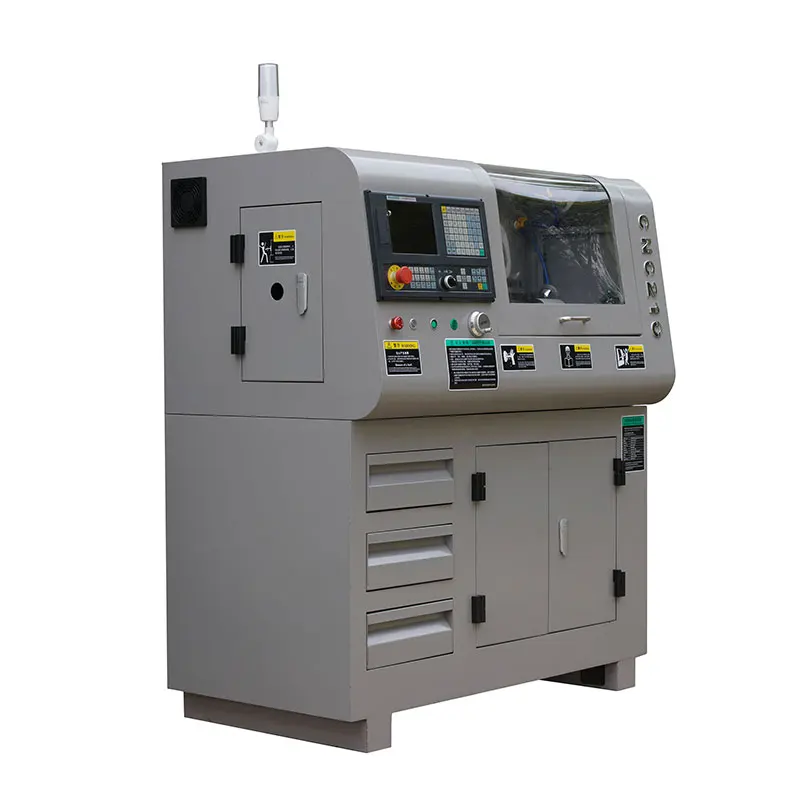

Name: ▷ Buy New CNC210 Mini Benchtop CNC Lathe with AFTER 990TDB Controller () - Available at MachineryGenie.com
SKU: 4000689684909
Price: 8066.25 USD
Availability: InStock

Please kindly read the following tips before purchasing.

1. The transaction of large machinery cannot be completed on AliExpress.

2. The express fee on AliExpress has no reference value, please ignore it. We ship by sea instead of express, please contact us to get the freight to your sea port.

3. If any problem please feel free to contact with us.

Whatsapp 86 18656680921 Email [email protected]

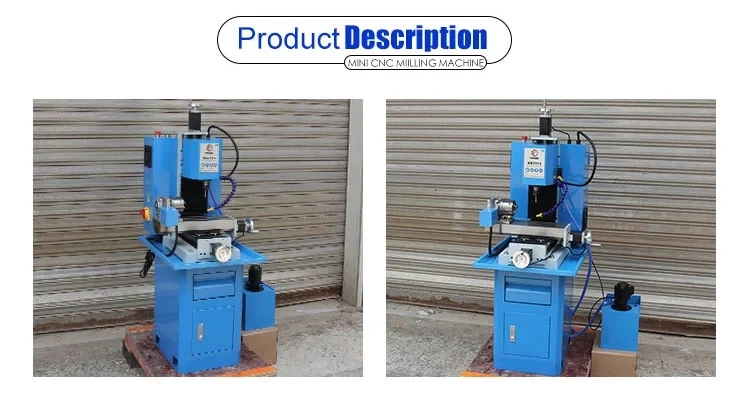

XK7113A Mini CNC Milling Machine with Mach 3 Controller

Features:
1.Small size and cheap price.
2.Low noise and high precision.
3.Suitable for soft metal material processing.
4.Easy operation by P.C.
5.Popular for education training and mould machining.
6.Best choice for hobby users.

Specification	XK7113A/B	XK7113C	XK7113D
Max. drilling dia.	13mm	16mm	13mm
Max. milling dia.	13mm	16mm	13mm
Max. tapping dia.	—-	M8	—-
Spindle speed	3000rpm	3000rpm	12000rpm
Spendle center to column distance	189mm	194mm	200mm
Spindle nose to table distance	205mm	215mm	215mm
Spindle taper	ER20	ER25	ER20
T-slot size （NxWxD）	3/12/40mm	3/12/40mm	3/12/40mm
Worktable size	400X140mm	400X140mm	400X140mm
X axis travel	220mm	220mm	220mm
Y axis travel	120mm	120mm	120mm
Z axis travel	200mm	200mm	200mm
Main motor power	400W	1.2KW	2.2KW
Main motor type	Brushless motor	Servo motor	Frequency motor
Feeding motor torque	2.6/2.6/3.2 N.m	2.0/2.0/3.0 N.m
Feeding motor type	Stepper motor with open loop	Stepper motor with closed loop, Z axis with brake
Controller system	Mach 3	After-CNC 1500MDC
Overall size(LxWxH)	590x590x780mm	1100x600x1380mm
N.W/G.W	90/115KGS	310/330KGS
