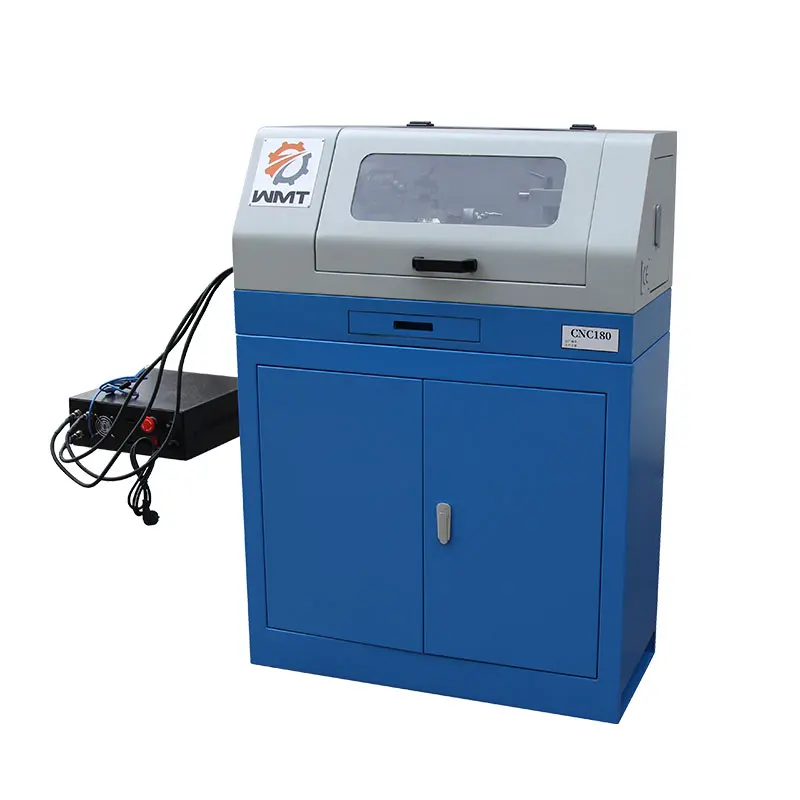

Name: ▷ Buy New CNC180 Mini Lathe Flat Bed Type Stepper Main Motor with GSK928TCA Controller () - Available at MachineryGenie.com
SKU: 4000906059524
Price: 6615.00 USD
Availability: InStock

Description

Attention please!!!

Please kindly read the following tips before purchasing.

1. The transaction of large machinery cannot be completed on AliExpress.

2. The express fee on AliExpress has no reference value, please ignore it. We ship by sea instead of express, please contact us to get the freight to your sea port.

3. If any problem please feel free to contact with us.

Whatsapp 86 18656680921 Email [email protected]

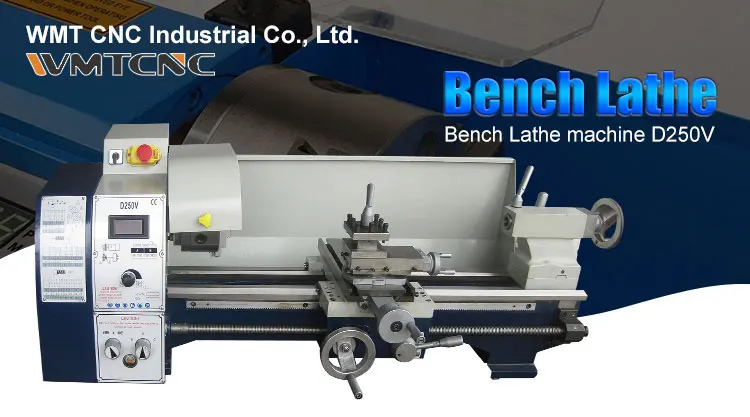

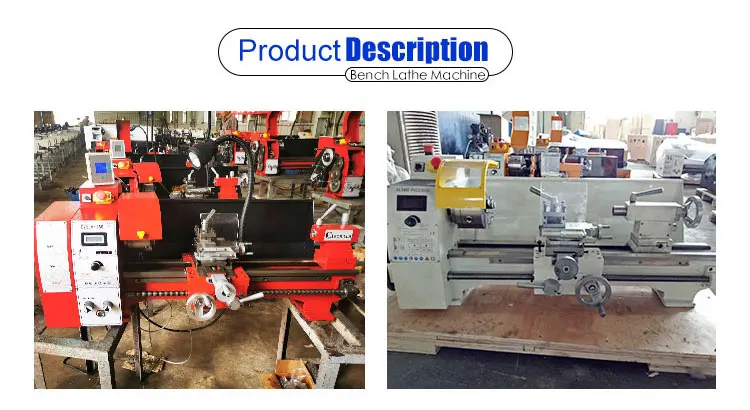

D250V 550mm Variable Speed Bench Lathe for Metal Function

Features:
1.widely used, simple operation, and a wide range of processing.
2.Strong power, maintenance-free DC motor.
3.After quenching and precision grinding of cast iron bed.
4.High precision, quenching spindle.

Specification	D180V	D210V	D250V
Swing over bed	180mm	210mm	250mm
Swing over cross slide	110mm	110mm	150mm
Distance between centers	300mm	400mm	550/750mm
Width of bed	100mm	100mm	135mm
Spindle bore	21mm	21mm	26mm
Spindle taper	MT3	MT3	MT4
Spindle speed	Variable:50-2500rpm	Variable:50-2500rpm	Variable:50-2500rpm
Number of metric threads	10 kinds：0.5-3mm	10 kinds：0.5-3mm	0.2-4mm
Number of imperial threads	8 kinds:8-44T.P.I	8 kinds:8-44T.P.I	8 kinds:8-56TPI
Tool post type	4-poition	4-poition	4-poition
Maximum compoud slide travel	55mm	55mm	70mm
Maximum carriage slide travel	75mm	75mm	135mm
Maximum carriage travel	195mm	276mm	450/650mm
Tailstock spindle travel	60mm	60mm	60mm
Taper in tailstock spindle	MT2	MT2	MT2
Main motor	450(600)W	450(600)W	750W
Weight	60kgs	70kgs	125kg/135kg
Machine size(LXWXH)	740X390X370mm	840X390X370mm	1150/1350X480X500mm
Dimension	800X480X450mm	900X480X450mm	1220X560X560mm/ 1400X560X560mm
