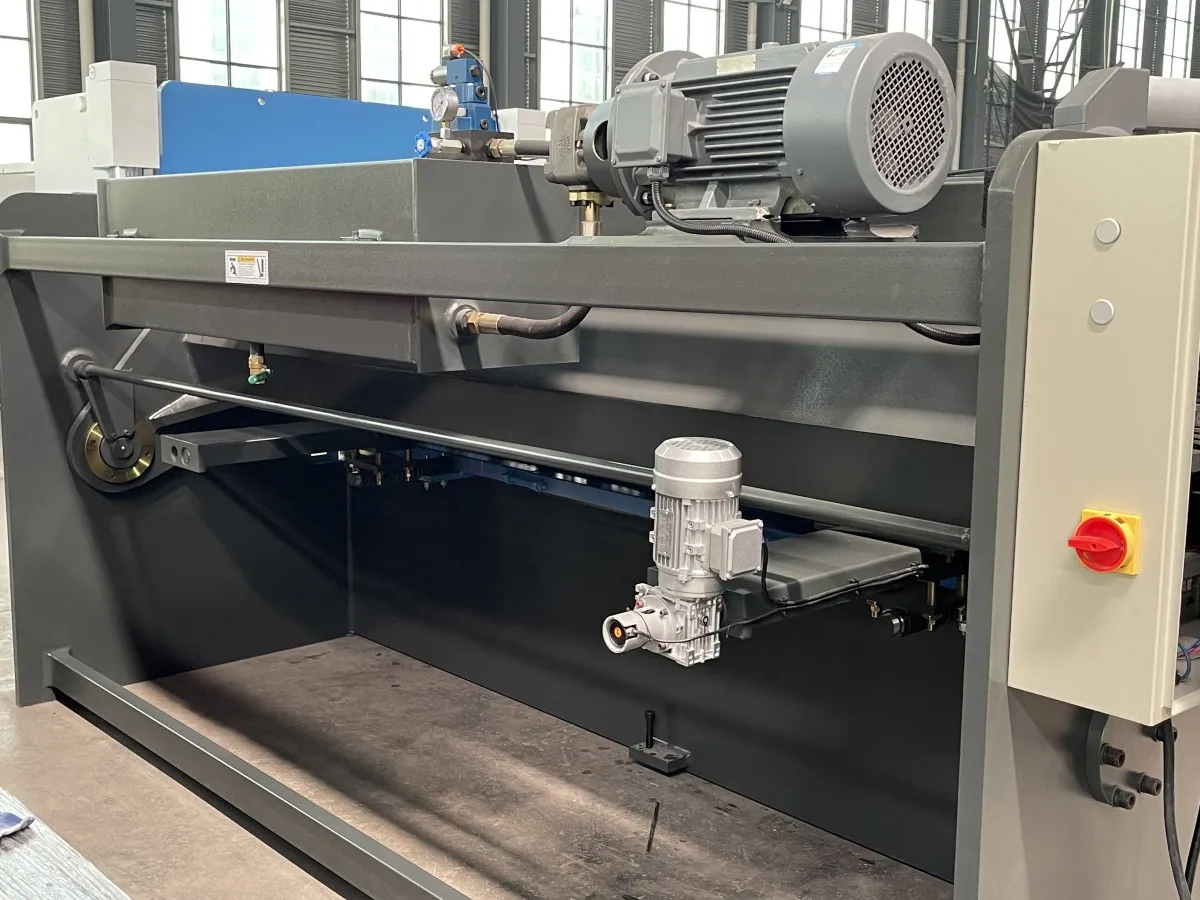

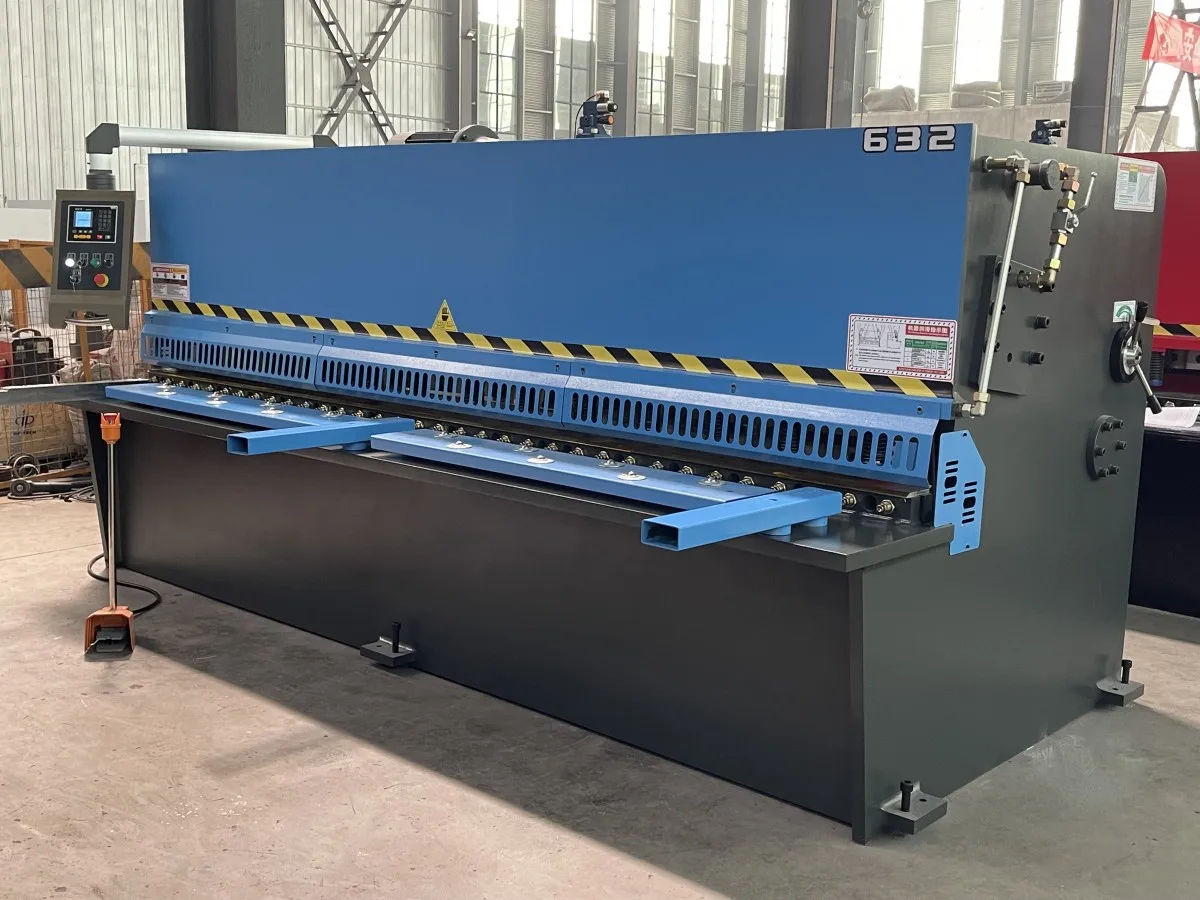

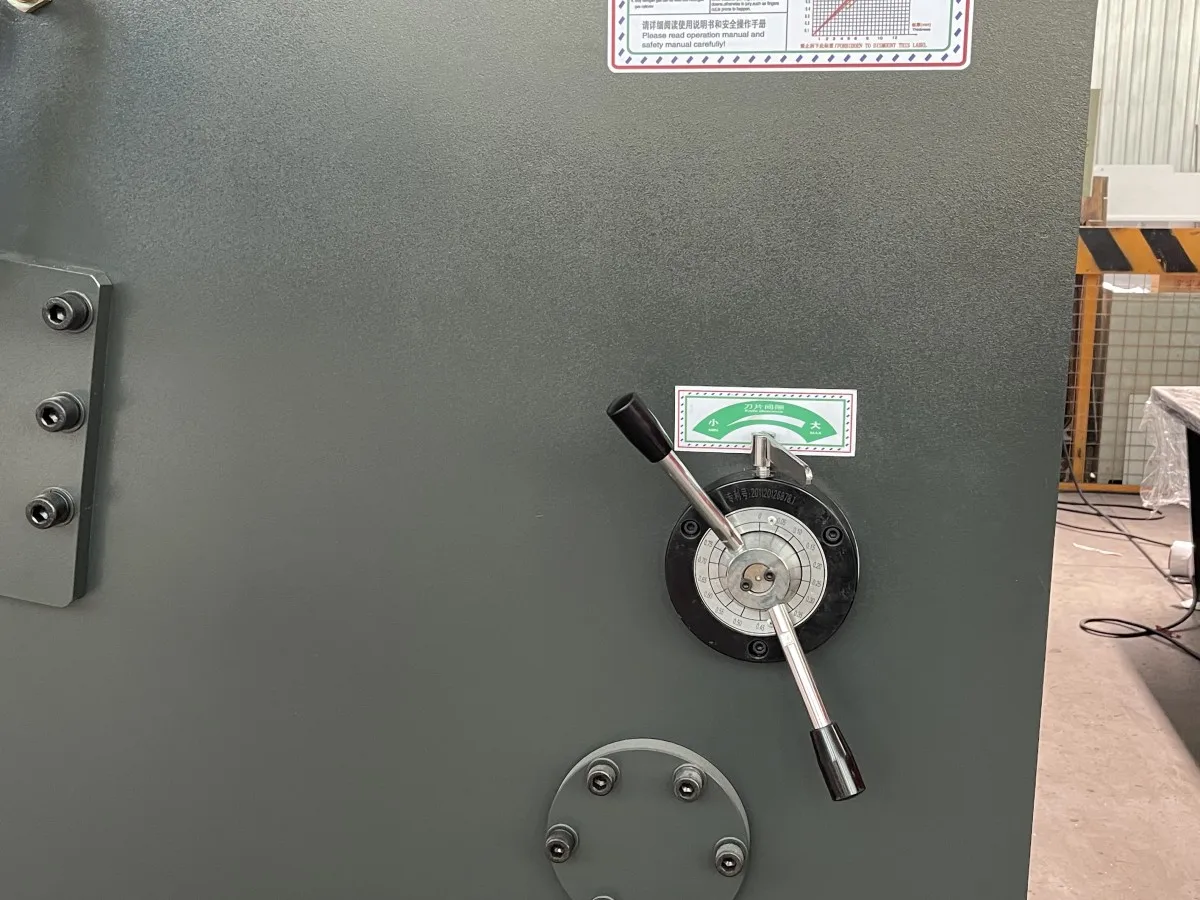

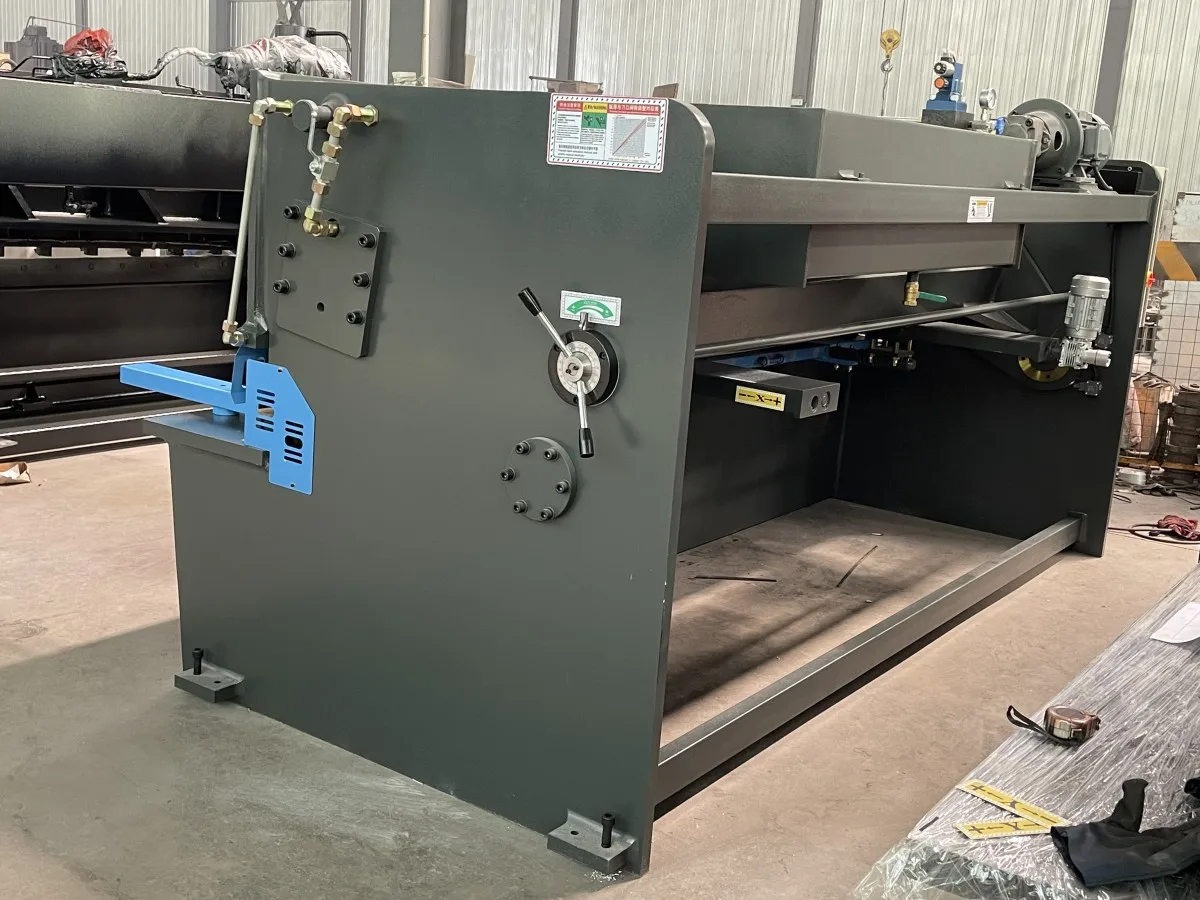

Name: ▷ Buy New 6mm 8mm 10mm hydraulic guillotine shearing machine for stainless steel sheet cutter () - Available at MachineryGenie.com
SKU: 1005006737319992
Price: 9600.00 USD
Availability: InStock

Description

My friend, welcome to our store, if you need other models of this product, please contact me, I will send the product link for you to buy! And welcome to add my WHATSAPP (+8618175124931) This product does not include free shipping. Please check the shipping cost with the customer service staff when purchasing. Thank you.

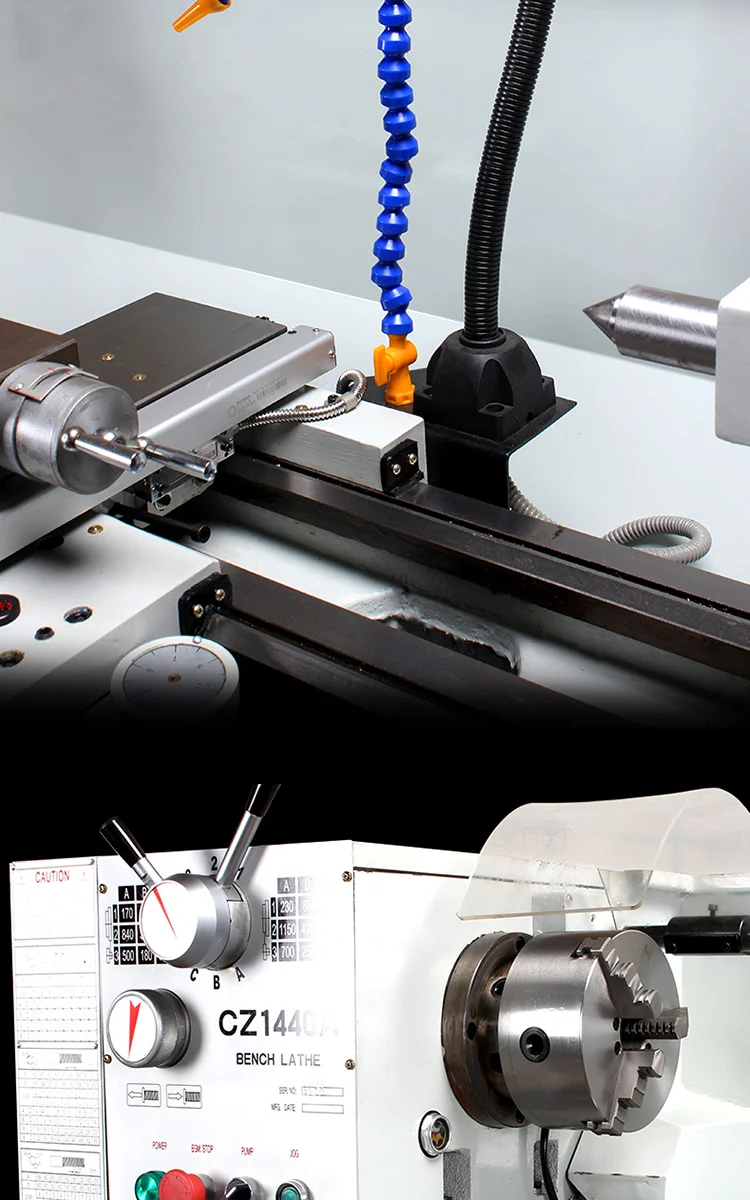

Metal Bench lathe CZ1440G/1

Product description:

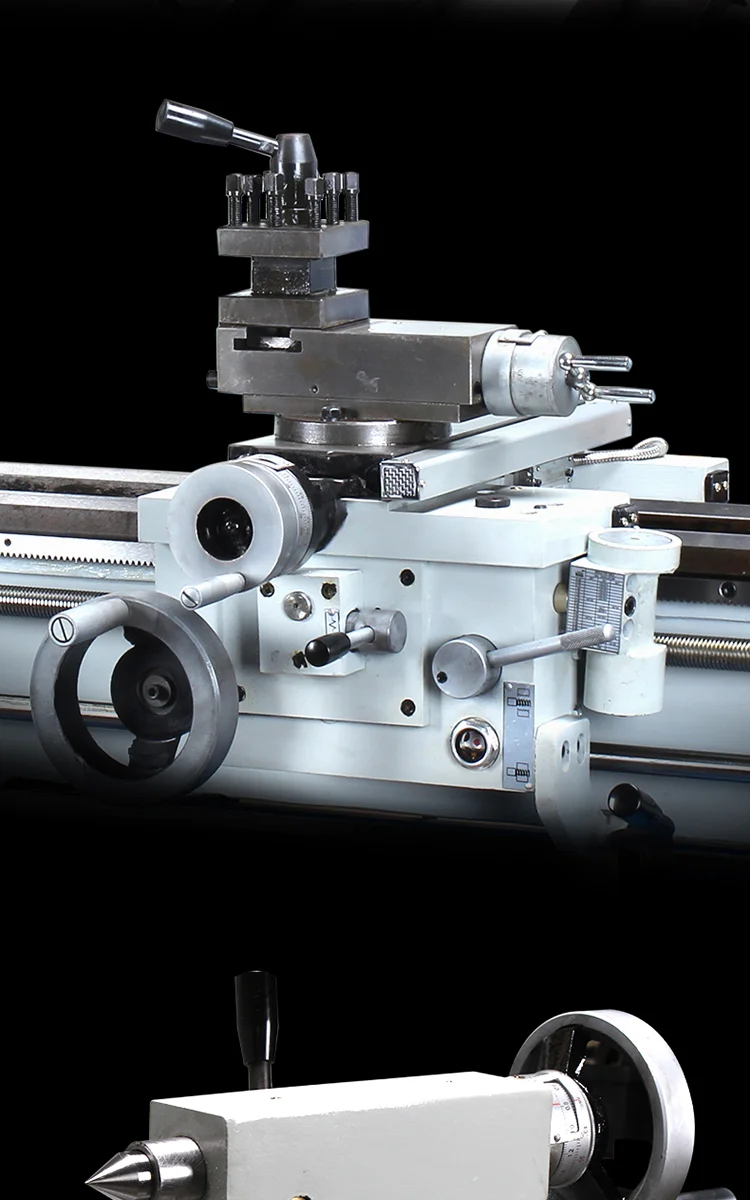

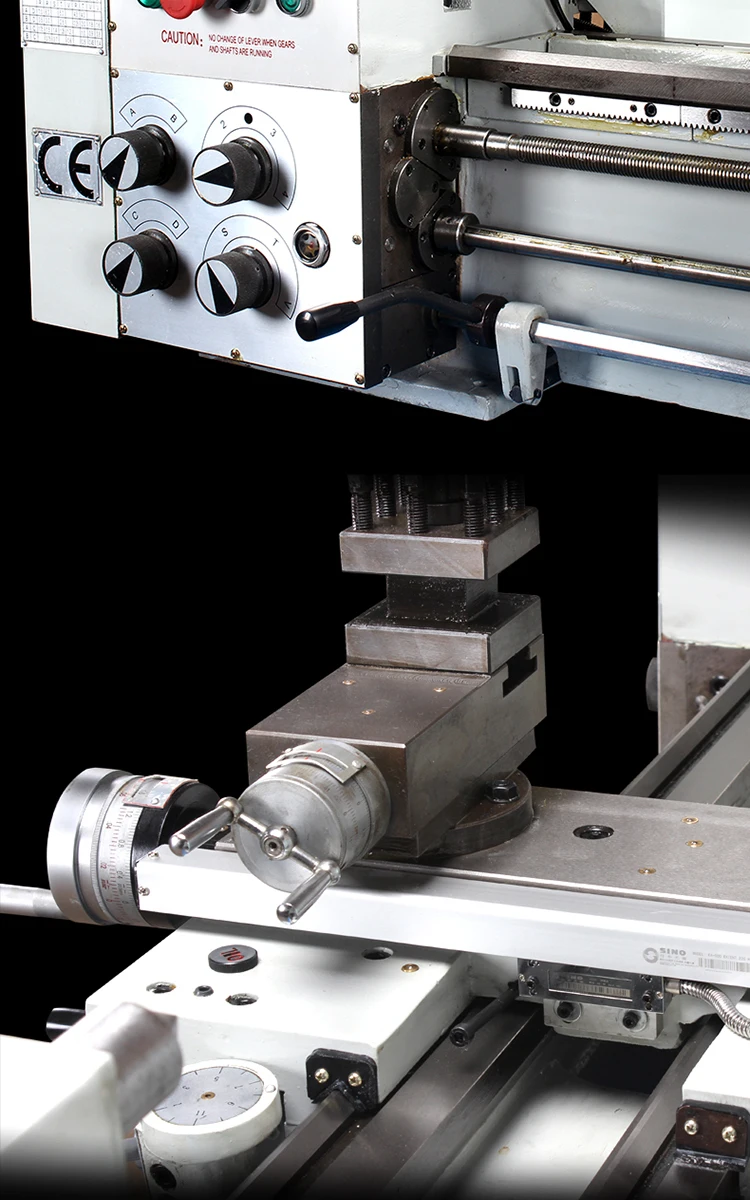

Supersonic frequency hardened bed ways Precision roller bearing for spindle High quality steel,ground and hardened gear inside headstock Easy and fast operating gear box Enough strong power motor ASA D4 camlock spindle nose Various threads cutting functions available.

Specifications	CZ1440G/1
Swing over bed	355mm
Swing over carriage	220mm
Swing over gap	500mm
Width of bed-way	186mm
Distance between centers	1000mm
Spindle taper	MT5
Spindle bore		51mm
Step of speed	8	8
Range of speed	70-2000rpm	84-1850rpm
Head nose	D1-4	D5 with D5′ chuck
Metric thread	26 kinds(0.4-7)
Inch thread	34 kinds(4-56)
Module thread	16 kinds(0.35-5)
Diametral thread	36 kinds(6-104)
Longitudinal feeds	0.052-1.392(0.002”-0.0548”)	0.091-2.533(0.0036”-0.1005”)
Cross feeds	0.014-0.38(0.00055”-0.015”)	0.025-0.69(0.0012”-0.0345)
Diameter of lead screw	22mm
Pitch of lead screw	3mm or 8 T.P.I
Saddle travel	1000mm
Cross travel	170mm	160mm
Compound travel	74mm	70mm

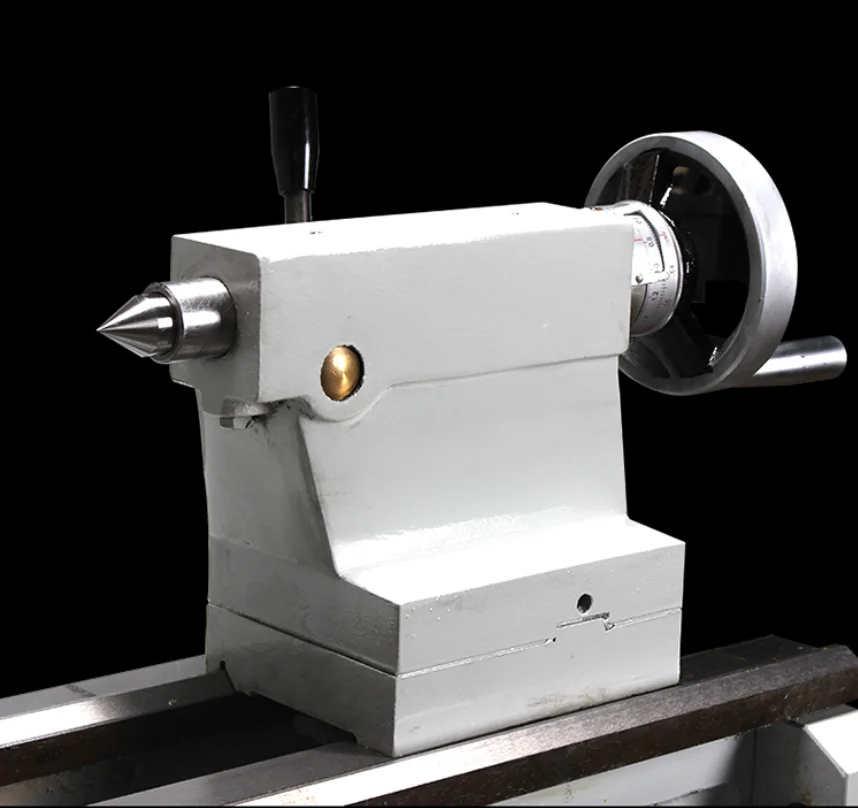

Barrel travel	95mm
Barrel diameter	32mm
Taper of center	MT3
Motor power	1.5KW(2HP)
Coolant motor	0.04kw(0.055HP)

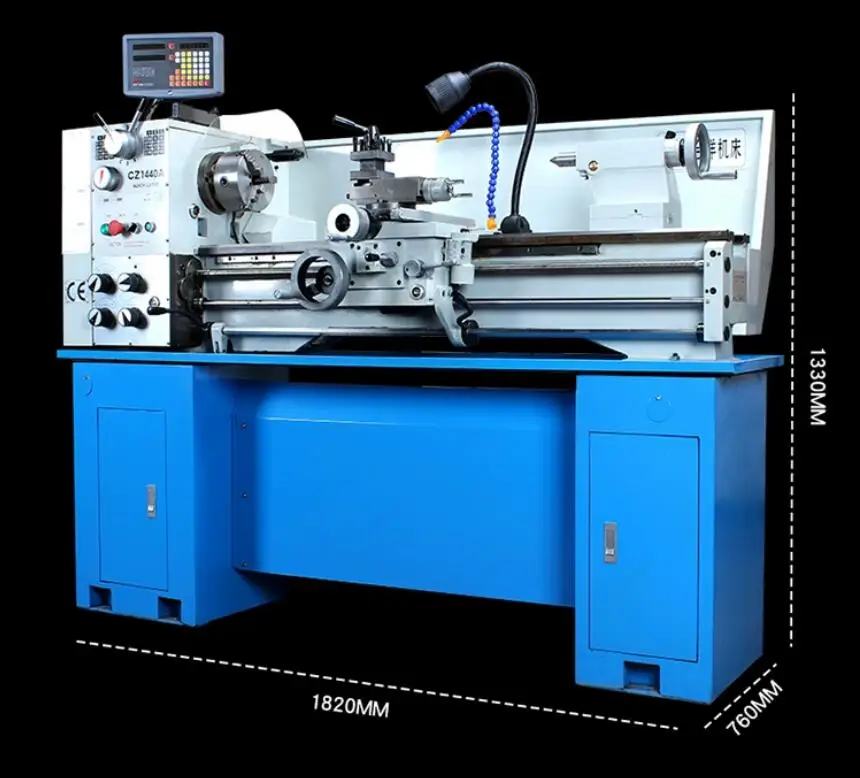

Machine(L×W×H)	1920x760x760mm
Stand (left)(L×W×H)	440x410x700mm
Stand (right)(L×W×H)	370x410x700mm
Machine(N.W/G.W)	505/565KGS
Stand(N.W/G.W)	70/75KGS
