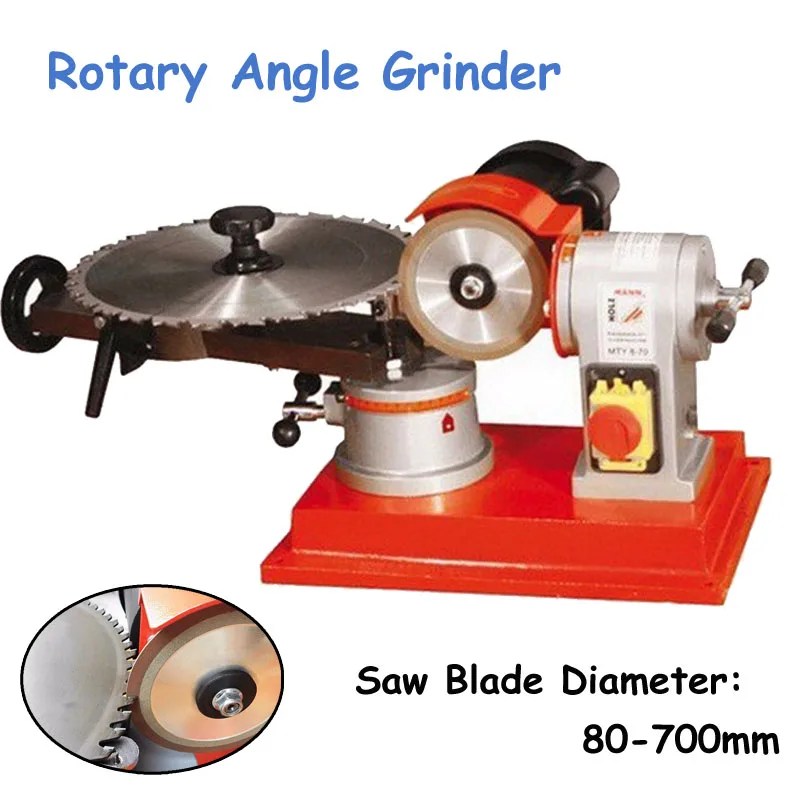

250W Grinder for Saw Blade Rotary Angle Grinder Manual Woodworking Machine Alloy Saw Blade JMY8-70
A$280.03
- USD: $189.34
- GBP: £150.29
- EUR: €175.02
- JPY: ¥28,348
- CNY: ¥1,315.74
Description
250W Grinder for Saw Blade Rotary Angle Grinder Manual Woodworking Machine Alloy Saw Blade JMY8-70
Description
Product model: JMY8-70
Rated voltage: 220V
Rated power: 250W
Grinding wheel size (grinding wheel diameter * aperture): 125*32mm
Grinding wheel adjustment: +/-20°
Saw blade diameter: 80-700mm
Rotary frame angle: left 30 degrees,right 45 degrees
Idling speed: 2850 RPM / min
dimension: 720*430*300mm
Weight of whole machine:32KG
Product usage
This machine is designed for grinding hard alloy saw blade design, adapt to various grinding super hard alloy saw blade, equipped with adjustable surround type plate, the maximum support saw tooth or other grinding parts with the positioning pin, according to blade diameter and tooth size, adjust to the best position, horizontal rotary slide the original, can guarantee the blade angle of the blade or the change of magic. The saw board equipped with rotary table, easy to adjust the feed angle of cutter. Rotary table is equipped with a slider, a mandrel, a limit screw and convenient operation, and ensure the grinding to the radius of the center. The head is equipped with +-20 DEG rotary mechanism can meet the grinding oblique edge sawtooth.
Specification
Additional information
| Weight | 100 kg |
|---|
