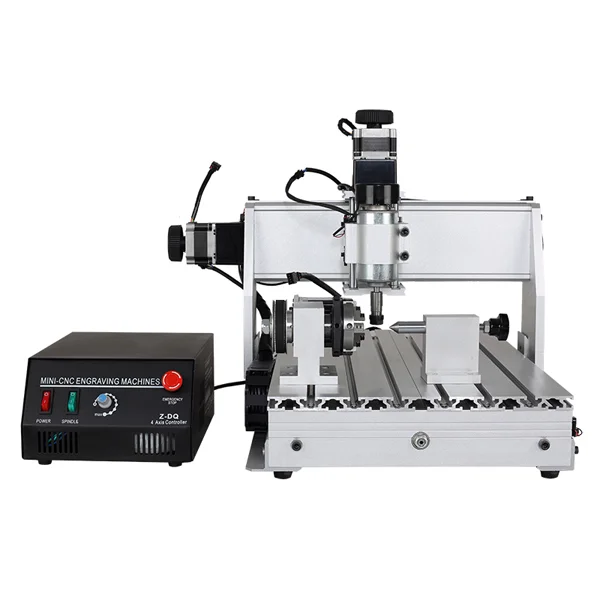

Woodworking 4 axis CNC Router 3040 Z-DQ Engraving Machine With Ballscrew
A$3,314.19
- USD: $2,240.81
- GBP: £1,778.73
- EUR: €2,071.36
- JPY: ¥335,498
- CNY: ¥15,571.89
Description
Woodworking 4 axis CNC Router 3040 Z-DQ Engraving Machine With Ballscrew
Highlights for this Woodworking 4 axis CNC Router 3040 Z-DQ Engraving Machine With Ballscrew
In hardware capabilities aspect:

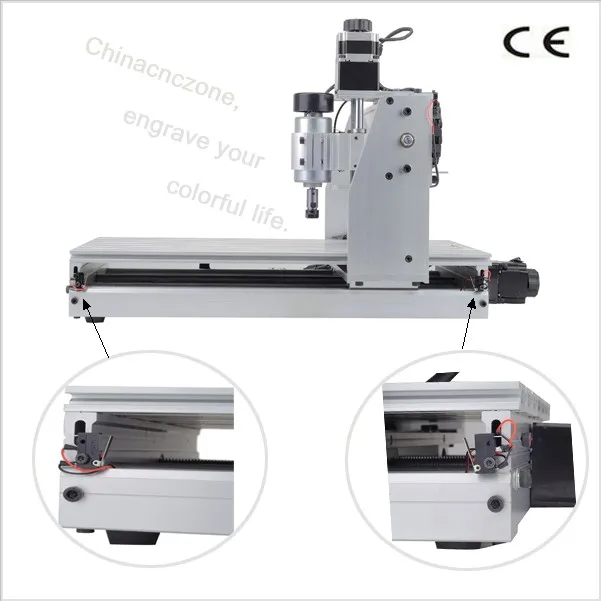

1. Limited switch added.

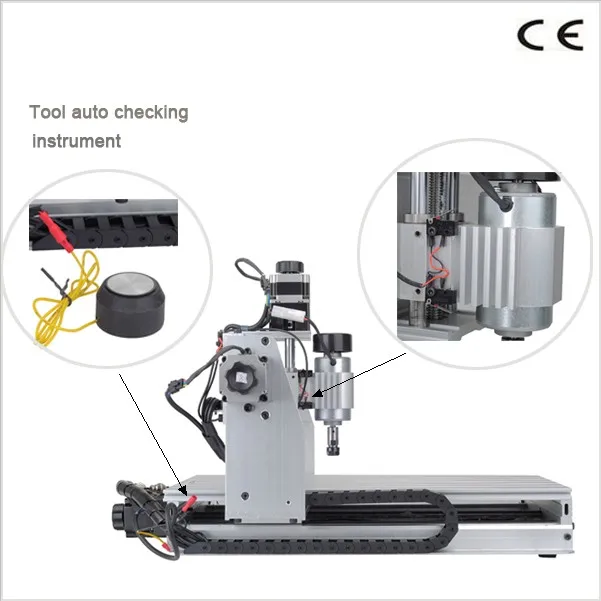

2. Auto checking function added
3. Ballscrew made it a higher precision.
4. Control box can be 3 axis and 4 axis universal.
5. USB or parllerl port.
6. Air cooling spindle, less noise
7. Easy operate
In soft service aspect:
1. Got CE approval.
2. Youtube cnc machine video support.
3. Technical team always available.
4. English manual available.
5. USB CNC or Mach 3 software available.
6. High performance low cost
7. From reliable & trustable profesional China mini CNC router machine manufacturer.

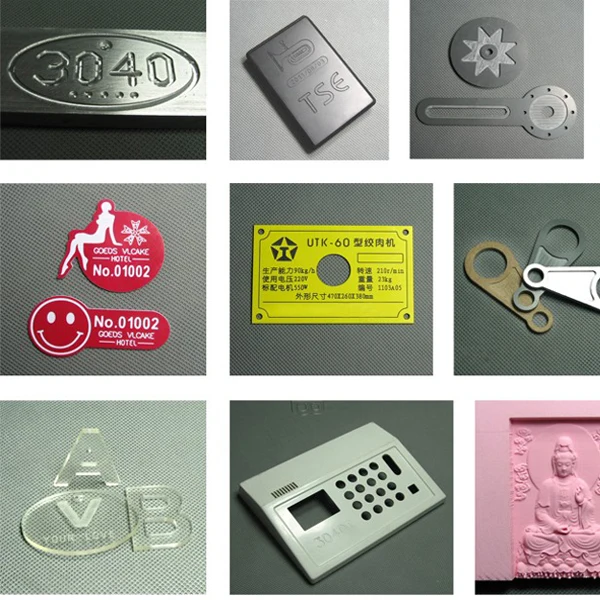

Applications of this Woodworking 4 axis CNC Router 3040 Z-DQ Engraving Machine With Ballscrew
Widely used in Industry,Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes, Building Model Making, PCB, Adverstising Signs, Artwork,Crafts, Aircraft Models, RC Model parts, etc.
Can engrave wood,MDF board, native wood, PVC, Acrylic,
Technical detailes for this Woodworking 4 axis CNC Router 3040 Z-DQ Engraving Machine With Ballscrew
| Effective working travel | 370(X)mm*280(Y)mm*55(Z)mm |
| Shape dimension | 625*510*410mm |
| Table size | 520*320 |
| Frame materials | aluminum alloy 6063 and 6061 |
| Driving units X/Y/Z axis | 1204 Ball Screw |
| Sliding units X axis | Dia.16mm chrome plate shafts |
| Sliding units Y axis | Dia.20mm chrome plate shafts |
| Sliding units Z axis | Dia.13mm chrome plate shafts |
| Stepping motor type | 57 two-phase 2.5A |
| Spindle motor | Brand new 230w dc motor 1000~8000PRM/Min |
| Principal axis collet | ER11/3.175 mm |
| Repeat accuracy | 0.05mm |
| Spindle precision | radial beat acuities 0.03 mm |
| Carving Instructions | G code, or any MACH3 support format file |
| Software environment | Windows xp/ Windows 7 |
| Maximum speed | 0-3500mm/min |
| Carving speed | 300-2500mm/min (different materials differ) |
| Computer connection | On board parallel port and USB port |
| Acceptable software | Mach3, USB CNC, EMC2 |
| Protection | Emergency stop button |
| Operating Voltage | AC220V |

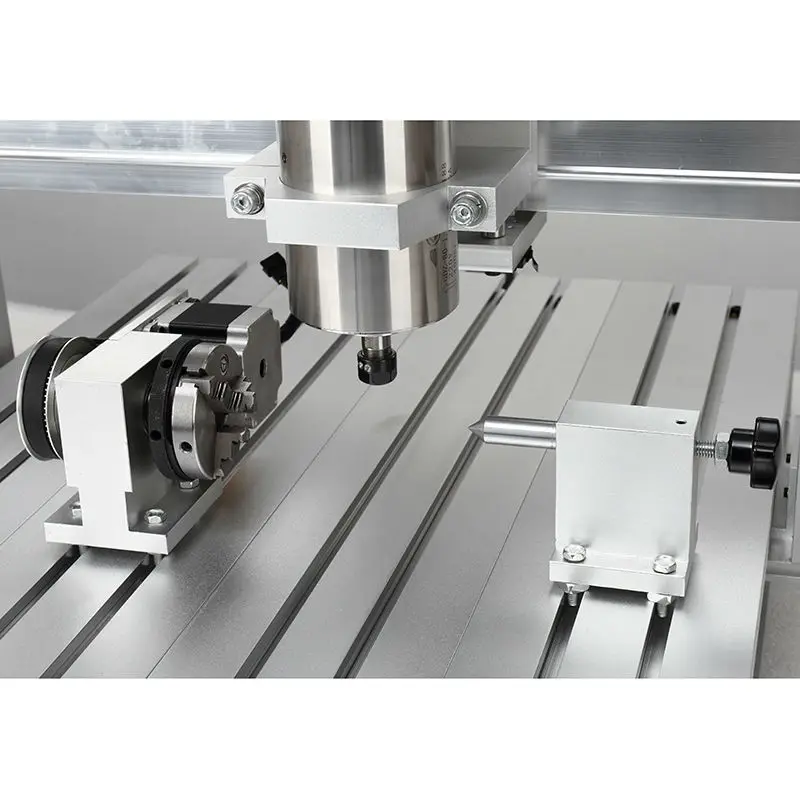

| The 4th axis | |
| Size | 54*59*73mm |
| Top diameter | 15mm |
| Centre-height | 50mm |
| Clamping diameter | 40mm finger tight fitting |
| Reduction tatio | 1:03 |
| Error Range | 0.1 |
Woodworking 4 axis CNC Router 3040 Z-DQ Engraving Machine With Ballscrew

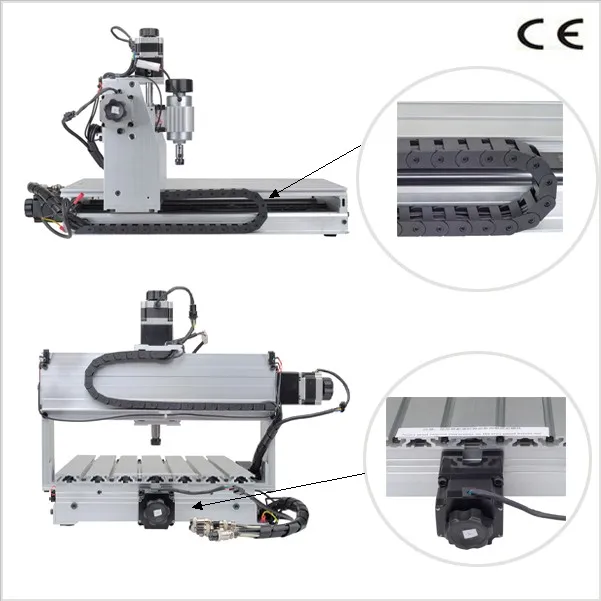

More pictures
Woodworking 4 axis CNC Router 3040 Z-DQ Engraving Machine With Ballscrew
Packing list:
1 Engraving machine
1 Rotary axis

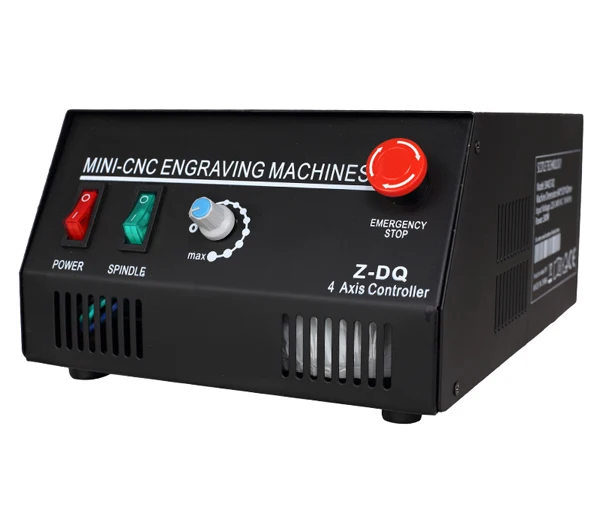

1 Controller box with invertor installed in it
1 230w air cooling spindle
1 USB cable
1 Parallel cable
1 Power cable
4 Engraving bit
4 Limited switch
1 Auto-checking tool
1 set of clamp tool
1. Easy operate
We will send you a english manual with the machine.
If still have any question ,please contack us by email / skype / phone / trademanager online service.
2. Video support
In after-sale service, we can also provede video support.
3. Warranty
Free parts send to you in 1 yeas warranty period, although it rarely occurs.
If the parts less than 0.5KG,we pay the postage for you.
4. MOQ
1 set welcomed, it will be a nice try.

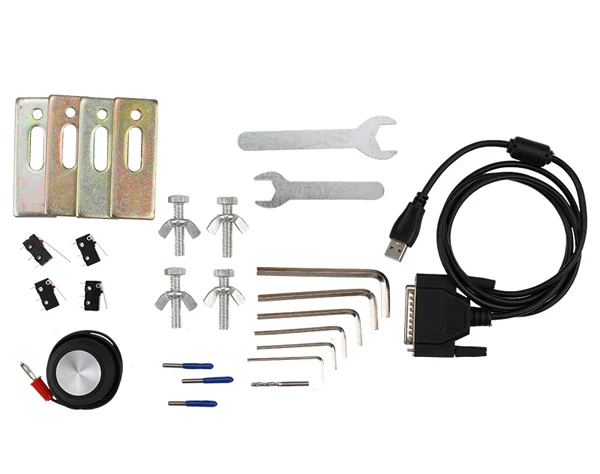

5. Accessories & tools
Will send you a tool box as picture.
6.Software & Interface
If use parallel port, use Mach3 software.
If use USB port, use USB CNC software.
Any other question, please feel free to contact us !
Specification
Additional information
| Weight | 100 kg |
|---|
