Description

  • Use: Woodworking
  • Type: Table Panel Saw
  • Model Number: MJ6130
  • Style: Vertical
  • Brand Name: Rabotec
  • Origin: Mainland China
  • Certification: CE
  • Item: Wood pane saw
  • Motor: 5.5kw
  • Degree: 45/90 degree
  • Sliding table: 2800/3000/3200mm
  • Voltage: 220v/380v
  • Saw blade diameter: 300mm
  • Warranty: 2 years

Wood working sliding table panel saw with lifting table and 45 degree CNC wood cutting machinery for furniture making

SLIDING TABLE PANEL SAW FEATURES:

1.Apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels,

organic glass plates and solid wood and others with wood structure and similar hardness.

2.Movable table guide track is plating chromium steel bars structure, exact and durable.

3.With oxidation treatment, movable table surface is beautiful and hardwearing.

4.Tilt angles of main and scoring saw blades are displayed directly by precision inclinome

5. Electric lifting saw blade

6. saw blade can be adjust with 45 degree

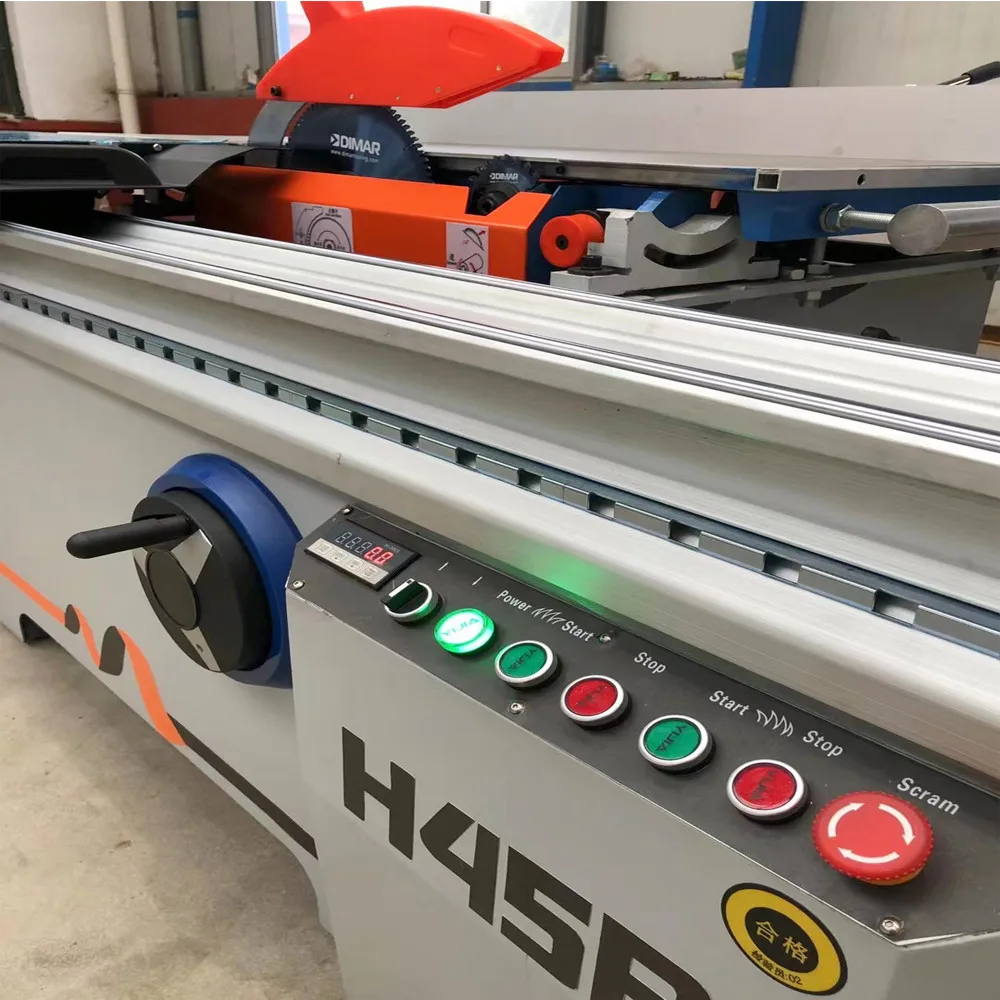

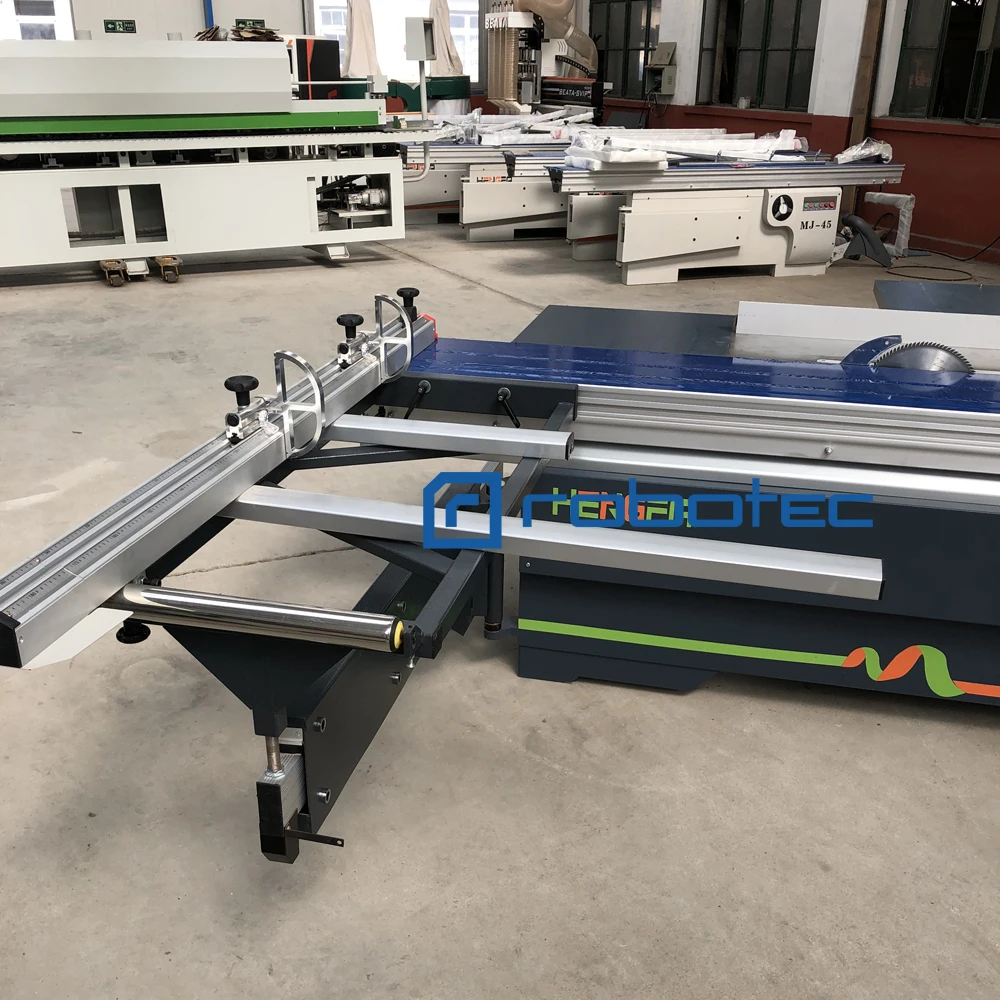

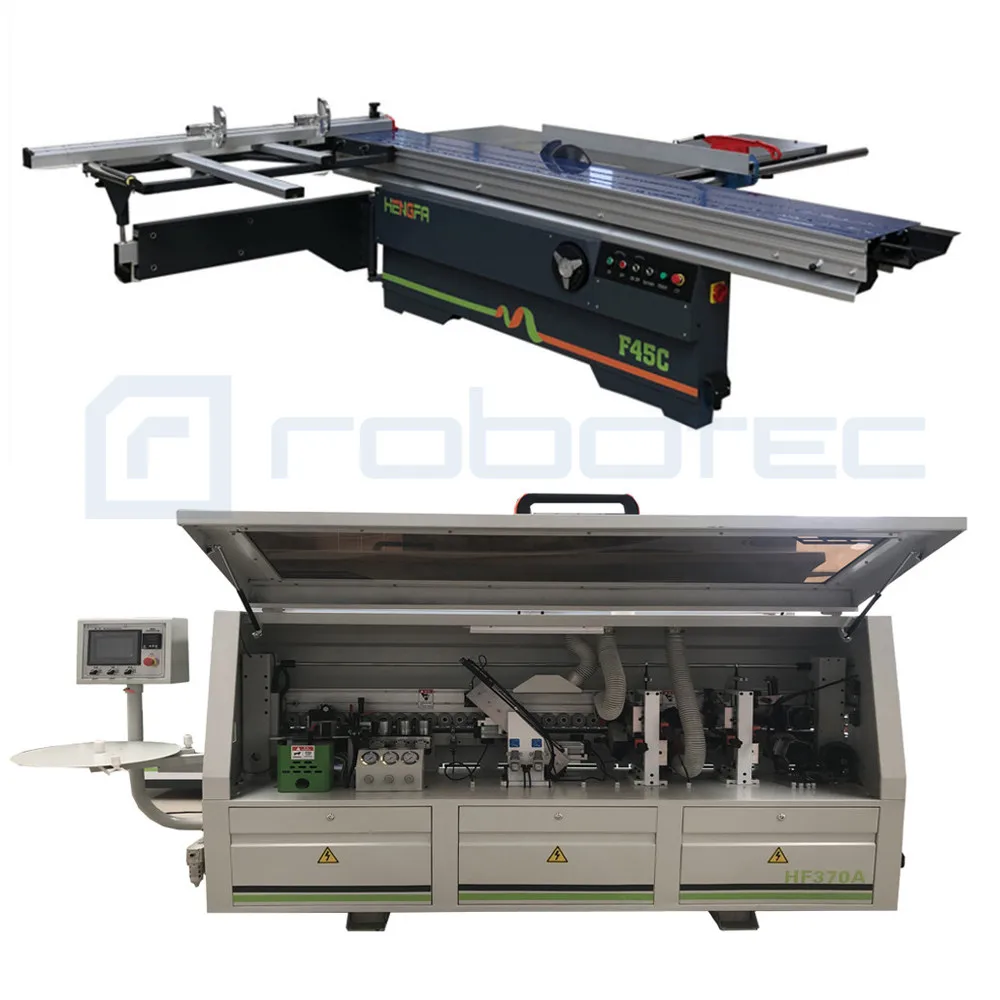

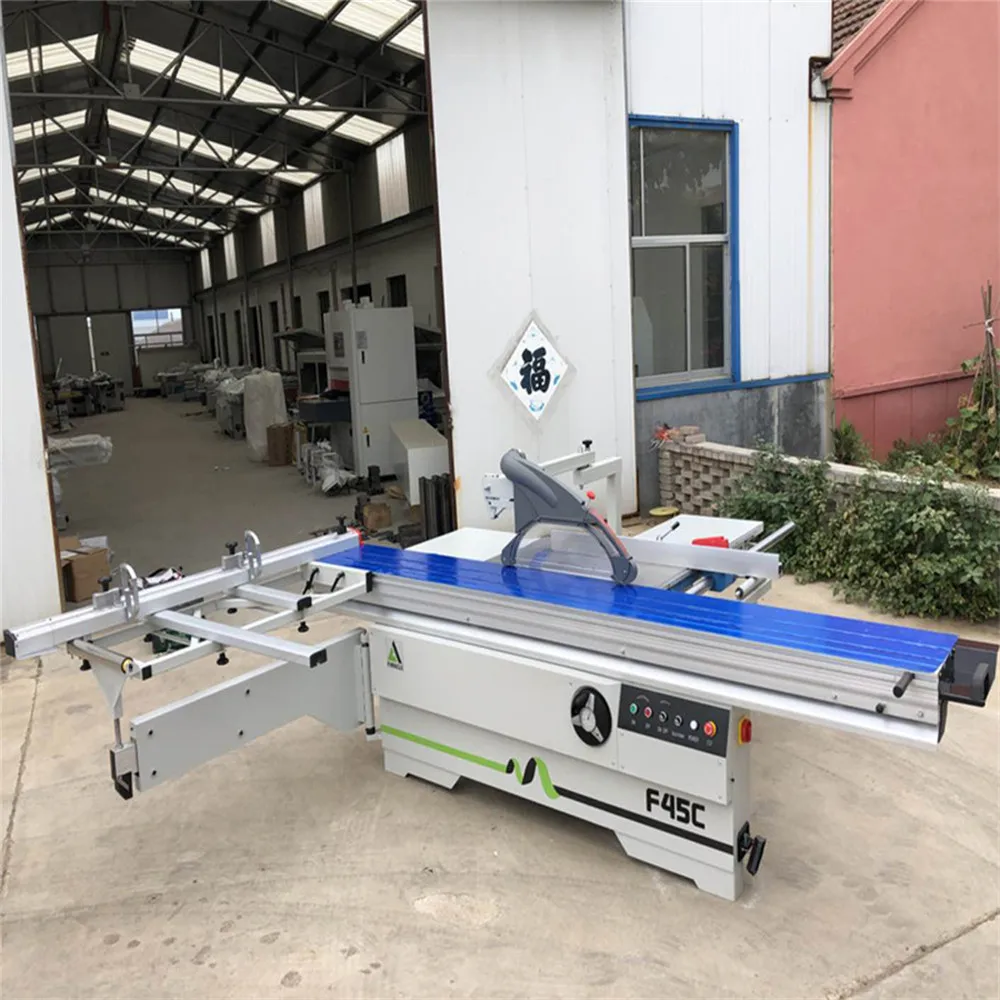

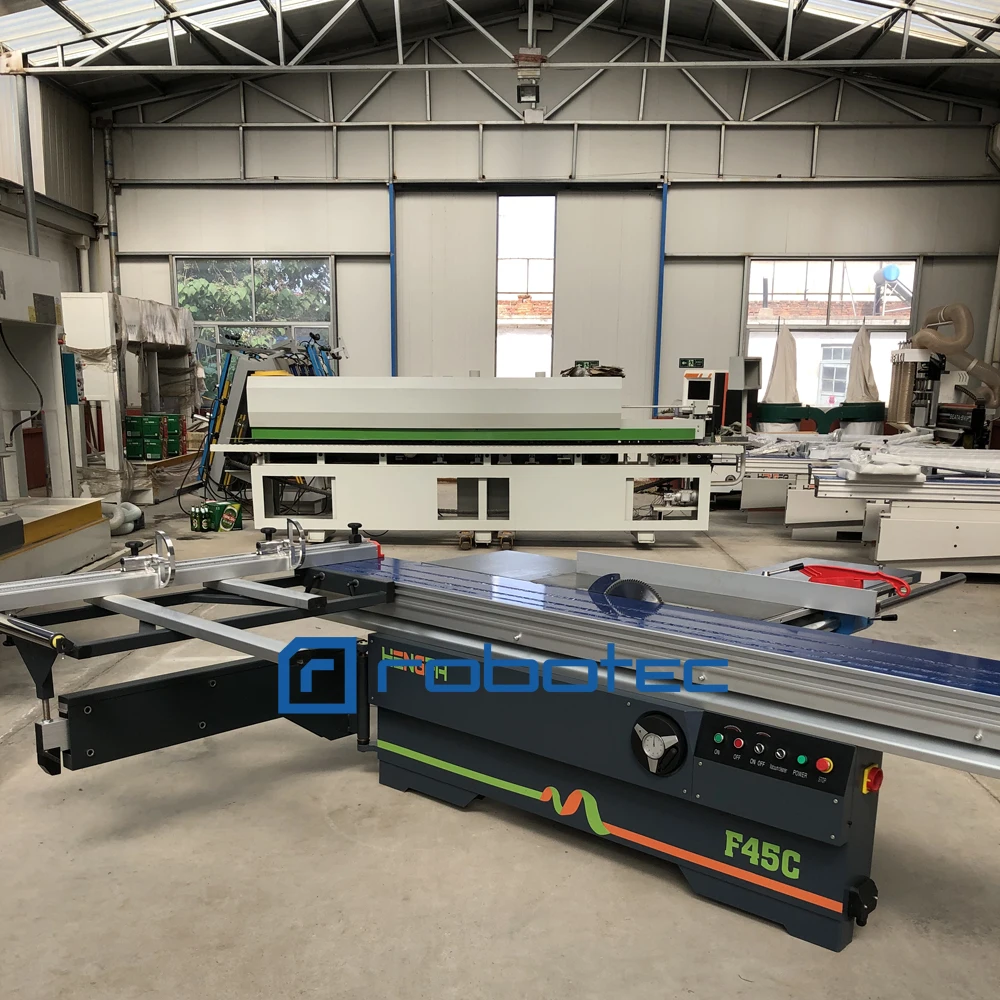

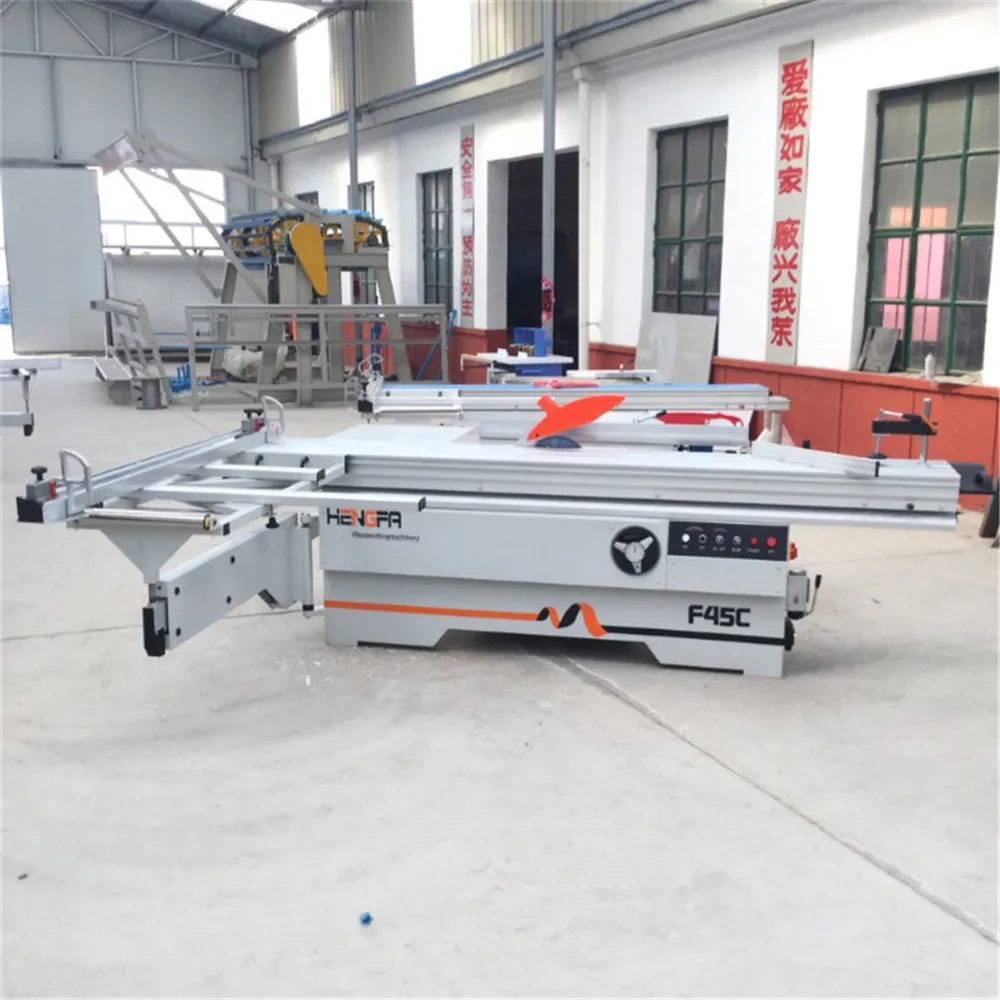

SLIDING TABLE PANEL SAW PICTURES:


SLIDING TABLE PANEL SAW PARAMETERS

Dimension of sliding table

 2800*375mm

 Gross cut capacity

  2800mm

 Width of cut between saw blade and rip fence

 1250mm

 Saw blade diameter

 300mm(250-300)

 Height of cut (diameter:300mm)

 85mm

 Height of cut with saw blade 300mm at 45 angle

 55mm

 Speed of main saw spindle

 4000/6000rpm

 Main spindle diameter

 30mm

 Tilting saw blade

45 degree

 Main motor

 5.5kw

 Scoring saw blade diameter

 120mm

 Speed of scoring saw blade

8000r/min

 Scoring spindle diameter

20mm

 Scoring motor

 0.75kw

 Net weight

 800kg

 Gross weight(with wooden package)

950kg

 Overall dimensions

 2800*3150*900mm

SLIDING TABLE PANEL SAW PARTS PARTS PICTURES:

SLIDING TABLE STRUCTURE YOU CAN CHOOSE

1. Max. adjustable angle of main saw blade: 45º or 90º

2. Slide rail type: Altendrof structure (A), round rod structure(D) or linear structure(Z).

3. Saw blade lifting and tilting system (manual or electric)

4. Sliding table length from 1500mm to 3800mm (usually we have 1600, 2200, 2600, 2800, 3000, 3200, 3800mm).

5. All the sliding table saw have CE certification.
