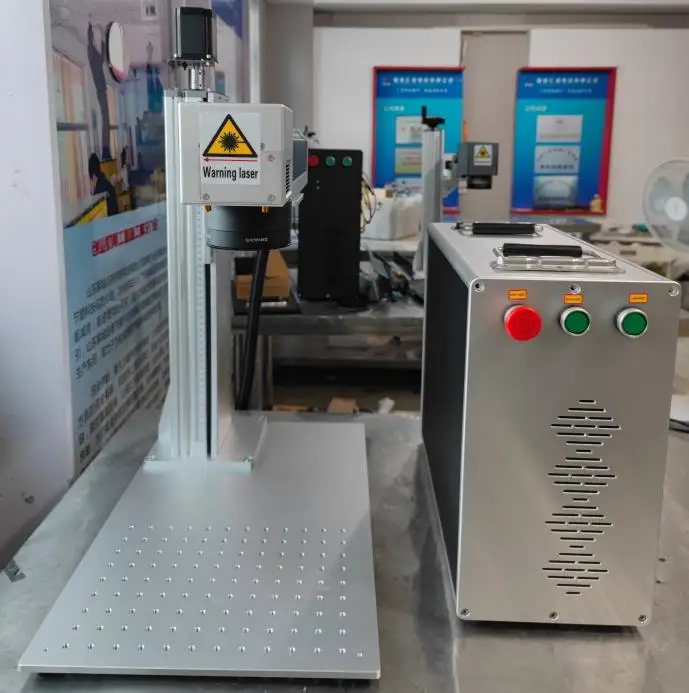

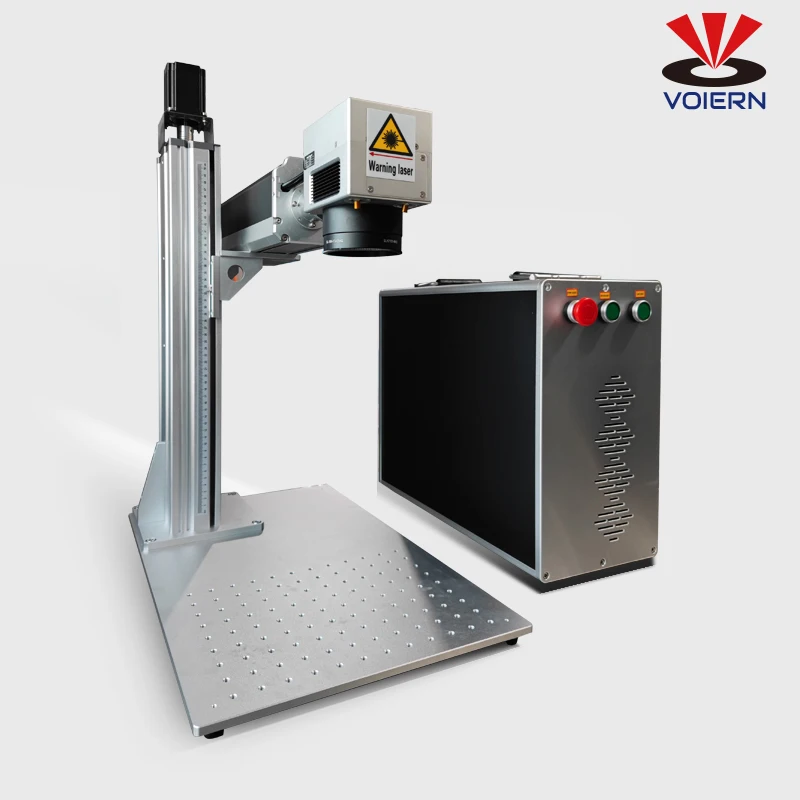

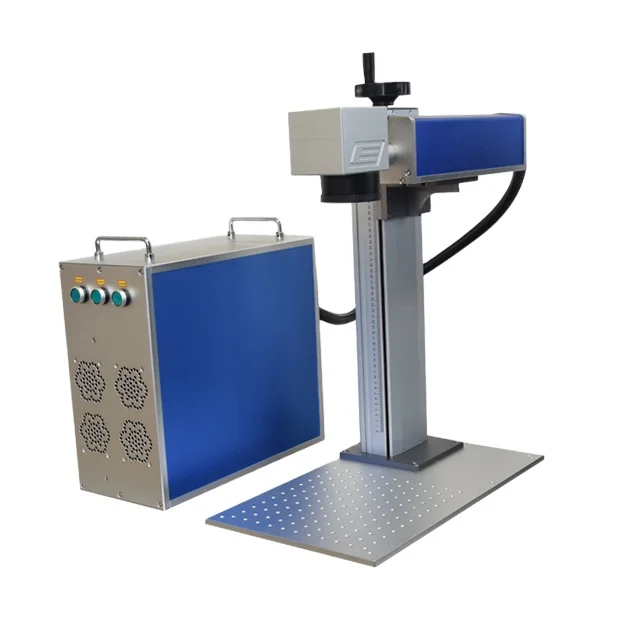

VOIERN Factory 2.5D 3D Fiber laser marking machine 100W with RAYCUS JPT 30W 60W MOPA M7 laser marking machine
A$8,815.19
- USD: $5,960.16
- GBP: £4,731.12
- EUR: €5,509.46
- JPY: ¥892,366
- CNY: ¥41,418.55
Description
Product Overview

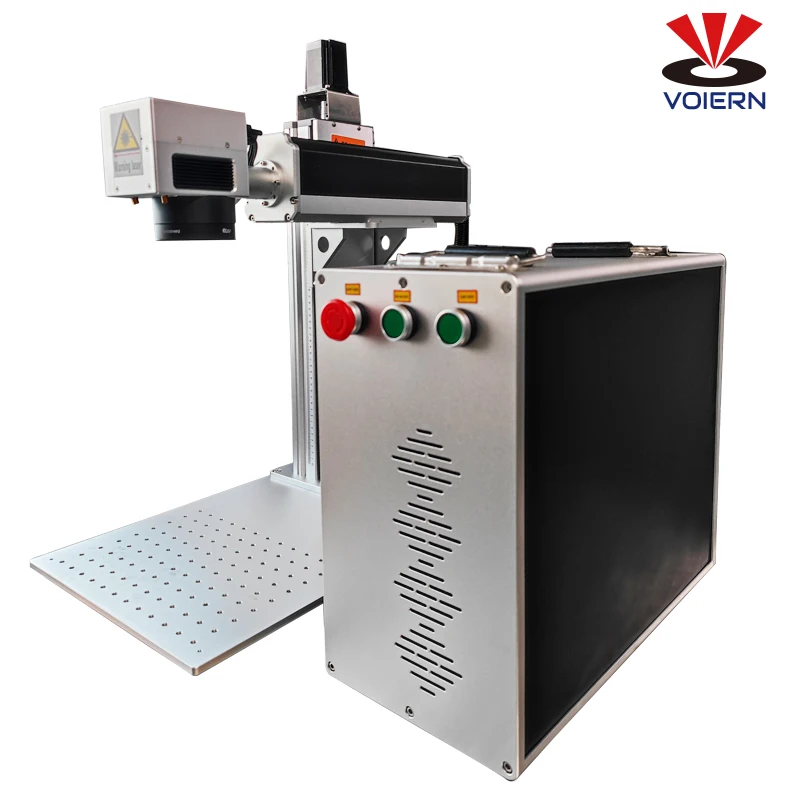

VOIERN LASER MARKING MACHINE
NEW STYLE 2021
2D/2.5D/3D Optional
EZCAD2/EZCAD3 Optional

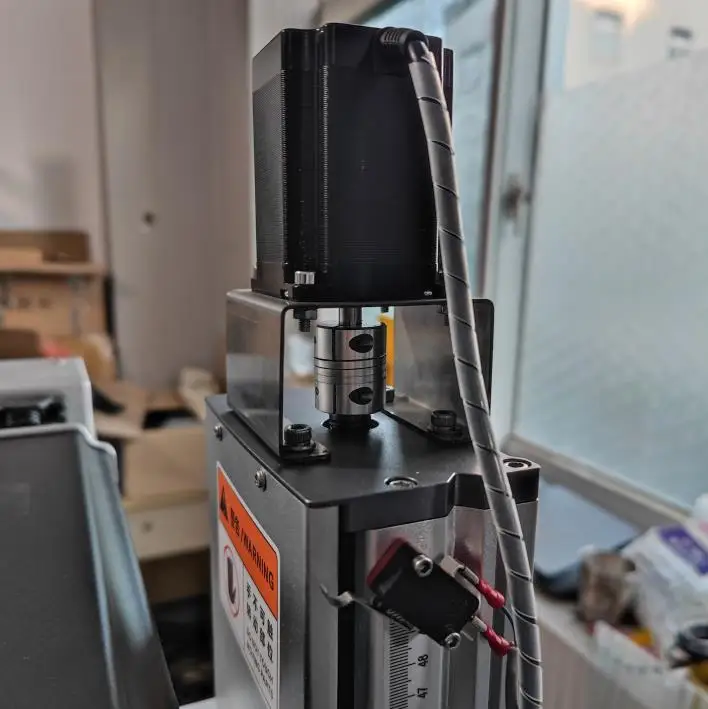

2.5D Z axis Software controlled lifting
Metal relief engraving
Raycus MAX JPT MOPA Optional
As the largest export enterprise of laser engraving machines in Shandong Province, China, we cooperate with many large domestic
brands, such as JPT Max raycus reci Mingwei sino-glavo Yongli EFR, JCZ Ruida leadshine, etc. we send more than 1500 laser cutting
machines and optical fiber marking machines every month to serve global supplier partners.
brands, such as JPT Max raycus reci Mingwei sino-glavo Yongli EFR, JCZ Ruida leadshine, etc. we send more than 1500 laser cutting
machines and optical fiber marking machines every month to serve global supplier partners.
|
Product Name
|

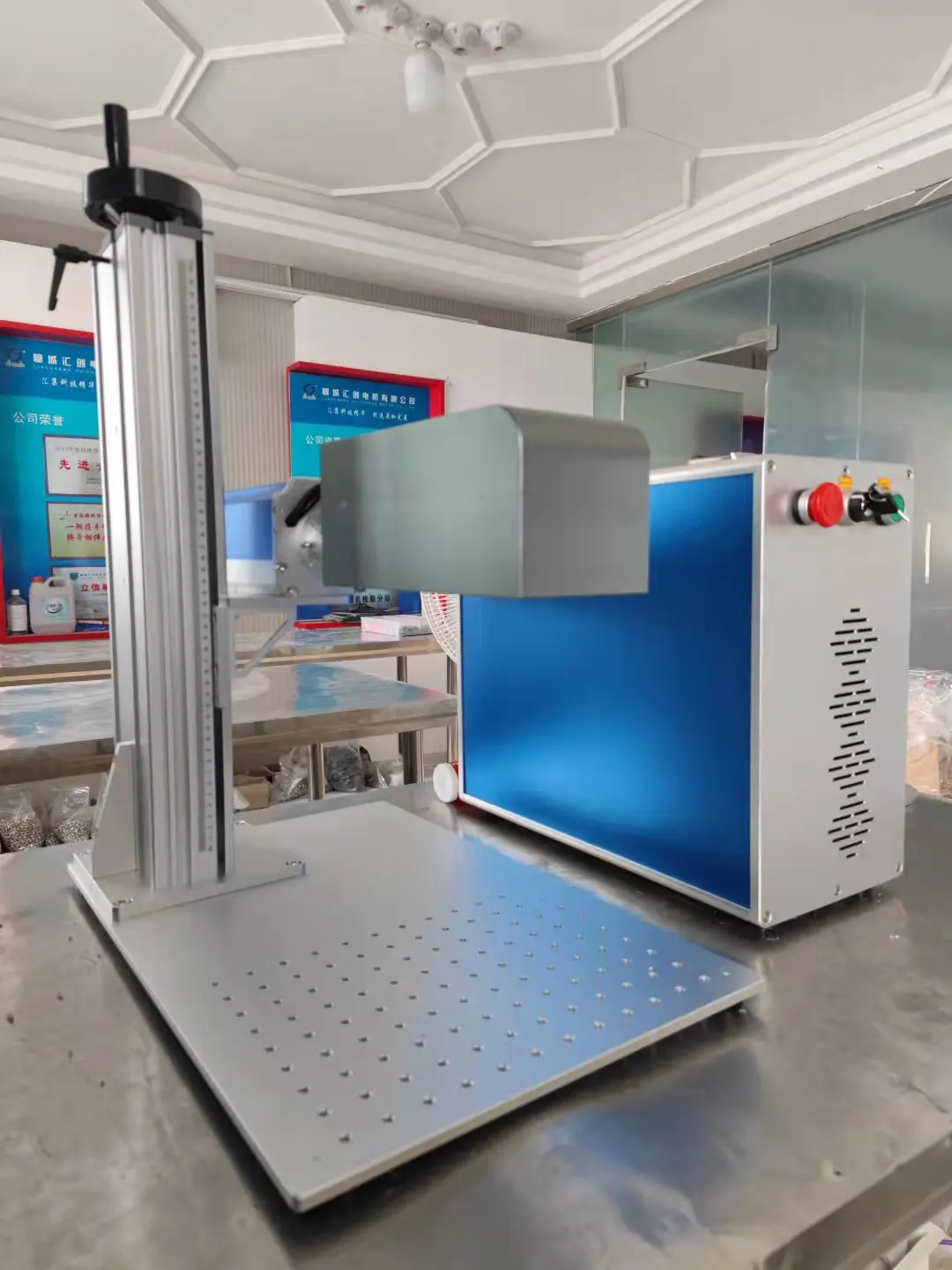

Fiber Laser Marking Machine
|
Mininum Line Width
|
0.01mm
|
|
Laser Source
|
RAYCUS/MAX/JPT
NO MOPA/MOPA
|
Mininum Character
|
0.2mm
|
|
Software
|
JCZ EZ CAD2/EZ CAD3
|
Cooling Mode
|
Air Cooling
|
|
Marking Area
|
110/175/200/300
|
Laser Power
|
30W/50W/70W/80W/100W
|
|

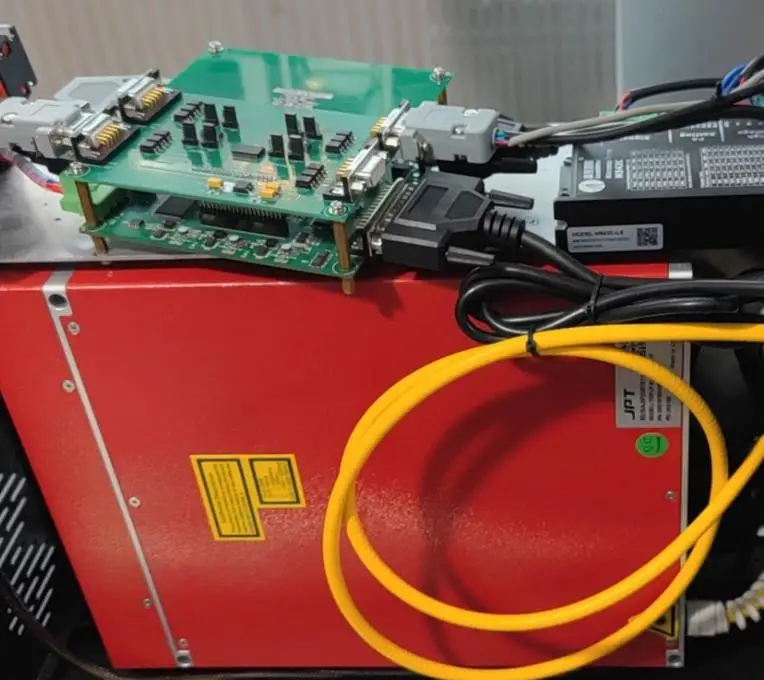

Control mainboard
|
JCZ/SINO GLAVO /CK
|
Operation System
|
WIN7/8/10
32/64 bit
|
|
Lens Brand
|
Wavelength Opex/Han shuang
|
Power Supply
|
Taiwan MeanWell
|
|
Marking Speed
|
1-7000mm/s
|
Supported graphic formats
|
AI,BMP,DST,DWG,DXF,DXP,LAS,PLT
|
|
Power Supply
|
AC110V /220V 50HZ/60HZ
|
Packing Dimension
|
820*780*420mm
|
|
Pulse Frequence
|
30 ~ 100 KHz for Raycus Nonmopa
10 – 1000KHz for Raycus Mopa 1 to 600KHz for JPT Nonmopa 1 to 4000KHz for JPT Mopa |
Package weight
|
60kg
|
|
Laser Wavelength
|
1064nm
|
Application
|
metal and partial nonmetal
|
|
|
|
|
|
Differences Between 2D 2.5D and 3D Laser Marking Machine
2D
Use JCZ EZ CaD2 software. Support x-axis and y-axis Surface marking Power 20w-100w two mirrors
2.5D
Use JCZ EZ CaD3 software.
DLC-M4 -2D mainboard
Support x-axis y-axis and Z-axis
Surface marking and Relief carving
Power 30w- 50W 70W 80W 100W
two mirrors
3D
Use CK/SINO GLAVO/ EZ CaD3 software.
DLC-M4 -3D mainboard
Support x-axis y-axis and Z-axis
Surface marking and Relief carving and Cylindrical carving
Power 30w 50W 70W 80W 100W
Three mirrors
Support x-axis y-axis and Z-axis
Surface marking and Relief carving and Cylindrical carving
Power 30w 50W 70W 80W 100W
Three mirrors

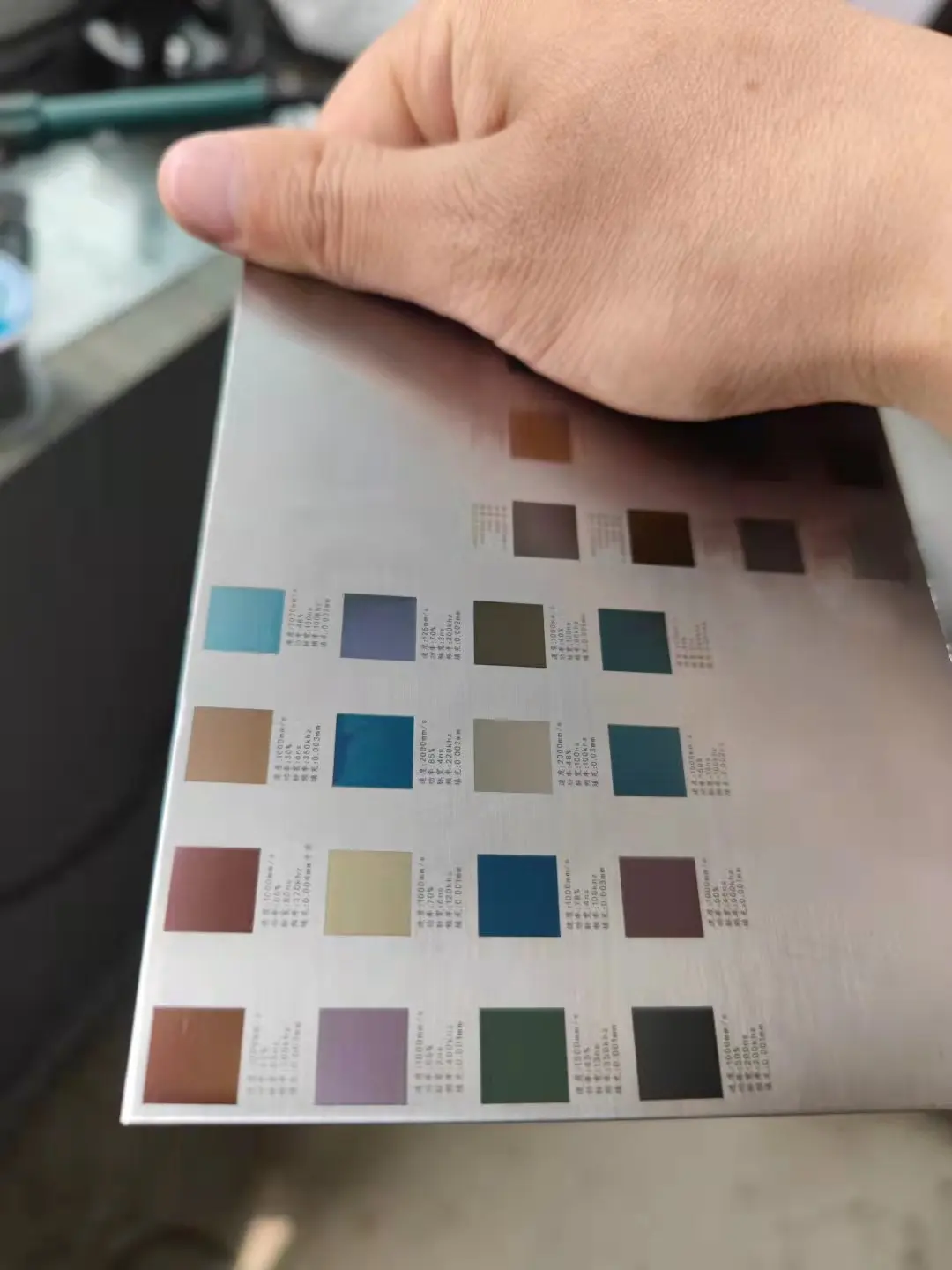

You can choose different laser brands
As a factory, we send a lot of optical fiber marking machines and engraving machines every day, so the price of the machine is very favorable. Therefore, you can choose different brands of optical fiber lasers according to your needs. If you want to do MOPA M7 and deep engraving, it is recommended that you give priority to JPT. If it is only relief and plane engraving, you can choose raycus and Max because their prices are low.

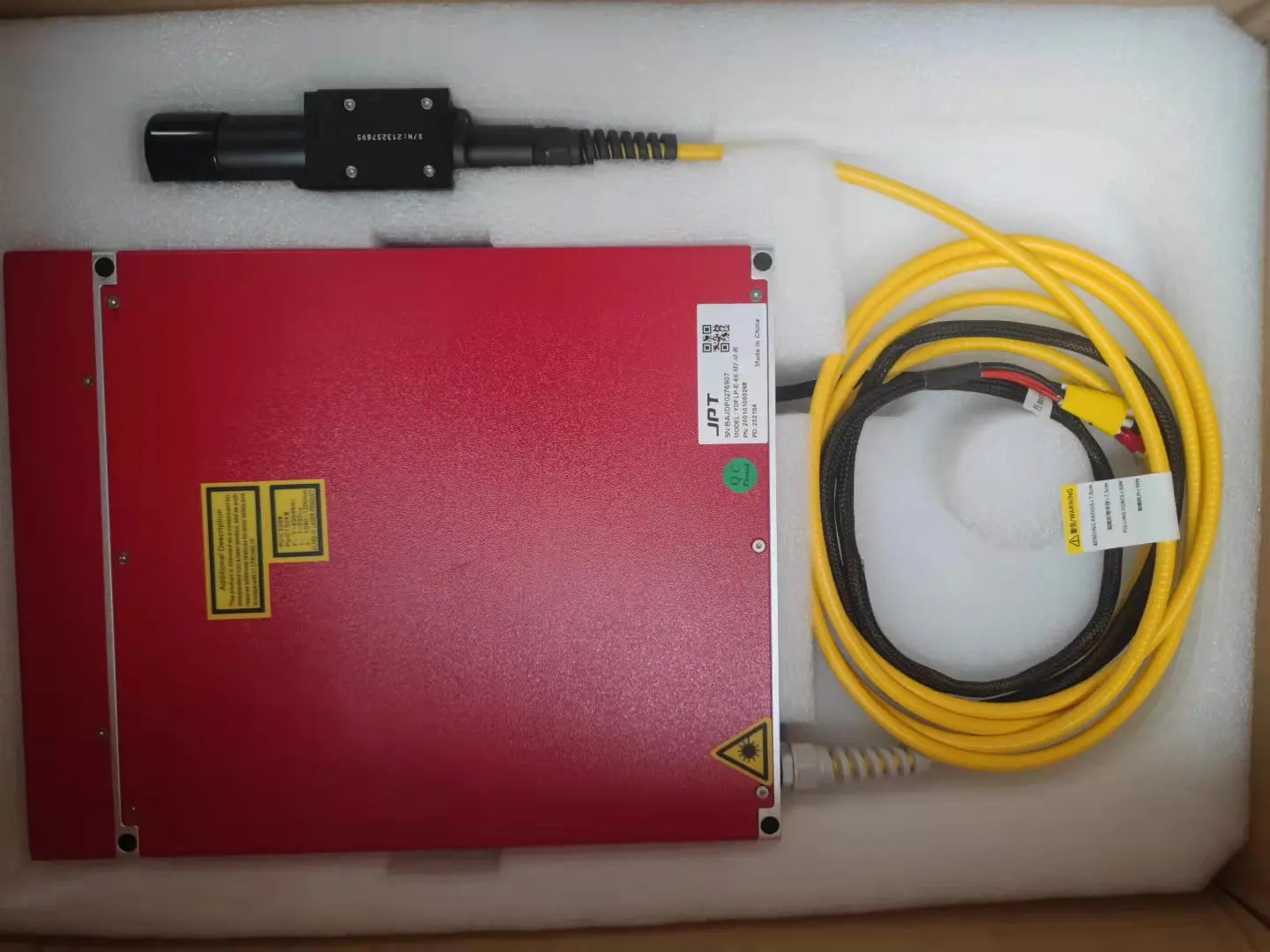

JPT laser source
JPT 20W/30W/50W LP

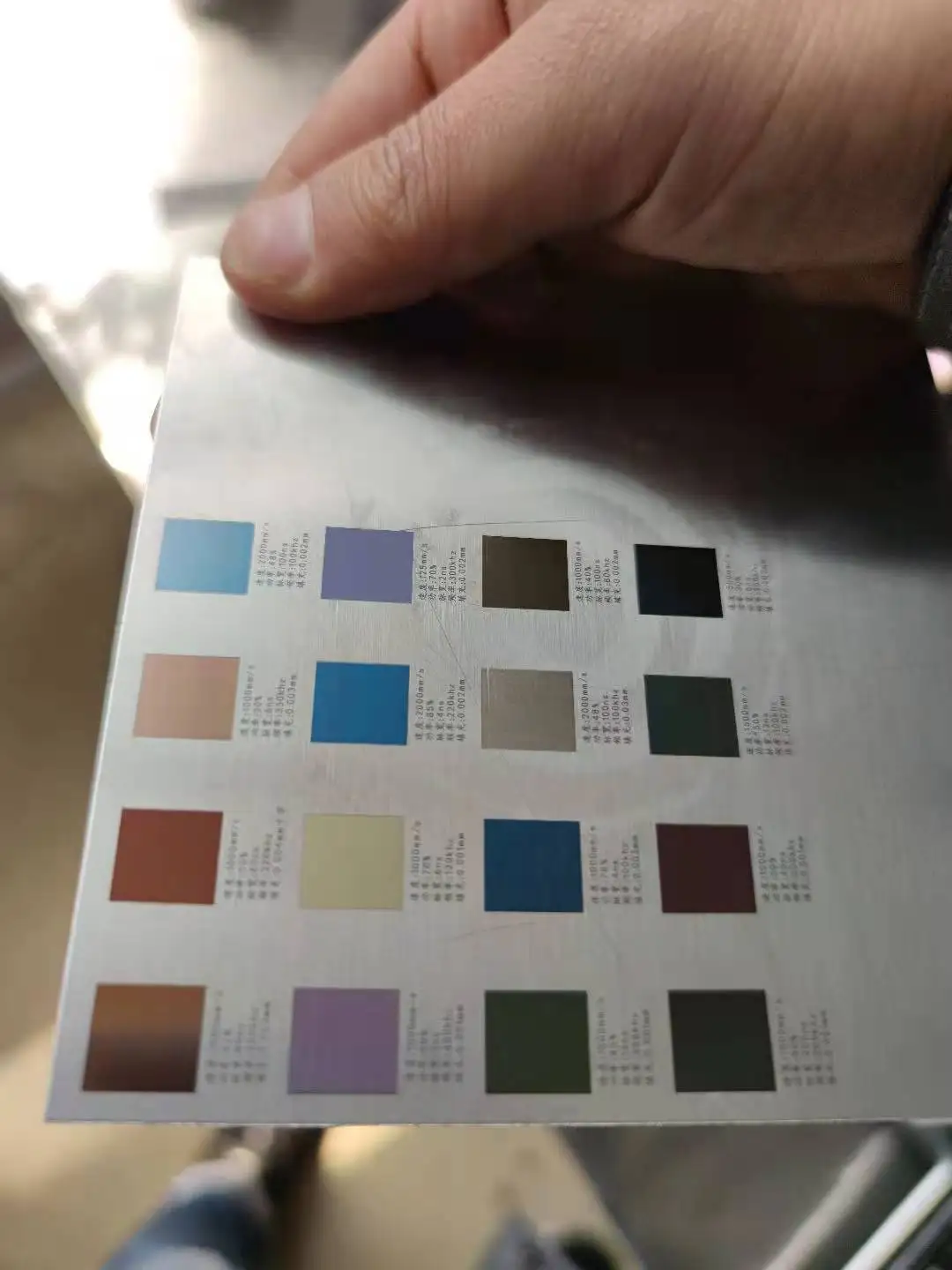

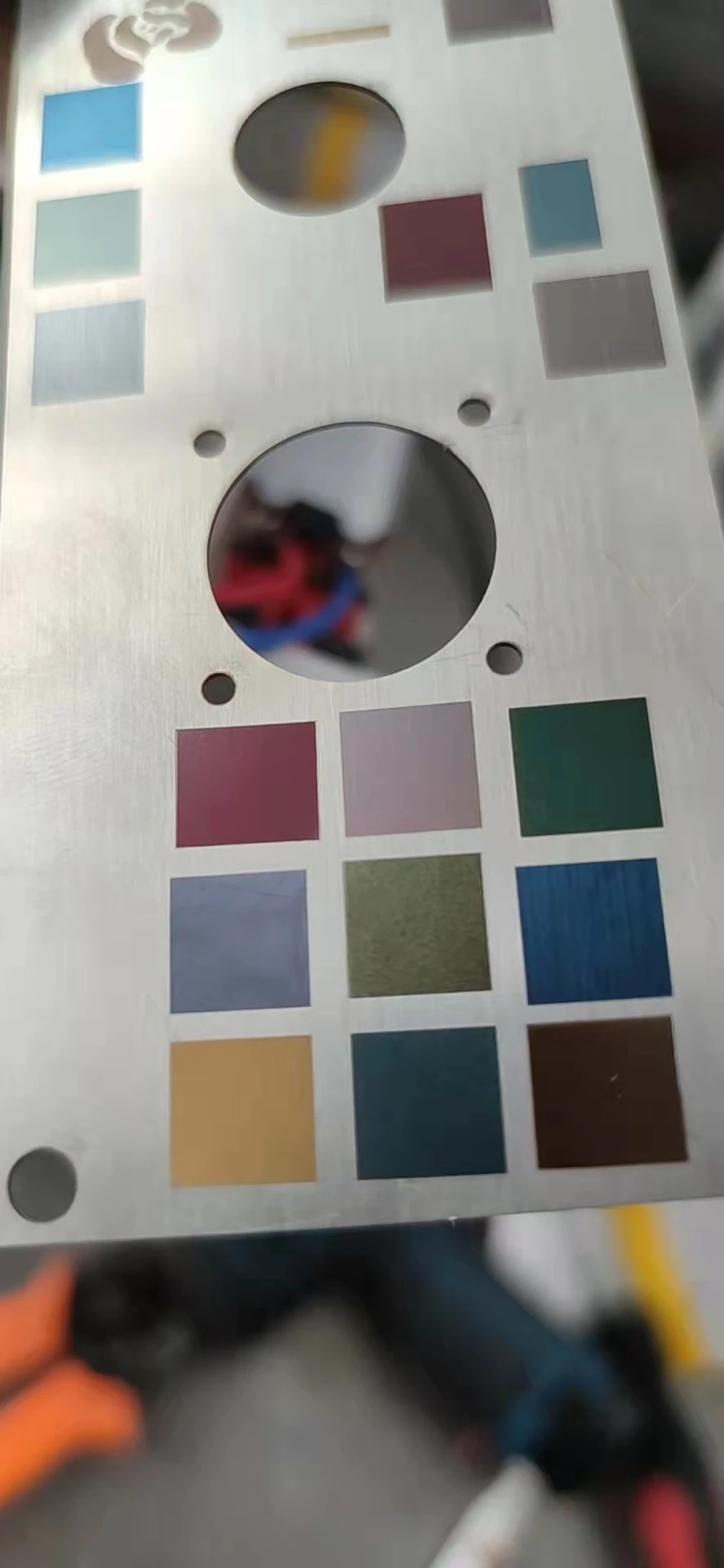

MOPA M7 20W/30W/60W/80W/100W
Option

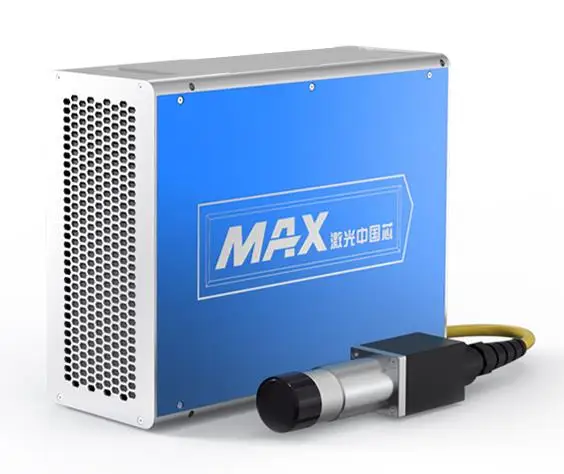

MAX laser source
MFP 20W/30W/50W/70W
MOPA 20W/30W/50W/60W/70W
RAYCUS laser source
RFL-20W/30W/50W/60W/100W
MOPA 20W/30W/70W/100W/200W
PRODUCT SPECIFICATIONS
2.5D

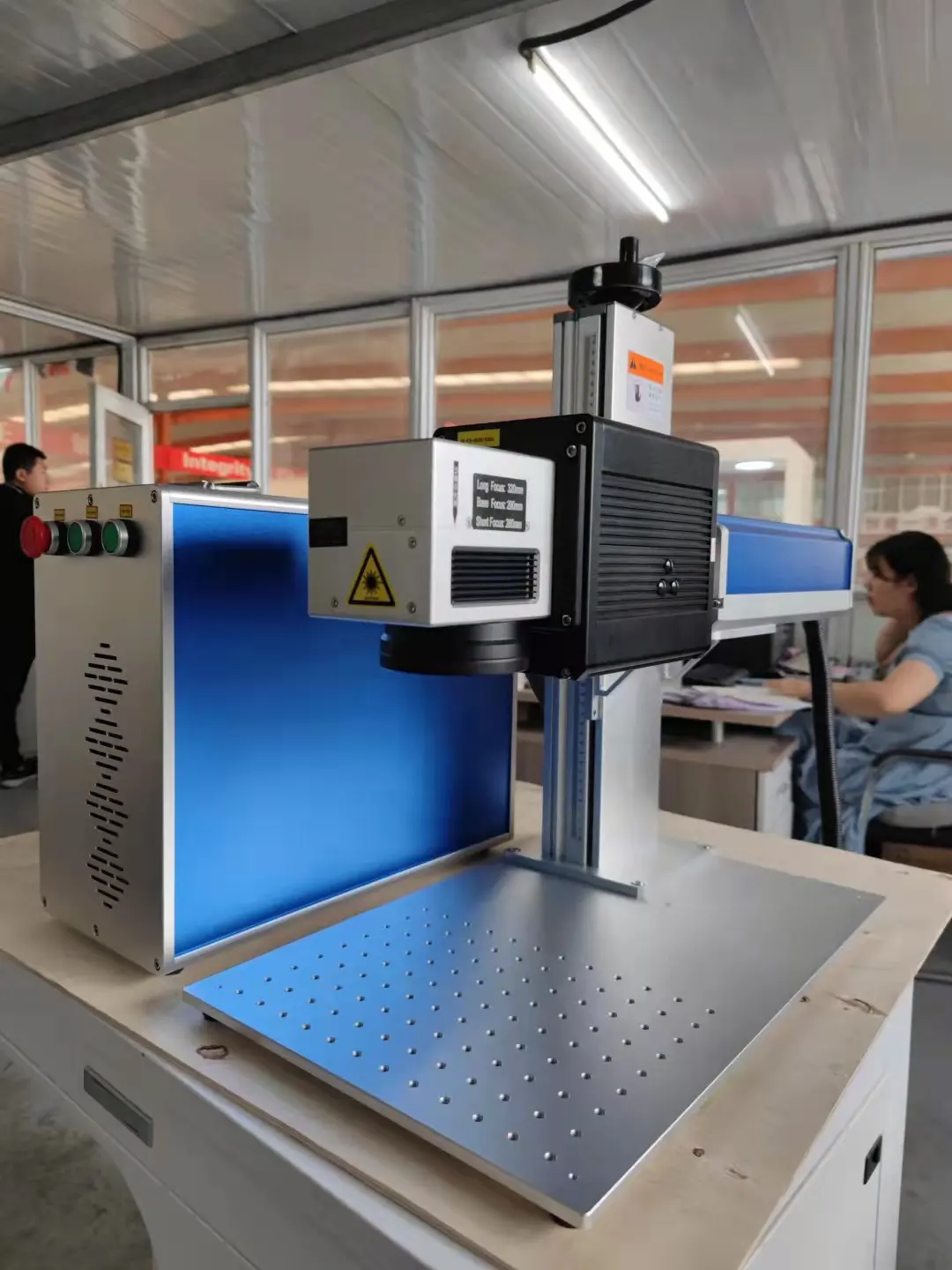

3D-CK
3D-SINO GLAVO

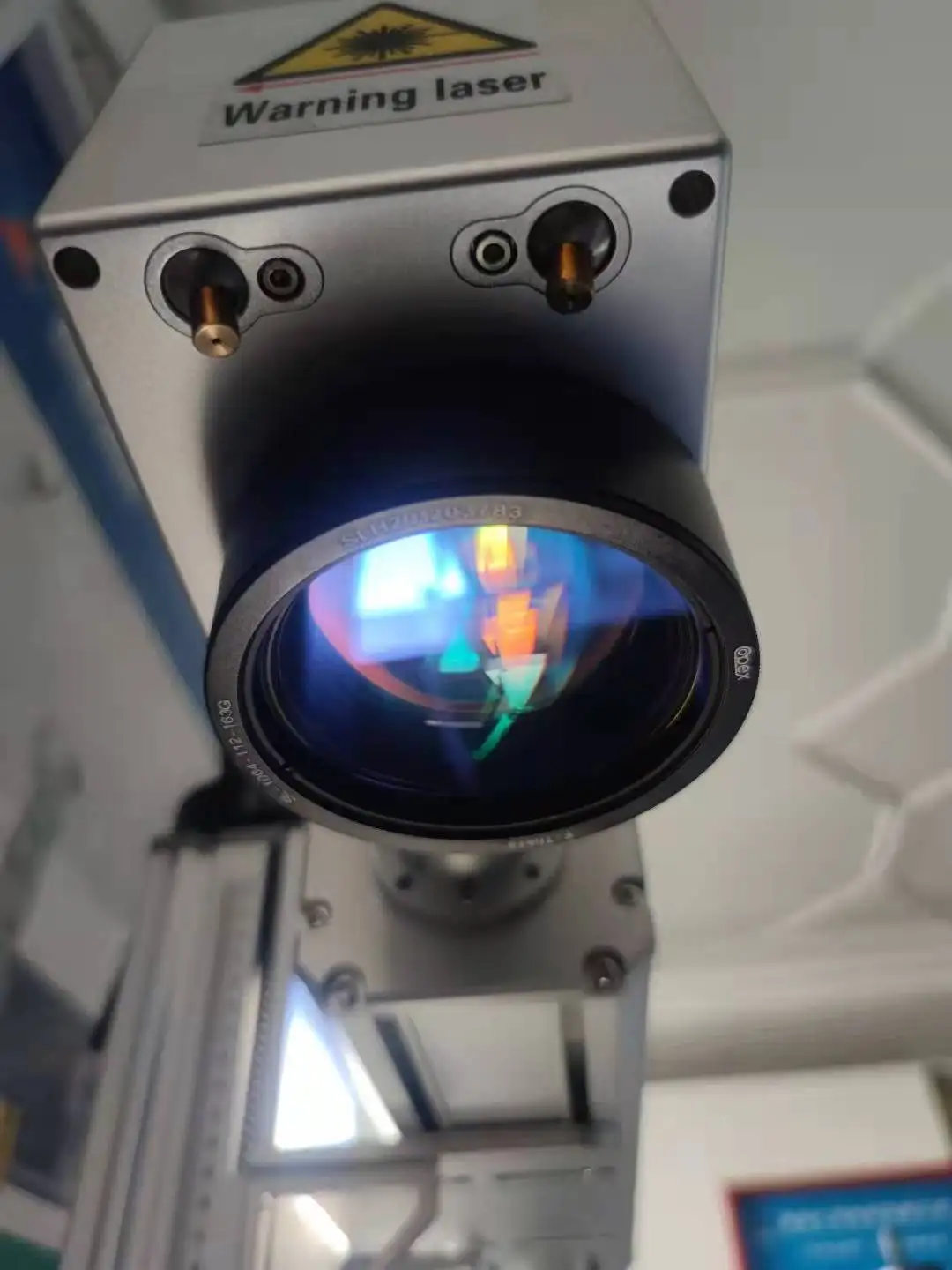

2D/2.5D laser head
3D JCZ laser head

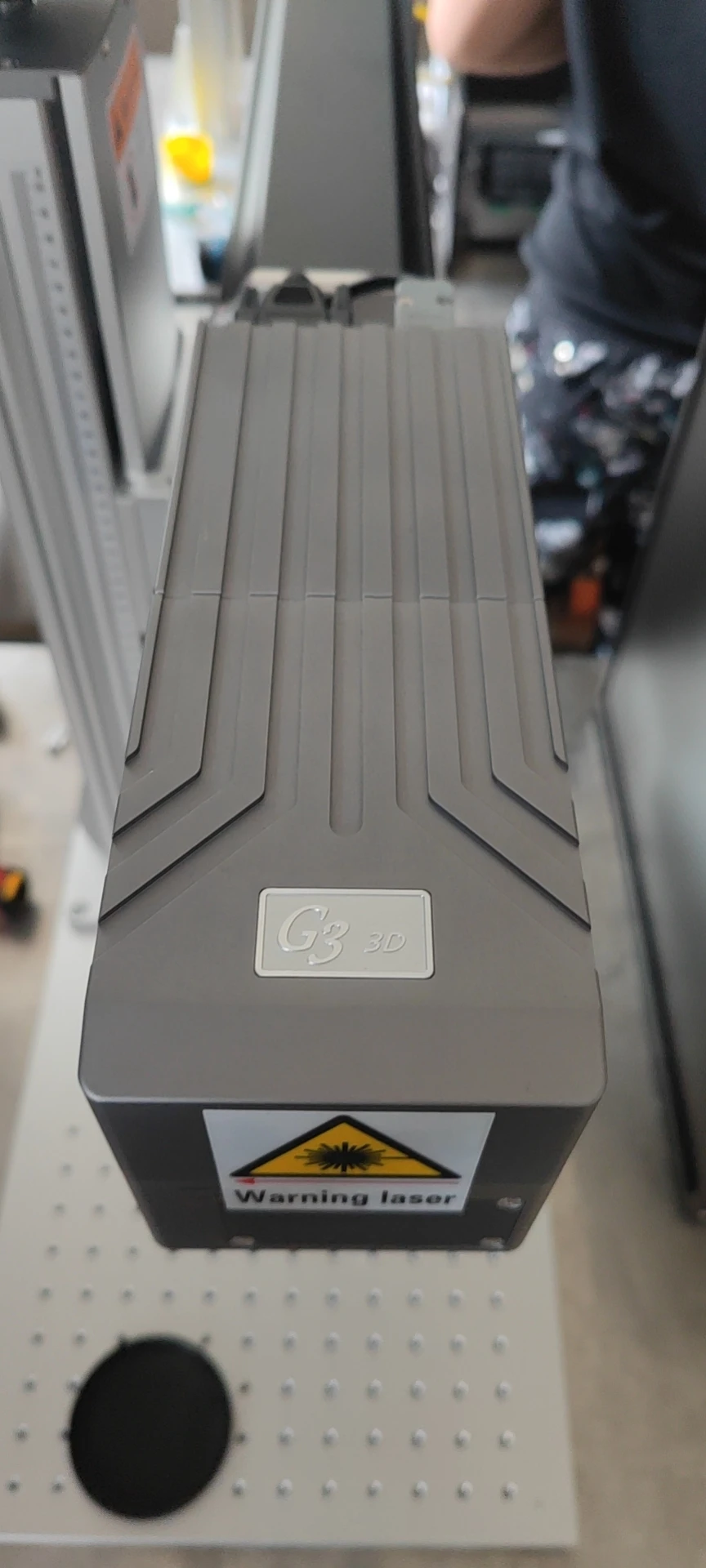

3D SINO GLAVO Laser head
PRODUCT CONFIGURATION
Optional Accessories

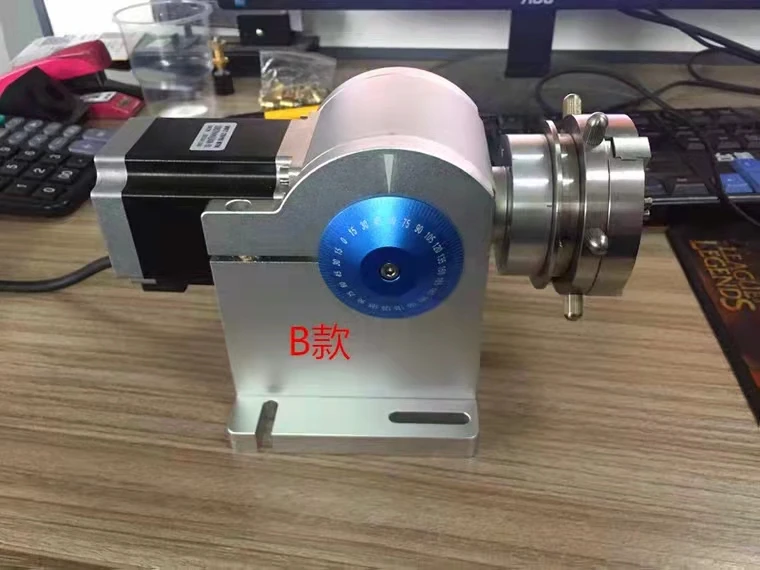

Chuck rotation
Pen rotation

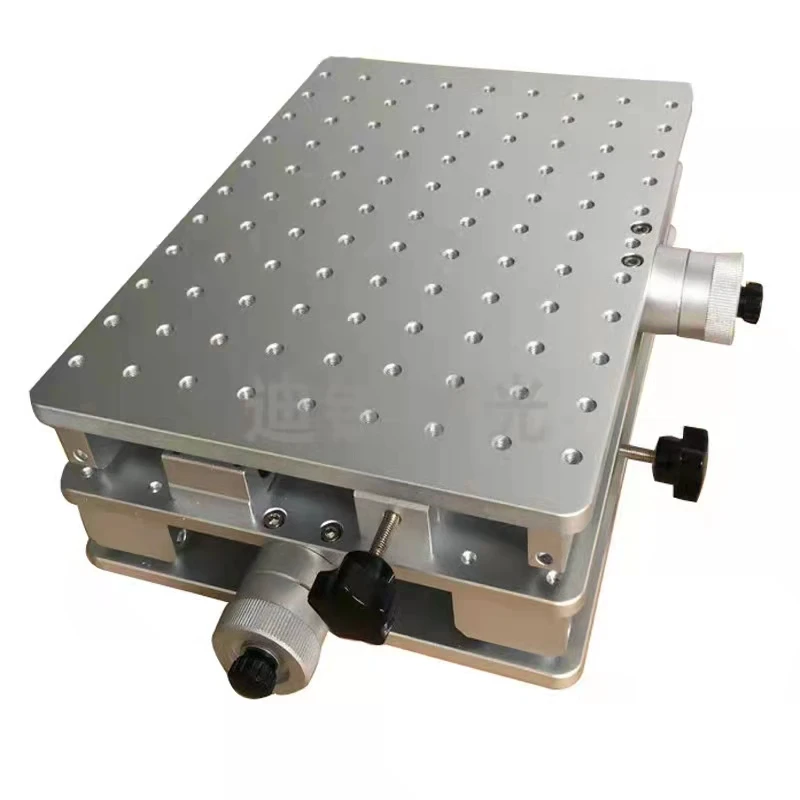

2D platform

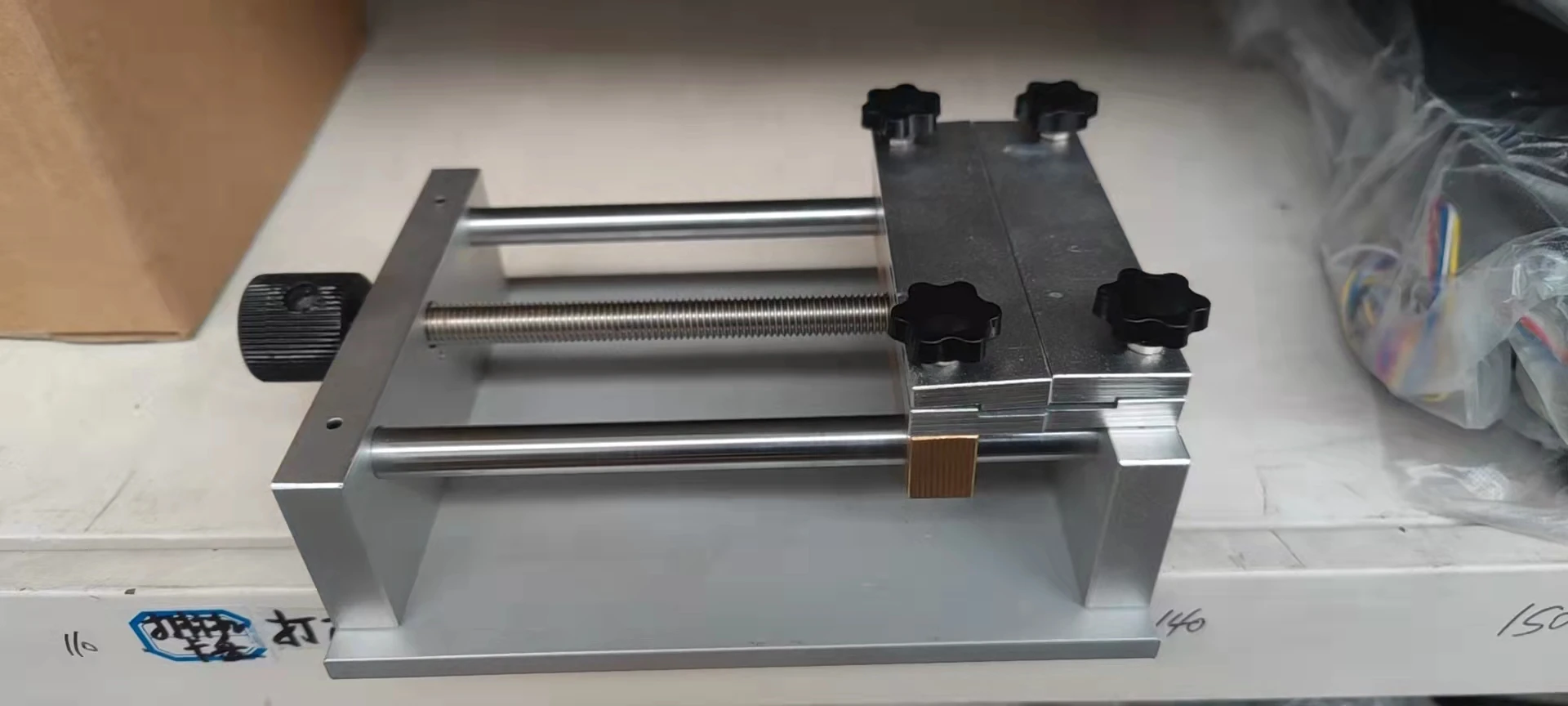

Metal clamps and cutting

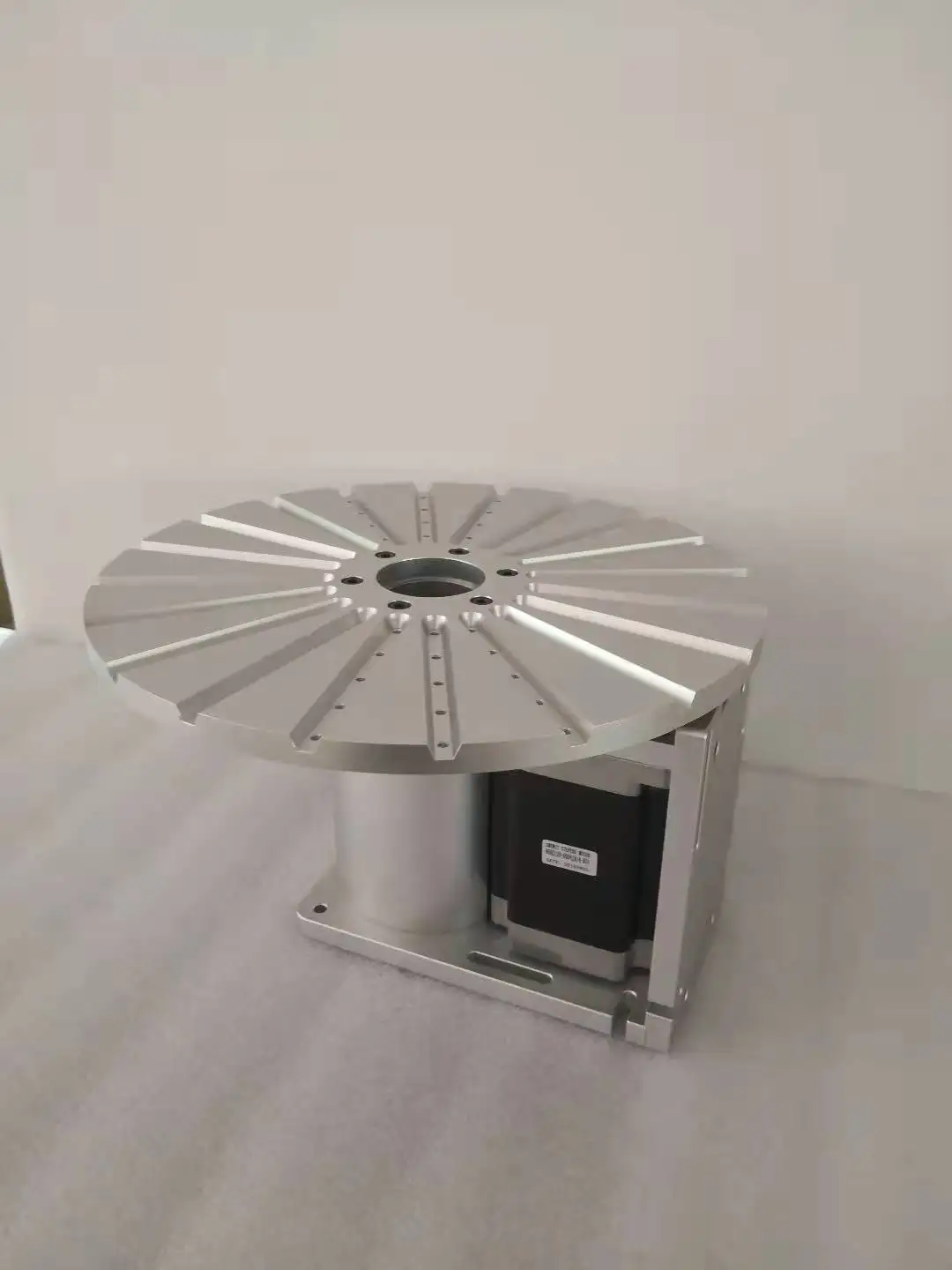

Ring rotation
Cylindrical rotation

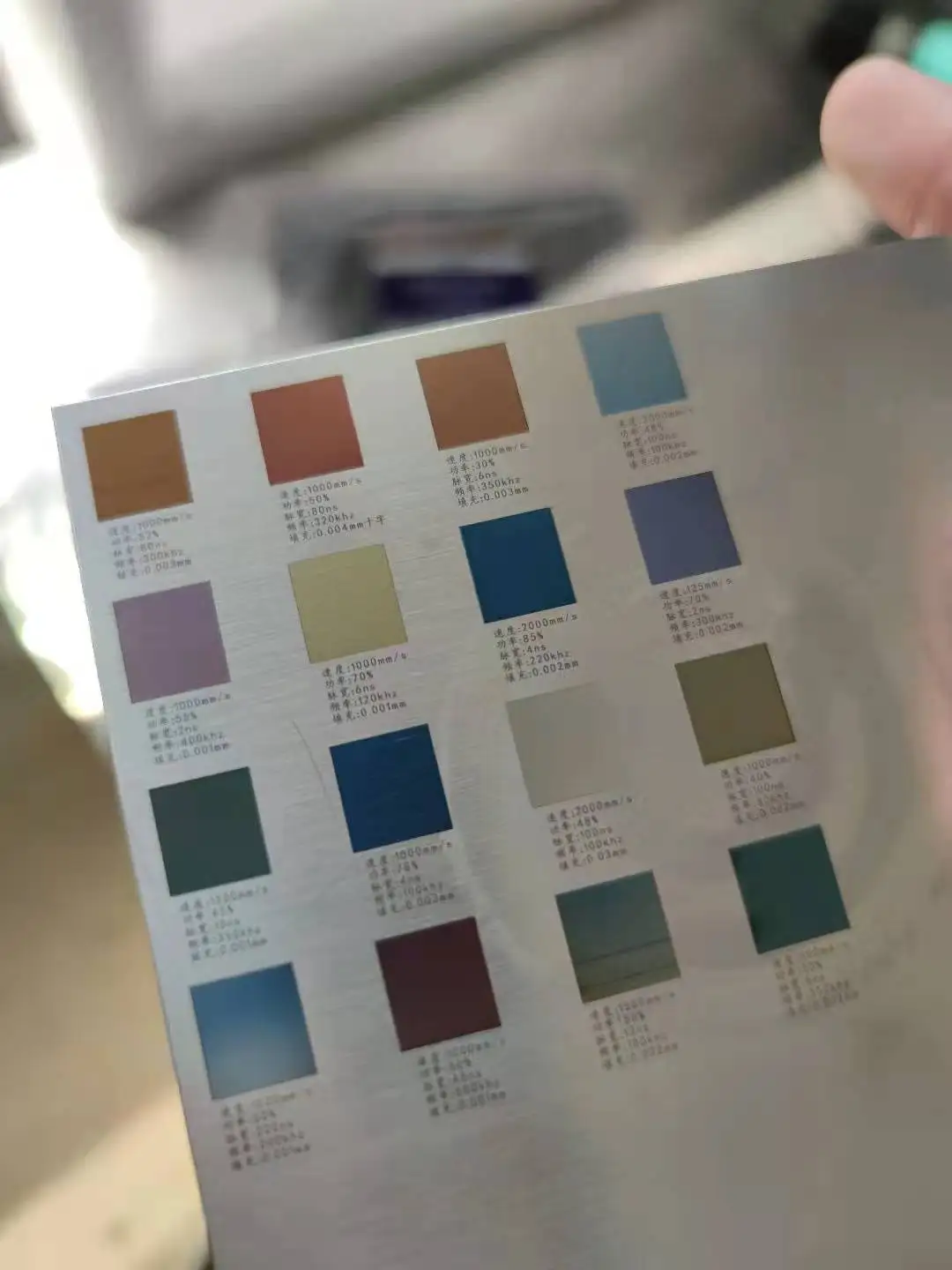

Successful Project

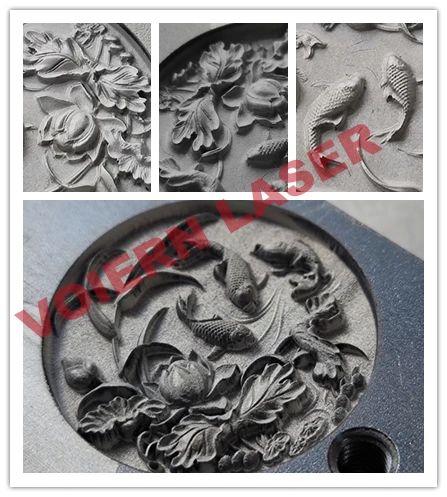

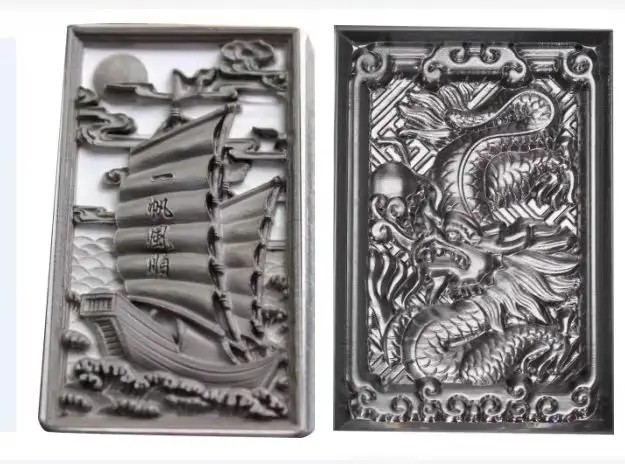

2.5D example
2.5D example
2.5D example
Specification
Additional information
| Weight | 50 kg |
|---|
