Used

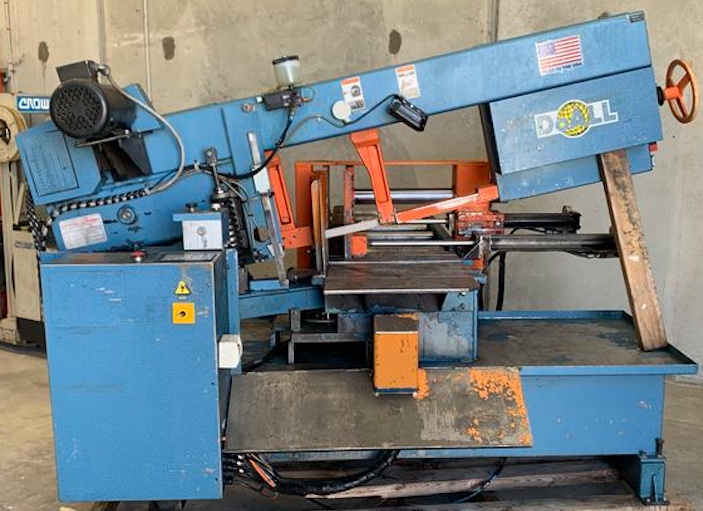

Used DoAll 500-SNC – NC Automatic Mitre Cutting Bandsaw

In stock

The DoAll NC Automatic Bandsaw horizontal metal cutting band saw is an affordable Numeric Controlled (NC) angle cutting saw that will increase flexibility and provide greater efficiency for general purpose sawing. The DoAll NC Automatic Bandsaw features a saw head that swings 60 degrees, conveniently located NC touch controls, single stroke indexing to 40″ and 8x multiple indexing. The 500-SNC high production horizontal metal cutting band saw is also known as a cutoff or scissor saw. Made in the USA.

  Chat Now
SKU: 5445 Categories: , Tag:

Description

Description

Used DoAll 500-SNC – NC Automatic Mitre Cutting Bandsaw.

Includes
Optional Mist lubrication system
Mitres to 60 Degrees

All in great working order.

The DoAll NC Automatic Bandsaw horizontal metal cutting band saw is an affordable Numeric Controlled (NC) angle cutting saw that will increase flexibility and provide greater efficiency for general purpose sawing. The DoAll NC Automatic Bandsaw features a saw head that swings 60 degrees, conveniently located NC touch controls, single stroke indexing to 40″ and 8x multiple indexing. The 500-SNC high production horizontal metal cutting band saw is also known as a cutoff or scissor saw. Made in the USA.

Features:
  • Machine Capacity: 14″ x 20″ (355x508mm)
  • Production Level: Low
Standard Equipment:
  • 60 Degree swivel capability
  • 30,000 psi Band tension
  • Counter-balanced saw head
  • 20″ (510mm) Band wheels
  • 40″ Single index stroke
  • Multiple indexing
  • Cut piece counter
  • Out of stock sensor
  • Band door interlocks
  • Carbide saw guide inserts
  • Gear driven band brush
  • Flanged band wheels
  • Control console
  • Feed force plus rate control
  • Inverter band speed control
  • Work height sensor
  • Full stroke hydraulic vises
  • Replaceable saw bed wear plates
  • Coolant / chip collection bin
  • Fork pockets
  • Flood style band lubrication
  • One DoALL bi-metal saw blade
  • Instruction and parts manuals on CD or USB data stick
Specification
Index Stroke (in) 40
UNSPSC 23241509
Cutting Capacity Rectangular (in) Width 500 x  Height 350
Band Tension Type
Spring Loaded by Handwheel
Type
Horizontal Miter Cutting Bandsaw
Band Drive (hp) 5 (3.75kw)
Weight (lbs) 3000 (1361kg)
Vise Type
Hydraulic Full Height and Stroke
Cutting Capacity Round (in) 350
Cutting Cap, Rnd – 45 Deg mm 350
Cutting Cap, Rect. – 45 Deg mm Width 500 x  Height 350
Coolant System Flood / Mist
Band Speed (fpm)
50 – 400 (15-120 mpm)
Blade Size (in)
197 x 1-1/4 x 0.042 (5003 x 34x 1.1mm)
Dimensions mm
2348x2591x2286mm
