Turkish Made Full Automatic Four Side Planner Six 6 Blades Heavy Duty 4 Faces Spindle Planner Moulder Machine
The Turkish-made full automatic four-side planer is a heavy-duty machine equipped with six blades and four-face spindle technology. Designed for precision woodworking, it efficiently planes and molds wood on all sides, delivering high-quality, consistent results. Ideal for demanding industrial applications, it offers durability and superior performance.
Description
Product descriptions from the supplier
Product Overview

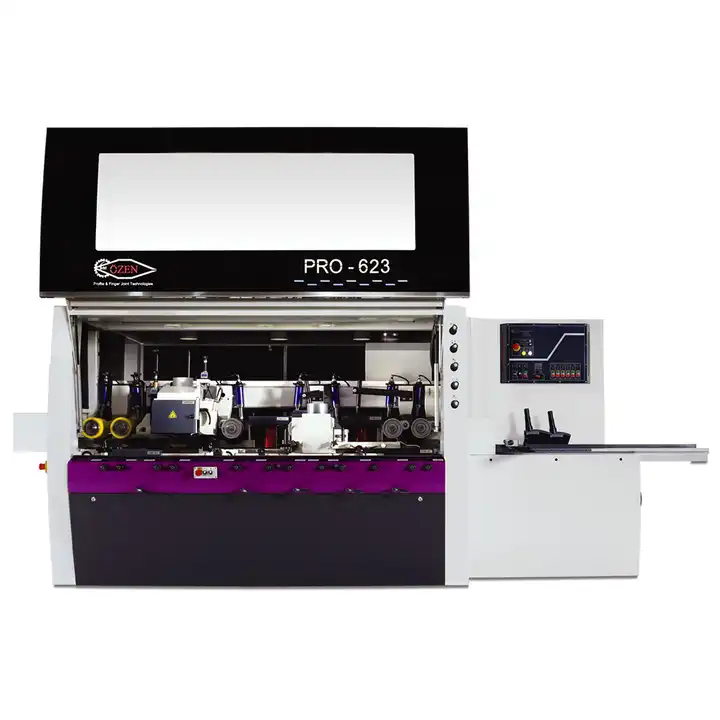

PRO 623 MEMORY PLUS AUTOMATIC FOUR SIDE MOULDER MACHINE
In the New Generation PRO 623 Series, it can finish the process without difficulty by eliminating the power loss in the heaviest Wood Profiling on the Spindle with its independent motor transmission systems as standard.
VISIT OUR WEBSITE
www.boygatech.com
+90 552 694 59 34 (Whatsapp available)
FEATURES AT A GLANCE
• Superior Design Technology
• High Security
• Vibration Free Body and Quiet Operation
• Precise Planning and Profiling
• Simplified quick setting feature.
PRODUCT SPECIFICATIONS
|
Working H min./max.
|
10/160 mm (0.39″ – 6.29″)
|
|||
|
Working W min./max.
|
20 /260 mm (0.78″ – 9.05″)
|
|||
|
Working W 310 mm (12.20″) Hydro Lock Sistem
|
Option
|
|||
|
Working H 200 mm (7.87″)
|
Option
|
|||
|
Machine Spindle Speed 6,000 rpm
|
Standart
|
|||
|
8,000 rpm
|
Option
|
|||
|
12,000 rpm
|
Option
|
|||
|
Operator Left Milling Unit Adjustment System
|
Standart
|
|||
|
Memory Plus
|
Option
|
|||
|
OZENCom Plus
|
Option
|
|||
|
Electronic Shaft Adjustment Numberers with Memory System
|
Option
|
|||
|
CNC Controlled Numberer Detection Motorized System
|
Option
|
|||
|
Spring Compression Shoe Before Upstream Bearing
|
Standart
|
|||
|
Maximum Horizontal Shaft Diameter (Excluding Planing 1)
|
225 mm (8.85″)
|
|||
|
Maximum Vertical Shaft Diameter
|
220 mm (7.87″)
|
|||
|
HydroLock Blade Holder
|
Option
|
|||
|
Universal Mil
|
Option
|
|||
|
Feeding with Frequency Controlled Inverter (standard)
|
5 – 35 m/min (16.4 – 131 FPM)
|
|||
|
Machine Table Coating Chrome ( Standard )
|
Standart
|
|||
|
Max. motor Power Dikey Mil (standard – option)
|
7.5 – 15 kW (10 – 20 HP)
|
|||
|
Max. motor Power Yatay Mil (standard – option)
|
7.5 – 37 kW (10 – 50 HP)
|
|||
|
High Sound Insulation Cabin System
|
Standart
|
Product packaging
FAQ
Q1：*****
A1：*****
Specification
Additional information
| Weight | 990 kg |
|---|
