Turkish Made Big Size Brush Sander Machine for Wood Door Furniture Production Quality
The Turkish-made big-size brush sander machine is designed for high-quality wood door and furniture production. Its large size ensures efficient sanding and a superior finish, making it ideal for large-scale woodworking projects.
Description
Product descriptions from the supplier
Thanks to its flexible sanding feature, it gives extraordinary results even on difficult-to-machine surfaces that need to be done with precision.. Also, due to the addition of the edge sanding unit to our brush sander, it is now much easier to sand raw and primer wooden edges.
www.boygatech.com
+90 552 694 59 34 (Whatsapp available)
[email protected]

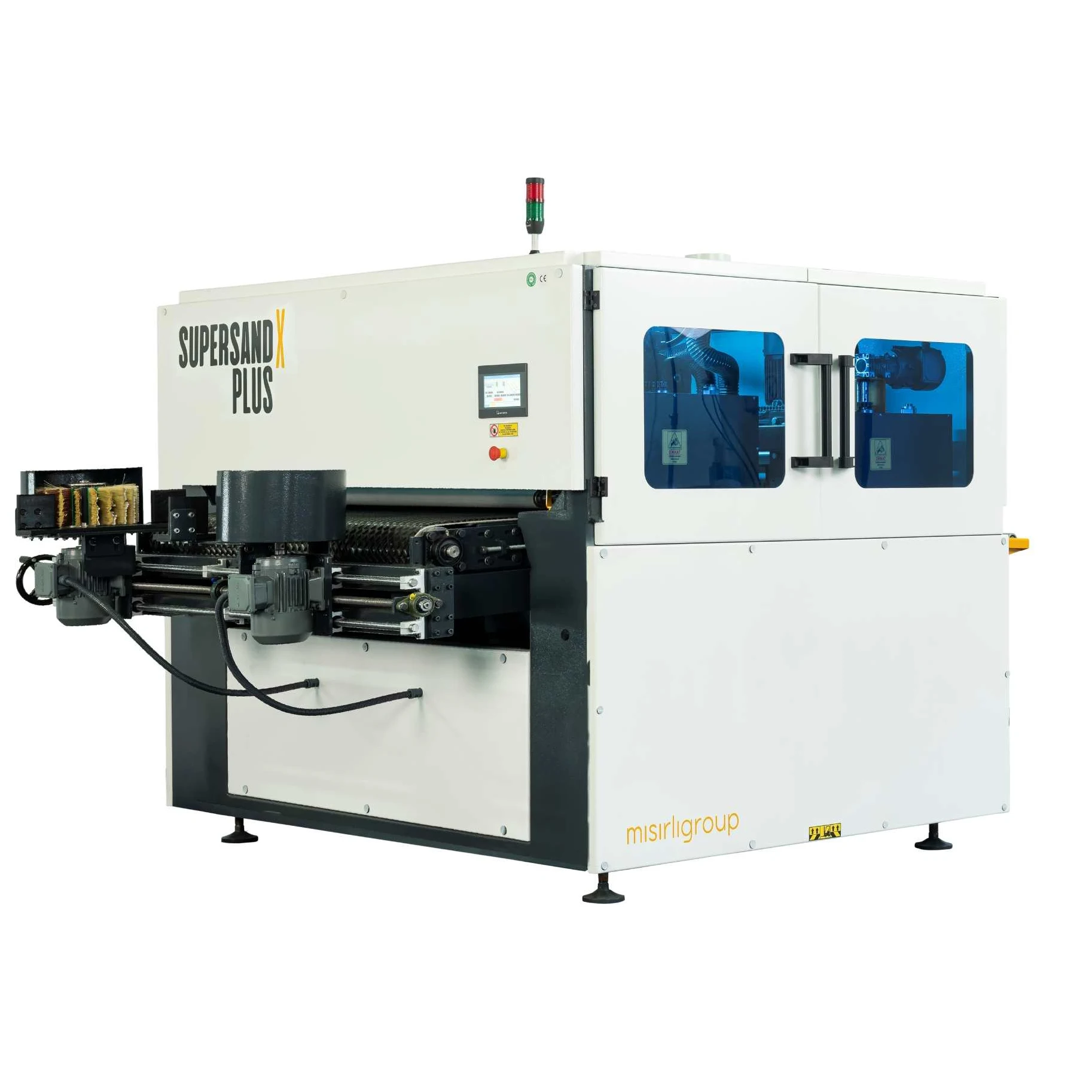

SUPERSAND X PLUS BRUSH SANDING MACHINE FEATURES
Edge Sanding – Linear Sanding – Disc Sanding in SUPERSAND X PLUS brush sanding machine
Raw and Primer Sanding precision: 0,1 mm
5 Units (2 Sections)
2 rows of cylinder sections (2 pieces.)
3 rows of disc section (5+6+5 pieces)
Double-sided brush sanders (Motors can move in both directions.)
7’’ Touch Screen Control Panel – Memory System (Smart Sanding System)
Manuel Edge Sanding Unit
Manual edge sanding unit dimensioning is done manually and it provides a great advantage in terms of labor cost and time cost by sanding the edges together with the surface sander.

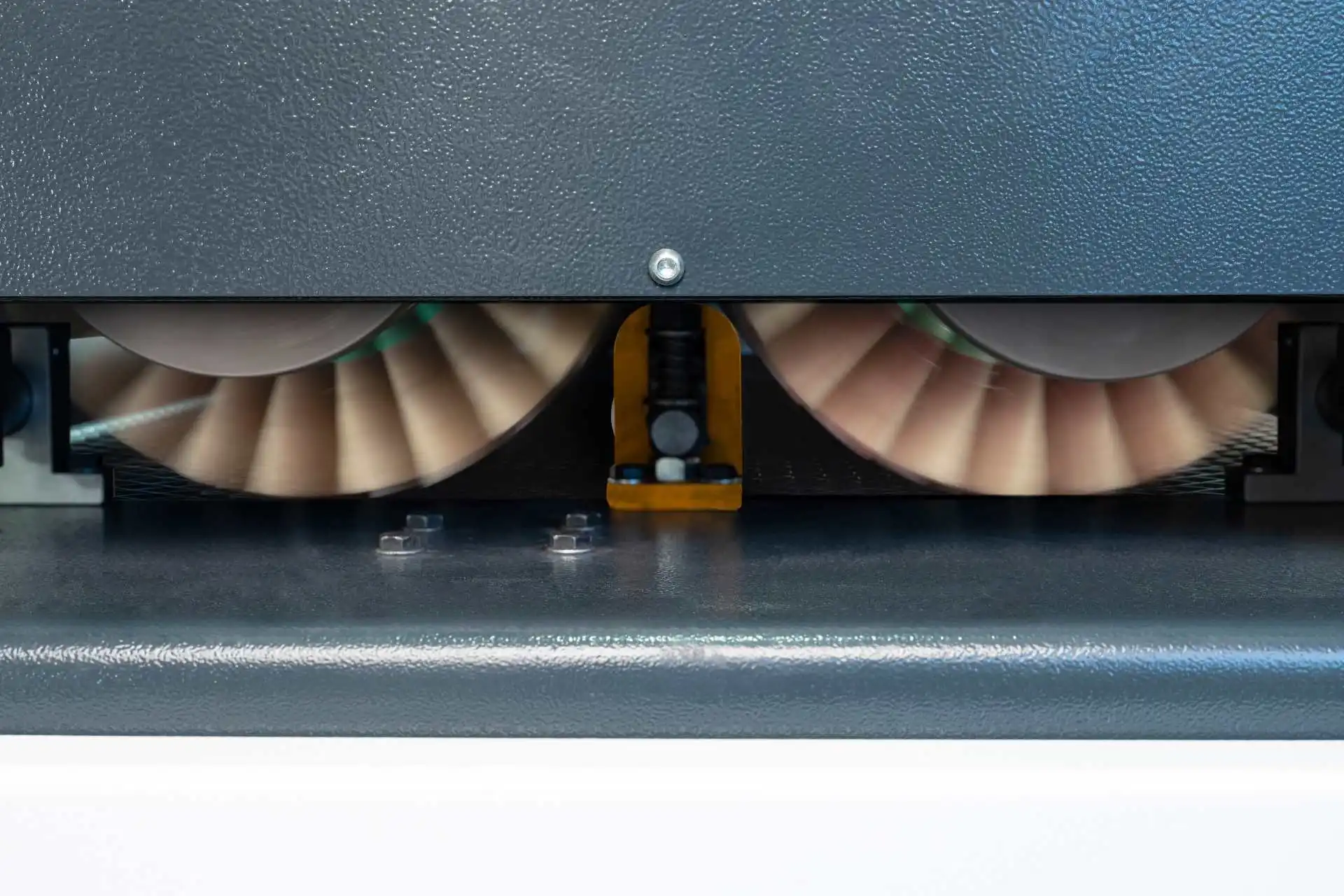

Oscillatory Cylinder Brush System
This section consists of 2 unit (1+1) cylinder sanding system whose speed, height and rotation directions can be adjusted independently. In addition, thanks to the double-sided cylider brush sanding system’s ability to rotate in both directions, two different sanding grits can be used and raw and primer carving surface sanding can be done easily.

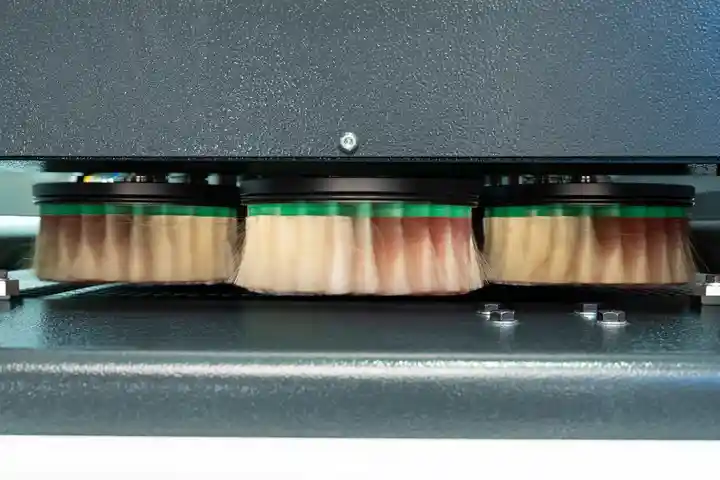

Oscillatory Disc Brush Sanding System
This section consists of 3 unit (5+6+5) disc sanding system whose speed, height and rotation directions can be adjusted independently. In addition, thanks to the double-sided disc brush sanding system’s ability to rotate in both directions, two different sanding grits can be used and raw and primer carving surface sanding can be done easily.
Brush Sanding Machine I Optional Features
Vacuum Conveyor Belt
SUPERSAND X PLUS brush sanding machine vacumm machine table prevents the parts from moving inside the machine during raw or primer sanding even on very small carved parts.
Automatic Edge Sanding Unit
The width setting of the manual edge sanding unit, which is a first in Turkey, can be adjusted via the touch control panel registered to the system, and automatic width adjustment control can be made in variable widths in line with the demands of our customers.
Input and Output Roller Conveyor Tables
The input and output sections are mounted on our brush sander, but we can also add roller conveyor table requests as an extra.
|
item
|
value
|
|
MIN PRODUCT WIDTH OR LENGHT
|
350 mm
|
|
MAX PRODUCT WIDTH
|
1300 mm
|
|
MIN – MAX PRODUCT HEIGHT
|
0-100 mm
|
|
MAX CONVEYOR BELT SPEED
|
20 m/min
|
|
USABLE SANDING GRIT RANGE
|
All sanding grits can be used according to the customer’s request.
|
|
DIMENSIONS
|
Lenght: 3600 mm
Height: 2100 mm Width: 2200 mm |
|
ELECTRICITY CONSUMPTION
|
13,5 kw
|
|
WEIGHT
|
2500 kg
|
Boygatech operates with years of experience in the machinery sector with high quality and high efficiency. In order to increase the effectiveness of our company in the international market, we carry forward our export targets in our field of expertise.
We offer an experience beyond the demands and expectations of our customers by quickly adapting our machines to the developing technology. Our main priority is customer satisfaction, energy saving, efficiency and domestic production.
Our company serves as a direct factory sales point. Our company has edge banding machines, CNC drilling machines, CNC router, mdf multiple rip saw machines, wooden door production machines, wrapping machines, painting machine, packaging machines.
Our company also carries out turnkey wooden door and furniture factory projects.
Specification
Additional information
| Weight | 990 kg |
|---|
