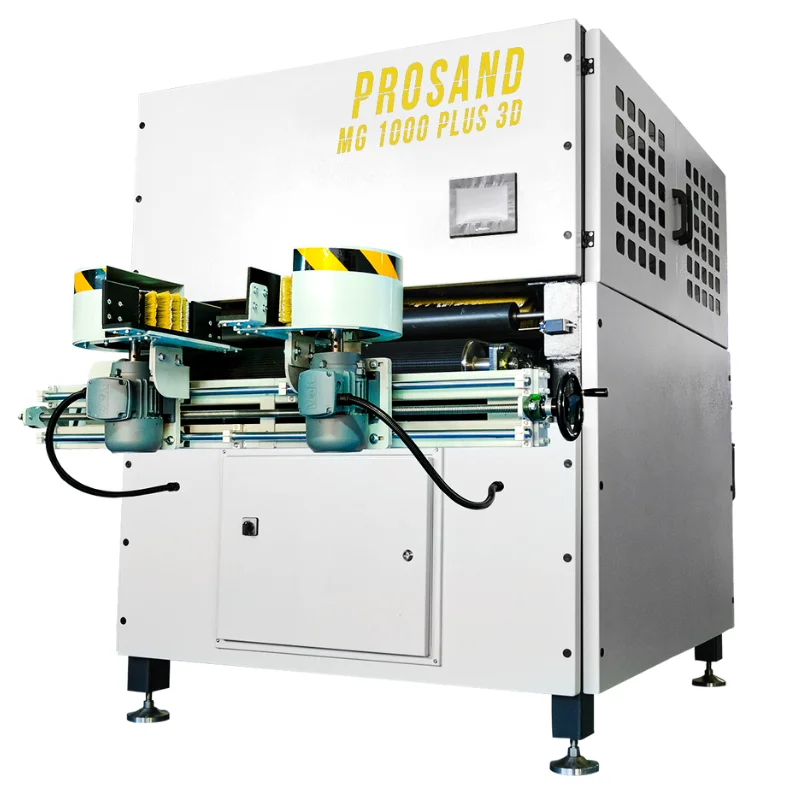

PROSAND MG 1000 3D PLUS BRUSH SANDING MACHINE
PROSAND MG 1000 3D PLUS Brush sanding machine designed and developed for most difficult raw and primer surfaces. Raw and primer rustic, carved, flat furniture, door and kitchen cabinet surfaces sanding are so easy for PROSAND MG 1000 3D PLUS automatic sanding machine. Thanks to its flexible sanding feature, it gives extraordinary results even on difficult-to-machine surfaces that need to be done with precision.. Also, due to the addition of the edge sanding unit to our brush sander, it is now much easier to sand raw and primer wooden edges.
VISIT OUR WEBSITE
www.boygatech.com
+90 552 694 59 34 (Whatsapp available)
[email protected]
PROSAND MG 1000 3D PLUS BRUSH SANDING MACHINE FEATURES
Edge Sanding – Linear Sanding – Disc Sanding in PROSAND MG 1000 3D PLUS brush sanding machine
Raw and Primer Sanding precision: 0,1 mm
4 Units (2 Sections)
2 rows of disc section (5+4 pieces)
Double-sided brush sanders (Motors can move in both directions.)
7’’ Touch Screen Control Panel – Memory System (Smart Sanding System)
ROSAND MG 1000 3D PLUS brush sanding machine sections heights are fixed and machine table heights and speed, section speeds can be adjusted independently. Thanks to the smart sanding systems, you can save your product dimension on smart sanding system.

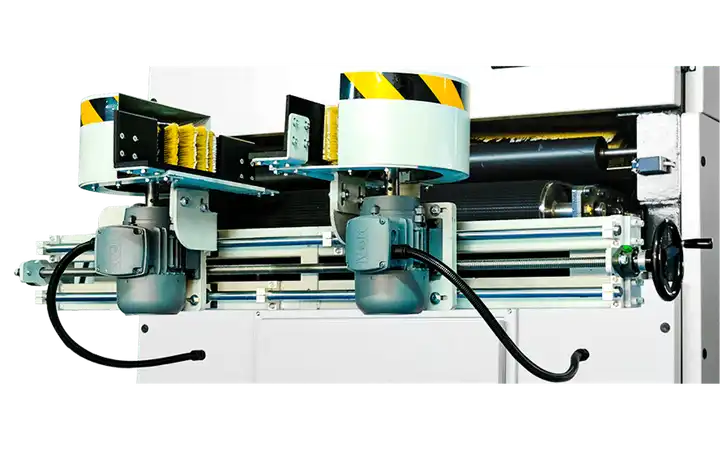

Manuel Edge Sanding Unit
Manual edge sanding unit dimensioning is done manually and it provides a great advantage in terms of labor cost and time cost by sanding the edges together with the surface sander.

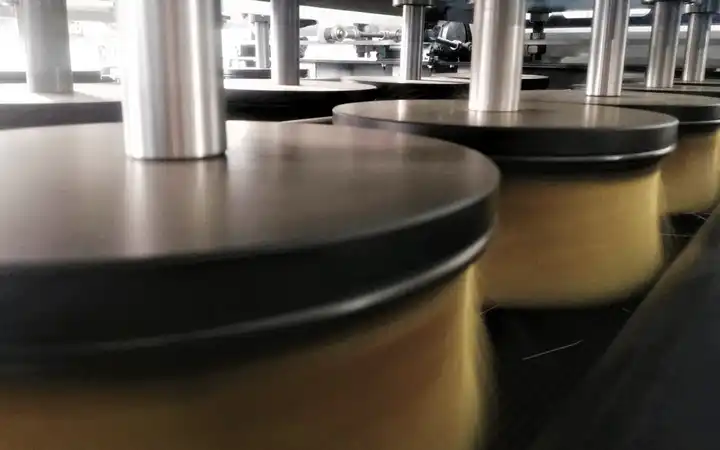

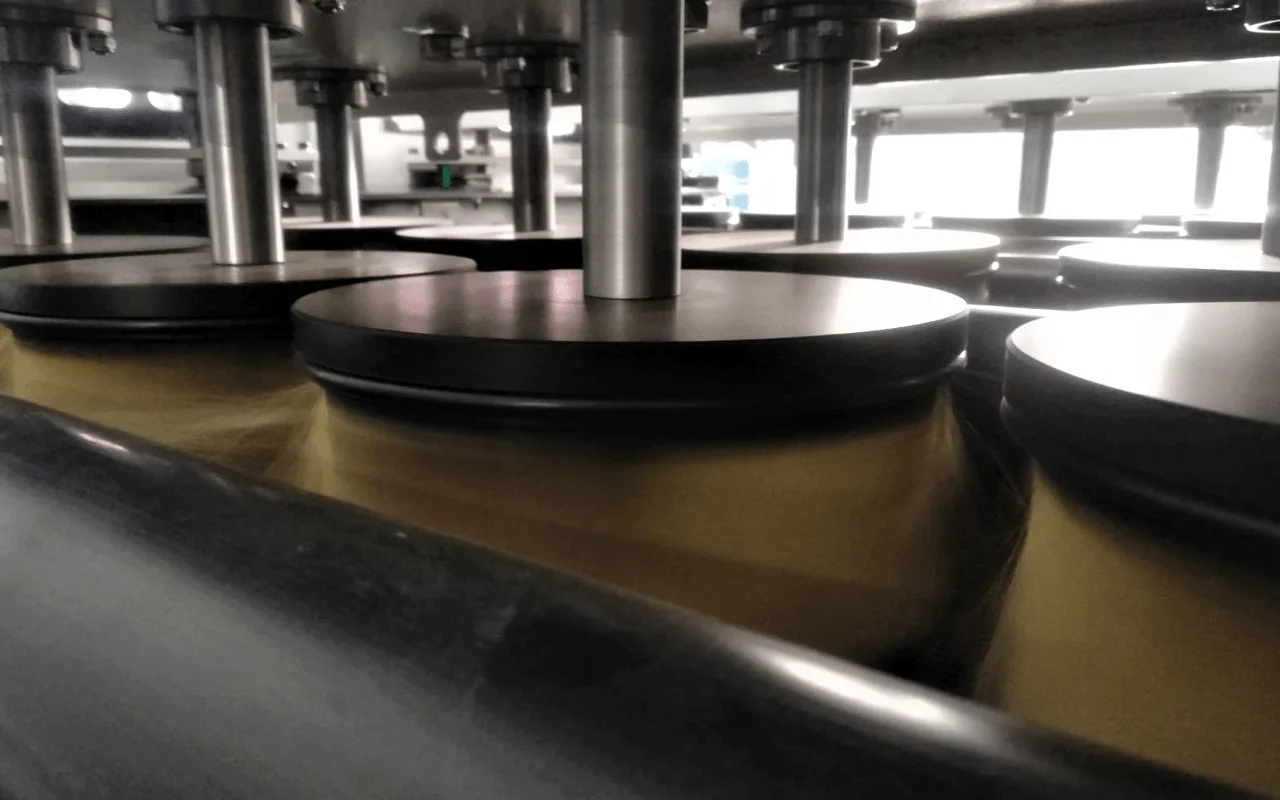

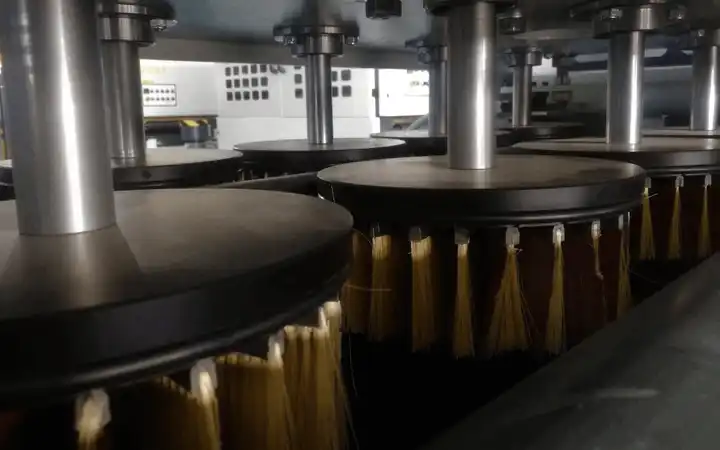

Oscillatory Disc Brush Sanding System
This section consists of 2 unit (5+4) disc sanding system whose speed can be adjusted independently. The brush abrasives in the sections move clockwise and counterclockwise, so that raw and primed sanding can be done easily.
|
item
|
value
|
|
MIN PRODUCT WIDTH OR LENGHT
|
350 mm
|
|
MAX PRODUCT WIDTH
|
1000 mm
|
|
MIN – MAX PRODUCT HEIGHT
|
0-100 mm
|
|
MAX CONVEYOR BELT SPEED
|
15 m/min
|
|
USABLE SANDING GRIT RANGE
|
All sanding grits can be used according to the customer’s request.
|
|
DIMENSIONS
|
Lenght: 2900 mm
Height: 1900 mm
Width: 1750 mm
|
|
ELECTRICITY CONSUMPTION
|
8 kw
|
|
WEIGHT
|
1500 kg
|
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Boygatech operates with years of experience in the machinery sector with high quality and high efficiency. In order to increase the effectiveness of our company in the international market, we carry forward our export targets in our field of expertise.
We offer an experience beyond the demands and expectations of our customers by quickly adapting our machines to the developing technology. Our main priority is customer satisfaction, energy saving, efficiency and domestic production.
Our company serves as a direct factory sales point. Our company has edge banding machines, CNC drilling machines, CNC router, mdf multiple rip saw machines, wooden door production machines, wrapping machines, painting machine, packaging machines.
Our company also carries out turnkey wooden door and furniture factory projects.
