Turkey’s Top Quality Loading Unloading CNC Router Machine Woodworking ATC Nesting Drilling Boring Surface Design Cutting Saw
Turkey’s top-quality loading and unloading CNC router machine is a versatile woodworking solution designed for tasks like ATC nesting, drilling, boring, surface design, and cutting. With automated loading and unloading capabilities, it enhances efficiency and precision, making it ideal for professional woodworking projects requiring high performance and reliability.
Description
Product descriptions from the supplier

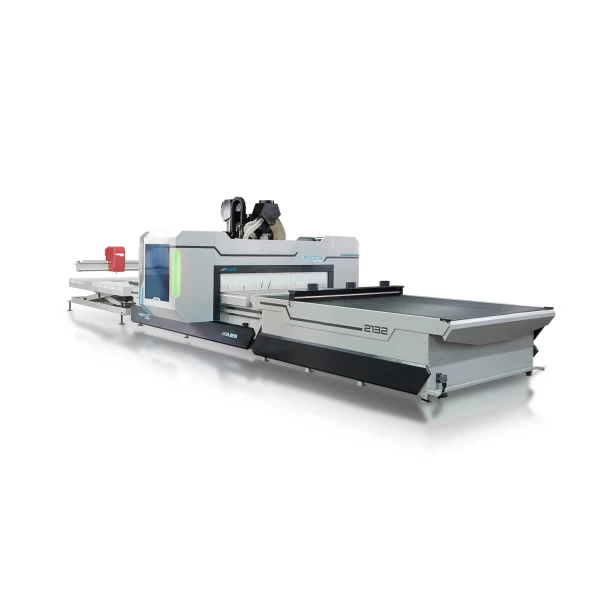

Raptor Ultra provides high-level solutions for your nesting and drilling applications with its strong body structure and advanced configuration. With its structure that can perform different applications in a single machine, it allows flexible production. With the fully automatic production line, the machine can automatically load and unload the materials. It is possible to machine different types of materials such as wood, plastic, alucobond, aluminum, composite and similar materials.
www.boygatech.com
+90 552 694 59 34 (Whatsapp available)
[email protected]
applications, including 3D machining. With optional 4-axis configuration, custom your processings on a single machine. Different aggregate Make flexible production with different aggregate options.
Unit Based on Customer Needs
LINEAR TOOL CHANGER UNIT

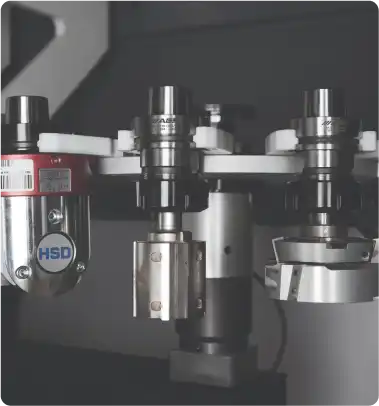

ROTARY TOOL CHANGER UNIT
|
Working area : 1300×2500 / 2100×2800 / 2100×3200 / 2100×3600 / 2100×4200
Z Axis : 200 mm

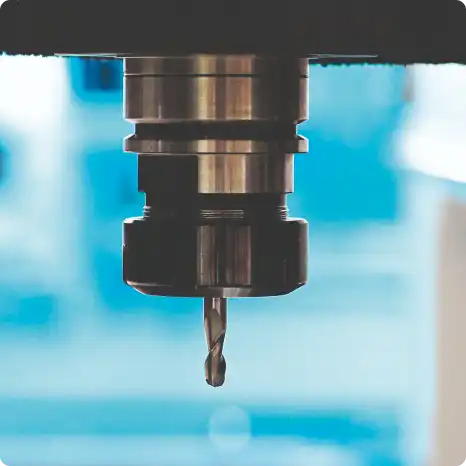

Spindle Motor Power : 9 kW HSK F63 Spindle Motor
Spindle Engine Speed : 24.000 rpm
Magazine Unit : Lineer (12 tools capacity)
Tool Change : Automatic
Tool Length Measurement : Automatic

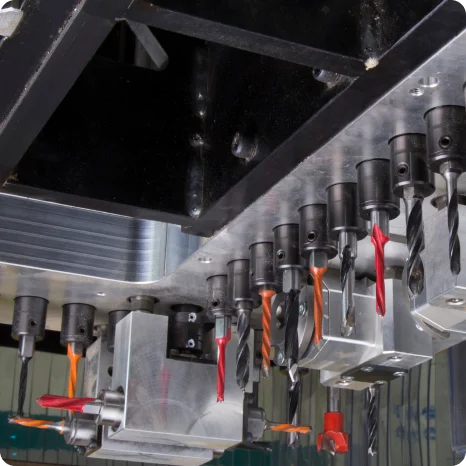

Lubrication System : Automatic Centralized Lubrication Boring Unit : 10 Vertical Holes
CAD/CAM Program : Alphacam Essential 2D (One Post)
Working Table : Aluminium
Axis Speeds (X-Y-Z) : 90 – 90 – 20 m/min

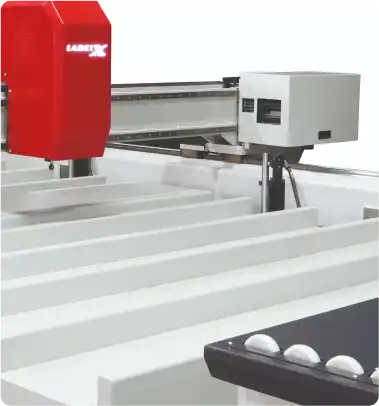

Lift and Loading Unit : Optional
Unloading and Cleaning Unit : Optional
Conveyor Unit : Optional
Vacuum Pump : 2×250 m³/h
Vacuum Area : 8 Zone
Control Unit : PC Based
Installed Power : 30 kw
Weight : 6500 kg
|
Boygatech operates with years of experience in the machinery sector with high quality and high efficiency. In order to increase the effectiveness of our company in the international market, we carry forward our export targets in our field of expertise.
We offer an experience beyond the demands and expectations of our customers by quickly adapting our machines to the developing technology. Our main priority is customer satisfaction, energy saving, efficiency and domestic production.
Our company serves as a direct factory sales point. Our company has edge banding machines, CNC drilling machines, CNC router, mdf multiple rip saw machines, wooden door production machines, wrapping machines, painting machine, packaging machines.
Our company also carries out turnkey wooden door and furniture factory projects.
Specification
Additional information
| Weight | 990 kg |
|---|
