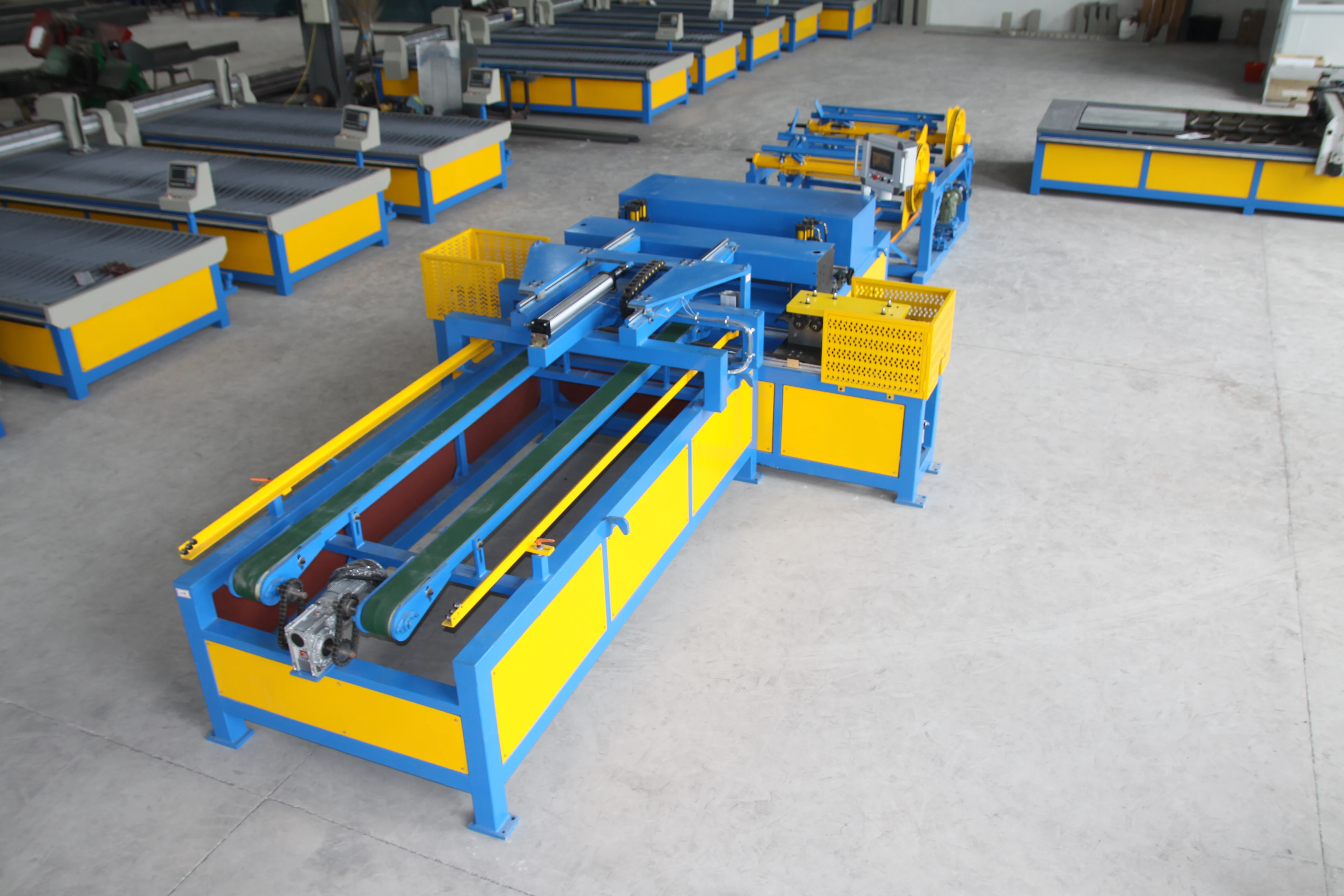

Super Auto Duct Line 4 Air Hose Blast Pipe Making Production Machine Sheet Metal Square Processing Tools CNC HAVC

Function

Super auto duct line4

Auto duct line IV IS linear structure,consists of a metal frame, leveling beading,hydraulic notch and punch square ,hydraulic shears ,displacement type joint angle nipping machine,feeding platform to position the manip-ulator,double linkage flange machine(or optional single bone angle iron flange)full automatic computer control system.Blunt notch and punch square,shear plate adopts full hydraulic pressure system.Line IV is a cost-effective equipment wind pipe,cover an area of rela-tively small ,in addition to the purchase of hydraulic bending machine ,very suitable for TDF fangle ,TDC plug-in flanges,fange angle iron production ,theemaxi-mum feed speed is 16m/min the length error of +/- 0.5mm ,computer control system adopts closed -loop feedback ,guarantee stable precision.

Super Auto Duct Line 4 Air Hose Blast Pipe Making Production Machine Sheet Metal Square Processing Tools CNC HAVC

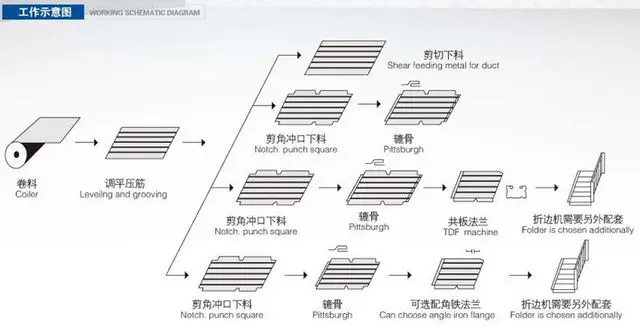

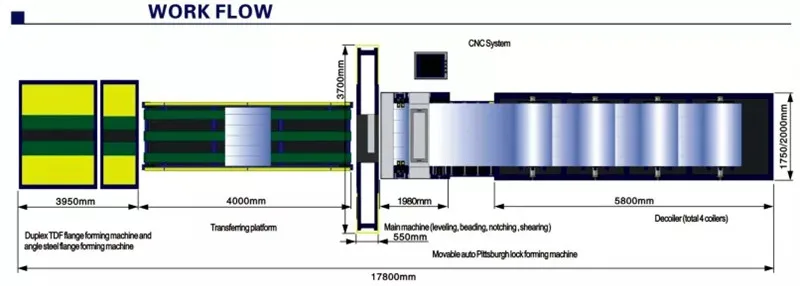

Working Schematic Diagram

Super Auto Duct Line 4 Air Hose Blast Pipe Making Production Machine Sheet Metal Square Processing Tools CNC HAVC

Work Flow:

· It’s mainly for uncoiling, leveling,beading ,punching ,shearing,locking ,forming TDF/angle steel /C-shape flage

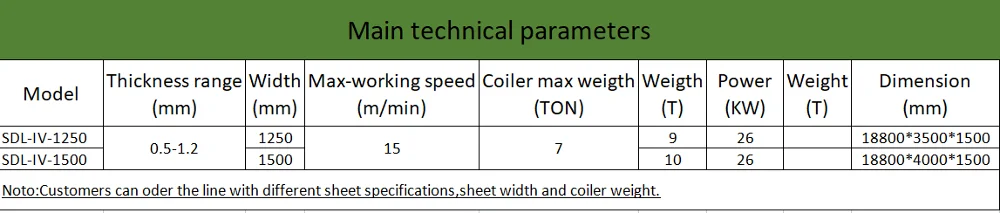

Main Technical parameters

Main Import Configuration:

1.Cylinder inported form Germany Festo

2.Beijing Huade plus hydraulic system fo Taiwan

3.Germany's Siemens system

4.Taiwan Hiwin linear guideways

5.Schneider electrical system

Basic Configuration

1.Two electnic coil cradles ,4 material trays(5-7t each roll)

2.One rack

3.One host(line 2 host)

4.One mechanical arm clutching ,locating and transferring platform

5.One displacement type locking machine

6.One duplex TDF flange forming machin

7.One duplex angle steel flange forming machine

8.One set of computer controlling system

Super Auto Duct Line 4 Air Hose Blast Pipe Making Production Machine Sheet Metal Square Processing Tools CNC HAVC

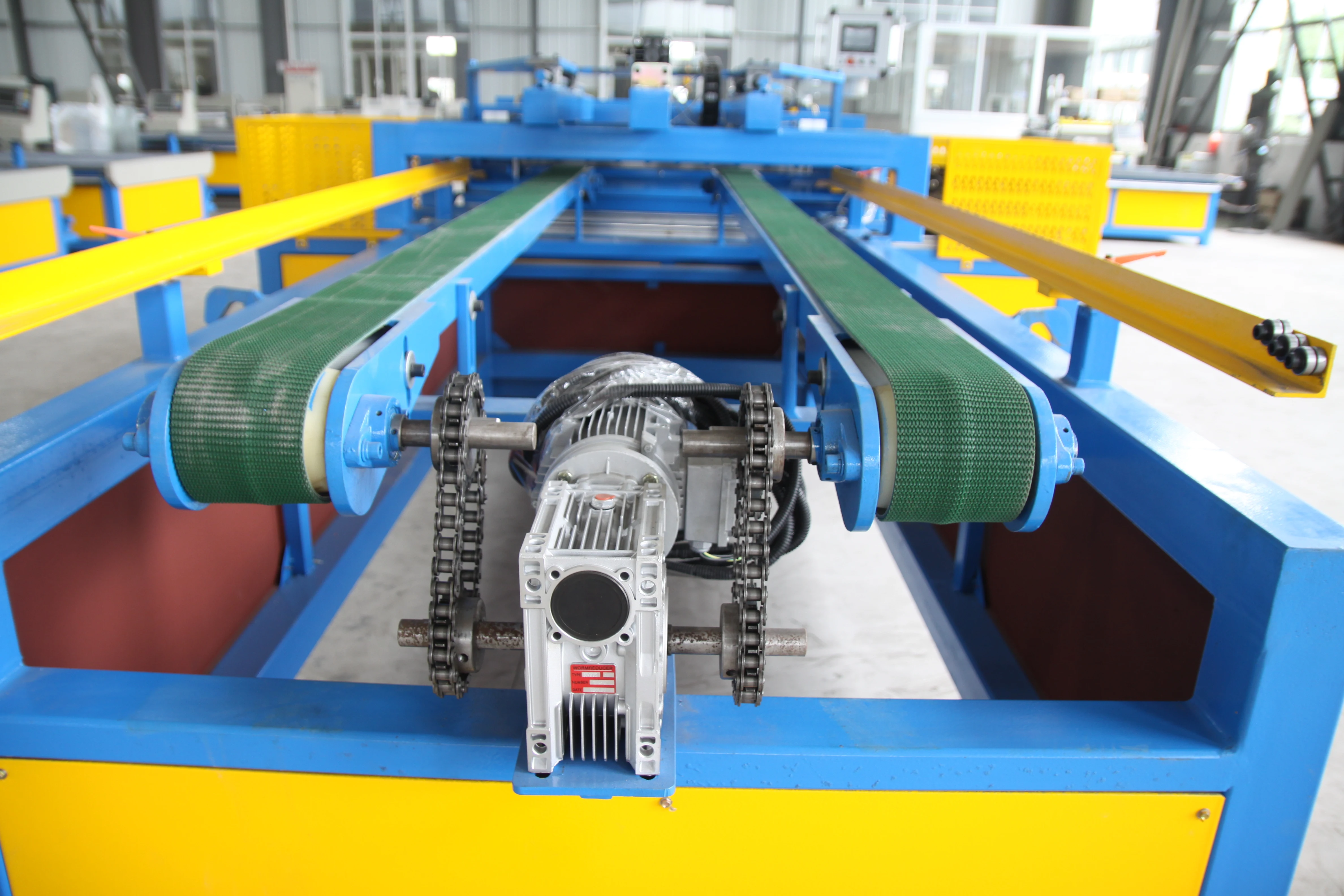

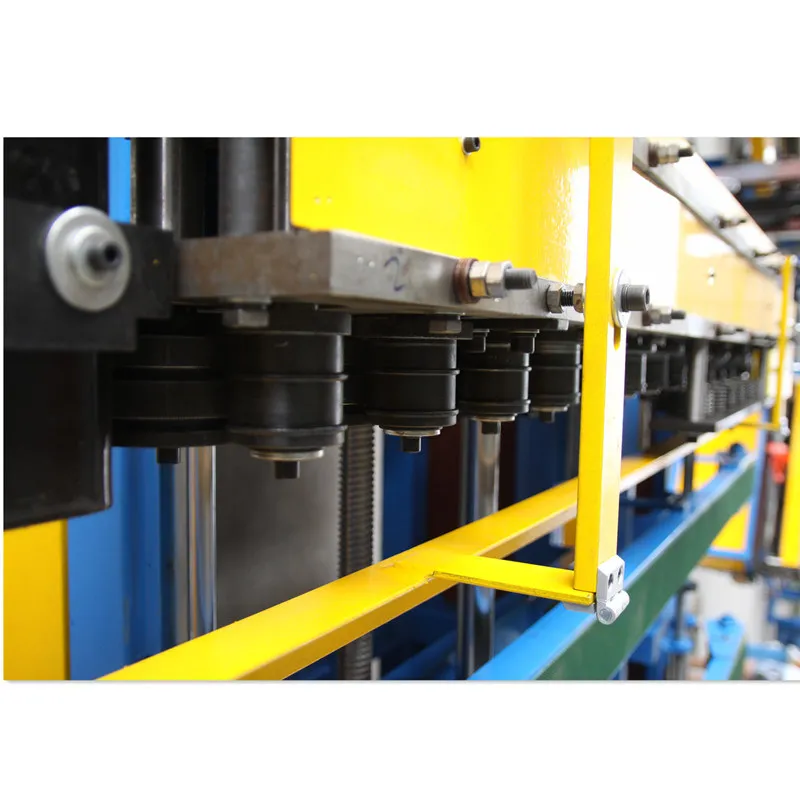

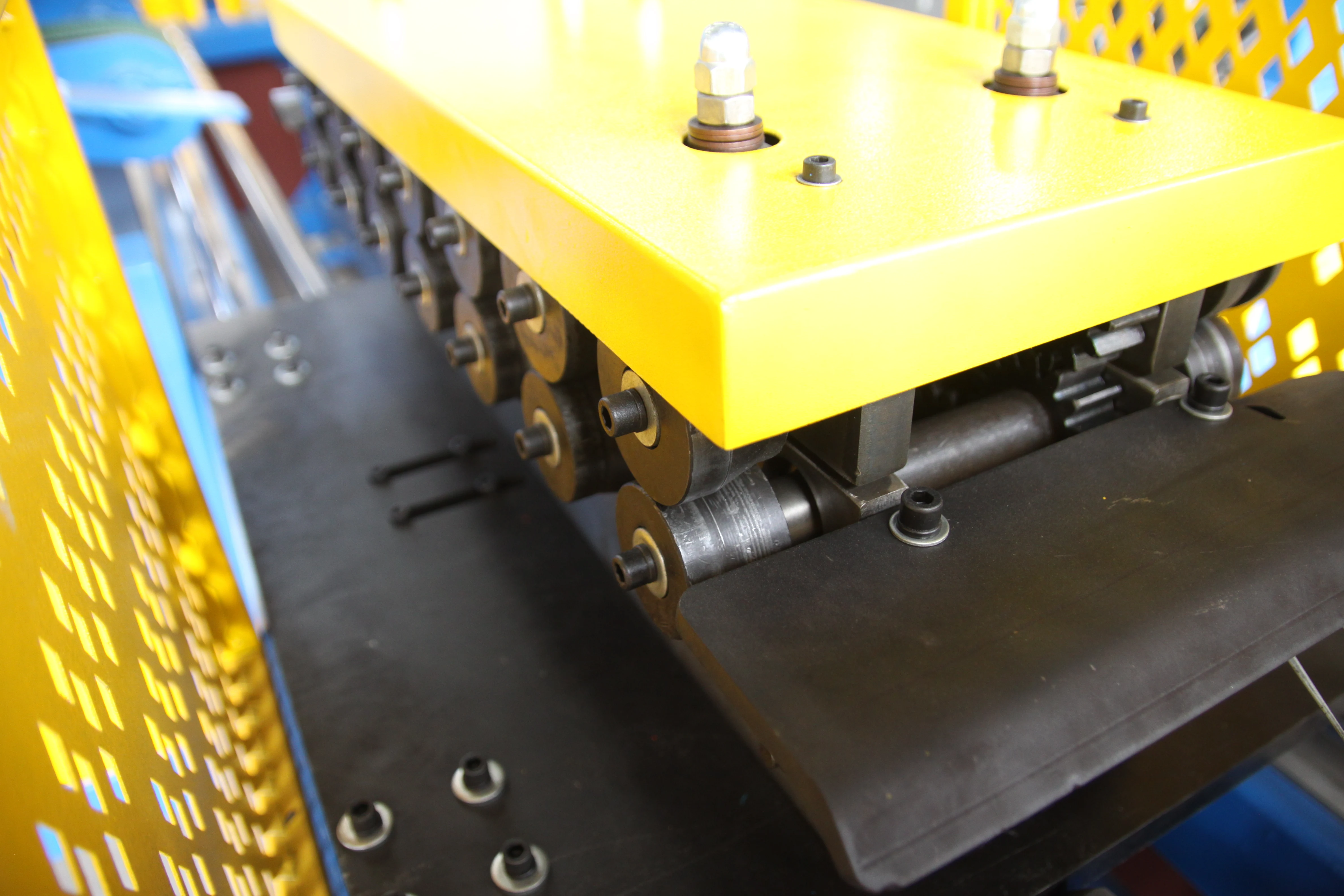

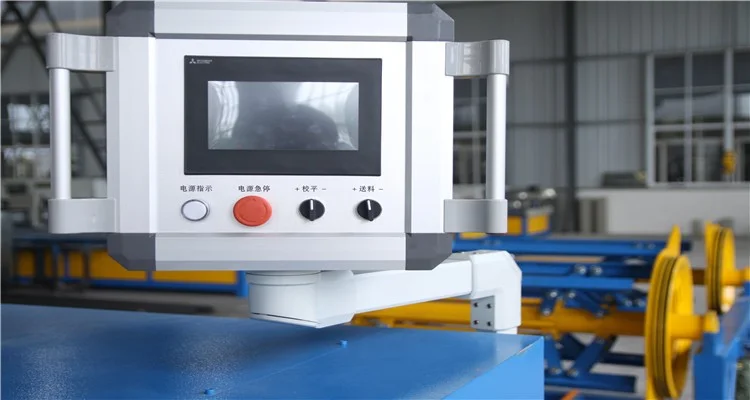

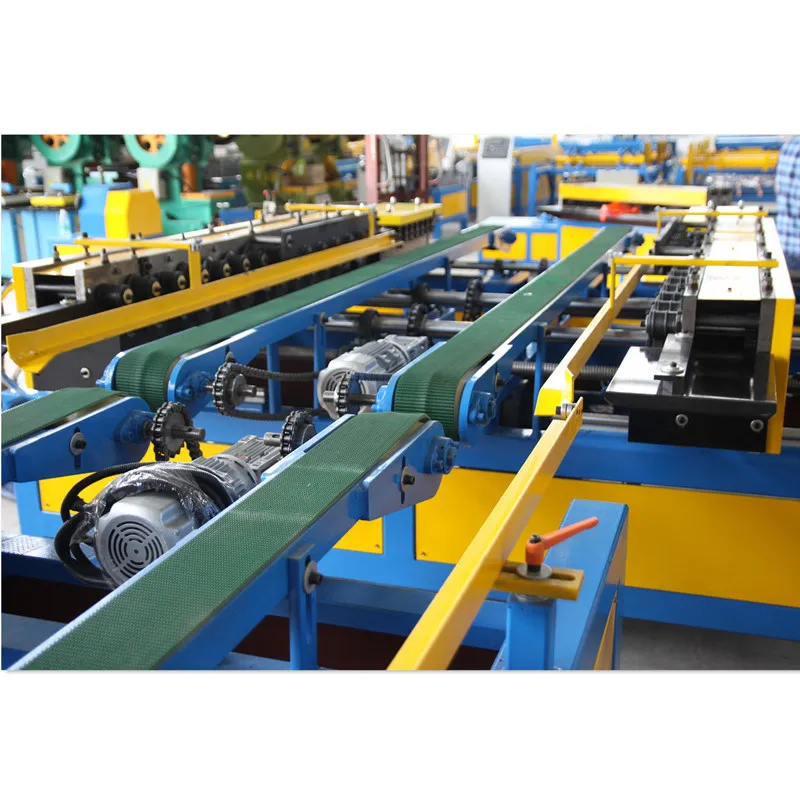

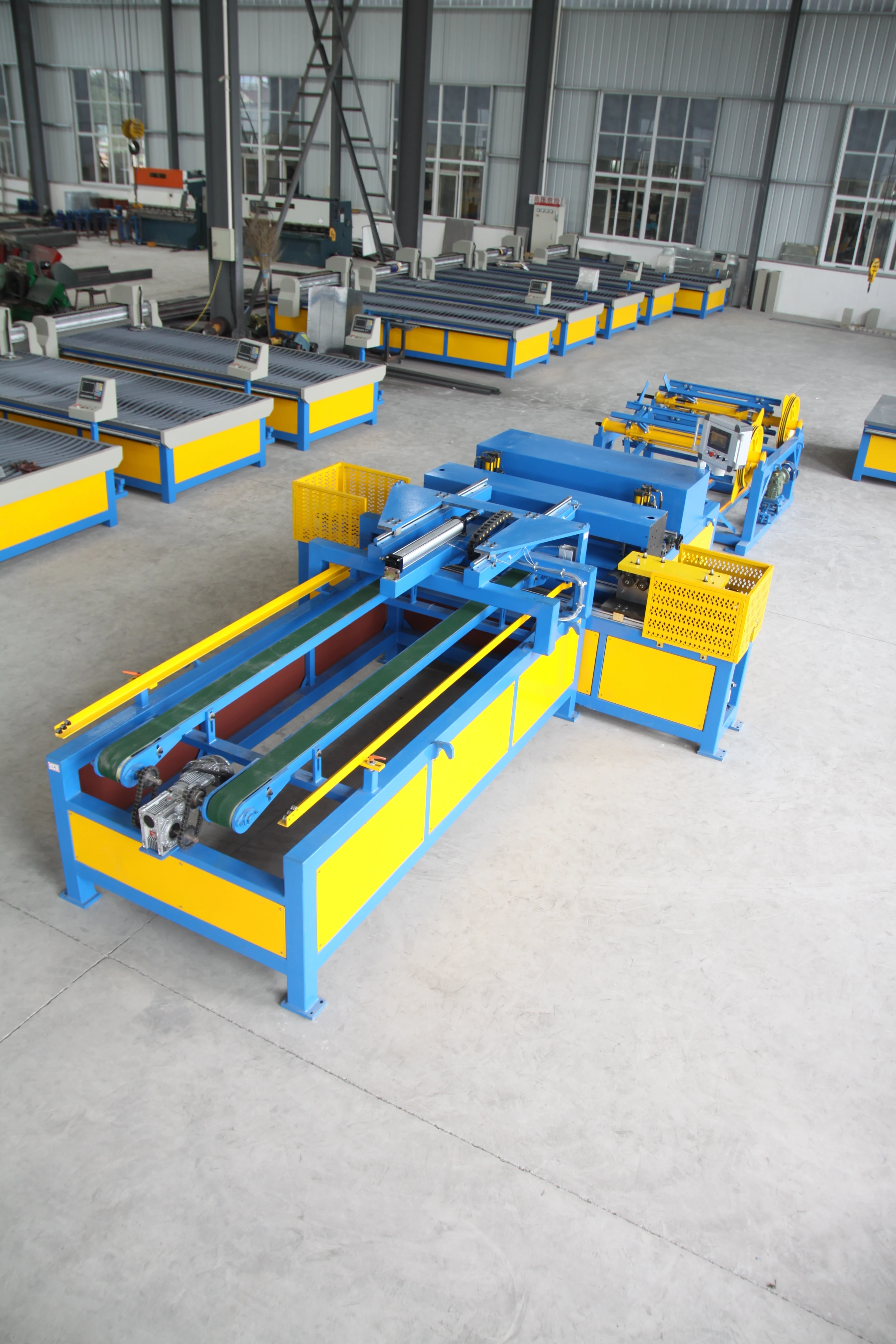

Product details

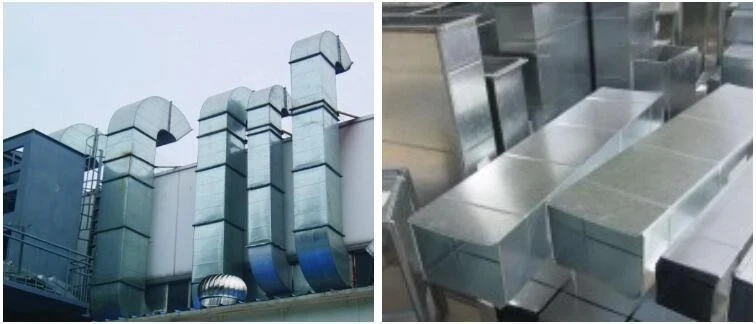

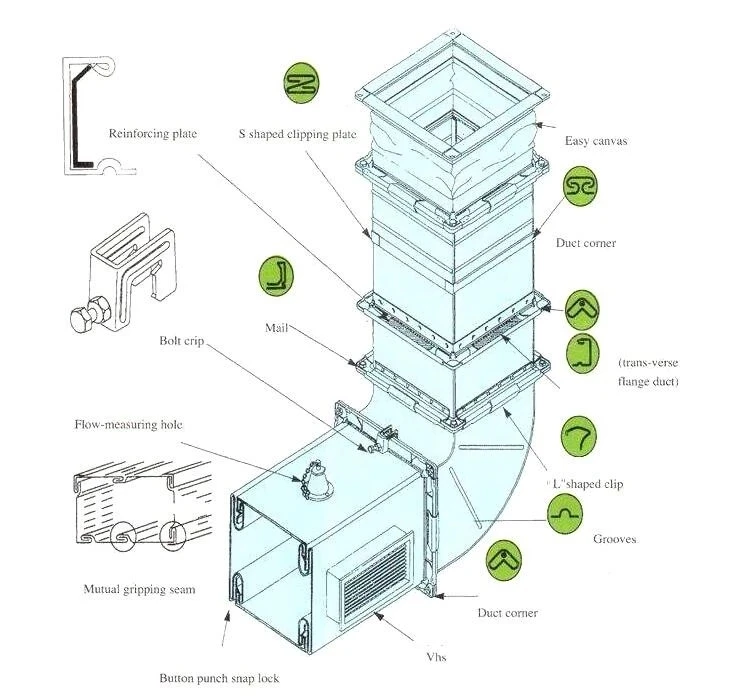

Finished picture

Packing & Delivery:

Each Duct auto line machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers
and ship them abroad.
Delivery Detail:
Shipped in 30 days after payment

Our service

Pre-sales.

* Project design, performance introduction, technical agreement, contract signing, packaging

* Inquiry and consulting support.

* Sample testing support.

In-sales.

* We will provide you with the latest progress in the product assembly, packaging and transportation.

After-sale

* We will provide free accessories for the damage to non – human parts.

* Training how to install the machine, training how to use the machine with video and so on

* And our technical staff can go abroad to provide technical guidance.

Certificates

Our company

FAQ

1. Are you the manufacture?Can we visit your factory?

We are manufacturer and we are located in Anhui,China.And we have our own design team for products design.
And welcome you visit our factory and check our machine qualtiy on spot,any question will be solved on spot at first time.

2.What's your main product and what is your main foreign market?
Our main products are press brake,shears machine,press,cutting machine,locking machine ,auto duct line and related products.
Our main foreign market are Asia, North America, Europe, Africa.

3. what are the advantages of your machines?And how can i believe the quality of your product?
The main configuration is to import quality products, and Professional product quality inspection team ensure machine in
top-quality, precision and life.
For example,Germany Bosch-Rexroth Valve group,Germany Siemens Main Motor,Schneider Electrics system and so on.
Once tested as qualified .our machine would be sent out.So The quality of our product is stable and reliable.

4. And are you able to update the production process Information in time after placing our order?
After confirming your order ,we would keep you updated of production details of emails and photos.

5. Can we be your agent?
Yes,we are looking for Global agent we will help agent improve the market ,and supply all the service like machine technical
problem or other after-sales problem, meanwhile ,you can get big discount and commission.

6. Payment terms?
T/T, L/C, Western Union, Paypal, Alibaba Secure Payment ect.

7.Are you provide product metal parts and provide us technical guidance?
Wearing parts,Disassembly tool(free) are what we could provide.And we can give you technical guidance.Our technical staff can go
abroad to provide you with technical guidance.

8. How long is your warranty?
13 months free warranty, life-long maintenance.

9.Do you accept customer Logo and customized ?
we accept kinds of customized ,including logo and machine .

Contact information

For more details about the machines ,Please contact me.
