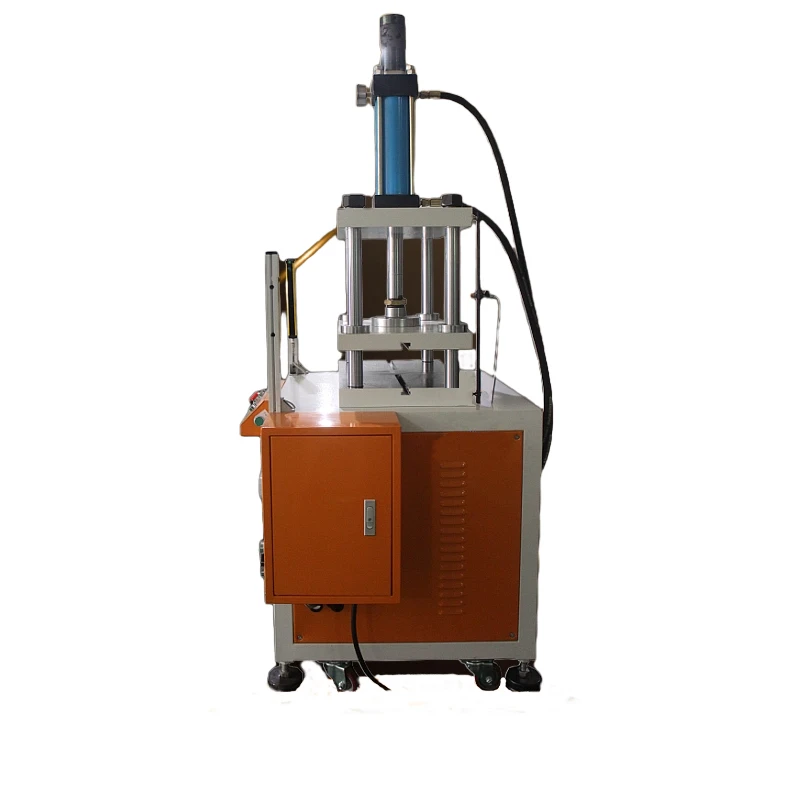

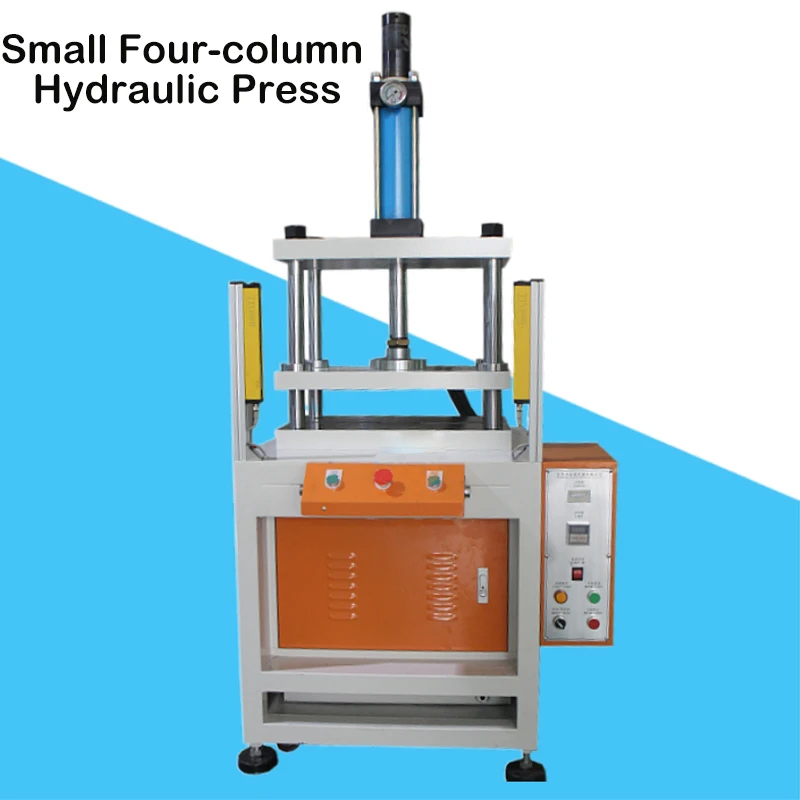

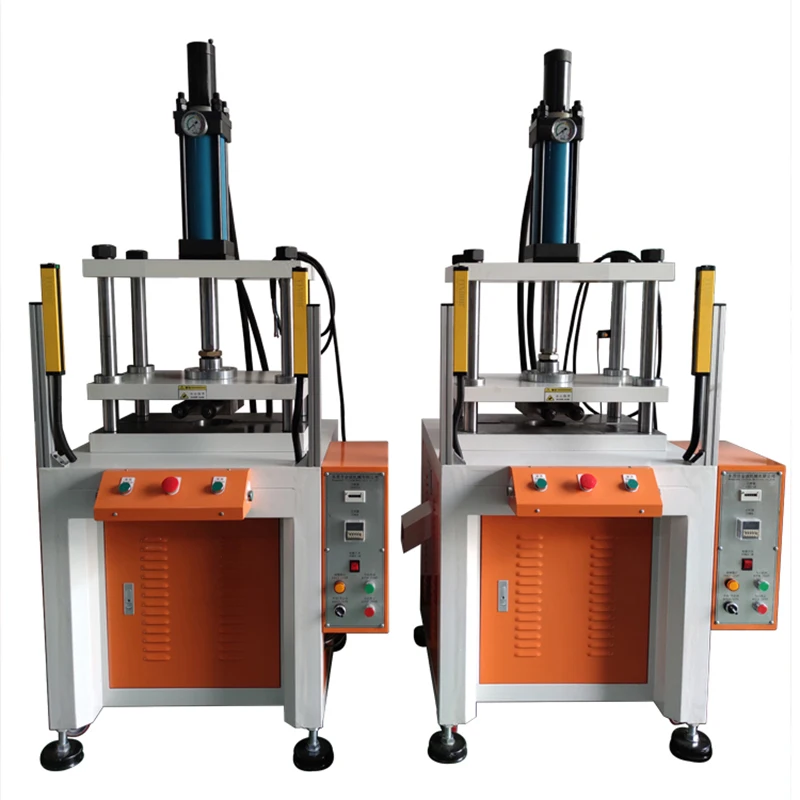

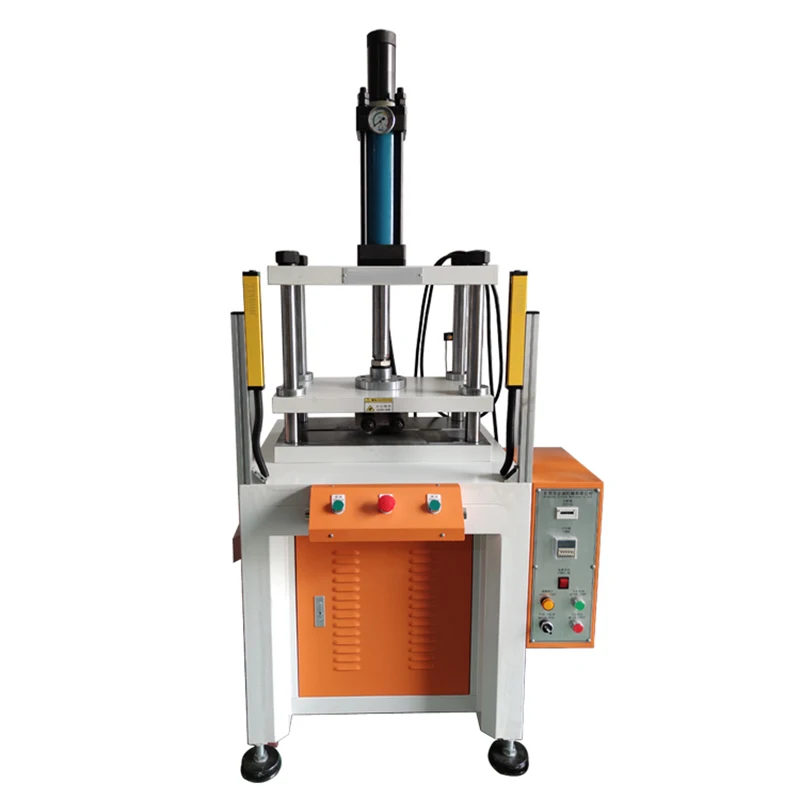

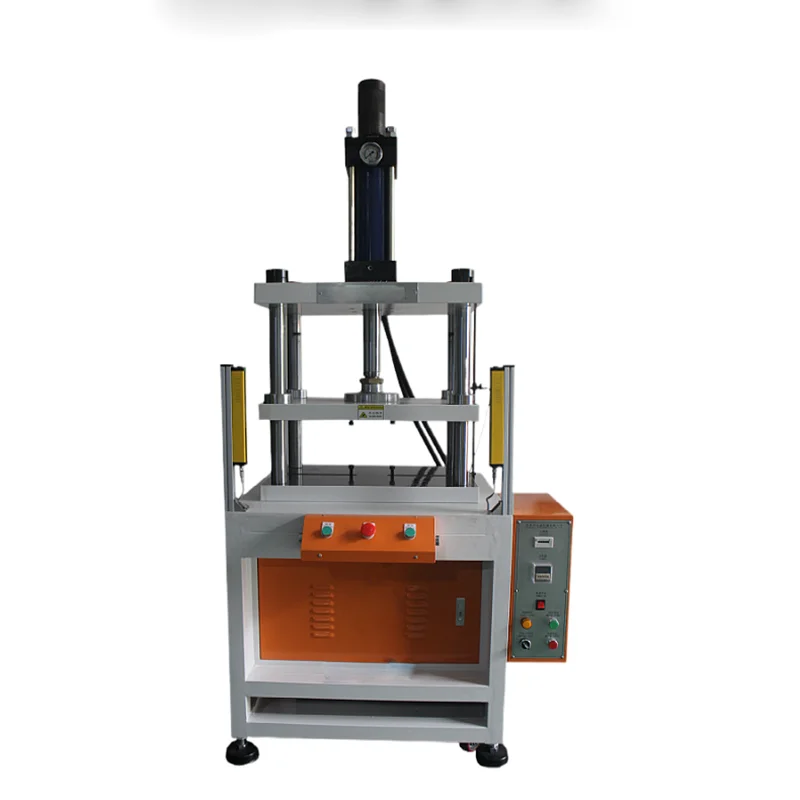

Small Tonnage Four Column Hydraulic Cutting Machine Mini 3T/5T/10T Vertical Color Printing Cardboard Cutting Hydraulic Machine – 25 Tons
A$32,532.35
- USD: $21,995.89
- GBP: £17,460.13
- EUR: €20,332.58
- JPY: ¥3,293,267
- CNY: ¥152,854.70
Description
- Condition: New
- Model Number: SZYYJ
- Type: Vertical
- Brand Name: XMSJ
- Origin: Mainland China
- Certification: CE
The sequence of operation steps is as follows:
Step 1:
Add hydraulic oil → Connect three-phase four wire 380V power → Start motor → Stop motor → Confirm motor forward rotation
Step 2:
Manual mode adjustment → Press the manual down/up button for trial operation → Adjust the pressure regulating valve counterclockwise to the minimum pressure →
Install the mold for pressure testing → Adjust the height of the fixed travel switch → Slowly increase the pressure clockwise →
Working pressure 50-100kg/cm2 → maximum pressure 120kg/cm2 → tighten the locking nut of the pressure regulating valve
Step 3:
Automatic stamping → Double start button → Master cylinder lowering → Pressure delay →
Master cylinder rebound → stop stamping, count once

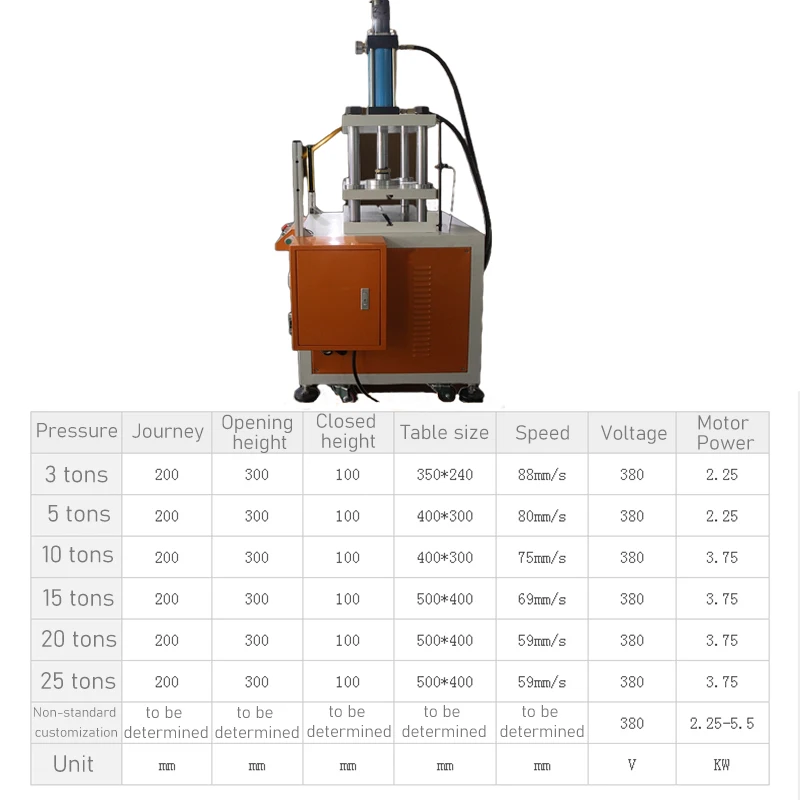

Specification
Additional information
| Weight | 100 kg |
|---|
