Portable Mechanical Puncher 300KN Angle Steel Punch Copper And Aluminum Row Punching Machine CKJ-21
A$261.40
- USD: $176.74
- GBP: £140.29
- EUR: €163.37
- JPY: ¥26,461
- CNY: ¥1,228.18
Description
Portable Mechanical Puncher 300KN Angle Steel Punch Copper And Aluminum Row Punching Machine CKJ-21
Description:
Model: ADS-10G (CKJ-21)
Copper-aluminum row clamp device can be applied to: ∠ 40-∠ 63 (AF)

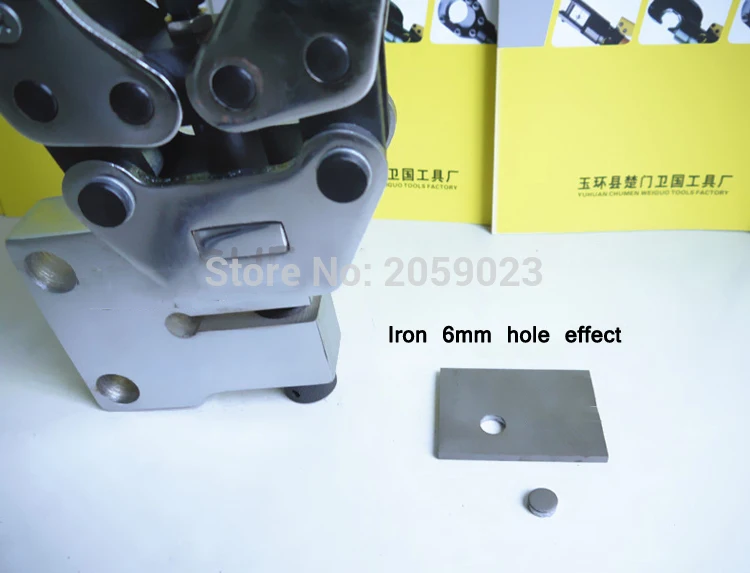

Allow plate thickness: copper ≤ 10mm, aluminum ≤ 16mm, ≤ 6mm steel

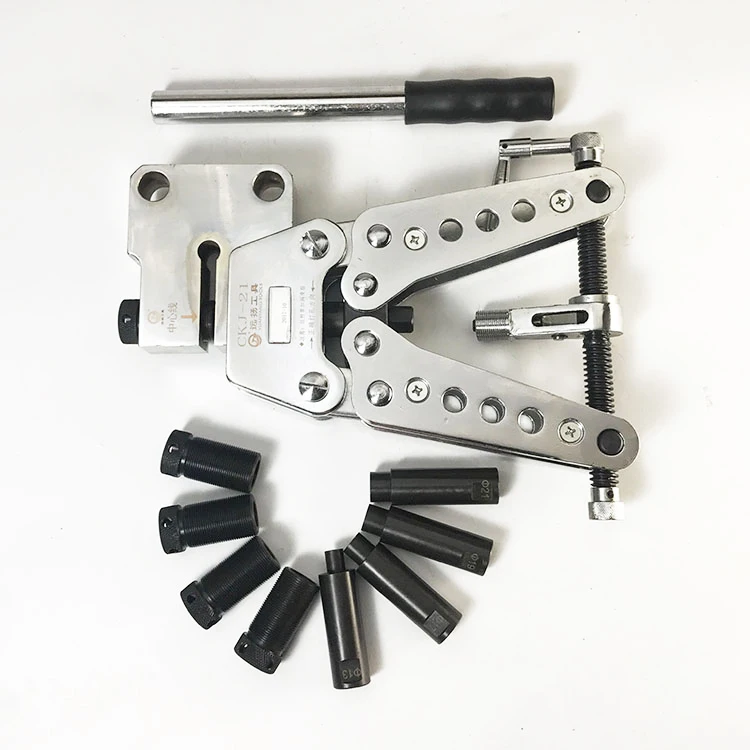

Die diameter: 13,15,17,19,21mm
Length x width : 360X240mm
Output : 300KN
Hand power : ∠0.2KN
Main material: steel
Features:
1. The machine uses the lever principle, screw force, easy to operate, punching efficiency,
punching a hole only 20-30 seconds.
2. The main force of the first choice of ultra-high strength alloy steel, light weight, easy to carry.
3. Design structure is simple, easy to use, no power, time-saving, labor-saving. Particularly
suitable for aerial work.
Use and scope of application:
1. Power Department 10KV distribution network cross arm, tower reaming, repair hole, hole;
power plants, substations, copper and aluminum busbars, equipment, folders, flat steel and
other openings.
2. Railway, post and telecommunications, petroleum, geology, construction industry
maintenance and reinforcement. As the aircraft does not require electricity and energy,
especially for outdoor, aerial and underwater operations.
Easy to operate:
1. Selection of the required aperture matching punching, die. Installed on the host die.
2. The workpiece into the die, the opening, aligned engraved lines, rotating die clamping work.

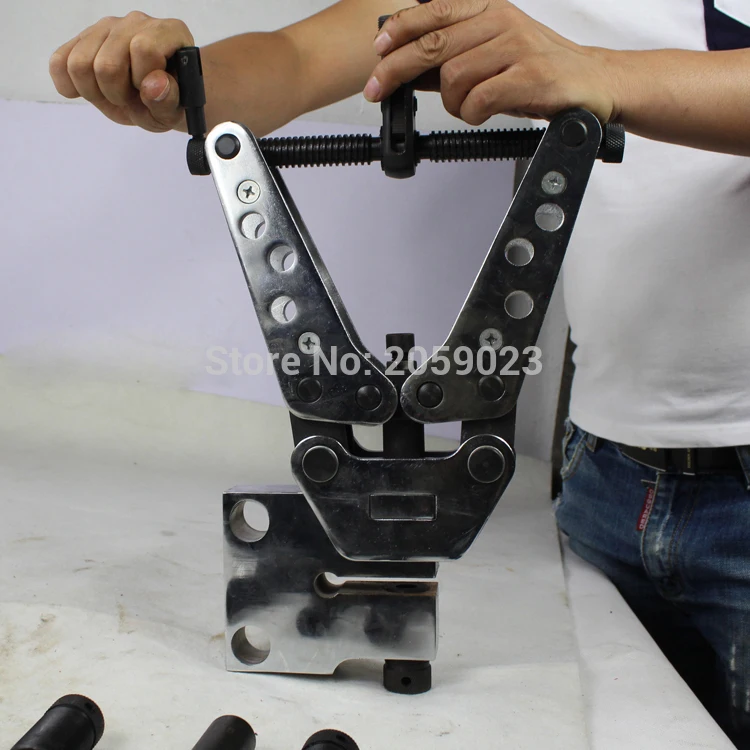

3. Shake the handle, punch under pressure, you can punch out the hole.
Precautions:
1. Check the punch before operation, the die is the appropriate package, otherwise it will
damage the host.
2. Before punching die must be rotary pressing work.
3. If any abnormal fault occurs during the operation, stop the punching and eliminate the fault
to avoid damaging the mechanical parts.
4 screw, nut should always be lubricated
Specification
Additional information
| Weight | 100 kg |
|---|
