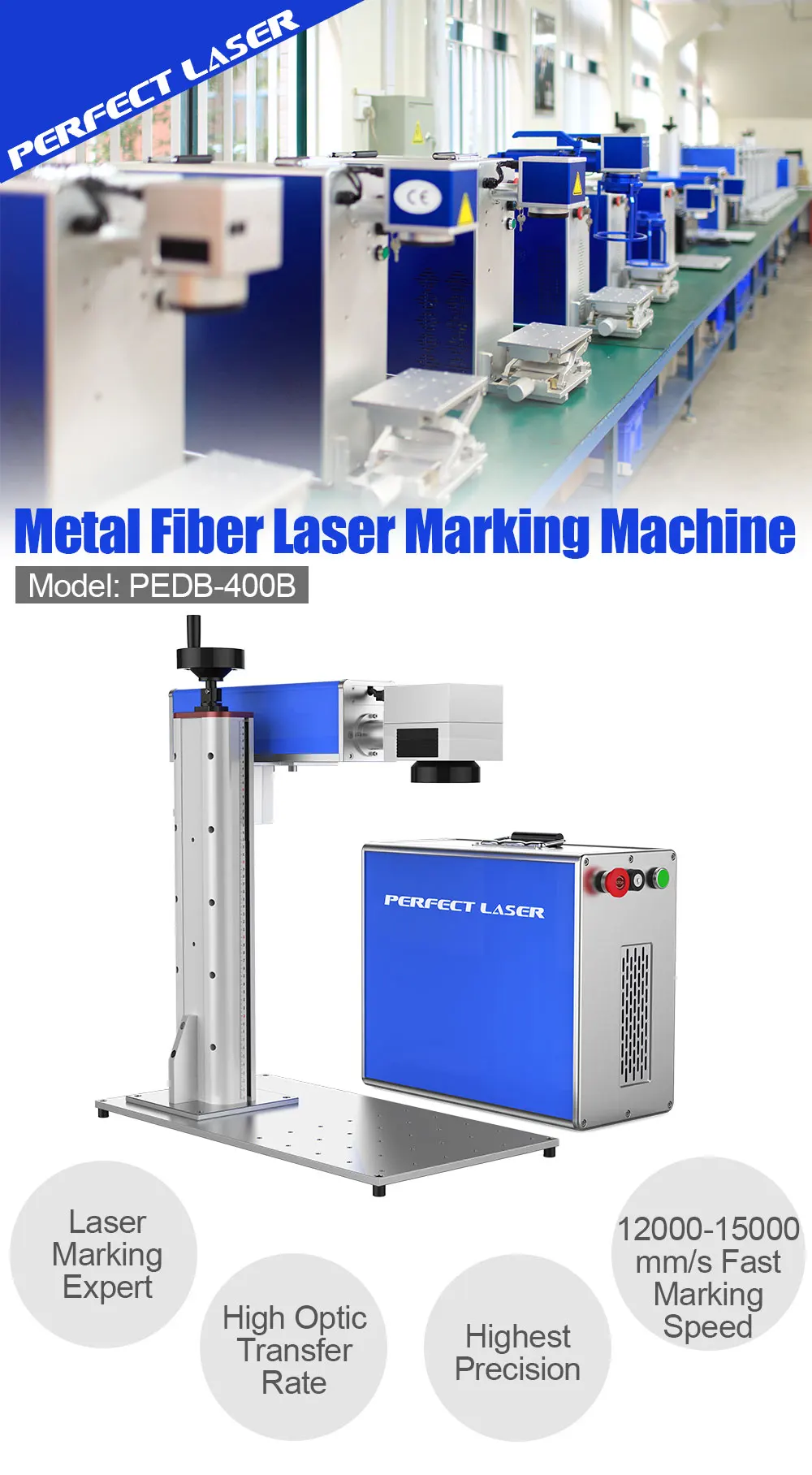

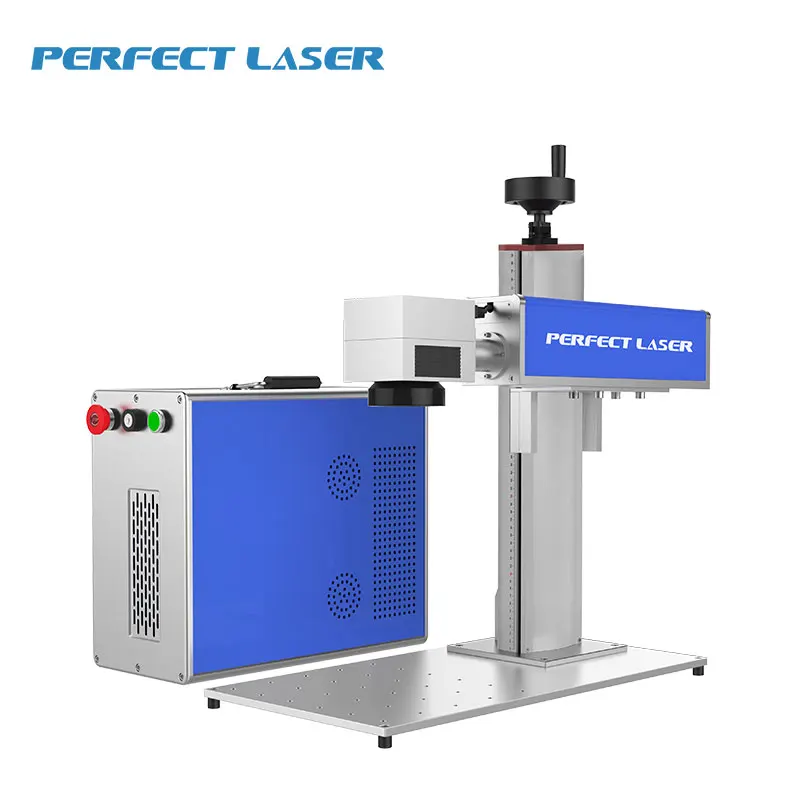

Portable 20w 30w 50w Raycus Optical Fiber Laser Marking Engraving Machine Metal Engraving Laser

(Model:PEDB-400B)

Product Description

Perfect Laser’s laser marking machine suppliers adopts international most advanced technology and the laser source is fiber with USA IPG technology, lifetime can reach 100,000 hours, 8-10 years without any consumables and maintenance. we have 2 years warranty time for our laser source ,The diode coupling with fiber to process pump, the pump light will course the particles reverse which can emit high quality laser beam. This is the best choice for the customers who have special requirements to the smallest & finest laser beam and character.

Application

Electronic Components : Resistance, capacitance, chips, printed circuit boards, computer keyboard.

Apparatus And Meter: Panel signs, precision equipment ,etc.,

Instrument: Panel signs nameplates, precision equipment ,etc.,

Hardware Tools : Knives, tools, measuring tool, cutting tool, etc.,

Automobile Parts : Pistons, piston rings, gears, shafts, bearings, clutch, lights, etc.,

Mechanical Parts : Bearings, gears, standard parts, motors, etc.,

Daily Necessities : Handicrafts, zipper, key holder, sanitary ware, etc.,

Jewelry: Rings Jewelry, gold, silver,etc.

Food, drinking packing: Plastic packings,etc.

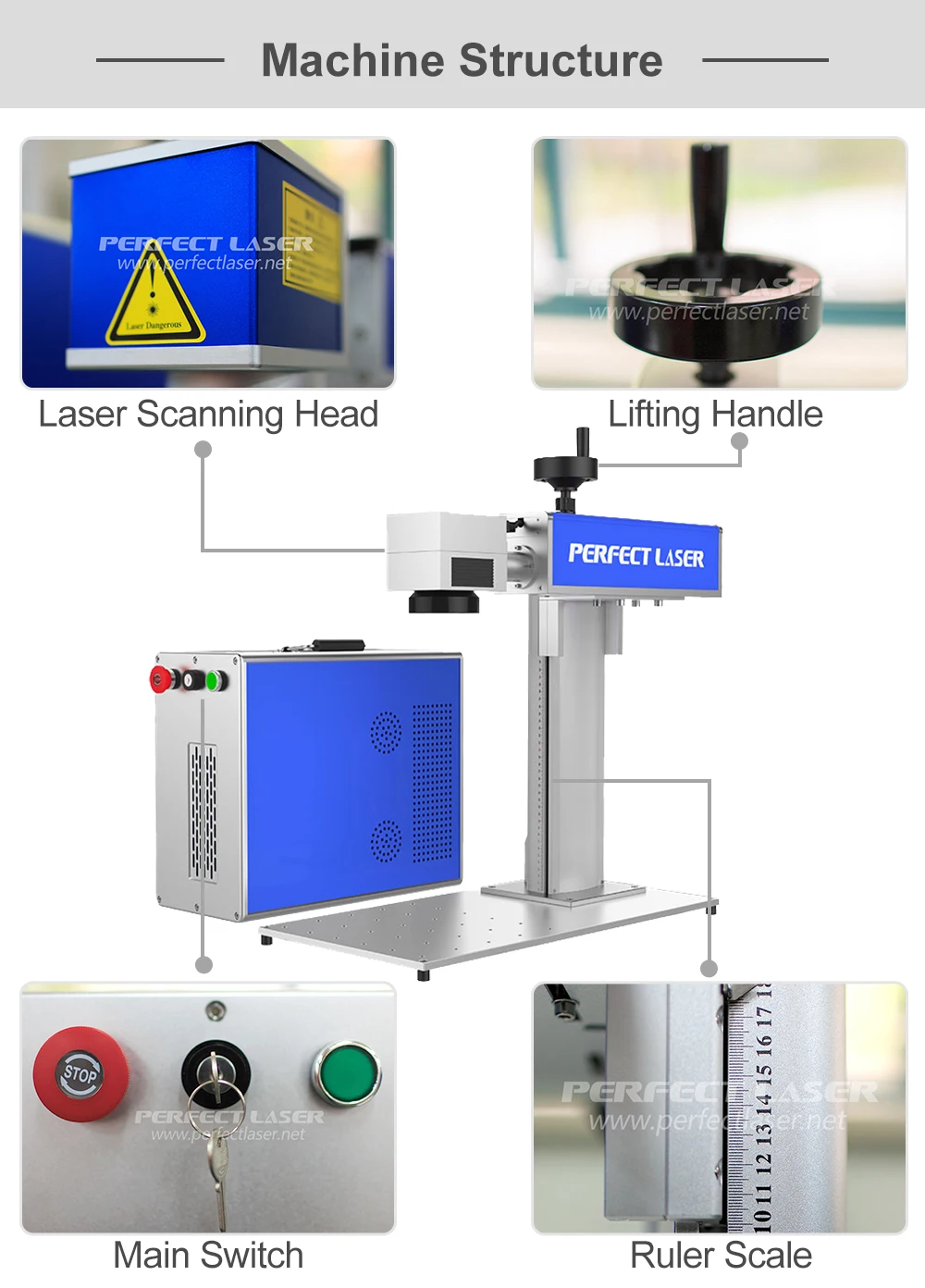

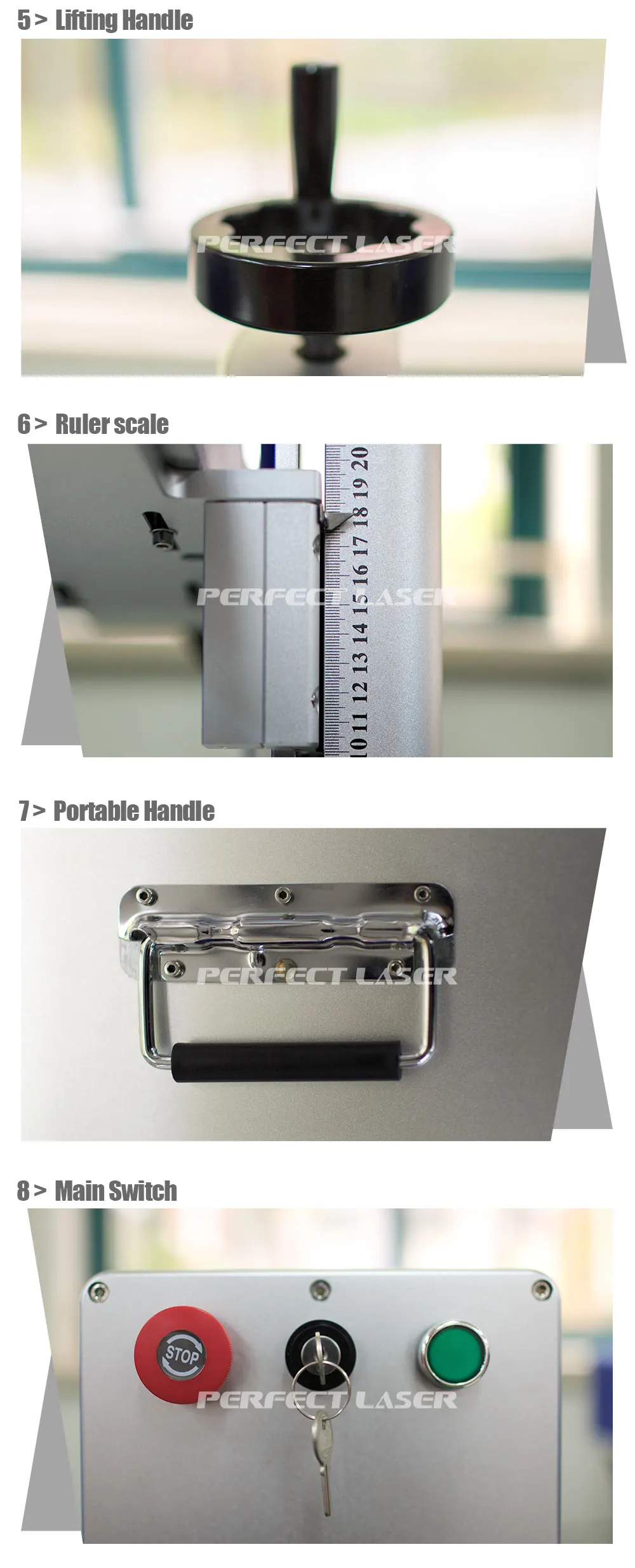

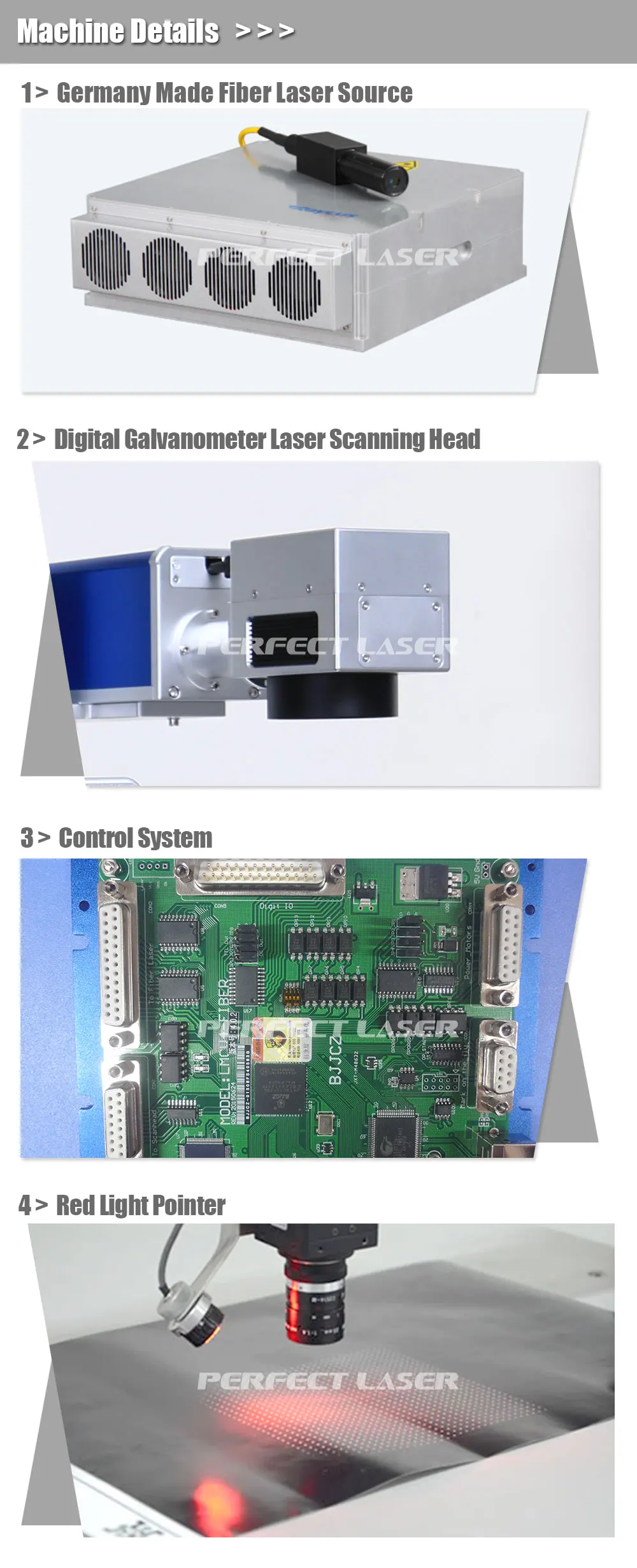

Machine Details

Advantages

1.High electro-optic conversion efficiency, simple operation, Compact in structure, support harsh working environment, no consumables.
2.Low power consumption, stability laser output. the marking is permanent and corrosion resistant
3. High quality beam, small machine dimension, This highly integrated laser source increases the machine’s anti-reflection ability with optical isolator, be able to mark on most high reflective materials such as aluminum, copper, gold and silver without the shadow and virtual open phenomenon.
4. Smaller output laser beam, finer marking line. suitable for high precision marking.
5.Modular design, separate laser generator and lifter, more flexible, can mark on bigger area and complicated surface. Air-cooled inside, small occupation, easy to install.

Specification

Model No	PEDB-400A	PEDB-400B	PEDB-400C	PEDB-400D

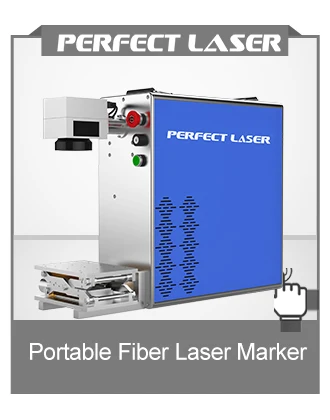

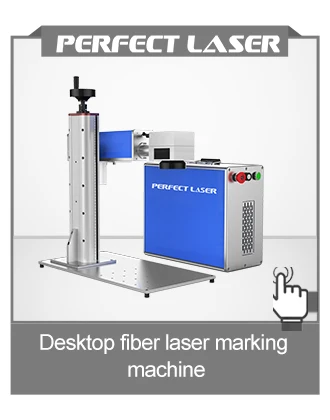

Type	Portable	Desktop	Colorful	Standby
Computer	Not includes PC				Includes PC
Laser Source
IPG Series	Pulsed, High Energy Ytterbium Fiber Lasers
Mode of operation	Pulsed
Polarization	random
Nominal average output power	10W – 30W For PEDB-400A /400B /400C 10W – 50W For PEDB-400D
Central emission wavelength	1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100%
Emission Bandwidth (FWHM)	<10 nm
Long-term average power instability	<5%
Pulse width, (FWHM)	100 ns
Laser switching ON time	180 μsec
Laser switching OFF time	180 μsec
Pulse Repetition Rate* kHz	20-80 kHz
Energy per pulse (PRR = 20 kHz)	0.95 mJ
Typical beam quality, M2	<1.8
Output fiber delivery length	3m
Operating voltage	220V
Max. Power consumption	600W
Net Dimensions	702050cm	803872cm	702050cm	14362101cm
Net Weight	44 kgs	53 kgs	44 kgs	130 kgs
Gross Weight	60 kgs	70 kgs	60 kgs	200 kgs
Laser system
Scanning Speed	0-7000mm/s
Marking Speed	0-5000mm/s
Marking size	110mm×110mm (F-theta 160)
Spot size	≤ 40 micron (F-theta 160)
Cooling unit	Air cooled
Pilot laser	650nm diode laser, visible red light for marking guide
Continuous working time	≥16h
Humidity	45～85% (no condensation)
Operating temperature	0~40℃

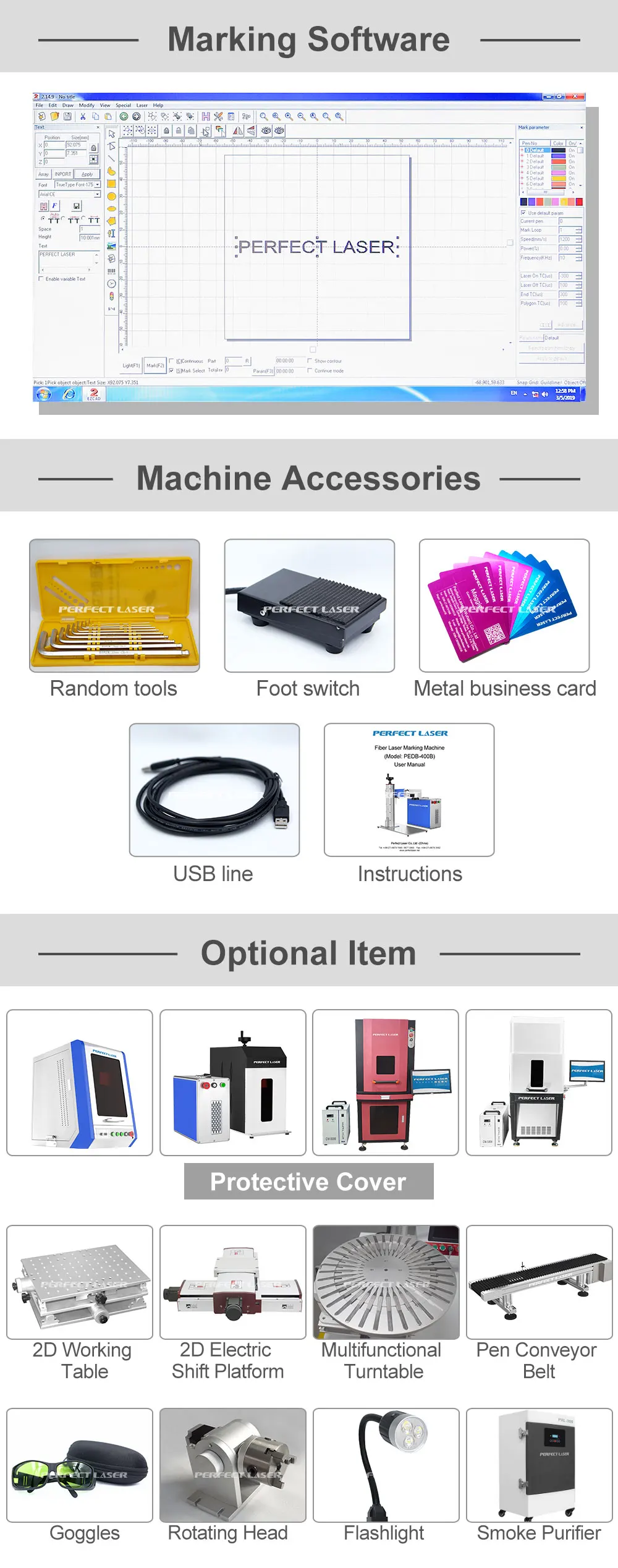

Control units	Laser Mark (English Version)

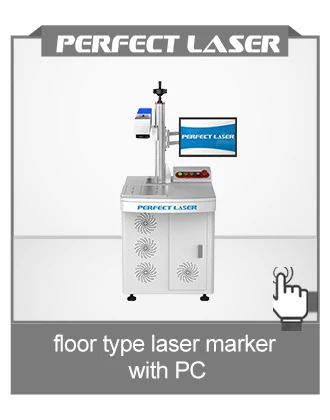

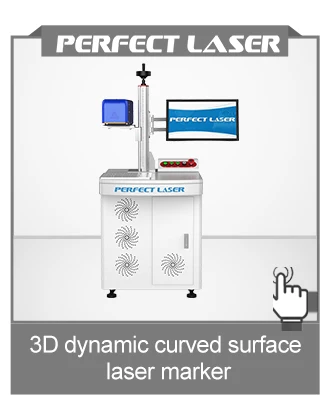

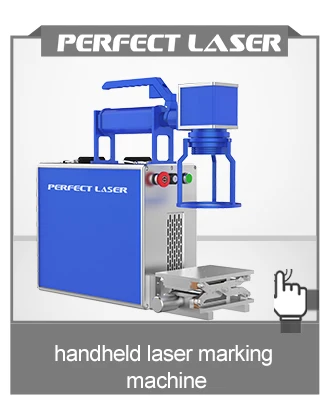

Related Product

Marketing Compaign

Company Profile

Our Service:

1:Free Training by VCD: We will supply the machine with , and in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by E-mail, fax, telephone, MSN, ICQ and so on, when you meet some problems of installation, using or adjusting. (Recommend)

2:Free Training in Perfect Laser’s Factory: You can sent operator to Perfect Laser factory for free training. Perfect Laser will offer professional guide for free. It is direct and effective face-to-face training. Here we have well-assembled equipments, all sorts of tools and testing facility.
Training Time: 1-3 days (Recommend)

3:Our engineer can do a door-to-door instruction training service at your local site if you need.

Quality Guarantee & After-Sales Services:
The guarantee period of quality shall be 36 months counting from the date on which the commodity arrives at the port of destination. Except the damage artificially, we are responsible for offering the fittings free of charge during the guarantee period, but you must send the damaged fittings to us by courier with your charge before we send back the alternative fittings to you. After the guarantee of quality period, the parts required to repair or change, if any, shall be paid.
