Line Boring Machine

BD-50 Standart Model

PROCESSING DIAMETERS

(Ø52 mm: up to Ø550 mm)

LINEBORTECH has been manufactured to work in the renovation and repair services of various heavy industrial machines.

The first model of the LINEBORTECH BD50 machine in different concept is LINEBORTECH 50 is generally manufactured for Ø 52 mm Ø 550 mm for chip lifting, in-hole welding, and turning operations.

Extra equipment is added for work up to Ø 700mm. The machines ergonomic design, easy handling, and light weight are the most outstanding features.

LINEBORTECH  We have different features
* Oil-free / silent, system driven speed/torque belt transfer
* Worm gear spindle adjustment and quick traverse button
* 230mm continuous machining distance
* Constant torque output at all set speeds with encoder capacity of the main motor
* Centering set a punch
* Telescopic welding torch
* Control needle. excluding. Weight 33 kg.

TECHNICAL DATA
BD50 Different Features
Motorized Gearbox
Tooth 55 HRC Hardened and Ground.
6000 Hours Use Guarantee

HOLE PROCESSING CAPACITY
Drilling
From 52mm to 550mm
Intra-Hole Welding
From 80mm to 550mm

Diameter details
Perforated Machining: Ø52mm – 550mm
External Processing: With Optional Attachments
Perforated Welding: Ø60mm – 700mm
Head Turn: With External Kit

ELECTRICAL ENGINE EQUIPMENT
Main Bar Rotation Motor
Ac 230V Ac Servo Motor
Min 0,20 Rpm Max. 225 RPM
Main Bara Forward Backward Motor
24vdc 90w Servo Motor
Moving Speed Min 0,05 Mm / Dk Max 95 Mm / Dk
Strok 230 Mm

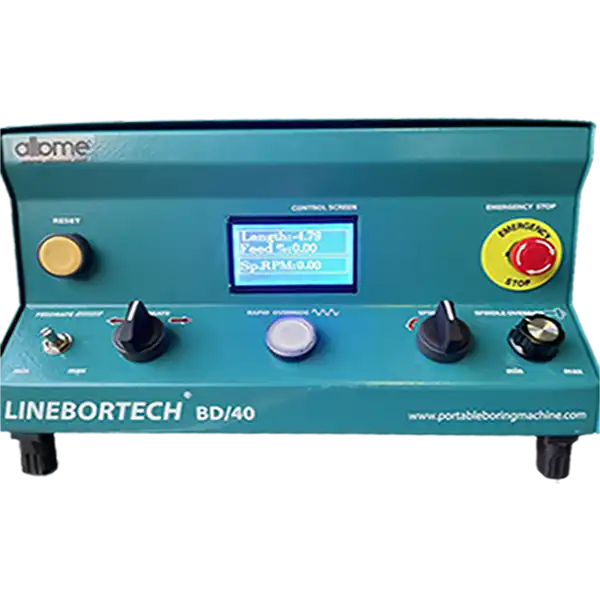

ELECTRONIC CONTROL PANEL
Operating Voltage: Ac 230v 50 / 60Hz -10 amp.
Master On-Off Switch
Emergency Button
Right / Left Rotation Switch
Speed Tuning Button 10 Turn
Forward / Backward Motion Key
Speed Tuning Button 10 Turn
Fast Motion Button
Reset button
Control Screen

STANDARD EQUIPMENT LIST
1 piece 2000 Mm Bar shaft 26 Holes
1 Unit with Electronic Control Panel
1 Portable Boring Machine
1 Carrying Vehicle
4 Main Beds
12 Short Legs 30x30x60
2 Unit Centers
1 Unit Sag Processing Kateri
1 Unit Left Handle Cart
1 piece Diamond Set 10 pieces
1 Set of  Key Set (2,5-4-5-12)
1 Screwdriver Star Head
1 Number 10 Phillips Screwdriver
2 pieces 20/22 Fork Switch

If you want more information about the portable line boring machine feels free to contact us.
