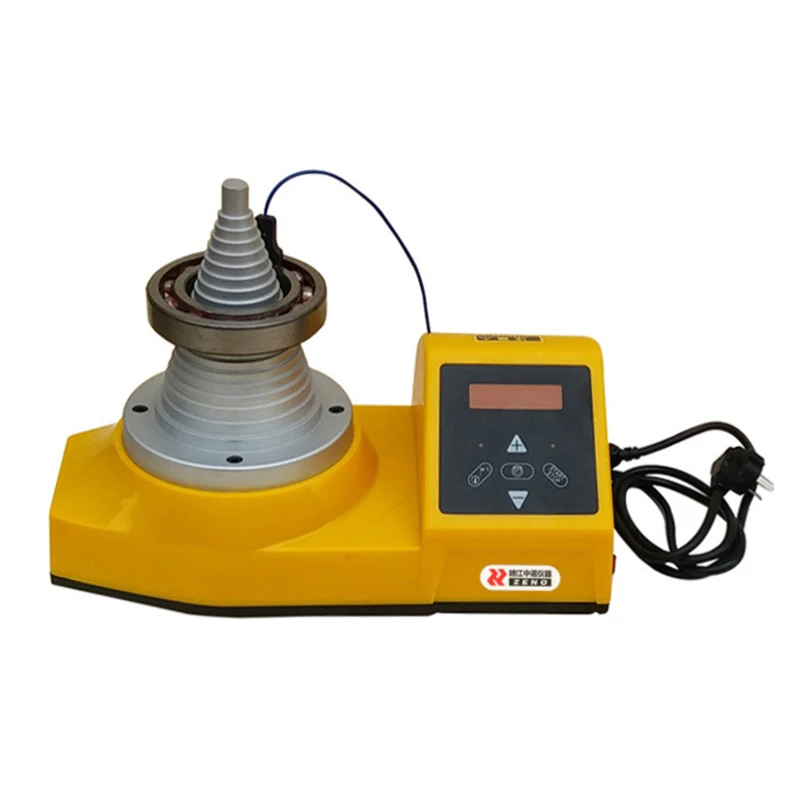

Inverter Bearing Heater High Efficiency Bearing Induction 5S-15S Fast Heating Machine DCL-T

Product Parameter

:

Name: Bearing heater

Model: DCL-T

Power: 2000W

Voltage: 220V/50Hz

Current: 91A

Adapt To Bearing Inner Diameter: 20-120mm

Large Bearing Outer Diameter: 260mm

Large Bearing Width: 120mm

Large Bearing Weight: 15kg

Other Parts Weight: 10kg

Host Weight: 4.2kg

Temperature Control: 0 – 240°C

Time Control: 0 – 99 minutes 59 seconds

Time Control: Yes

Continuous Installation: Yes

Temperature Retention: Yes

Automatic Demagnetization: Yes

Automatic Power Reduction: Yes

Control Panel Display: Digital

Product Performance Characteristics:

1. The casing is fully shielded, compact and sturdy metal shell to reduce magnetic field radiation to low

2. Air-cooled heat dissipation, avoiding the inconvenience of water-cooled mode installation and daily maintenance

3. High efficiency, the small bow and arrow shell is heated to 200 degrees in 5-15s, which can be used with the beat of the manipulator, suitable for assembly line production. Our heater can also be modified into robot assembly, heating, connecting parts.

For example: camshaft assembly, etc.

4. Work is completely silent, no noise pollution

5. Can use the timing heating mode in 99 minutes and 59 seconds.

6. Heating the workpiece automatically degaussing

7. New micro-processing technology, low energy consumption, easy operation, controllable operation


Compared with the traditional power frequency bearing heater, this tower heater has the advantages of high speed, no noise, light body, quick operation and low cost, which can completely replace the traditional medium and small power bearing heater.

Bearing basic operation method:
1. Make sure the power supply voltage is accurate.
2. Plug the unit’s power plug into a power outlet. When the switch on the side of the machine casing is turned on, the digital tube lights up and the temperature is 110 °C. At this time, the heating device is in the temperature control mode. If the E10 is turned on and accompanied by an audio prompt, press the START button once to display 110 °C, which means the temperature control mode.
3. Press ▲▼ to select the temperature value for which the workpiece needs to be heated.
4. Press the STARTS button to activate the heating unit to heat the heated workpiece.
5. When the heating device works to the set temperature value, the device will automatically stop and have an audible prompt.

6. If you need the temperature hold function, just press the temperature to keep it before proceeding to the fourth operation.
7. If the time control mode is adopted, the time control mode can be entered by simply pressing the button after power on. The time setting value can be arbitrarily selected within 9 minutes and 59 seconds. Connect the ▲▼ key to select the heating time for the work. After the selected time, press the START button to start the heating device. This timing method is countdown. When the heating device works to the set time, there is an audible prompt and automatically stops.
8. When using the time control mode, there is no need to use the temperature sensor. In this case, the temperature sensor should be removed from the workpiece to prolong the service life of the sensor.
