Industrial Oil Machine Cold Press Oil Machine Sunflower Sesame Hemp Seed Pumpkin Seeds Black Seed

Our biggest compact oil press machine, which can produce oil as a stand alone oil factory. This model is the largest oil press machine unit we have ever developed. Please see below for engine power and production quality details.

Compact Model 2 Industrial Oil Press Machine is produced to gird maximum amount in shortest time.

This is Compact Model 1 extracts 70 to 90 kg of seeds in an hour. You can see the videos of the Compact Model 1 extracting seeds.

With our Industrial Oil Press Machine, you can extract the oil by pressing all oil seeds and nuts. Some seeds as an example:

Safflower, Sunflower Seeds, Sesame, Pumpkin Seeds, Black Cumin(Black Seed), Prickly Pear Seed, Grape Seed, Coconut, Hazelnut,Peanut, Walnut, Poppy, Flax Seed, Almond, Jajoba Seed, Pomegranate Seed, Castor Seed, Canola, Melon Seed Kernel, Cumin Seed, Apricot Kernel, Mustard Seed, Nettle Seed, Raspberry, Pepper Seed, Rosehip Seed, Cocoa Bean, Cocoa Nibs, Soybean, Blueberry Seedetc.

Technical Specifications of COMPACT MODEL 2 – Industrial Oil Press Machine

Motor Power (kW) : 11 kW
Power Supply (Volt) : 380/ 3-ph
Heater (kW) : 0.6
Max Capacity (kg/h) : 150
Energy Consumption (watt/h): 6000 to 11000
Processing Capacity (kg/h) : 70 – 90
Efficient Processing Capacity (kg/h) : 50
(most efficient use of electricty)
Residue Oil in Cake (%) : <=%6
Processing Capacity (kg/24h) :3600

Measurement (L*W*H) (cm)

length (cm) :145
width (cm) :80
height (cm) :220
weight (kg) :500

Cargo Specifications

length (cm) :160
width (cm) :120
height (cm) :235
weight (kg) : 550
Pallette / Box: Pallette

Hs Code / Gtip Code :847920000019

Warranty Terms

* Machine motor and gearbox is guaranteed for 1 year by its manufacturer.
* Motor driver is guaranteed worldwide for 2 years by its manufacturer Other electrical parts are also under 2 year warranty.
* All parts have 10 year manufacturer guarantee which means we will continue supplying spare parts for 10
* Machine parts that are subject to wear and tear are not covered by the Warranty also does not cover damages caused by
selfinfliction or incorrect operation.

Spare Parts and Tools Included with the Machine Sale

1- 1 piece moon key
2- 1 piece allen key
3- 5 nozzles for the machine head
4- 1 piece feeding funnel
5- 1 piece heating ring

———————————————————————————————————————————-

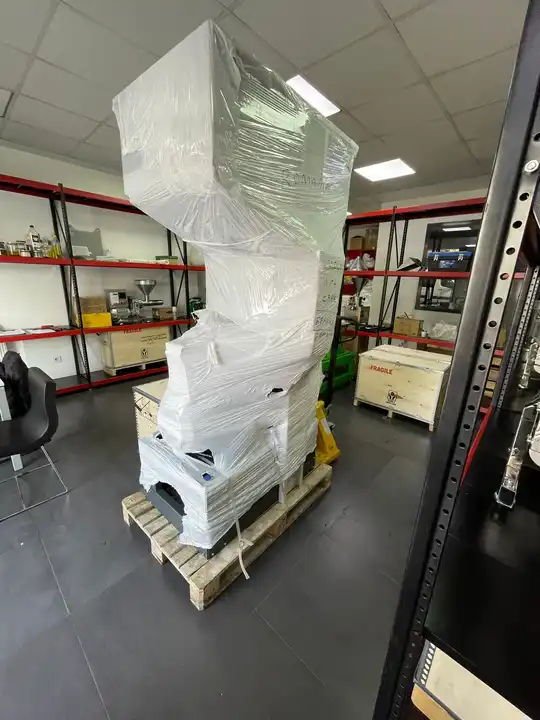

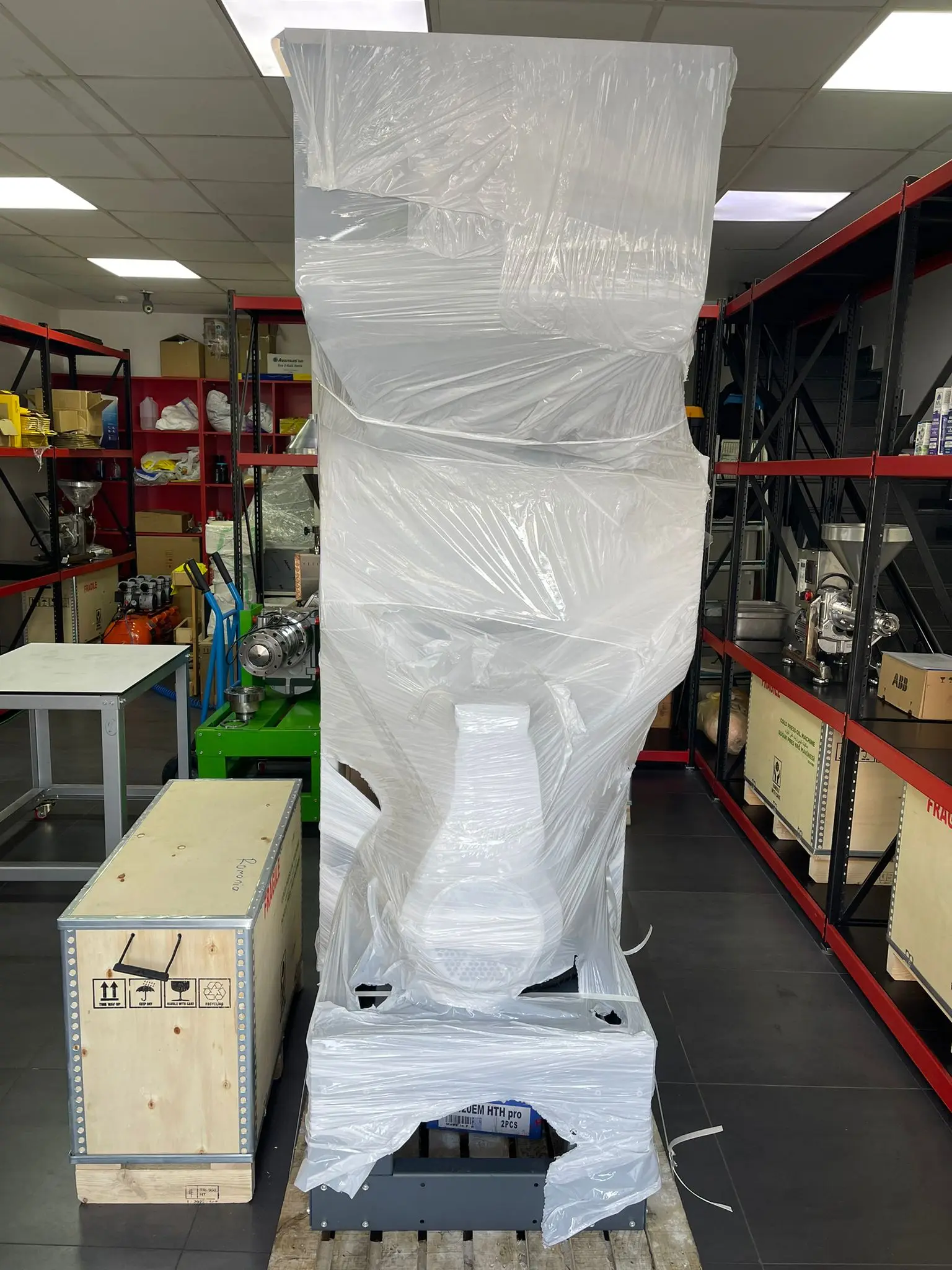

Cargo Dimensions of the Machine

160 x 120 * 235 cm
weight 550 kg
(Hs Code : 8479 20 00 00 19)

1. Strong plywood and covering with Standard exporting package.
2. Packing : The package can be done as customers’ requirements.
3. Accepts LCL, FCL shipment.
