Hydraulic Punching and Shearing Machine, Q35 Serie Metal Sheet Puncher Cutter Ironworker for I Beam and Channel Steel
$12,960.00
- AUD: A$20,126.49
- GBP: £10,801.90
- EUR: €12,578.98
- JPY: ¥2,037,416
- CNY: ¥94,565.23
Description

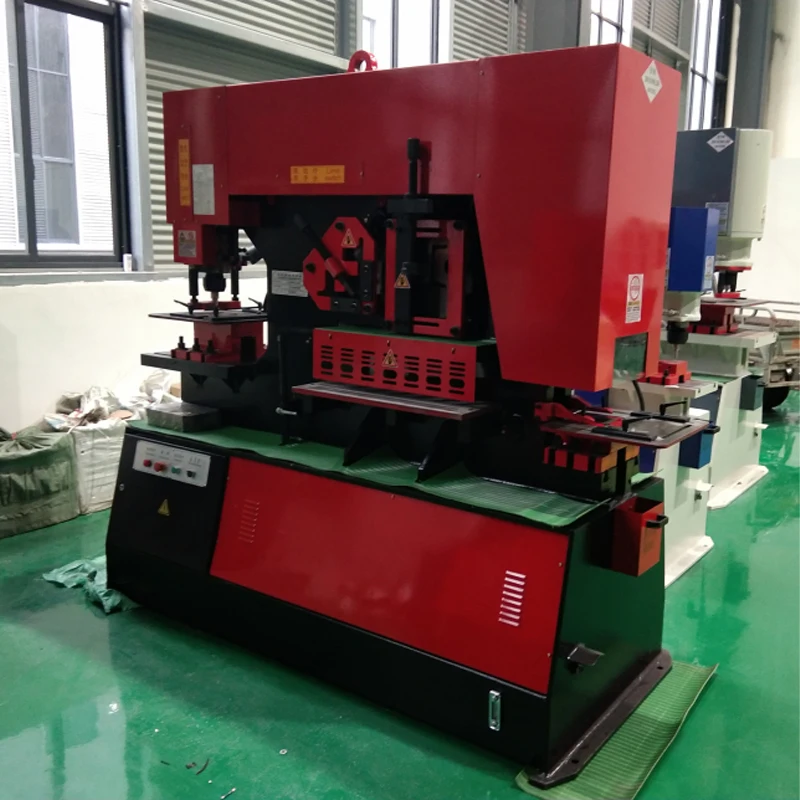

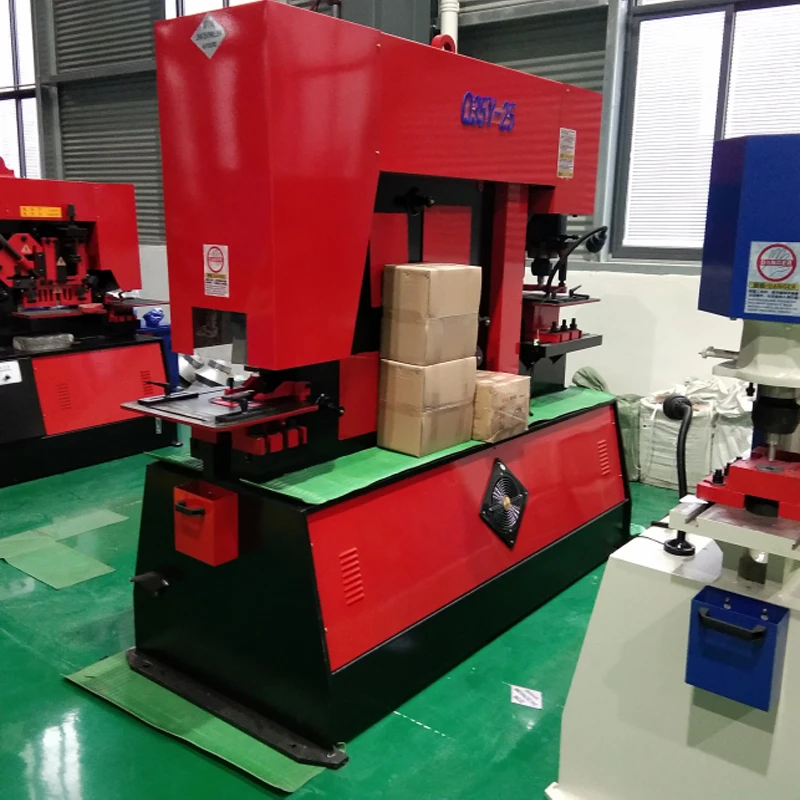

Hydraulic Punching and Shearing Machine, Q35 Serie 25 Ton Metal Sheet Puncher Cutter Ironworker for I Beam and Channel Steel
Introduction:

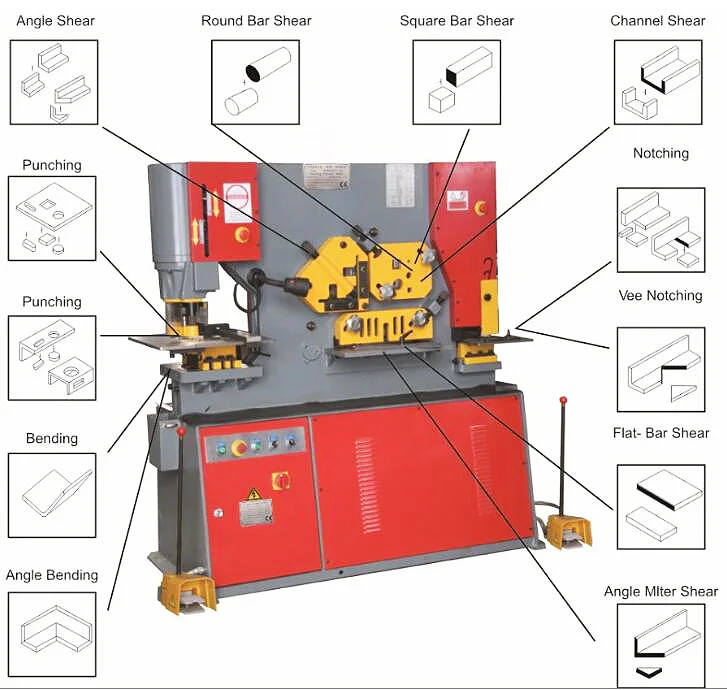

Q35Y series industrial-grade hydraulic ironworker featuring multiple functions, including: round hole, square hole, oblong hole punching; steel plate, flat bar, angle steel, C-channel, H-beam punching; steel plate bending; angle steel shearing, notching and bending; flat, round, square bar, C-channel, I-beam, T-bar shearing/cutting; angle bending and pipe notching.
The machine comes standard with: quick-change coupling nut & sleeve, squaring arm with scale, electronic back gauge, gauging table with stops, punching base table, safety guards and more. With its multifunction, Q35Y series hydraulic ironworker is your first choice among the counterpart machine. Besides, all the components are of the highest quality in the matter of safety, function, capability and maintenance.
Our machine is designed via the most advanced technology and has the virtues of easy operation, low consumption and low maintenance cost. We also can provide customized solutions to better cater for customers’ needs.
Main standard properties components of Ironworker:
1. All the electrical parts are IMPORT with CE certificate.
2. Professionally engineered design frame structures.
3. Steel welds with high precision strength and rigidity to eliminate vibrations.
4. Ironworker steel frame Q235 = American standard steel A306 GR55.

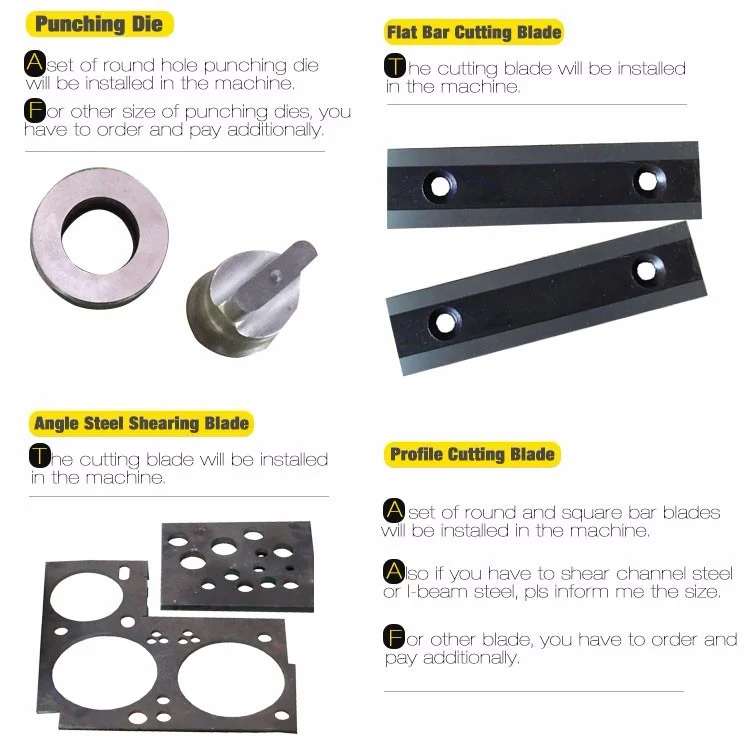

5. Five sets of punch and blades were installed on the machine.
6. Timer relay by Japanese OMRON.
7. All wiring terminal block by WEIDMULLER.
8. Main Electrical component by Germany Schneider.
9. Oil seals by Japanese, NOK.
10. O-Ring and Valve by Taiwan for piston pump more durable.
11. Hydraulic System by Japanese Yuken.
12. Motor by Chinese Jiangsu Dazhong
13. Hydraulic fuel tanks and ironworker frame built by our Factory.
14. Dual independent hydraulic cylinder
15. Dual Footswitch controlled work separately
16. Easy Adjustable stroke control with ruler
17. Indicator on both hydraulic cylinders
18. Electric back gauge auto stop
19. Moveable working light that can be placed at any desired position
20. Hydraulic system with overload protection system
21. Emergency safety stop switch
22. Large punching table with ruler guide
23. Larger notching table with Ruler guide
24. Large flat shearing table with Ruler guide
25. Most important easy maintenance

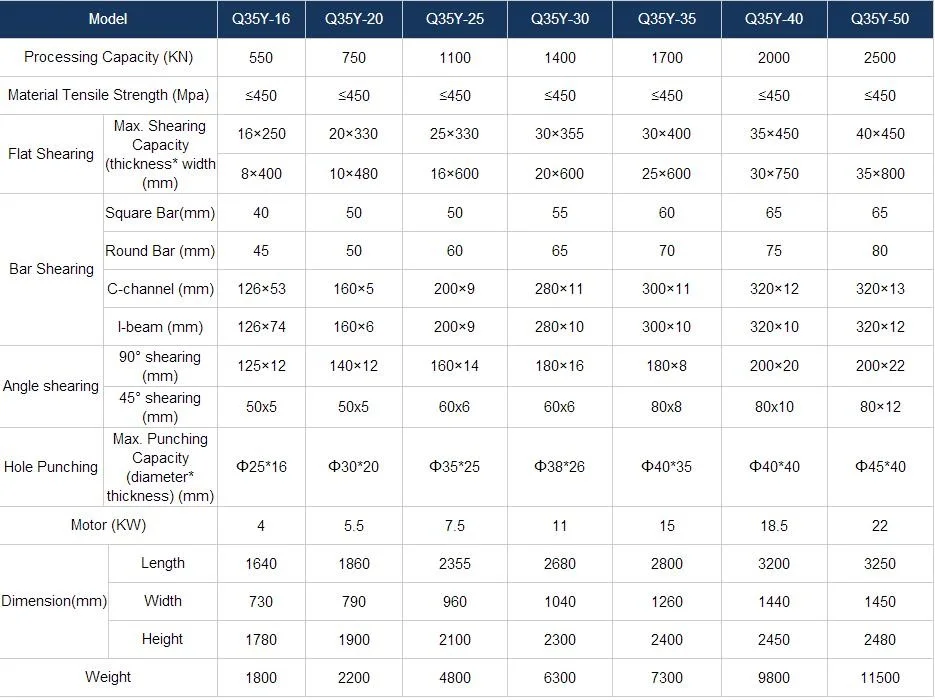

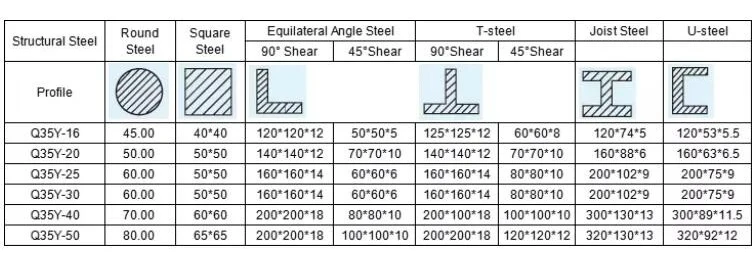

Parameters:
Functions：
1. Shape shearing parts
Round and square bar shear has multiple holes for a variety of sizes. Adjustment hold down device for round/square bar,channel/beam cutting. Large strong guarding or max safety.

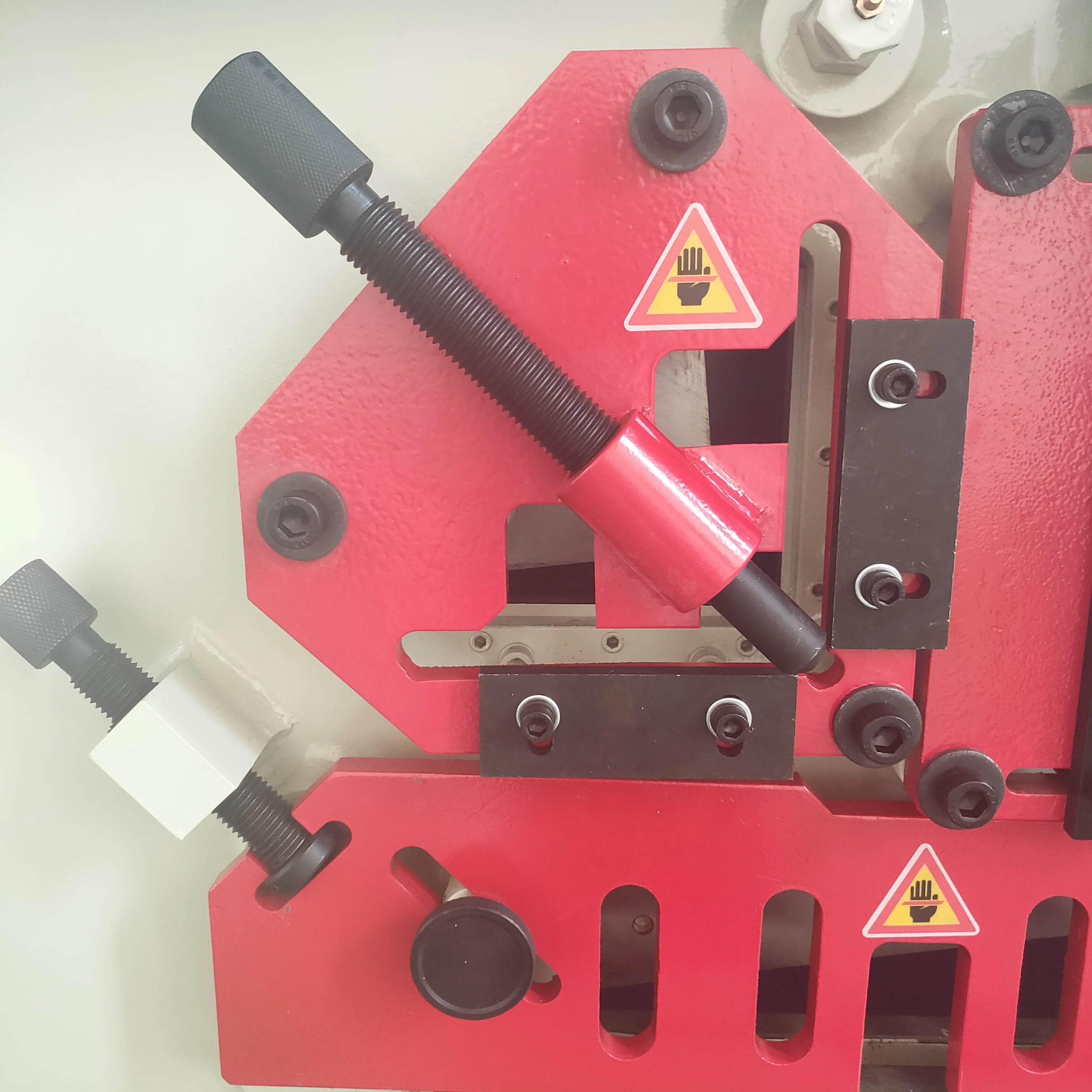

The angle shear has the ability to cut angle at 45 degree both top and bottom leg. This give the operator to make a picture frame corner for perfect welds.Diamond shaped blade for quality cuts that is minimal material lost and deformity.
2. Notching parts
Unique design allows for cutting of angle and flat bar. Electrical interlock safety guard and 3 gauging stops for precise positioning.
Notching is a metal-cutting process used on sheet metal or thin bar stock, sometimes on angle sections or tube.

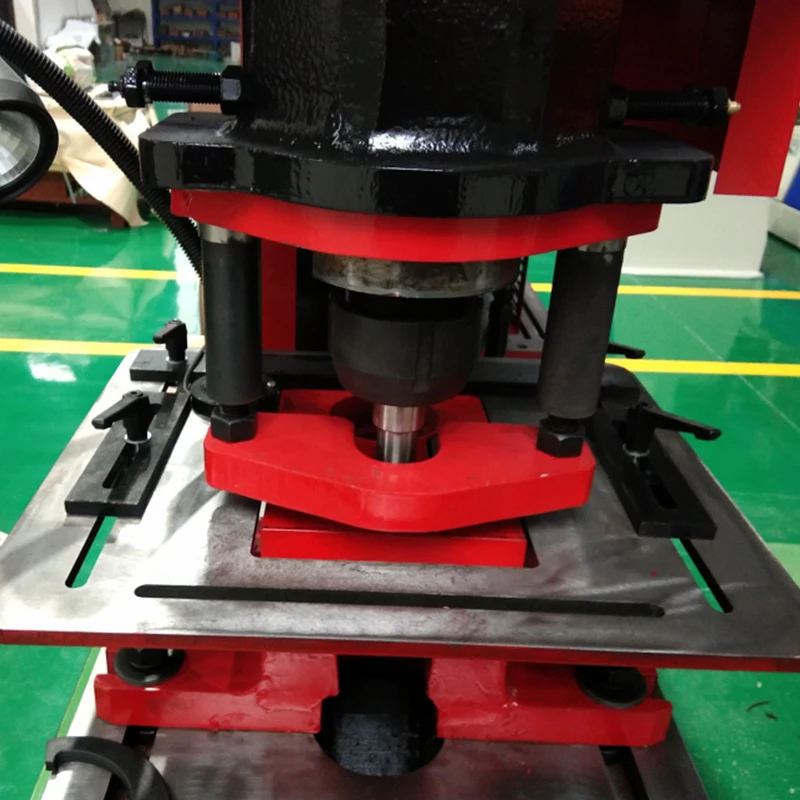

3. Punching parts

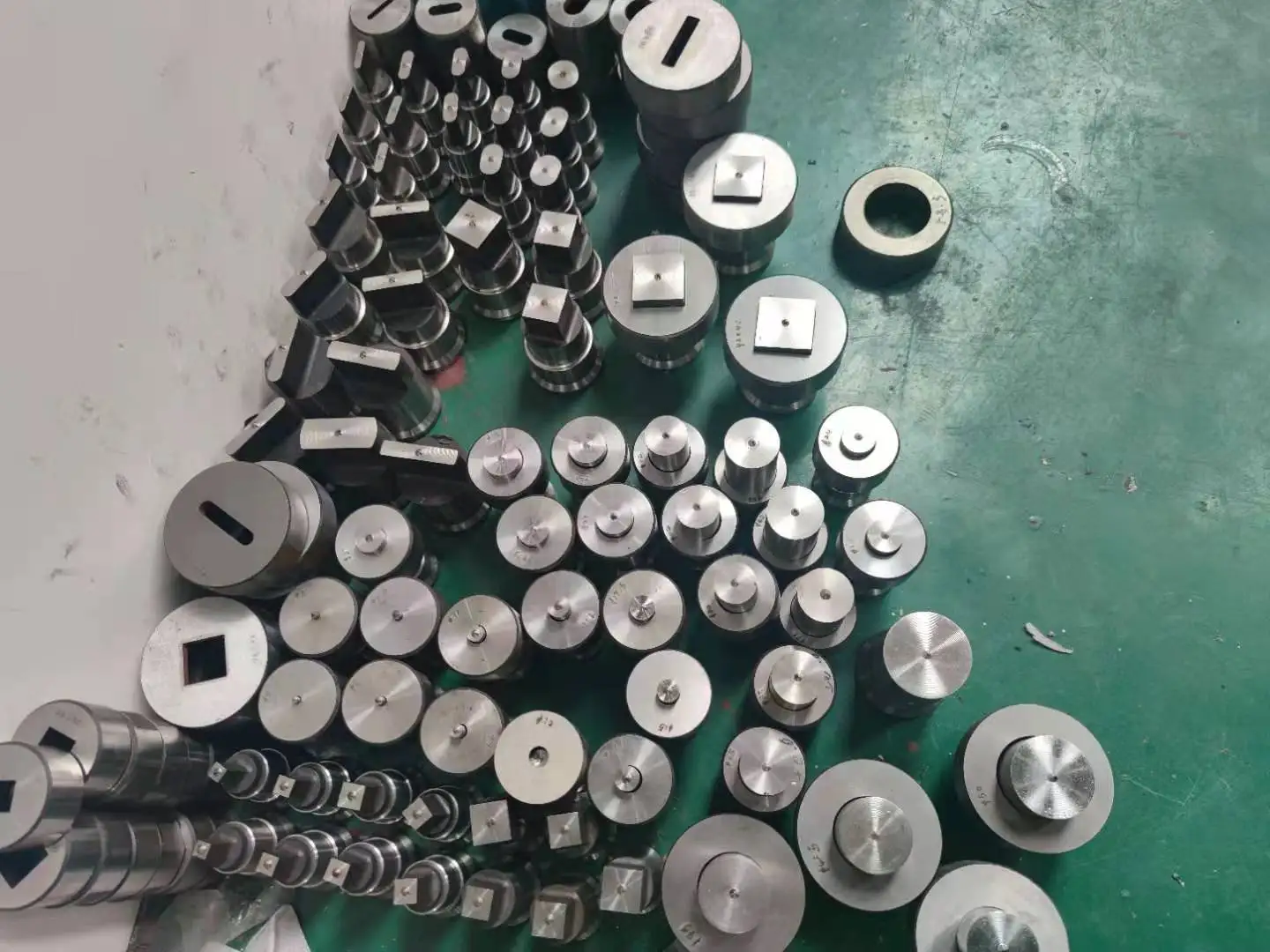

Full range of universal punches and dies are available. Unique style allows for large angle iron punching and large channel punching.

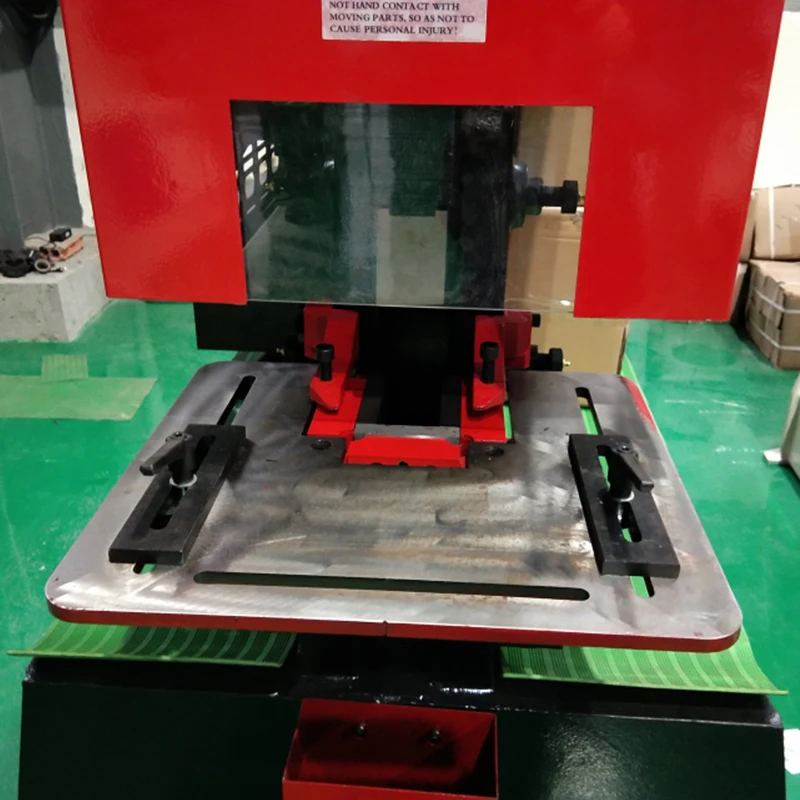

Large viewing window on stripper swing away design for ease of operation. Large 2 piece gauging table with rulers and stop as standard fittings. Quick change coupling nut and sleeve for rapid replacement of change.
The process:
Packing & Delivery:
2 kinds of ways: LCL is for small machine, FCL is for big machine.
※ LCL: Covered by plastic films, packed by wooden case.
※ FCL: Covered by plastic films, packed by a container.
☀Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
☂ After tested, the machines will be wrapped with plastic sheet ,machine will be securely wired to the container.
☂ Each machine packed with plastic film first, then placed in a wooden case, wooden case with a foam filling.
✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal. At the dock we pack the goods in containers and ship them abroad.
Delivery Detail :
✈ Shipped in 30 days after payment.
Certifications:

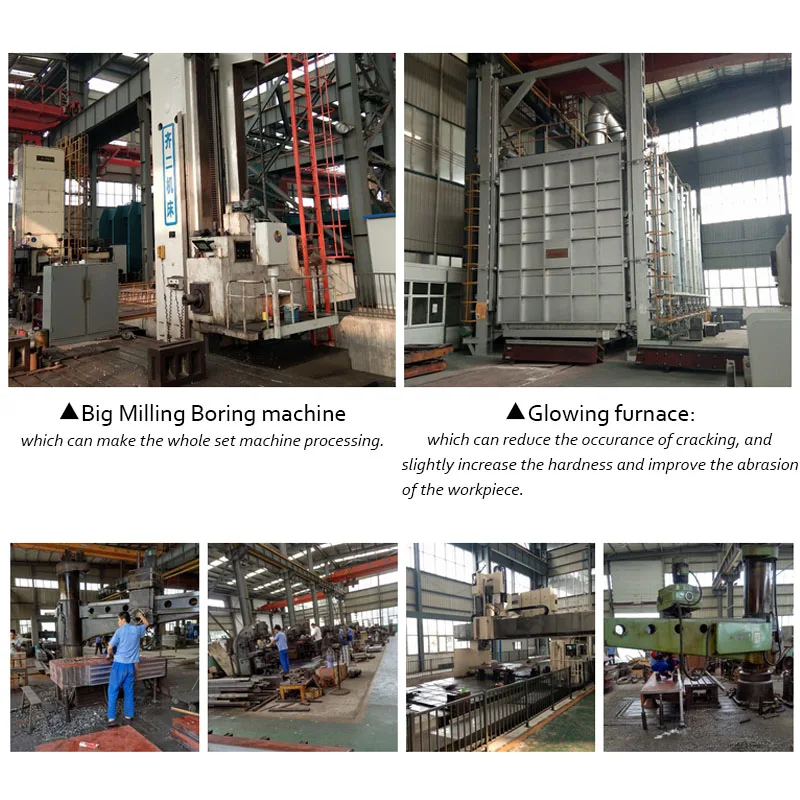

Our company:
Our service:
Pre-sales.
* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.
In-sales.
* We will provide you with the latest progress in the product assembly, packaging and transportation.
After-sales.
* We will provide free accessories for the damage to non – human parts.
* Training how to install the machine, training how to use the machine with video and so on
* And our technical staff can go abroad to provide technical guidance.
Exhibition:
FQA
1. Are you the manufacturer? Can we visit your factory?
Of course, you can. We are manufacturer and we are located in Anhui, China. We have our own team for products design. Welcome to visit our factory and check our machine qualtiy, any question will be solved on time.
2. What's your main product? What is your main foreign market?
Our main products are press brake, shears machines, press, cutting machine, locking machine, auto duct line and related products. Our main foreign markets are Asia, North America, Europe, and Africa.
3. What are the advantages of your machines? And how can I believe the quality of your product?
The main configuration is import high quality products, and professional product quality inspection team ensures machine in top-quality, precision and life. For example, Germany Bosch-Rexroth Valve group, Germany Siemens MainMotor,Schneider Electrics system and so on. Once tested as qualified, our machine would be sent out. So the quality of our product is stable and reliable.
4. Are you able to update the production process Information in time after placing our order?
After confirming your order, we would keep you updated of production details of emails and photos.
5. Can we be your agent?
Yes, we are looking for global agent, and we will help agent improve the market, and supply all the service like machine technical problem or other after-sales problem, meanwhile, you can get big discount and commission.
6. Payment terms?
T/T, L/C, Western Union, Paypal, Alibaba Secure Payment etc.
7. Are you provide product metal parts and provide us technical guidance?
Wearing parts, Disassembly tool(free) are what we could provide. And we can give you technical guidance. Our technical staff can go abroad to provide you with professional technical guidance.
8. How long is your warranty?
2 years free warranty, life-long maintenance.
9. Do you accept customer Logo and customized ?
We accept kinds of customized, including logo and machine.
10. About shipping free?
For large machines, shipping costs within China are directly included. Please contact customer service for shipping costs for specific countries.
Contact information:
For more details about the machine, please contact me.
Specification
Additional information
| Weight | 100 kg |
|---|
