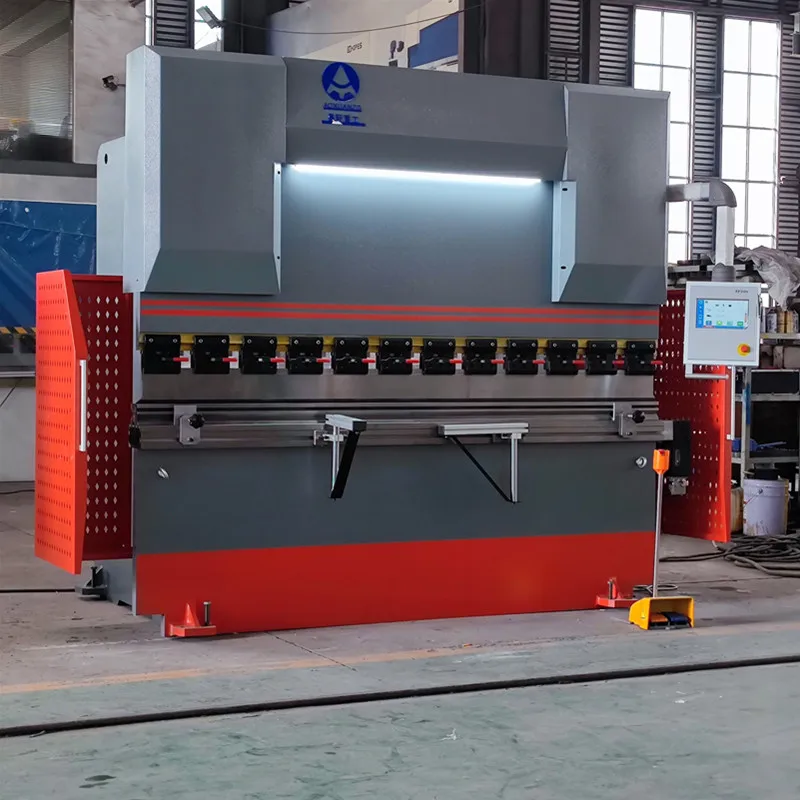

Hydraulic bending Machine, sheet metal press lock with controller TP10S and clamp quick bending plate. plate iron and Carbon

Introduction:

The press folding machine is a machine that can bend the sheet metal. Its structure mainly includes a support, a work table and a clamping plate. The working table is placed on the support which consists of a base and a pressing plate. The base is fixed to the clamping plate by a hinge, and is composed of a case, a coil and a cover plate.
When using, the thread is fed to the coil, so that the coil generates a force of attraction on the pressing plate in order to achieve clamping of the sheet between the pressing plate and the base. Due to the use of electromagnetic clamping, the pressing plate can be used in a variety of parts requirements, and parts with side walls can also be processed. The Bender press can meet the needs of various parts by changing the mold.

Features:

1. tous the machine components are designed under the instructions of computer-aided design and CAD/CAE/CAM software to fully guarantee the intensity and rigidity of Tous components.
2. The whole body under total used, thickness and reliable in the machine body with high rigidity and good reduction of shock absorption.
3. The machine structure is composed of a chassis, a work table, a sliding block, a main cylinder and a rear stop. Advantage design and production style can ensure the use of machine and high precision. The main production procedure as below (tous processes strictly inspection).
4. Plate stock — Physical and chemical inspection — Plate pre-treatment (rust cleaning) — CNC flame cutting — Welded joint cutting — Group welding — gaseous-protection welding — Aging treatment — Plover milling — Finished assembly of products.
5. The machine body, the sliding block, the worktable and other main components are subjected to a single clamping of a large landing and milling machine to ensure multiple geometric accuracy of the main machine.
6. machine capacity is greatly increased in anti-couple and electronic charging resistance. The machine can normally operate in a full load situation. The work table, the vertical column, the Traverse beam and the sliding block are of good design rigidity. Little deformation between the worktable and the junk when working to ensure good rectitude and angle uniformity.

Standard configuration:

IPE Group of valves, Germany Rexroth
IPE pipe Joint, Germany EMB
IPE Oil Pump Sunny, United States
IPE screw Linear guide in marbles, Taiwan HIWIN (China)
IPE Schneider electric system, France
IPE Front support
IPE High Precision Backguage

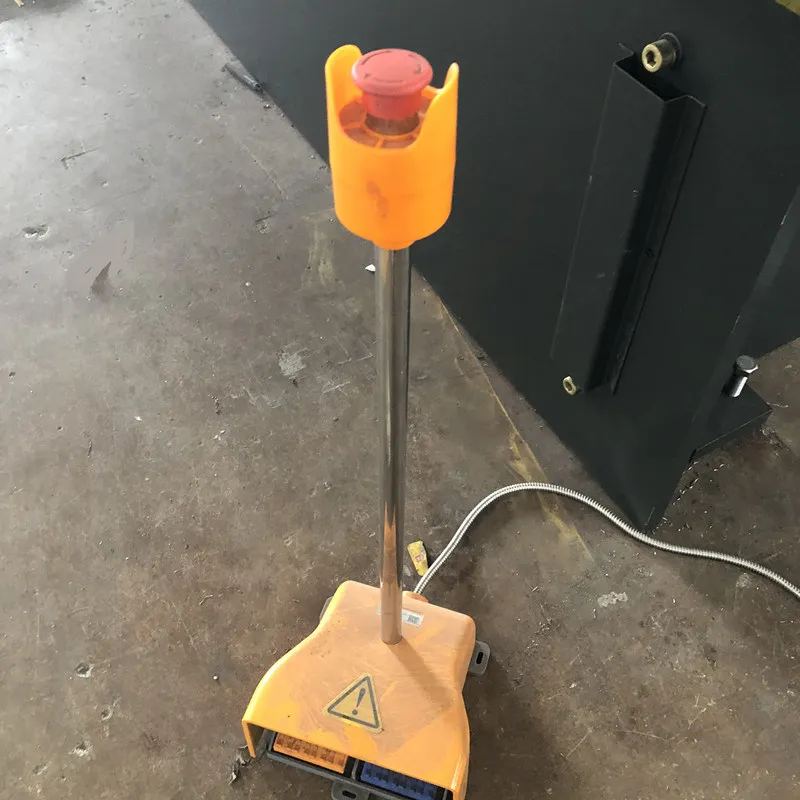

IPE pedal switch
IPE Side railing and rear guardrail (option)
IPE Intangible barrier protection and laser protection (option)
Made a set of free mussels (if you want a personalized mold, tell us, we can customize them for you.)
IPE Or machine can be personalized according to your needs

Personalized mold

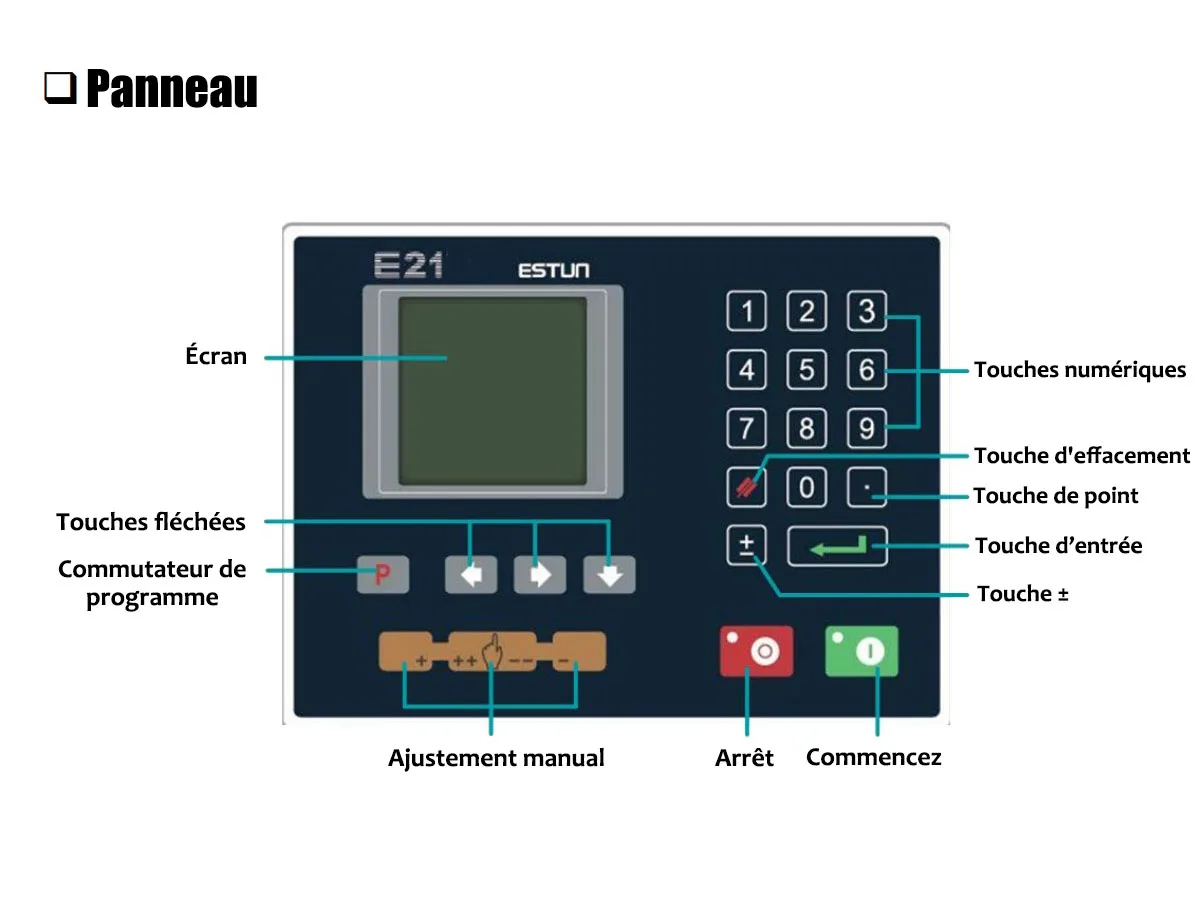

E21 Controller System:

1. HD LCD screen in Chinese and English, optional page display programming settings, fast Plus programs and easy to write plus.
2. The intelligent positioning, can also be manually adjusted as needed to remove the positioning device from the manipulator.
3. Built-in residence time, download time setting function, plus easy operation without time relay to reduce costs.
4. With one-button backup and restore function, you can always restore the settings as required to reduce maintenance costs.
5. Support multi-stage programming, complex parts can complete a process, improve production efficiency and machining accuracy.
6. All the sign keys are micro switches, by EMC, high temperature, vibration and other rigorous testing to ensure the stability and service life of the product.
7. CE certified to meet the needs of overseas markets.

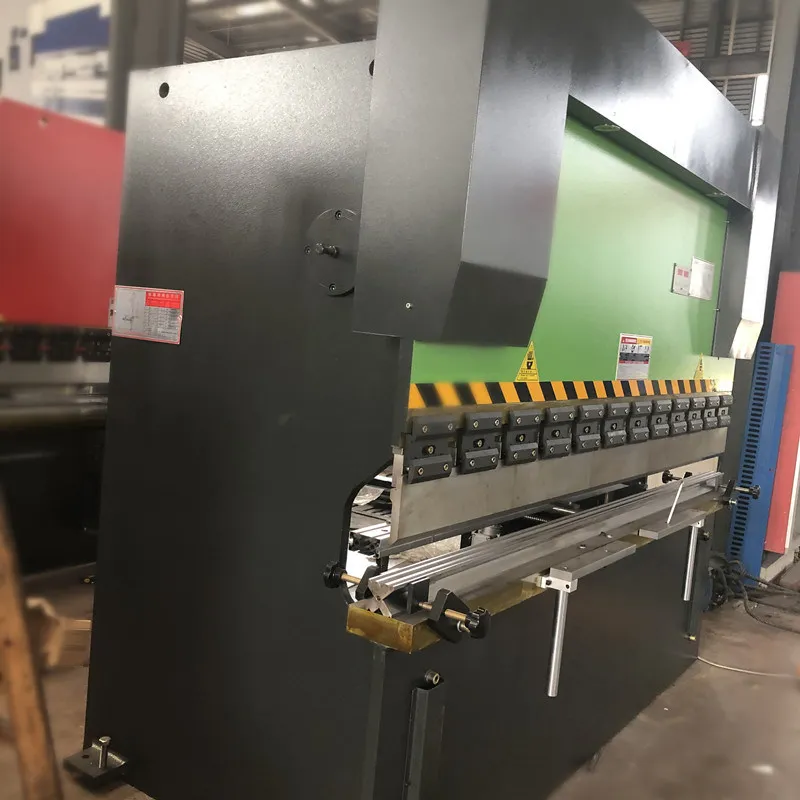

Details:

Parameters:

Machine process:

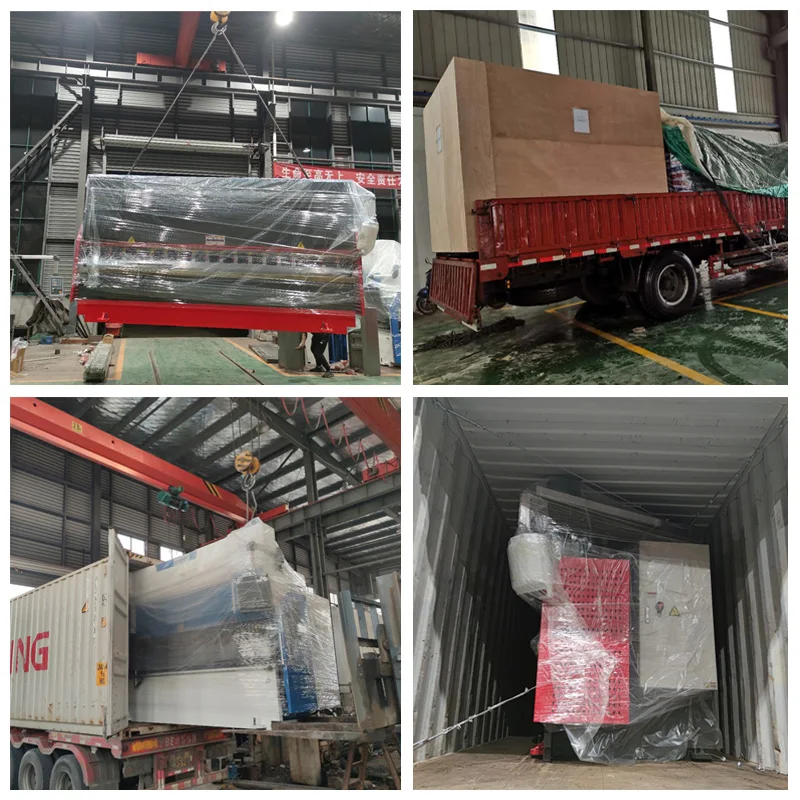

Packaging and Delivery:

2 kinds of means: LCL is for small machine, FSL is for large machine.

Gen LCL: Covered of plastic films, packed in a wooden box.
Hugfl: covered by plastic films, packed by a container.

☀Before being packed, the machines will be tested strictly to ensure its stability and high precision.
☂After summer tested, the machines will be packed into a plastic fabric, the machine will be secisely wired inside the container.
☂Each machine packed first with a plastic film, then placed in a wooden box with mousse filling.
✈We loaded the machines with heavy trucks to load the cargo to the port terminal. At the dock, we pack the goods in containers and ship them abroad.

Delivery Detail:
✈Shiped within 30 days after payment.

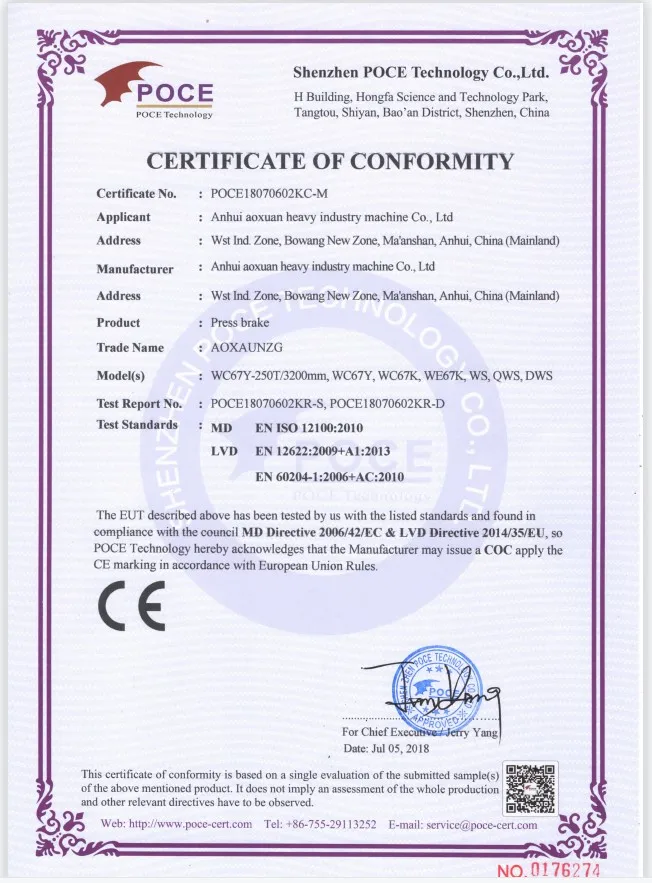

Certificate:

Our Factory:

Exposure:

Coordinates:

Please contact me for plus details on the machine.
