Name: ▷ Buy New HLN Brand Lithium Ion Battery Pack Spot Welding Machine 709Ad Pulse Spot Welder 0.3Mm Battery Welding Battery Pack Welding () - Available at MachineryGenie.com
SKU: 1005005736346717
Price: 3476.76 EUR
Availability: InStock

Description

Products Description

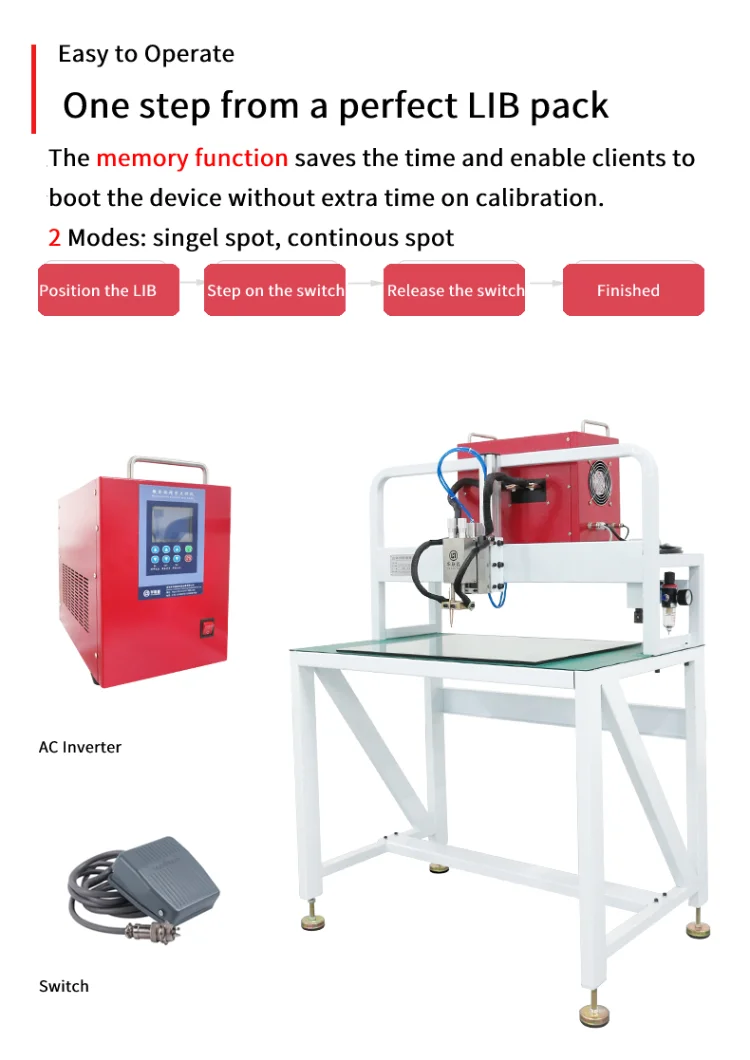

Ultimate device for building battery packs:

Double Pulse Spot Welding Machine is the perfect battery tab spot welding system for battery pack rebuilding, assembly and manufacturing.

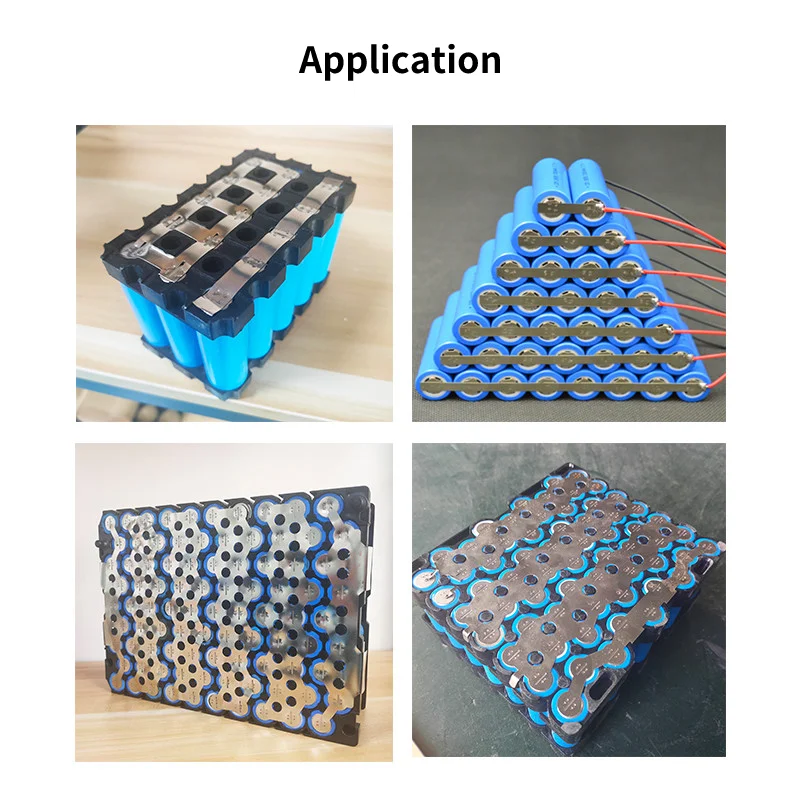

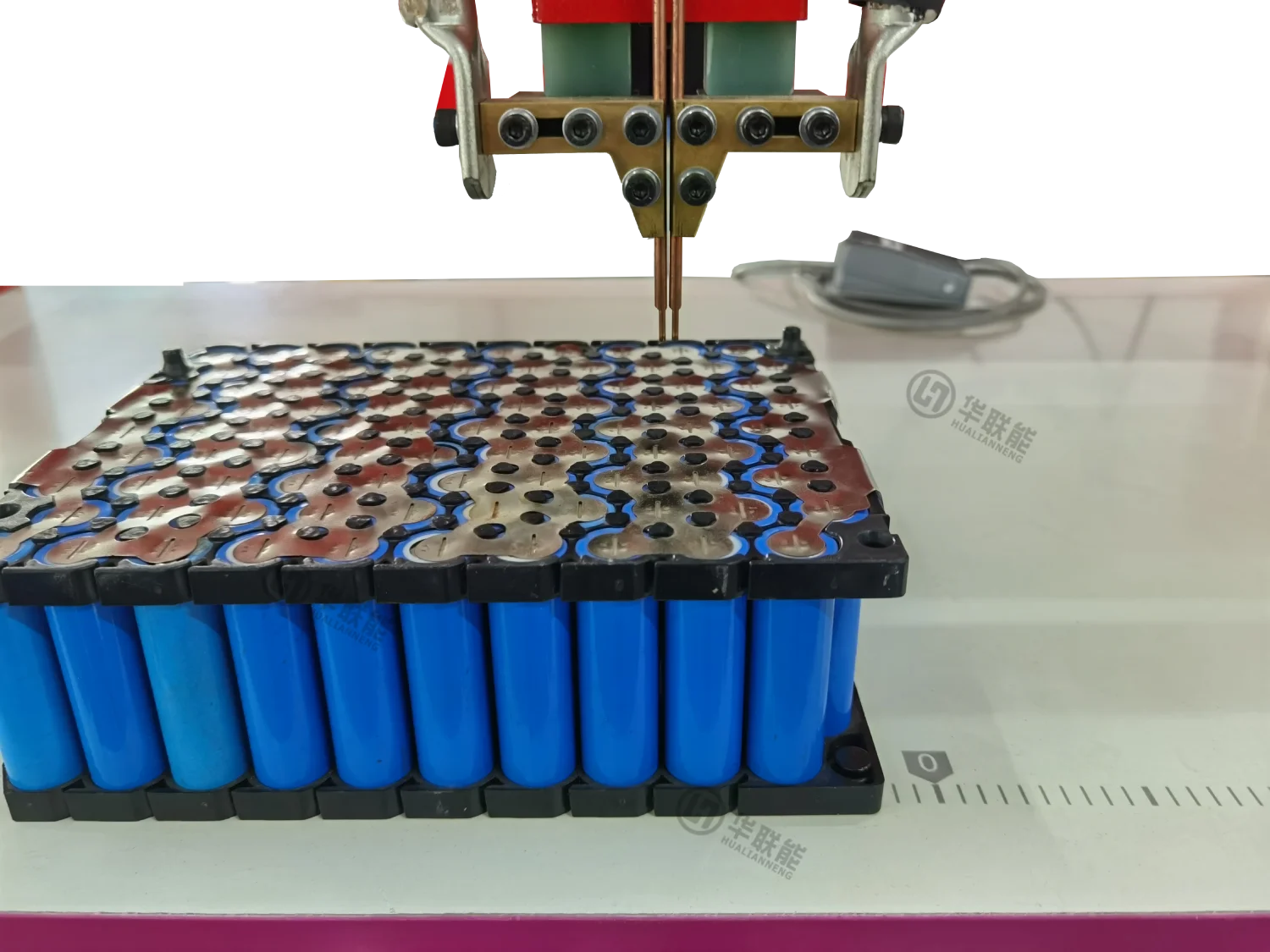

HLN-LM-JL is mainly used for manully welding the battery and the nickel strip in the cylindrical battery PACK, the welding tension between the cell and the nickel is ≥30N, suitable for spot welding lithium battery for electric motorcycle,electric
car, solar street lighting and electric tools.

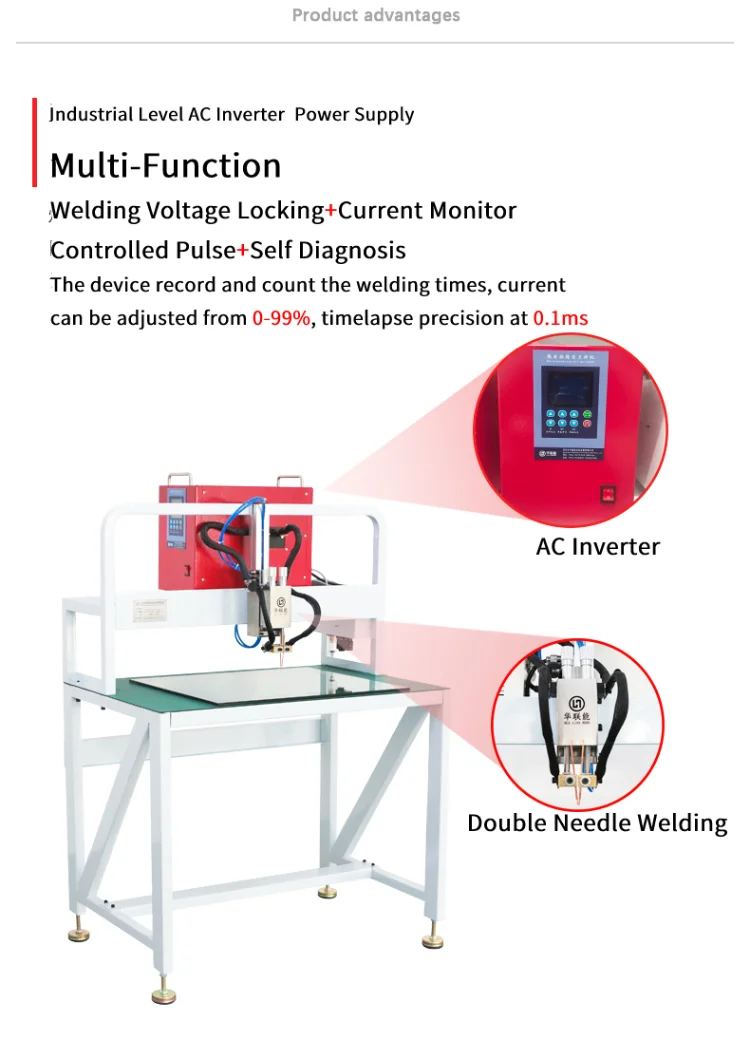

The dual pulse feature provides strong, clean, repetitive welds. The first pulse heats the weld surface to eliminate contaminants and to seat the welding electrode tips. The second pulse then performs a strong spot weld. This process is designed
specifically for battery pack spot welding.

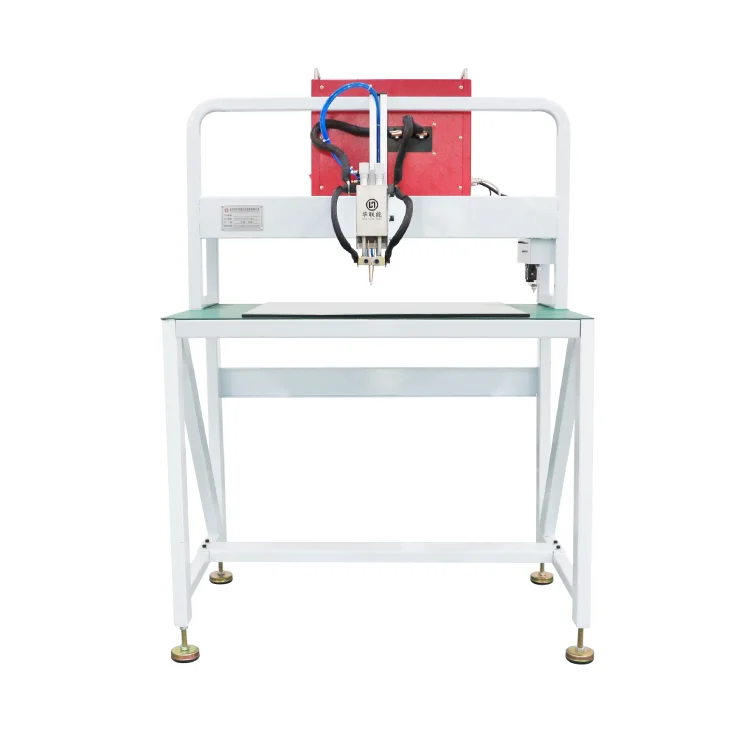

Item	AC Double Pulse Spot Welding Machine For Lithium Ion Battery Pack AC Spot Welder 18650 Battery Welding Machine
Model	HLN-LM-JL01
Operation Voltage	AC220V±10% 50HZ
Rated Power	≤3000W
Operation Condition	Temperature: 0℃~+50℃,Humidity: below 90%
Welding Stroke	150mm(Adjustable)
Current Range	0-99A(Adjustable)
Nickel Thickness	≤0.2 mm
Compression Method	Pneumatic & Spring

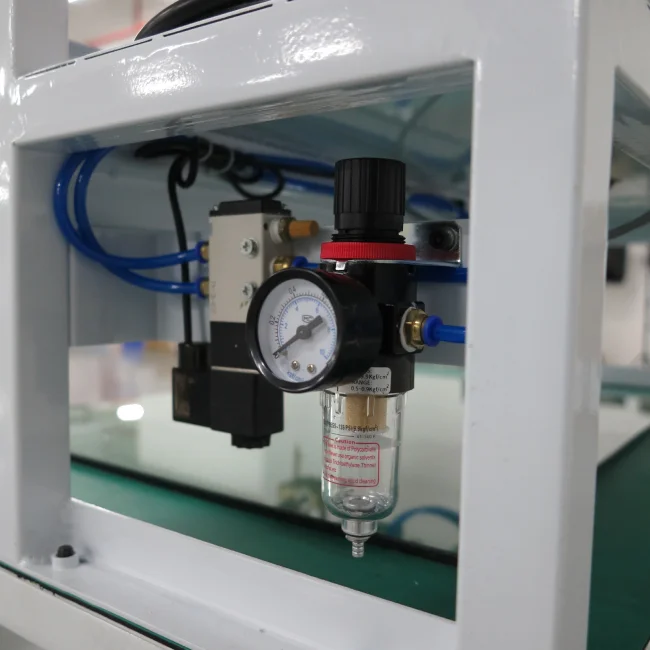

Pneumatic Pressure	0.3-0.5Mpa

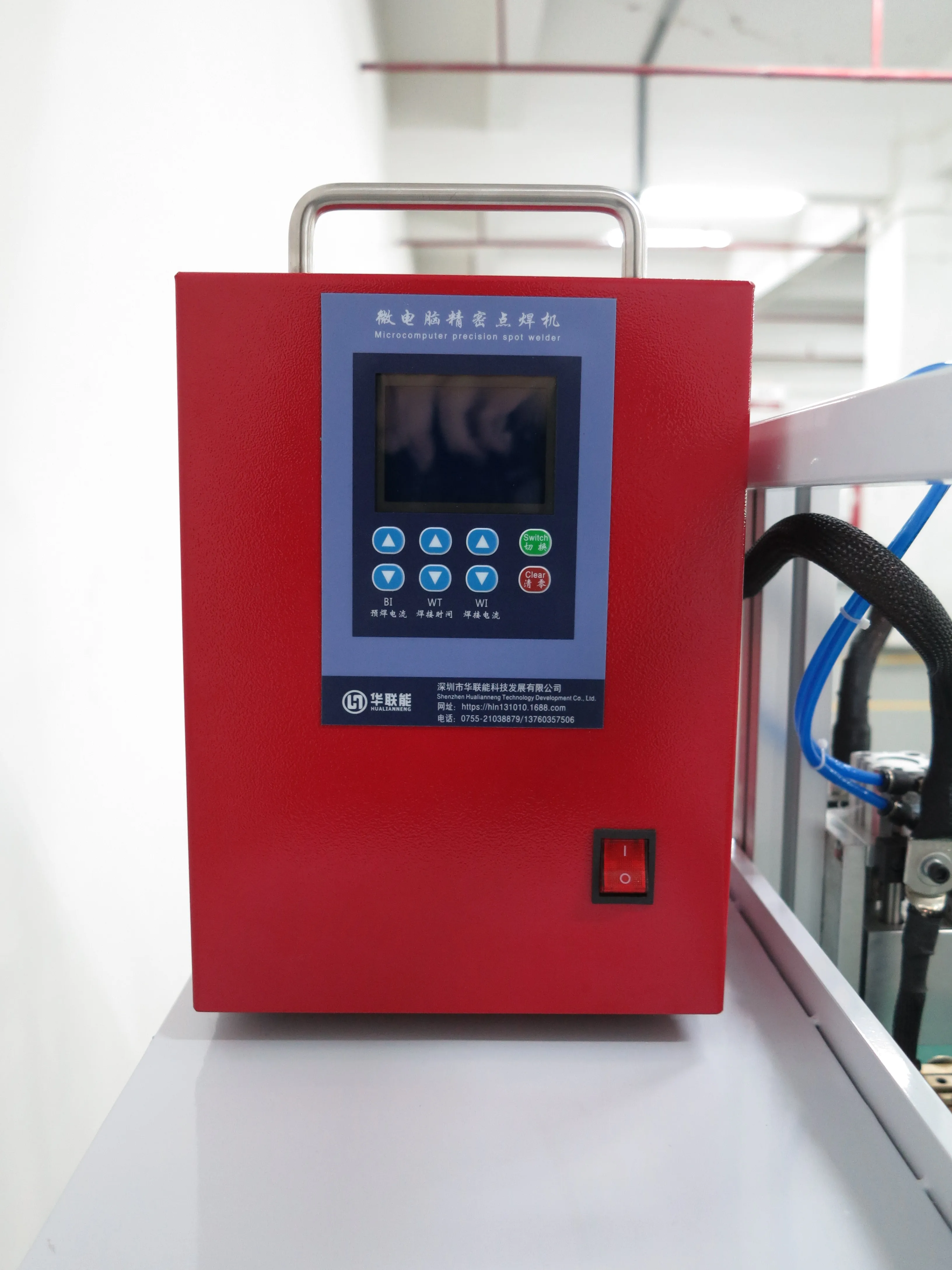

Control Mode	Current Control(Adjustable)
Cooling Method	Forced Air Cooling
Actuate Ratio	99%
Weight	70Kg

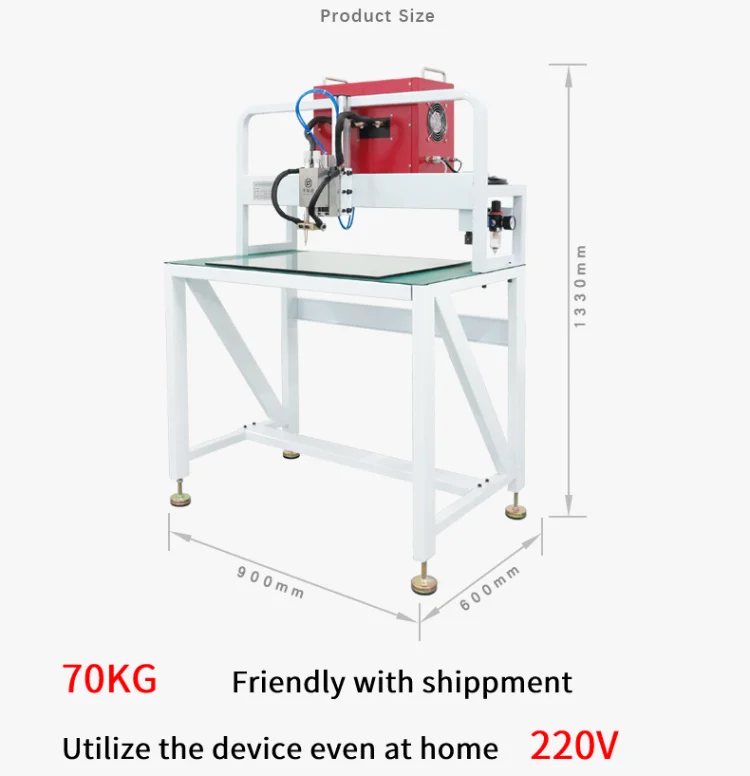

Dimension	650(L)800(W)1260(H) mm
If you’re looking for specification sheet please contact Martin, at wechat/whatsapp +86 18685360482

About Us

As a combo of manufacturer and trading company, we are providing one-stop material and equipment solution for battery pack assembly line for more than 12 years.

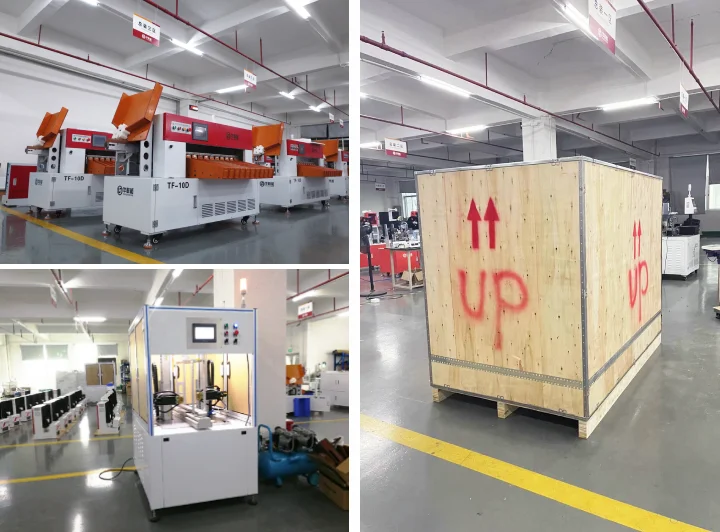

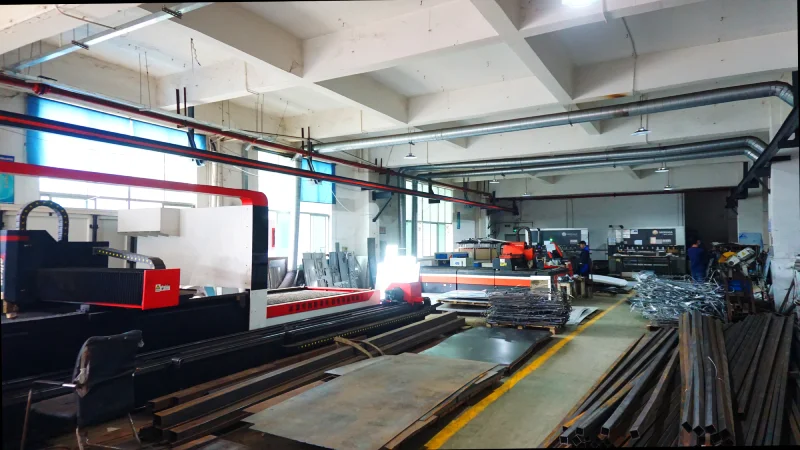

Welcome to visit our facility or have a video call to take a look at our real-scene production process any time. Our clients are from worldwide, who are influential in European, SEA and US market.

We have enormous advantage in the following areas:

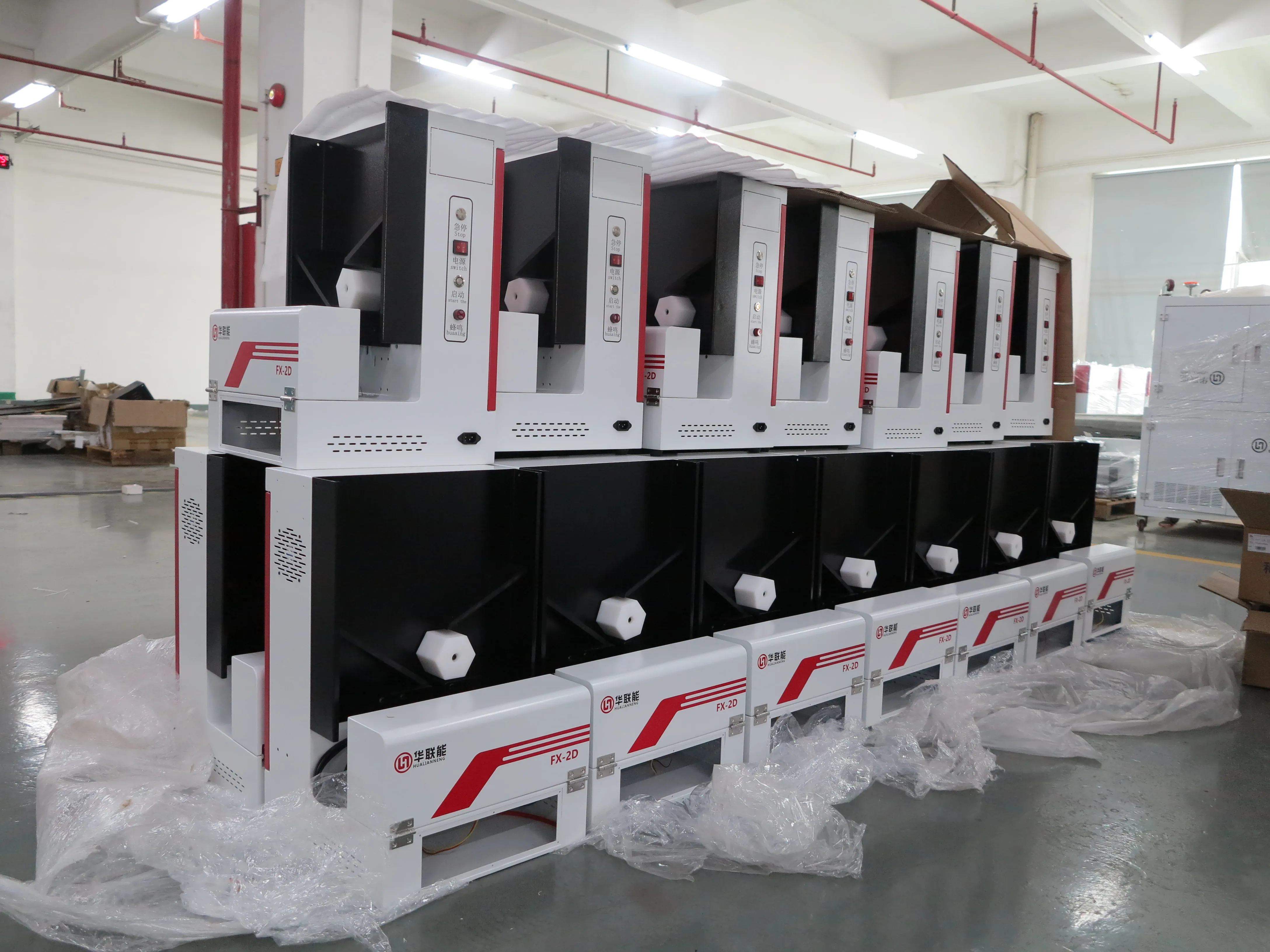

Sorting battery machine-2 channel, 6 channel, 10 channel , 20 channel.Prismatic,Polymer and Cylindrical

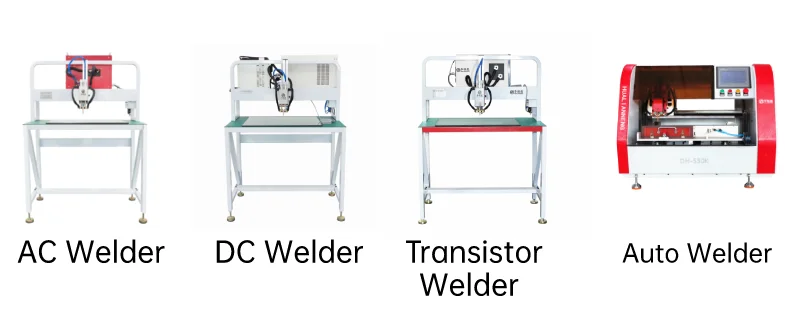

Spot welding machine– manual,automatic
Battery tester– comprehensive battery tester, charge-discharge againg tester, internal resistance tester, battery capacity testers,protection board tester
Nickel strips/Spacers/Fish Paper– Highly customized, according to the configuration.

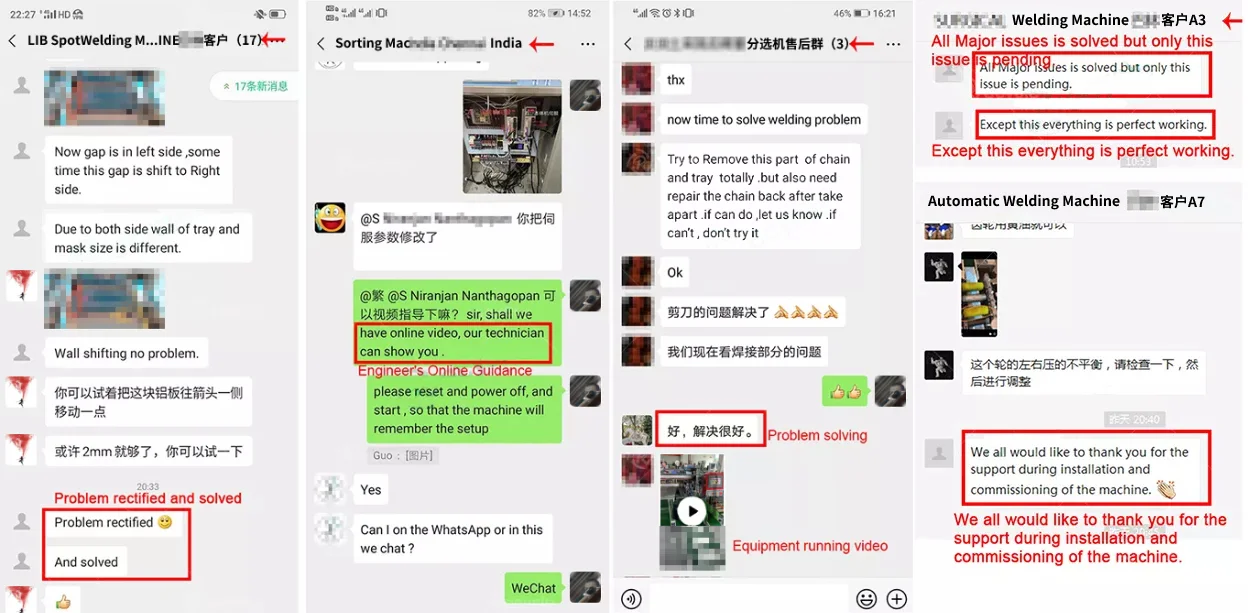

Aftersale Cases

FAQ

1. Which procedure to secure your Quality? Our company has own factory with R &D , the products have been inspected 3 times by our QC before delivery, ensure the accuracy of test results and authority.
2. How about your company product after-sales service system? Warranty is 12 months, and we can provide a lifetime repair guarantee. Our professional after-sales department can reply you within 24 hours for any technical problems.
3. Products standards? Our instruments adopt ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE and other international testing standards.
4. Our country’s power supply and plug are different, how do you solve it? We can according to different countries and the power plug, equipped with a transformer and plug that in accordance with your local requirement.
5.Packing method? Standard export wooden case
6. How to ensure the customer use the equipment? We can provide each product-related video showing how to install and operate. If you have specific needs, we also can arrange the engineer to the customer’s company for equipment operation training.
