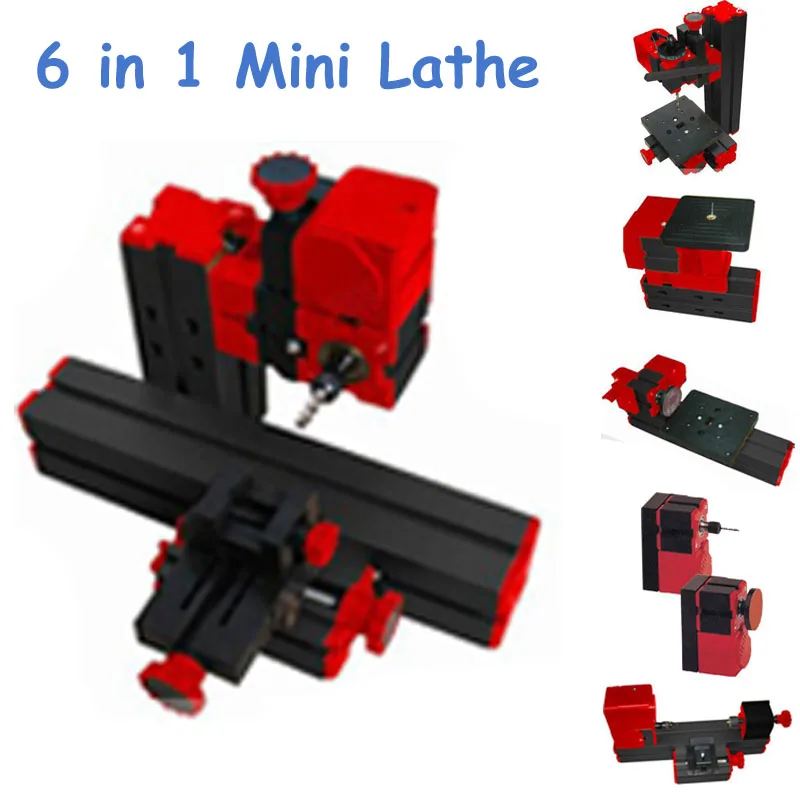

High Quality DIY Mini Lathe Machine 6 in 1, DIY Mini Micro Lathe Machine Tool 6 in 1 For Wood and Soft Metal

https://www.aliexpress.com/store/product/1pc-DIY-2500mW-Blue-Light-Laser-Module-diode-Parts-for-Mini-Laser-Engraving-Machine-CNC-High/2059023_32663664305.html?spm=2114.12010612.0.0.VRbraC

This is the link for 1 set. If you need, please feel free to contact me. Thanks!

DIY Mini Lathe Machine 6 in 1, DIY Mini Micro Lathe Machine Tool 6 in 1, only For Wood and Soft Metal

Note:

There are six shapes of the lathe. We just ship it in one shape. If you need other shapes, you may re-equip it by yourself. Thanks!

Product Showcase:

Wood lathe:
You can use the three-jaw chuck or collet (1 ~ 6mm) clamping the workpiece.

Machine tool center height 25mm, center distance 135mm,

if the use of the middle block and reprovision of the lead plane seat

and other accessories can expand the base length,

a longer work piece machining transformer overheating protection
Technical parameters:
1, motor speed: 12,000 rev / min
2, input voltage / current / power /: 14.5VDC/2A/29W
3, processing materials, diameter: 45mm
4, processing materials, length: 135mm5,

processing materials: wood, plastic, soft metals (aluminum, copper, etc.)

Metal lathes:
You can use the three-jaw chuck or collet (1 ~ 6mm) piece of metal holding the workpiece.

Machine tool center height 25mm, center distance 135mm,

if the use of the middle block and reprovision of the lead plane seat

and other accessories can expand the length of the base, processing more workpiece length,

transformer overheating protection
Technical parameters:
1, motor speed: 12,000 rev / min
2, input voltage / current / power /: 14.5VDC/2A/29W
3, processing materials, diameter: 20mm
4, processing materials, length: 135mm
5, processing materials: wood, plastic, soft metals (aluminum, copper, etc.)

Sawing machine:
Wire saw to ensure absolute security, through a special design, even zigzag across the skin,

it will only cause a slight vibration, a special saw blade is designed to process objects of arbitrary shape,

whether it is circular and any bending of the curve can be smoothly ground saw, transformer overheating protection.
Technical parameters:
1, motor speed: 12,000 rev / min
2, input voltage / current / power /: 14.5VDC/2A/29W
3, table size: 90mm x 90mm
4, the largest wire saw machining depth sawing hardwood is 4mm, 7mm plywood for the cork to 18mm,

thin aluminum sheet of 0.5mm, 2mm glass for the

Sanding Machine:
Center height 25mm, sand paper size is generally 100, according to the different parts

and work that requires selection sandpaper.

Processing objects can be used in a vise or drill a fixed station,

can also be hand-held grinding various angles, transformer overheating protection
Technical parameters:
1, motor speed: 12,000 rev / min
2, input voltage / current / power /: 14.5VDC/2A/29W
3, work desk area: 123 x 100mm
4, processing materials: wood, plastic, soft metals (aluminum, copper, etc.)

Vertical Milling Machine (drilling machine):
Tilt slider, you can adjust the angle of drilling.

Vertical drilling machine with different components can also be turned into a different machine,

such as radial drill, hand drill, etc. transformer overheating protection.
Technical parameters:
1, motor speed: 12,000 rev / min
2, input voltage / current / power /: 14.5VDC/2A/29W
3, slide stroke: 30 and 50mm
4, Chuck :1-6mm
5, vise clamping size: 25X35mm
6, work desk area: 123 x 100mm

Horizontal Milling Machine:
Can be turned into a level based on the actual use of milling machine,

vertical milling machine, hand-held milling machine. Milling machine has a certain risk,

the child must be used under the guidance of an adult, transformer overheating protection.
Technical parameters:
1, motor speed: 12,000 rev / min
2, input voltage / current / power /: 14.5VDC/2A/29W
3, slide stroke: 30 ~ 50mm
4, Chuck :1-6mm
5, vise clamping size: 25 ~ 35mm
6, processing of materials: wood, plastic, soft metals (aluminum, copper, etc.)
