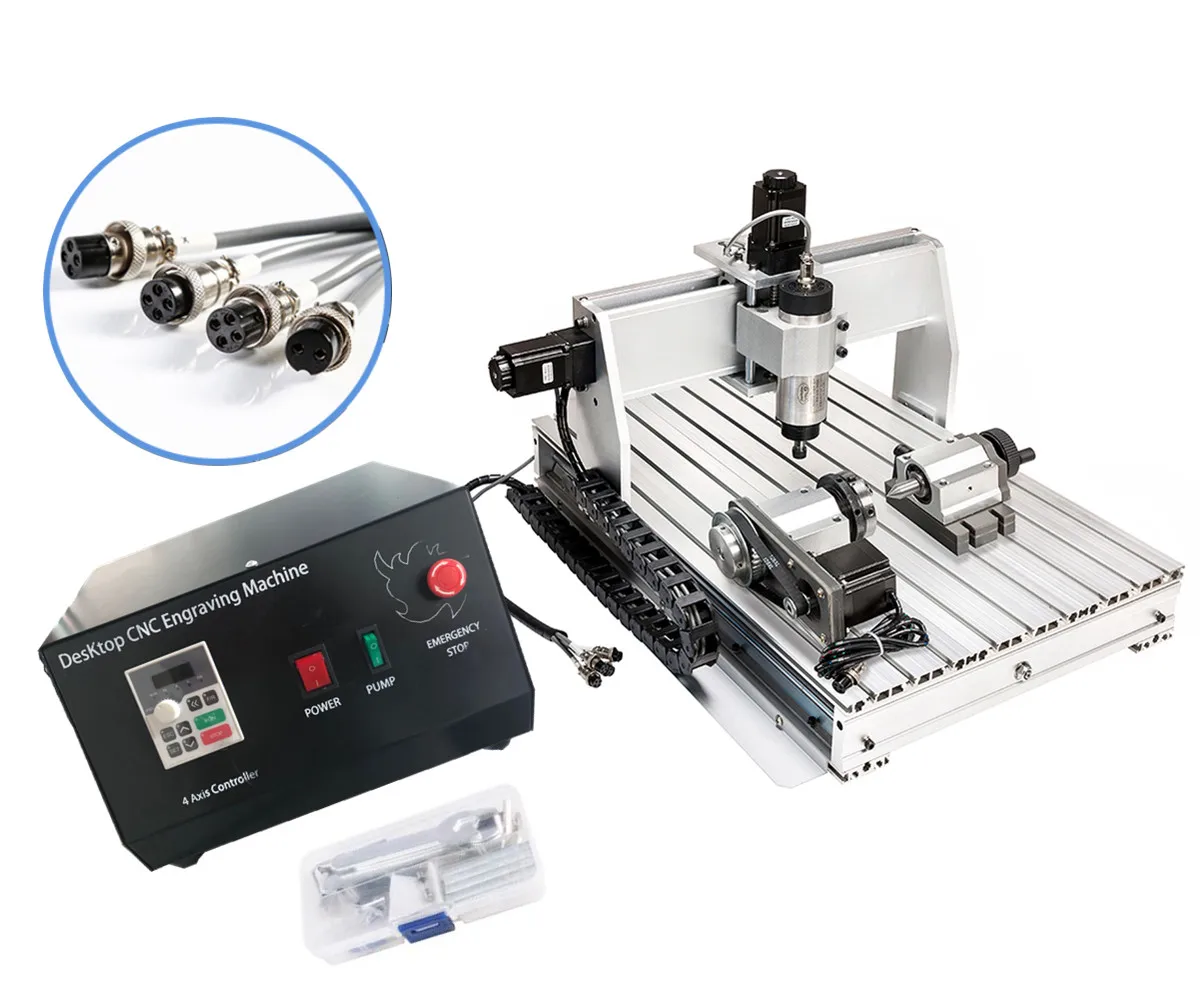

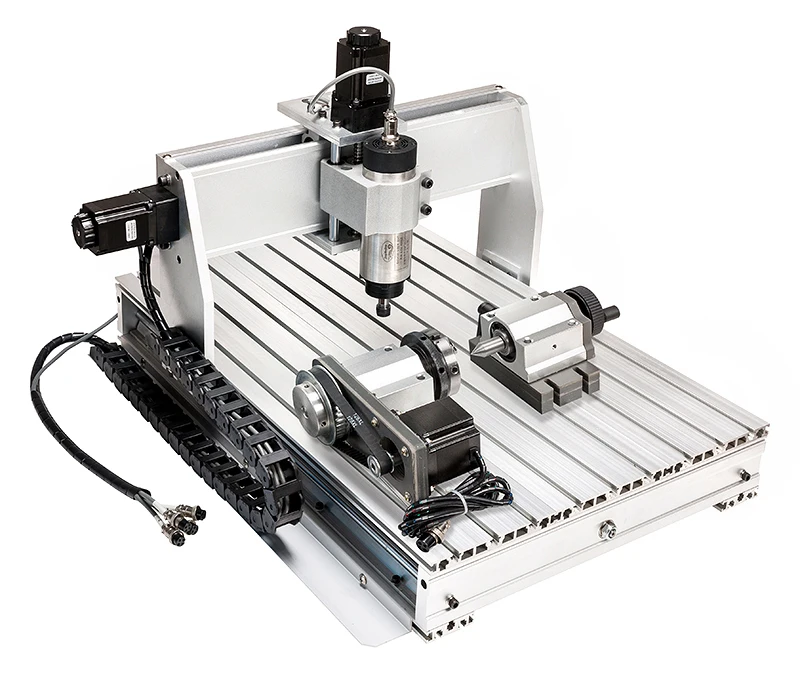

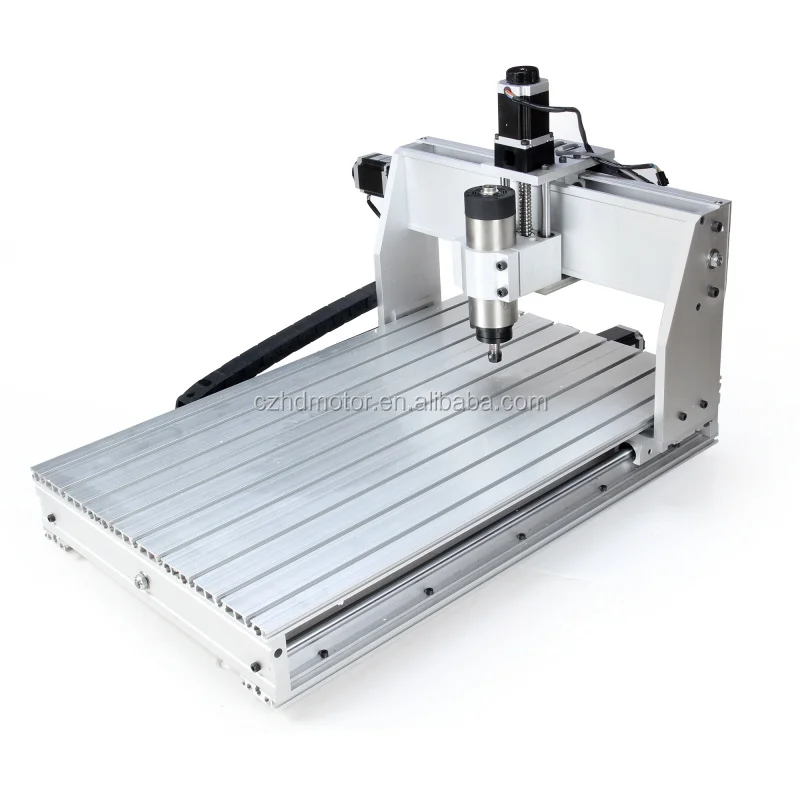

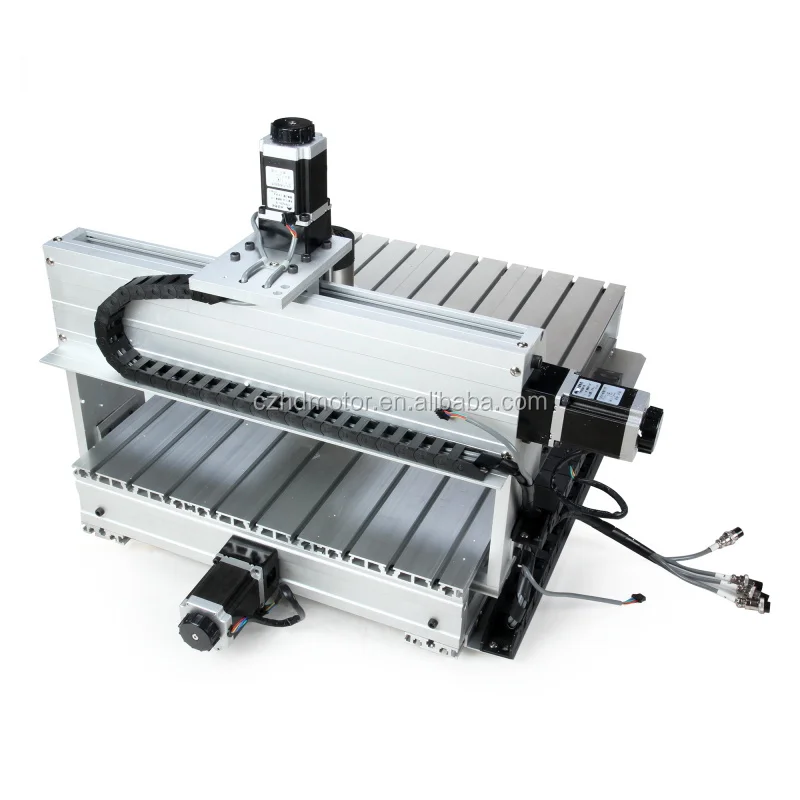

Handi 6040 4 Axis Rotary CNC Engraving Machine for woodworking

Product Description

Technical parameter:

Max.stroke	*XYZ=40057075mm*
Machinable material thickness	≤100mm
Outline dimension	*750570390mm*

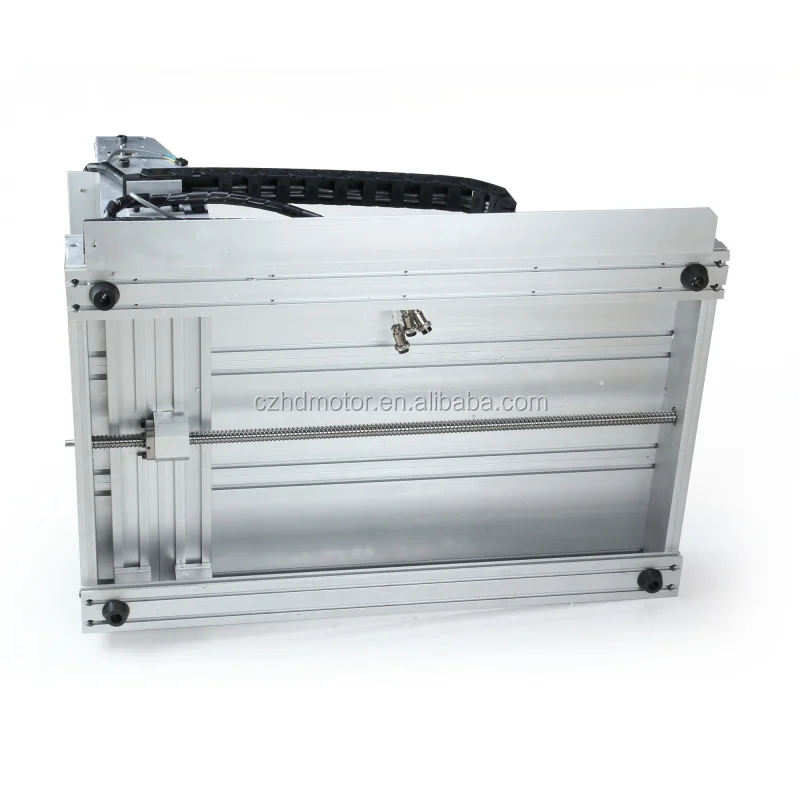

Frame material	6061-T5 aluminum alloy
Rail type	Chrome plated shaft + linear bearing
Screw type	Ball screw,diameter 16mm,Thread pitch 5mm
Mechnical resolution	XYZ-shaft:0.0025mm/step
Positioning accuracy	0.05mm

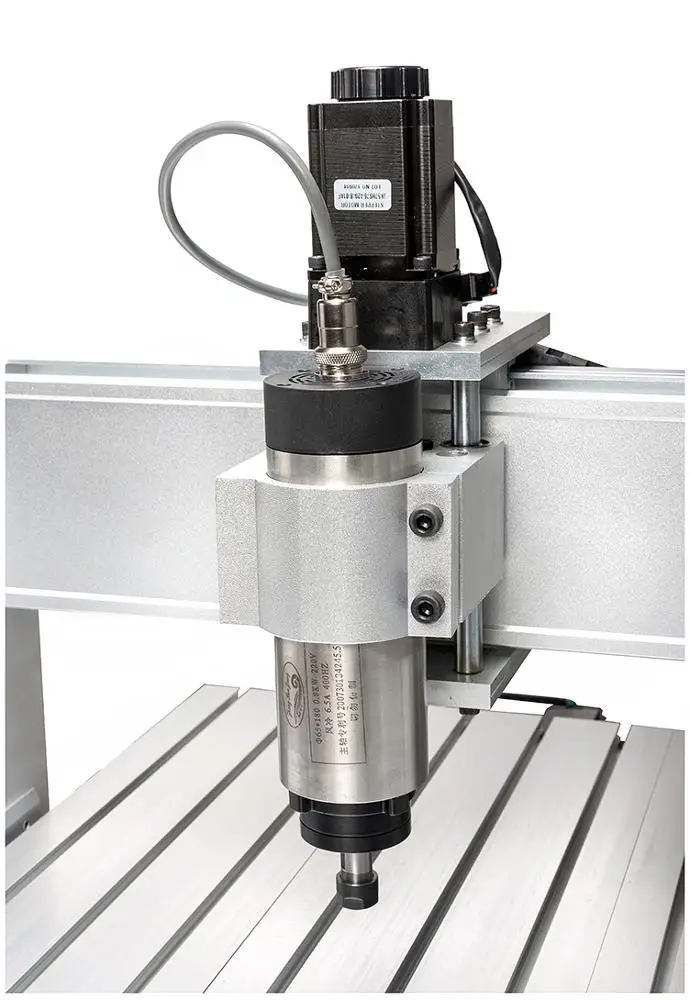

Spindle motor	Frequency conversion spindle motor,0.8KW
RPM	24000rpm/min
Chuck type	ER11(3.175mm,6mm)

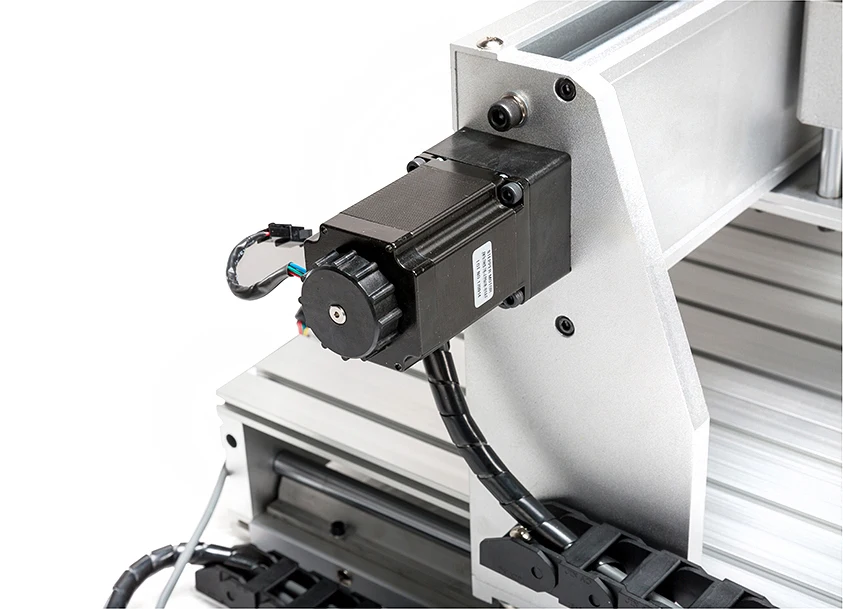

XYZ motor	Stepper motor JK57HS76-4204B-01AF
Stepper drive	High performance, each axis can independent drive
Feed rate	2000mm/min
Communication interface	USB2.0
System requirement	WIN-XP or WIN-7
Order code	G code/.nc/.ncc/.tab/.txt
Voltage	Input 85V-240VAC(400HZ)
Operation environment	Temp.:5℃-40℃;Humidity:35%-80%

Usage :

Mainly used in PVC, acrylic, plexiglass, color plates, engineering plastics, bakelite, wood and soft metal material carving milling, and also suitable for engraving the PCB, and wood model mold, crafts, can not exceed the limit size plastic boxes, aluminum chassis, the panel cutout hole and milling, but also at a low feed rate for aluminum, copper and other metal materials for three-dimensional carving and drilling and milling.

Note: when you got the softwear, pls don’t upgarde it, thanks
