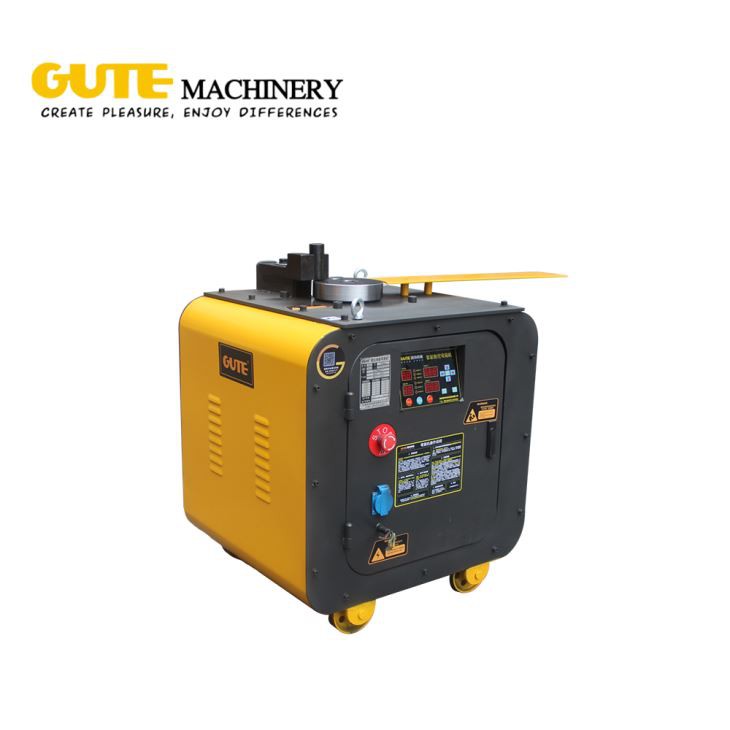

GUTE Machinery TW22 Reinforcement Bar Bender

Contact this seller for accurate pricing

In stock

Features (TW22):

Bending Diameter: 8-20mm

Motor Power: 1.5kw-4p

Control Way: manual/automatic

Weight: 160kg

  Chat Now
SKU: GUTE-TW22-2 Categories: , Brand:

Description

Product Details


PRODUCT DESCRIPTION

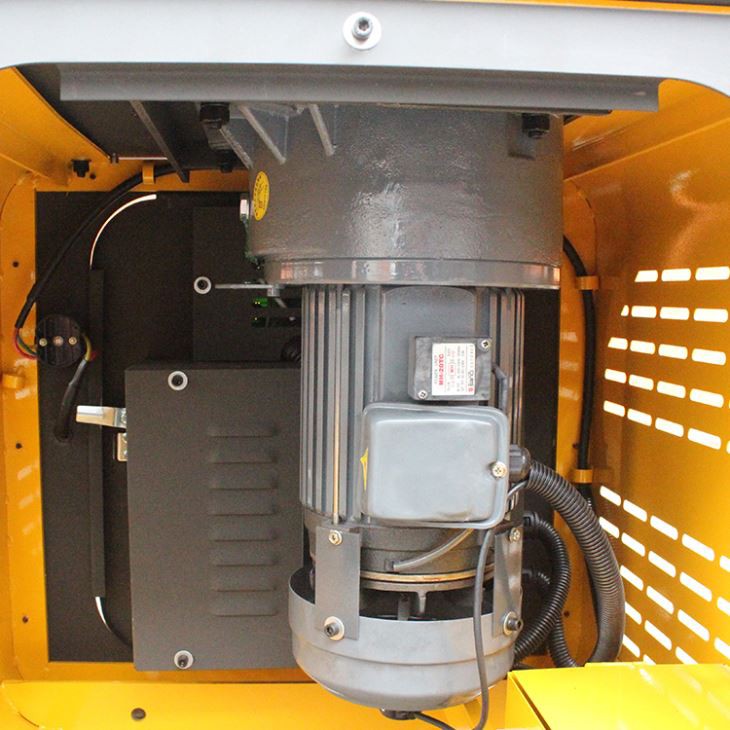

reinforcement bar bender machine is made of thickened steel plate, hard steel bar, and superpower motor of national standard, closed gear box, low noise, special motor wheel which can adjust speed. we specially add eccentric sleeve and adjustable baffle to the accessories.

Features:

•Powerful bending strength, fast return when idling, over-load protection.

•Adjustable bending angle from 10°to 180°and switching handle for fast angle change, perfect results on stirrup 135° bending.

•Digital control,can set parameter with computer.

STEEL BAR BENDER TW22 AUTOMATIC / MANUAL

Bending Capacity

4-22 mm (ob ≤450N/mm2)

4-16 mm (ob ≤650N/mm2)

Operation

Manual

Motor Power

1.5 KW-4P

Motor Rotation Speed

1440 R/min

1440 R/min

Speed of Working Disk

32 R/min/180°

50 R/min/90°

Noise Value (1m away)

≤65dB(A)

≤65dB(A)

Weight

180 Kg.

180Kg.

Dimension

720×620×810mm

720×620×810mm

Certification

ISO 9001:2008









Hot Tags: reinforcement bar bender, manufacturers, suppliers, price
