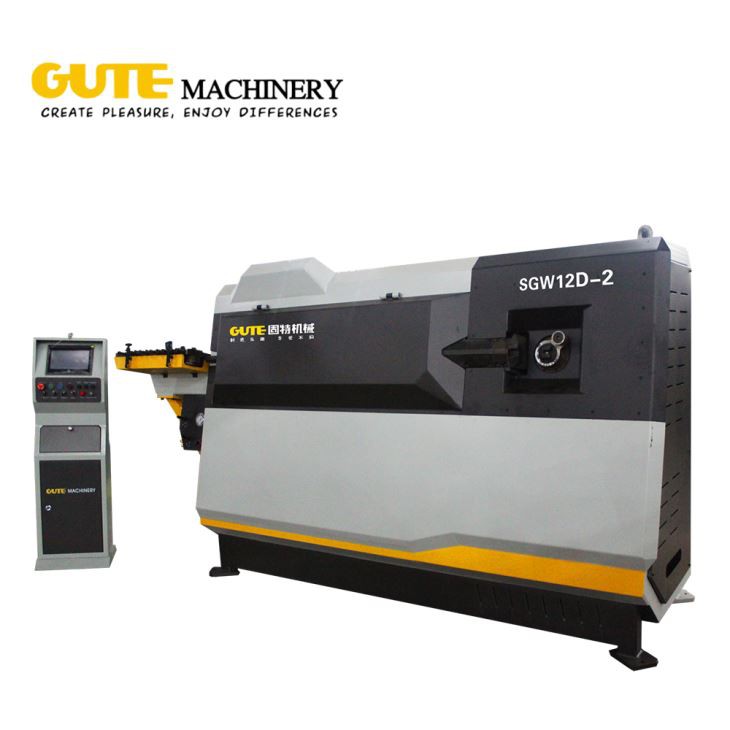

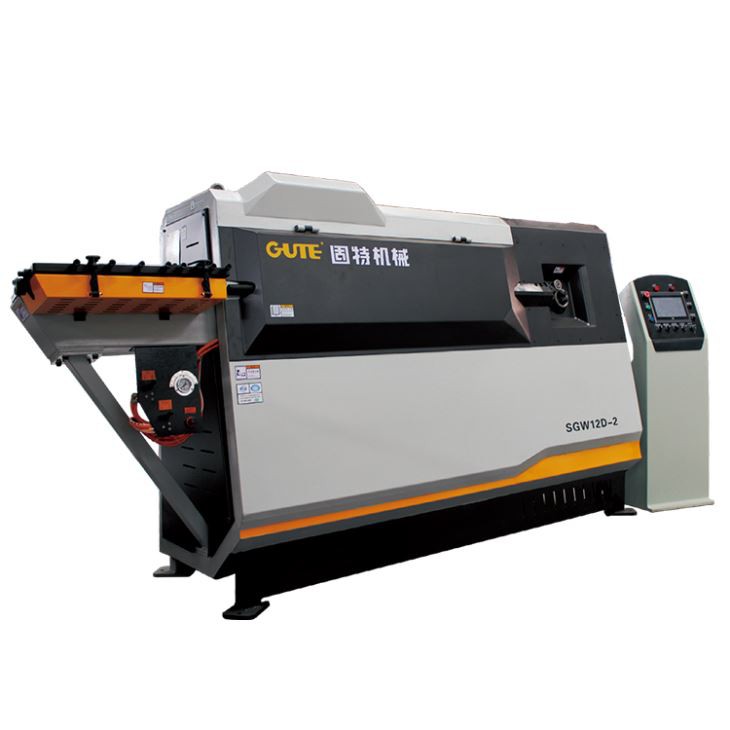

GUTE Machinery SGW12D-2 Automatic Stirrup Bender

Contact this seller for accurate pricing

In stock

Features (SGW12D-2):

Single Wire: 5-13mm

Double Wire: 5-10mm

Traction Speed: 75-100m/min

Max. Bending Speed: 1050º/sec

Weight:3.3t

  Chat Now
SKU: GUTE-SGW12D-2-6 Categories: , Brand:

Description

Product Details


stirrup bending machine

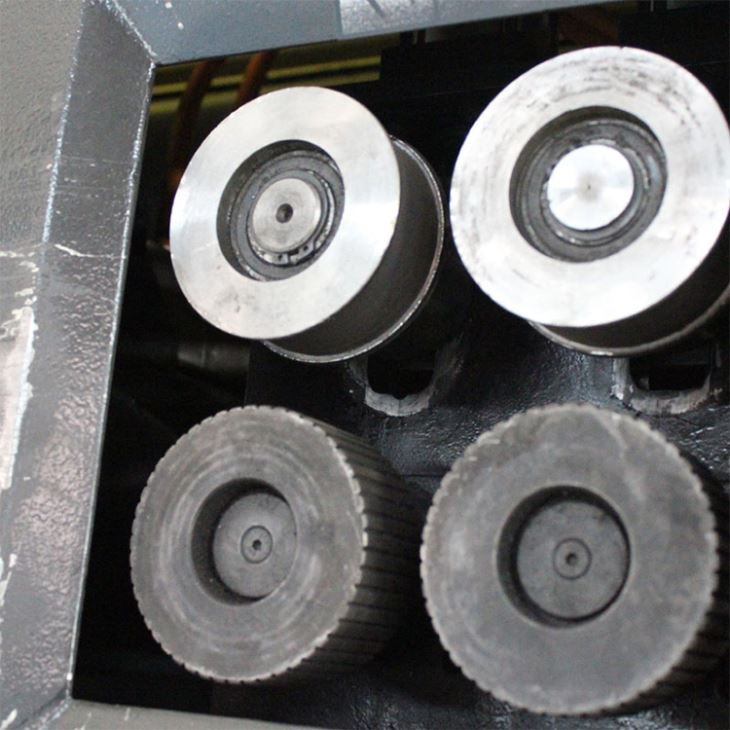

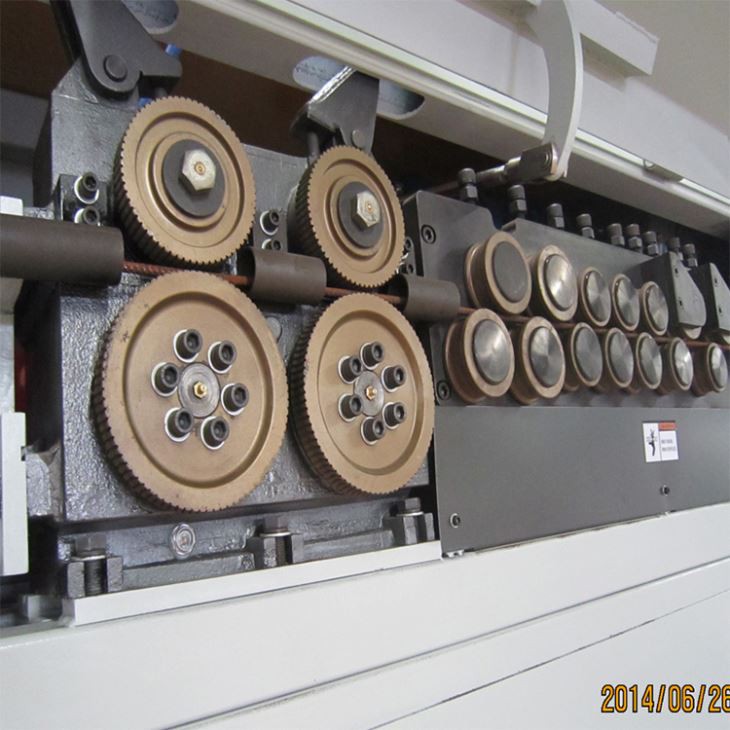

1. Pulling and delivering by servomotor and control system, realize specified length delivery automatically, ensuring the linear dimension.

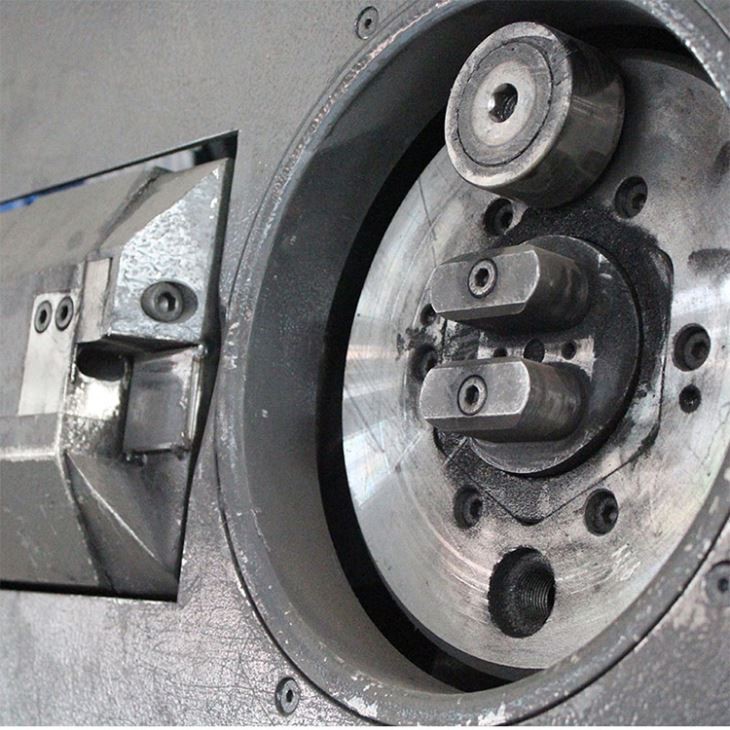

2. Bending by imported servomotor and control system, realize automatically bend, ensuring the angle dimension. Wire unit is pulled mechanically. The operation is easy and reliable.

3. The capability is 1600pcs/hour(standard size), will a lot of working labor.

4. Lubricate system guarantees the machine’s operation.

5. Central control systems, operation buttons set in corresponding position and working table. Operation is optional by manual or mechanical.

6. Electric control system takes advanced CNC technology.

CNC STEEL BAR STIRRUP BENDER SGW12D-2

TENSILE STRENGTH

Kg/mm245

Kg/mm265

SINGLE WIRE BENDING

5-13 mm

5-11 mm

DOUBLE WIRE BENDING

5-10 mm

5-8 mm

OPERATION

Automatic wire feeding system(CNC)



MAX. BENDING ANGLE

180°



MAX. LENGTH OF STIRRUP SIDE

900 mm



MIN. LENGTH OF STIRRUP SIDE

90 mm



MAX. BENDING SPEED

1050°/sec



MAX. TRACTION SPEED

75-100 m/min



TRACTION SERVICE MOTOR POWER

13KW



BENDING SERVICE MOTOR POWER

7KW
