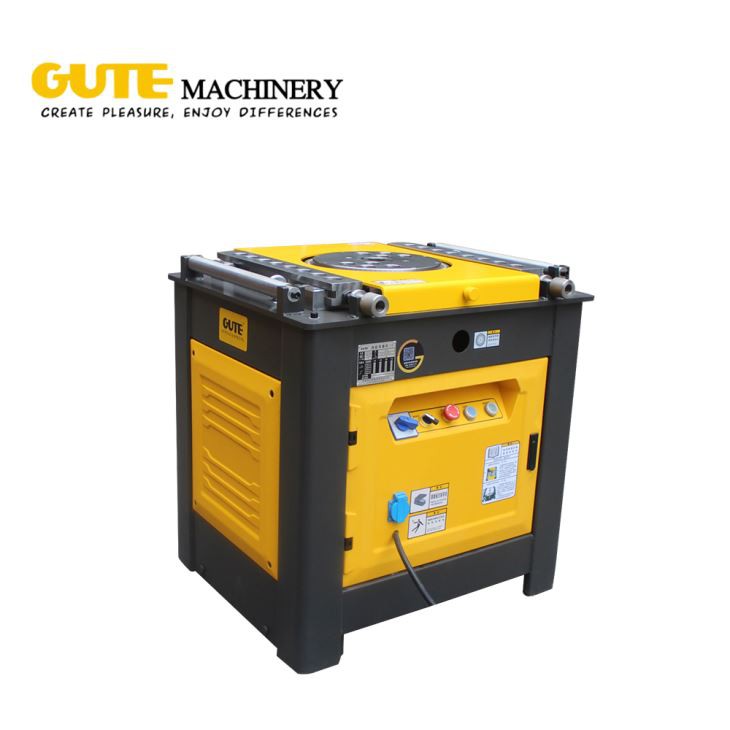

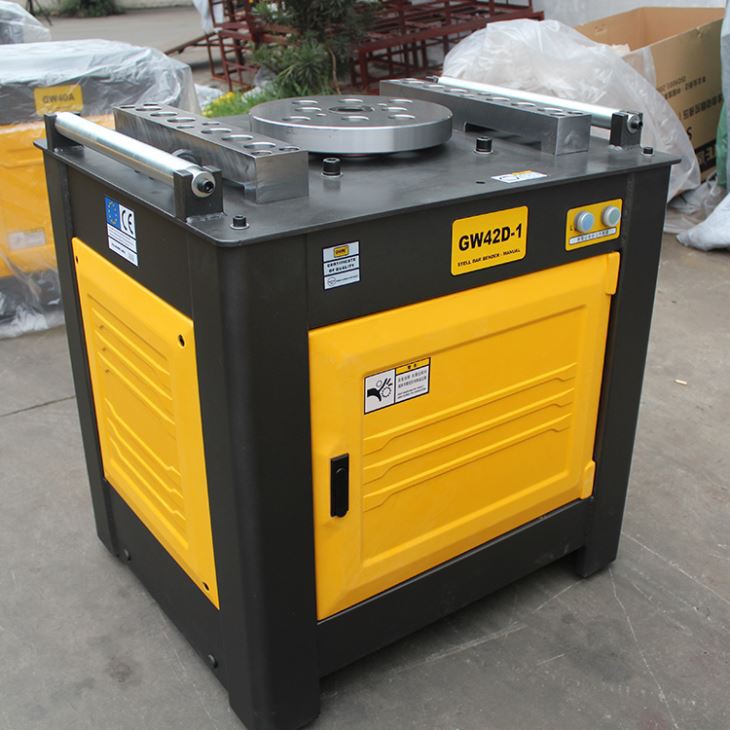

GUTE Machinery GW42D-1 Round Bar Bender

Contact this seller for accurate pricing

In stock

Features (GW42D-1):

Bending Diameter: 6-40mm

Motor Power: 3kw-4p

Motor Speed: 1430r/min

Control Way: manual

Working Disc Speed:7-10r/min

Weight: 363kg

  Chat Now
SKU: GUTE-GW42D-1-RB Categories: , Brand:

Description

Product Details


PRODUCT DESCRIPTION

•GW42D adopts the fully enclosed GEAR BOX separated from the working disk for no distortions even under the condition of heavy loads and no oil leaking while lifting the machine.

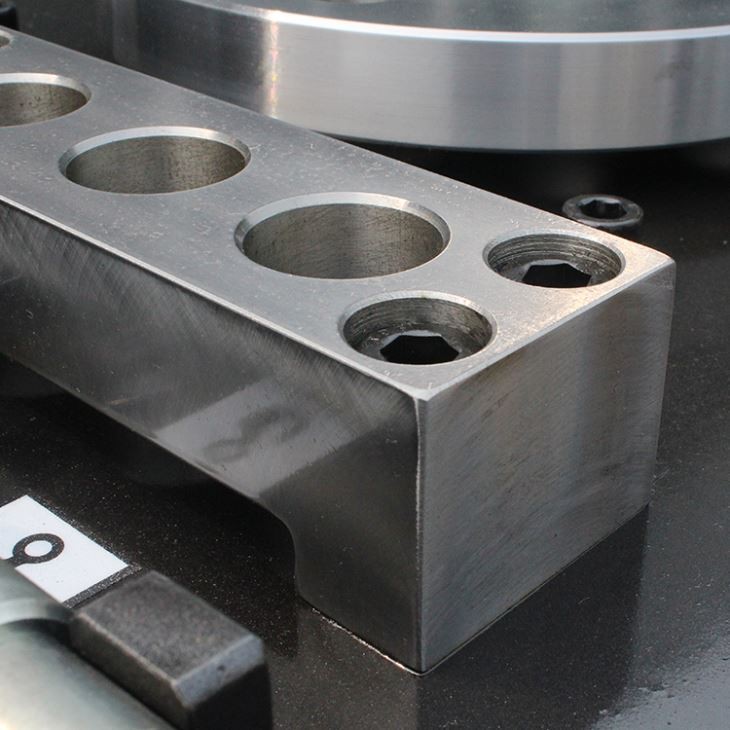

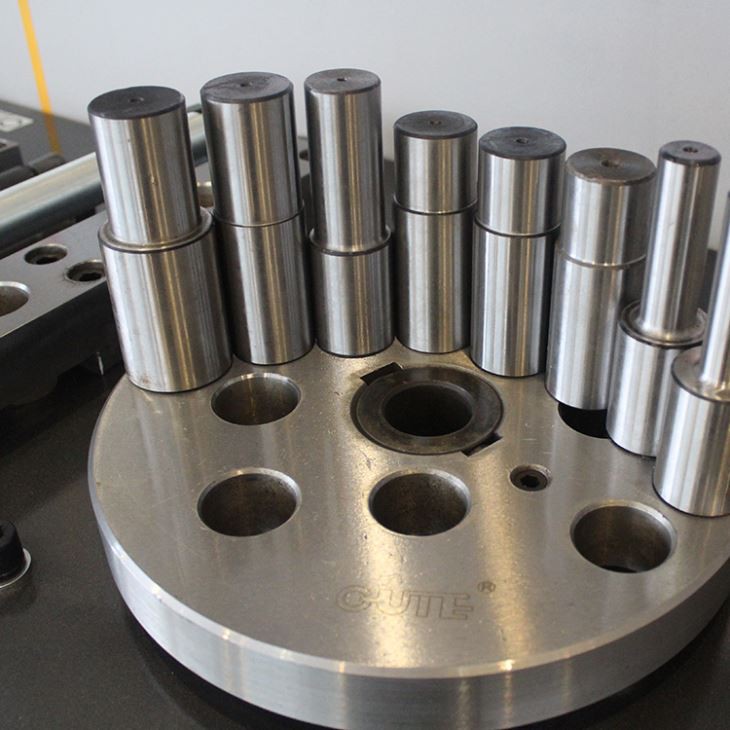

•GEARS, GEAR SHAFTS, WORKING DISK, STOP GAUGE, SADDLES, PILE HEADS and PILE HEAD BUSHES made of forged high-quality alloyed steel with proper heat treatment (quenching/ tempering/ high frequency) and 2 mm thick external case to ensure high performances also under heavy loads and long working life.

• Dust proof BRAKE MOTOR and TWO LIMIT-SWITCH to ensure the accuracy of the bending angle also after stopping and restarting.

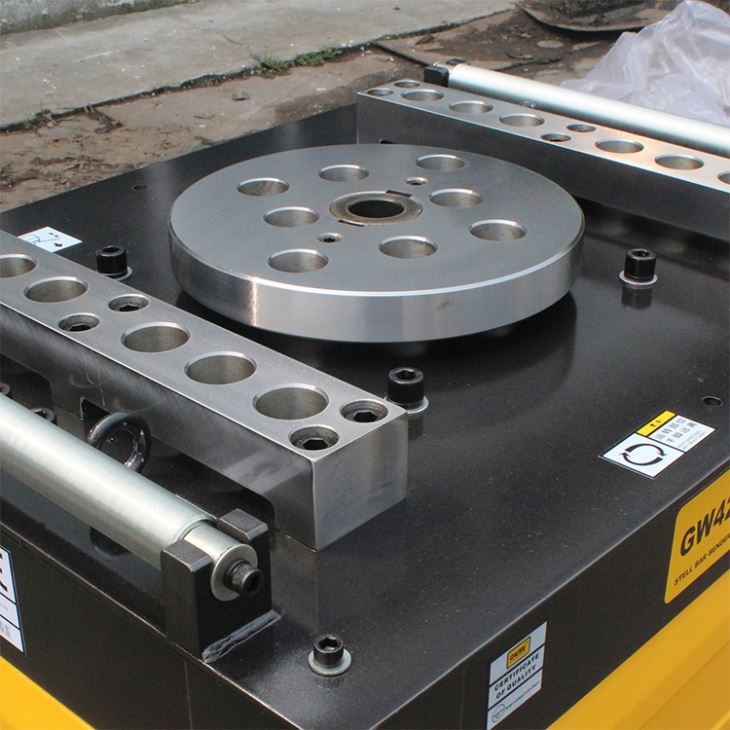

• Insert-pin type disk and movable saddles for a precise adjusting of the bending angle.

• CE Certification (2006/42/EC – 2006/95/EC).


THREE-PHASE INDUCTION MOTOR

GW42D-4 (automatic) YEJ 100L2-4 (Brake motor)

GW42D-1 (manual) Y100L2-4

• POWER: 3,0 kw-4P

• SAFETY: IP44, IP54, IP55 (dust proof)

• EFFICIENCY: 81 %

• TRASMISSION: 3° GRADE

• CE Certificate of adequacy.

* Both kinds of motors automatic and manual have 1 year warranty.

* VOLTAGE OPTIONS: any voltage from 220 to 440 / 220-380 (switchable)

* FREQUENCY OPTIONS: 50Hz / 60Hz

STEEL BAR BENDER GW42D AUTOMATIC / MANUAL

Bending Capacity

6-40 mm (ob ≤450N/mm2)

6-36 mm (ob ≤650N/mm2)

Operation

Automatic

Manual

Type of Motor

YEJ 100L2-4 (Brake motor)

Y100L2-4

Motor Power

3 KW-4P

3 KW-4P

Motor Rotation Speed

1430 R/min

1430 R/min

Speed of Working Disk

12 R/min

12 R/min

Noise Value (1m away)

≤75dB(A)

≤75dB(A)

Weight

360 Kg.

320 Kg.

Dimension

810*760*860 mm

810*760*860 mm

Certification

2006/42/EC    –  2006/95/EC / ISO 9001:2008
