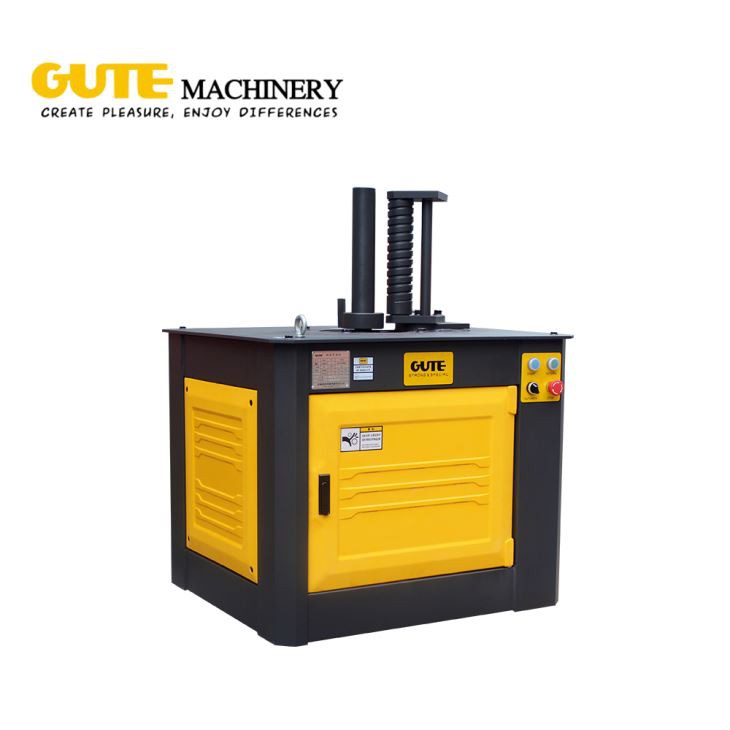

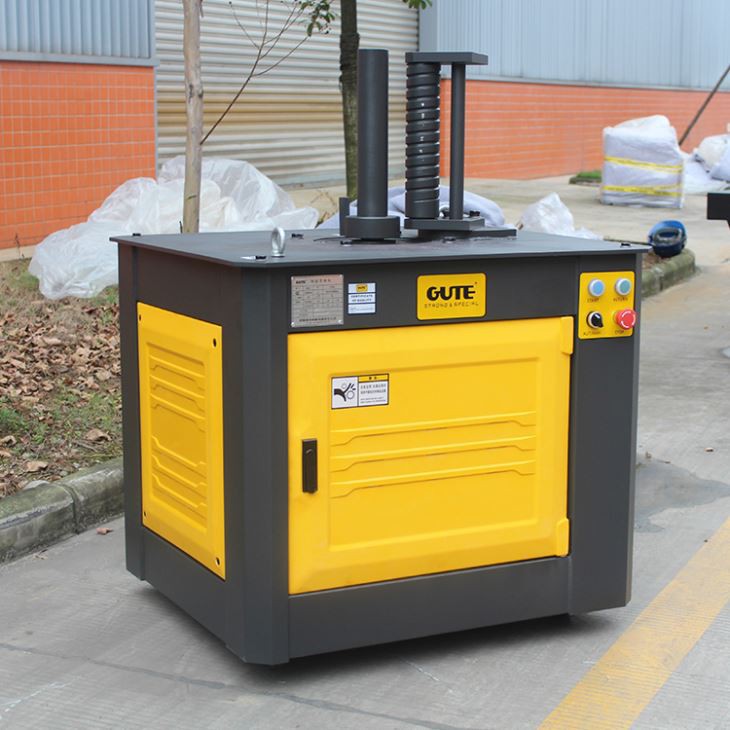

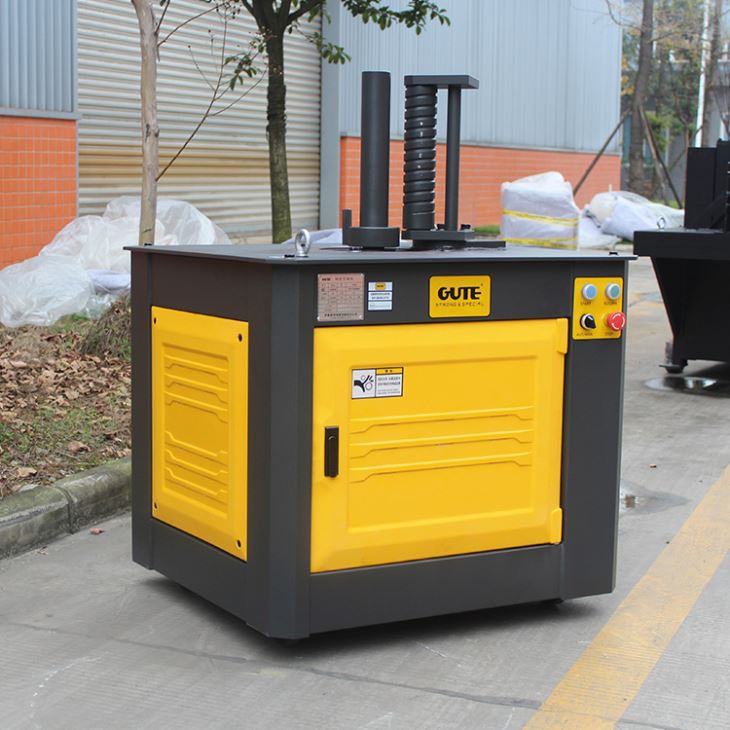

GUTE Machinery GQW30-25 Reinforced Bar Bending Machine
Features (GQW30-25):
Bending Diameter: 6-30mm
Cutting Diameter: 6-25mm
Motor Power: 2.2kw-4p
Motor Speed: 1430r/min
Control Way: automatic/manual
Working Disc Speed: 11r/min
Weight: 315kg
Description
Product Details
• GQW30/25 adopts the fully enclosed GEAR BOX in alluminum separated from the working disk for no distortions even under the condition of heavy loads and no oil leaking while lifting the machine.
• GEARS, GEAR SHAFTS, WORKING DISK, BACKGAUGE, SADDLES, PILE HEADS and PILE HEAD BUSHES made of forged high-quality alloyed steel with proper heat treatment (quenching/ tempering/ high frequency) and 2 mm thick external case to ensure high performances also under heavy loads and long working life.
• Dust proof motor and TWO LIMIT-SWITCH to ensure the accuracy of the bending angle also after stopping and restarting.
• Heat treated BLADES (4 edges) to combine an accurate bending with a precise cutting.
MOTOR TYPE
GQW30/25 (manual)
• MOTOR TYPE: Y 100L2-4 DUST PROOF
• MOTOR POWER: 3,0 kw-4P
* Motor has 1 year warranty.
* VOLTAGE OPTIONS: any voltage from 220 to 440 / 220-380 (switchable)
* FREQUENCY OPTIONS: 50Hz / 60Hz
|
STEEL BAR BENDER-CUTTER GQW30/25 |
||
|
Bending Capacity |
6-30 mm (ob ≤450N/mm2) |
6-25 mm (ob ≤650N/mm2) |
|
Cutting Capacity |
6-25 mm (ob ≤450N/mm2) |
6-20 mm (ob ≤650N/mm2) |
|
Operation |
Manual |
|
|
Type of Motor |
Y 100L2-4 |
|
|
Motor Power |
2.2 KW-4P |
|
|
Motor Rotation Speed |
1430 R/min |
|
|
Speed of Working Disk |
11 R/min |
|
|
Noise Value (1m away) |
≤80dB(A) |
|
|
Weight |
360 Kg. |
|
|
Dimension |
990*1000*1150 mm |
|
|
Certification |
ISO 9001:2008 |
|
