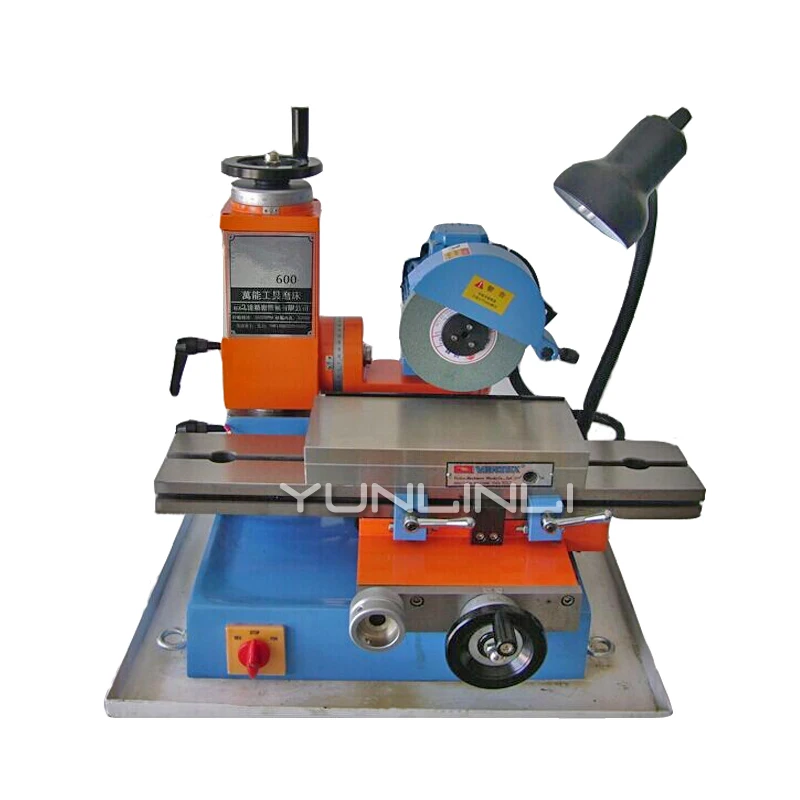

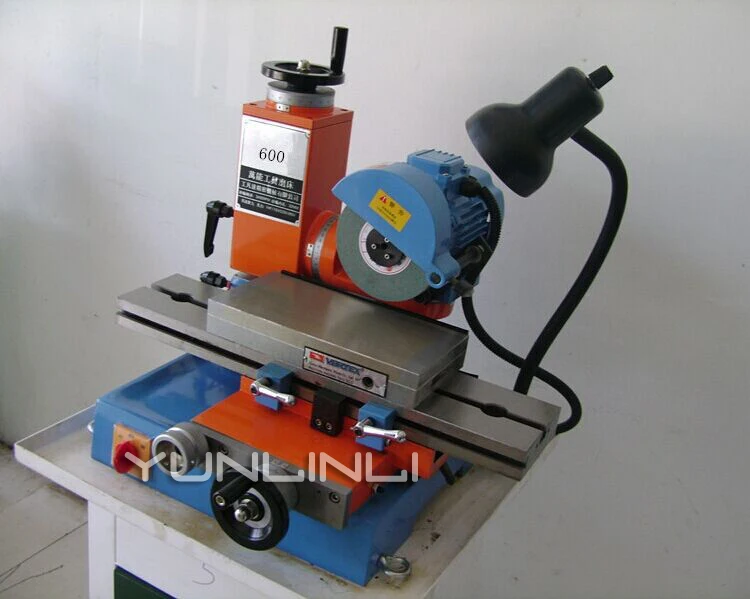

Grinding Machine Universal Tools 380V/220V Surface Grinder Milling Cutter Sharpening Machine 600 type – with Magnetic table

600 Universal Tool Grinding Machine 380V 220v Small Surface Grinder Milling Cutter Sharpening Machine

Performance:

1. Precision swallowtail groove guide rail is adopted. The bed is stable and easy to operate.

2, the motor can rotate 360 °, increase the mechanical function and scope of grinding.

3. Various grinding accessories can be added to complete the grinding of various knives.

4. Simple setting.

5. Easy operation.

6. Accurate and fast grinding.

Universal tool grinder is equipped with all kinds of clamps for grinding tool, three-side edge milling cutter, end milling cutter,

Gear hob, drill bit, round tool, saw blade, tap and other mechanical cutting tools.

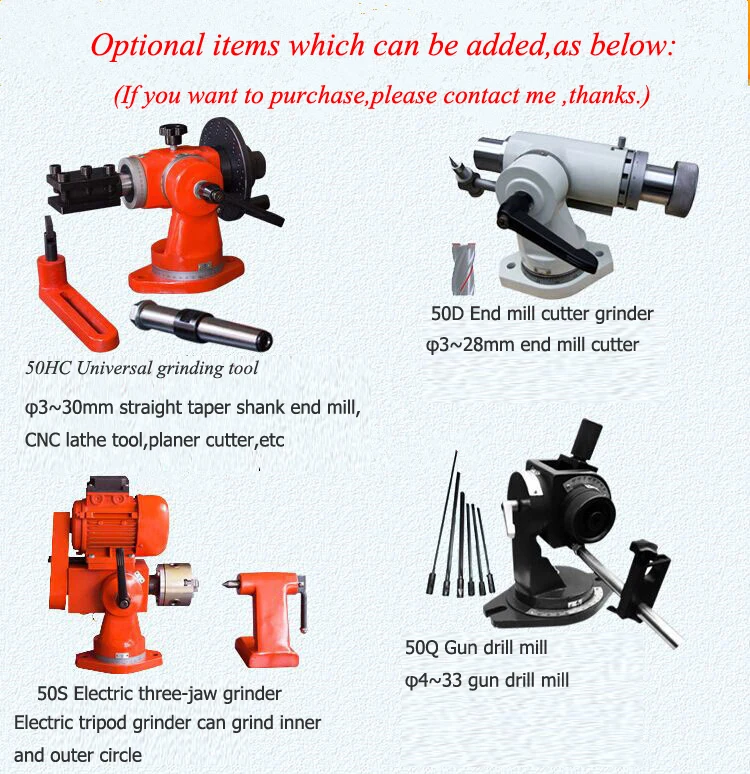

If you want to equipped with 50HC accessories, you can repair grinding round knives, gear hob, circular saw blades, all kinds of turning knives and so on.(All kind of grinding tool need to extra purchase)

Product parameter:

Left and right stroke of workbench: 280mm

Front and rear stroke of the workbench: 150mm

Table area: 130mmx520mm

Lifting distance of grinding wheel head: 250mm

Grinding wheel head rotation Angle: 360 °

Size of grinding wheel: 125 x 50 x 32mm

Grinding wheel speed: 2800 RPM

Motor pressure, horsepower: 3/4p,220V/380V

Net weight/gross weight: 150kgs/160kgs

Packing size: 690x 700 x 800mm

Voltage:380v,

If you want 220V, it need to paid extra USD30.00 to customized it,thanks.

**Note**The above optional tool set can be purchase for your need,  if you want to buy it together,please contact me,thanks.
