European Quality Turkish CNC Router Machine Woodworking ATC Nesting Drilling Boring Surface Design Cutting Saw
The European-quality Turkish CNC Router Machine is a reliable woodworking tool built for tasks like ATC nesting, drilling, boring, surface design, and cutting. Combining precision engineering with advanced technology, it offers superior performance for intricate woodworking projects, ensuring efficiency and accuracy.
Description
Product descriptions from the supplier

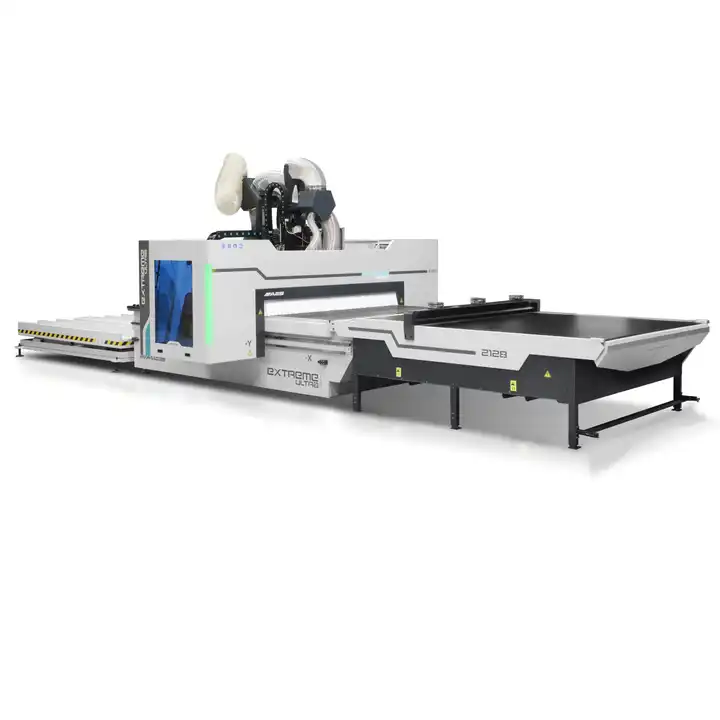

Extreme Ultra offers high-end solutions for your nesting and hole applications with its strong body structure and advanced

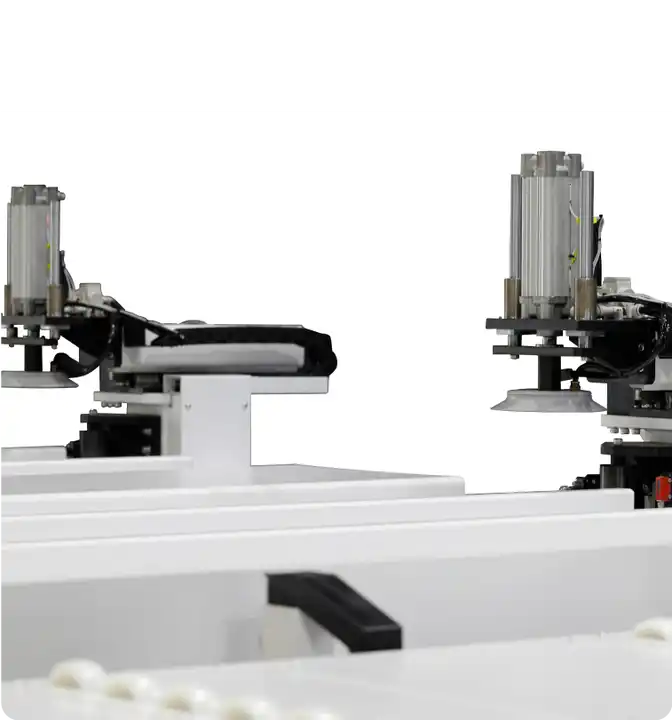

configuration. It enables flexible production with its structure that can perform different applications in a single machine. With its fully automatic production line, the machine automatically performs the loading and unloading operations. It is possible to process different types of materials such as wood, plastic, alucobond, aluminum, composite etc. with the machine.
www.boygatech.com
+90 552 694 59 34 (Whatsapp available)
[email protected]

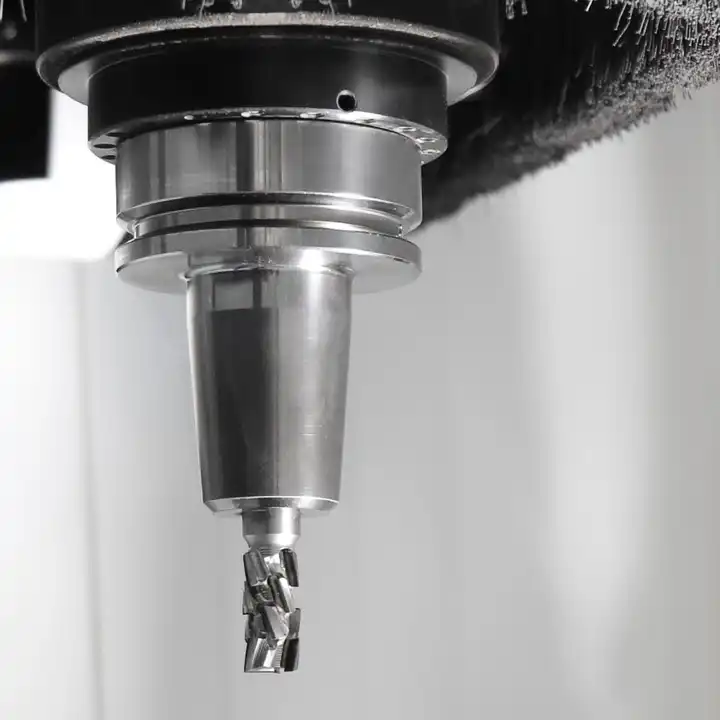

The state-of-the-art spindle motor with 9 kW HSK F63 connection allows you to get excellent results in your milling applications including 3D machining. Perform your special machinings on a single machine with optional 4 axes configuration. Make flexible production with different aggregate options.
hole unit adaptable to
customer needs

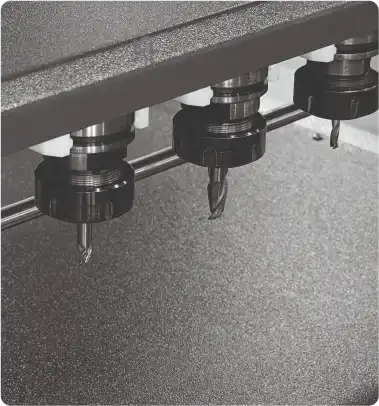

Performance drilling unit, vertical hole, side hole and grooving applications of different diameters can be realized.

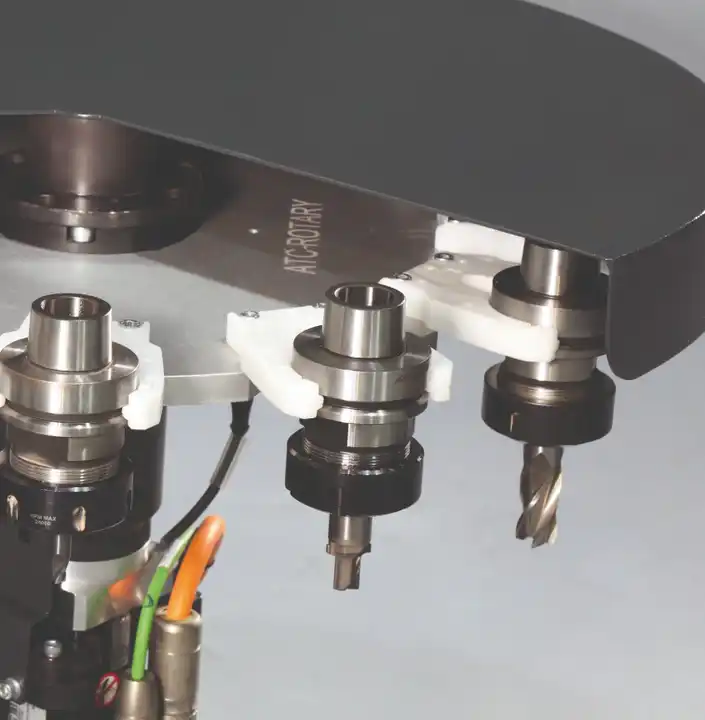

MOBİLE DOFFİNG (TOOL CHANGİNG) UNİT
FİXED DOFFİNG (TOOL CHANGİNG) UNİT
|
Working area : 1300×2500 / 2100×2800 / 2100×3200 / 2100×3600 / 2100×4200
Z Axis : 200 mm
Spindle Motor Power : 9 kW HSK F63 Spindle Motor
Spindle Engine Speed : 24.000 rpm
Magazine Unit : Rotary (8 tools capacity)
Boring Unit : 10 Vertical Hole Group
Tool Change : Automatic
Tool Length Measurement : Automatic
Lubrication System : Automatic Centralized Lubrication CAD/CAM Program : Alphacam Essential 2D (One Post)
Working Table : HPL Compact Laminate Table
Axis Speeds (X-Y-Z) : 80 – 80 – 20 m/min
Vacuum Pump : 250 m³/h Eurovac
Vacuum Area : 6 Zone
Control Unit : PC Based
Installed Power : 30kw
Weight : 3500 kg
|
Boygatech operates with years of experience in the machinery sector with high quality and high efficiency. In order to increase the effectiveness of our company in the international market, we carry forward our export targets in our field of expertise.
We offer an experience beyond the demands and expectations of our customers by quickly adapting our machines to the developing technology. Our main priority is customer satisfaction, energy saving, efficiency and domestic production.
Our company serves as a direct factory sales point. Our company has edge banding machines, CNC drilling machines, CNC router, mdf multiple rip saw machines, wooden door production machines, wrapping machines, painting machine, packaging machines.
Our company also carries out turnkey wooden door and furniture factory projects.
